Toyota COROLLA 挡泥板和扰流板 — Figure 7601

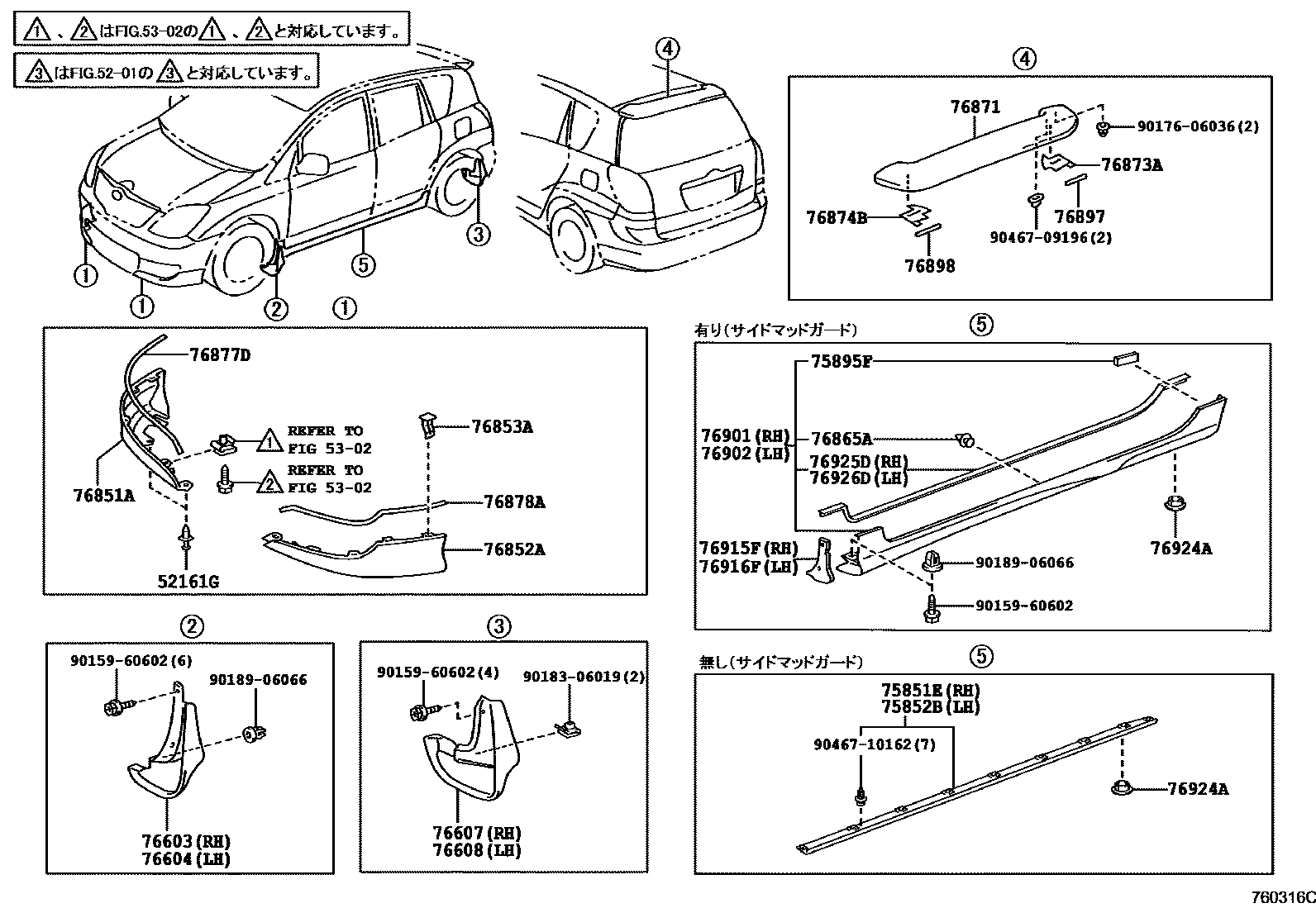

Toyota COROLLA EPC diagram 7601, 挡泥板和扰流板, with 2 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52161G | Rear bumper insert | 52161-16010 |
| 75851E | Right body door sill panel protection strip | 75851-12091 |
| 75852B | Left body door sill panel protection strip | 75852-12061 |
| 75895F | No. 1 protective strip tape | 75895-13010 |
| 76853A | No. 1 front spoiler fixings | 76853-10010 |
| 76865A | Side fender fixings | 67771-16170 · 75867-33030 |
| 76873A | Right rear spoiler protective strip | 76783-13010 |
| 76874B | Left rear spoiler protective strip | 76784-13010 |
| 76897 | Right rear spoiler protection strip | 76897-13040 |
| 76898 | Left rear spoiler protection strip | 76897-13040 |
| 76915F | Right front fender | 76915-13020 |
| 76916F | Left front fender | 76916-13020 |
| 76924A | No. 2 side fender fixings | 76924-52021 |
