Toyota COROLLA 后防护条 — Figure 7504

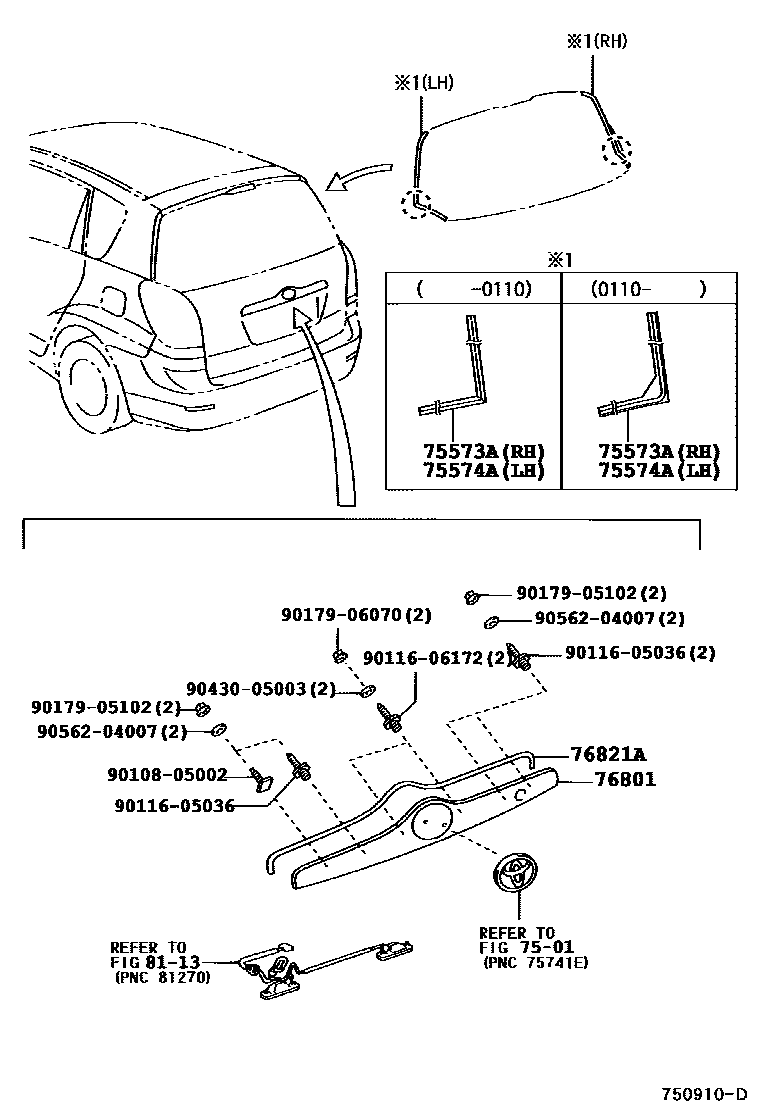

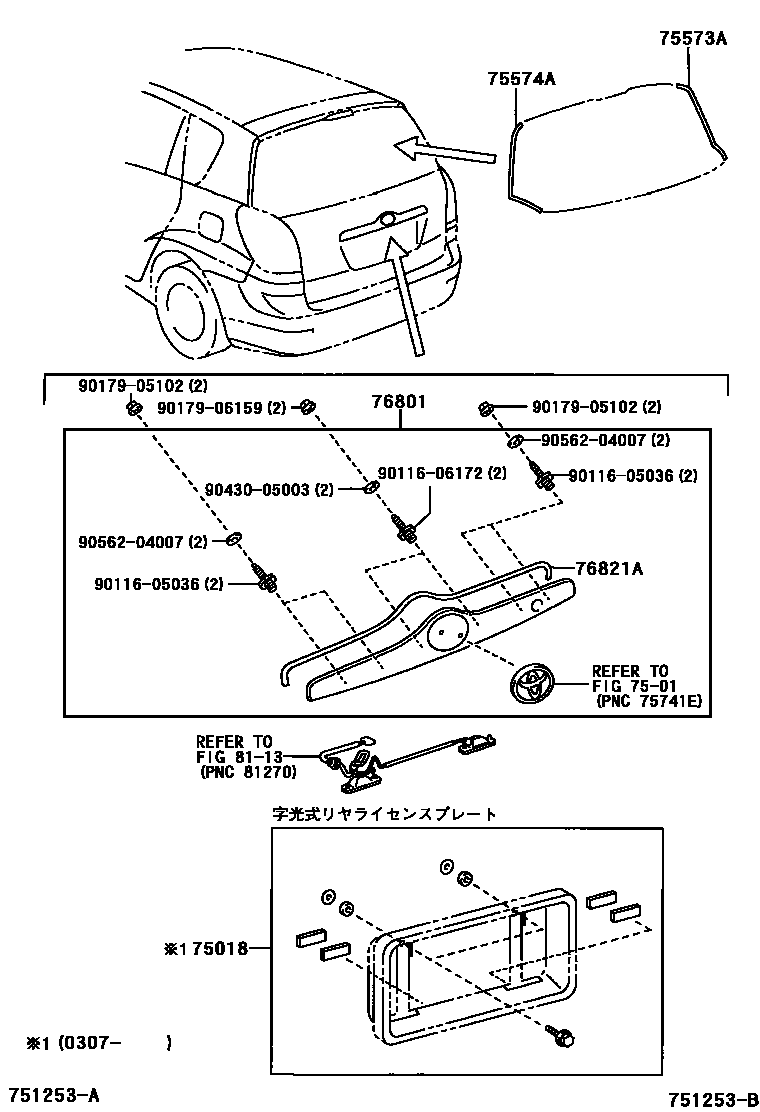

Toyota COROLLA EPC diagram 7504, 后防护条, with 2 images and 4 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 75018 | Rear license plate frame sub-assembly | 75010-13010 |
| 75573A | Right outer protective strip of back window | 75573-13070 · 75573-13080 |
| 75574A | Rear window left outer protective strip | 75574-13020 · 75574-13030 |
| 76821A | Luggage door outer decorative strip protective cover | 76821-13040 |
