Toyota COROLLA 侧防护条 — Figure 7503

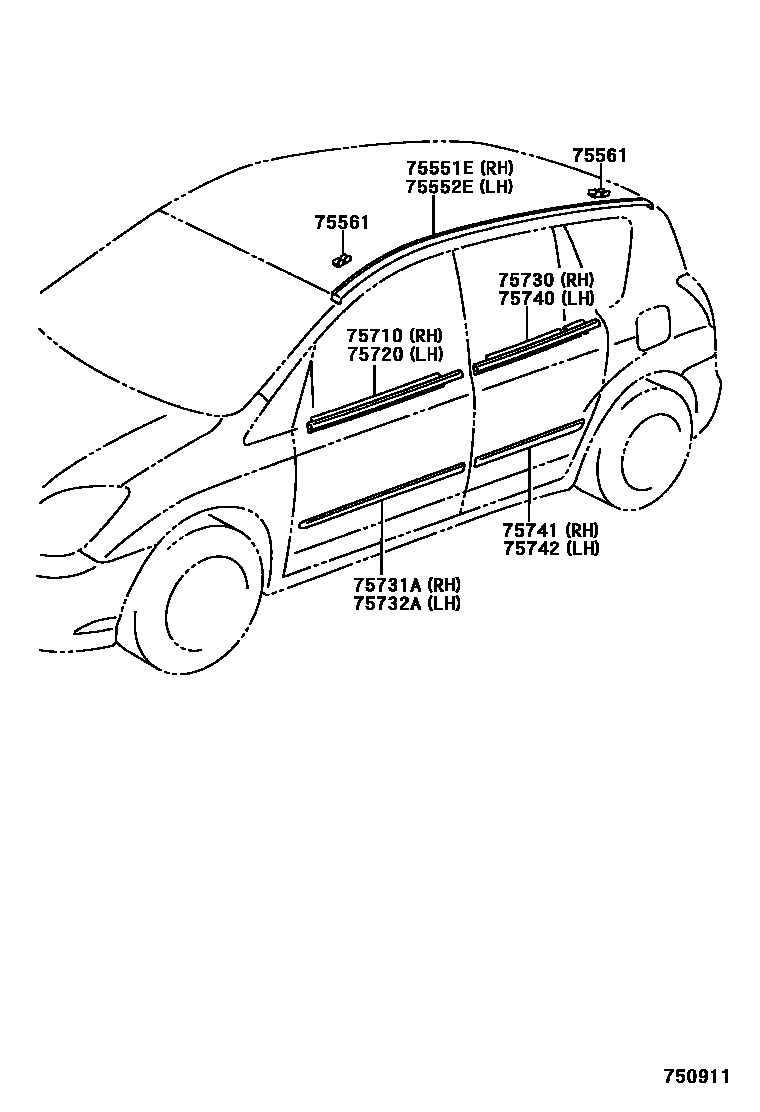

Toyota COROLLA EPC diagram 7503, 侧防护条, with 1 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 75551E | Drainage groove side decorative strip on the right side of the roof | 75551-13160 · 75551-13161 |
| 75552E | Drainage groove side decorative strip on the left side of the roof | 75552-13160 · 75552-13161 |
| 75561 | No. 1 roof drain channel side decorative strip clip | 75561-52020 |
| 75710 | Right front door waistline protection strip assembly | 75710-13040 · 75710-13041 |
| 75720 | Left front door waistline protection strip assembly | 75720-13040 · 75720-13041 |
| 75730 | Right rear door waistline protection strip assembly | 75730-13060 · 75730-13061 |
| 75740 | Left rear door waistline protection strip assembly | 75740-13060 · 75740-13061 |
