Toyota COROLLA 警示铭牌(车外和车内) — Figure 7403

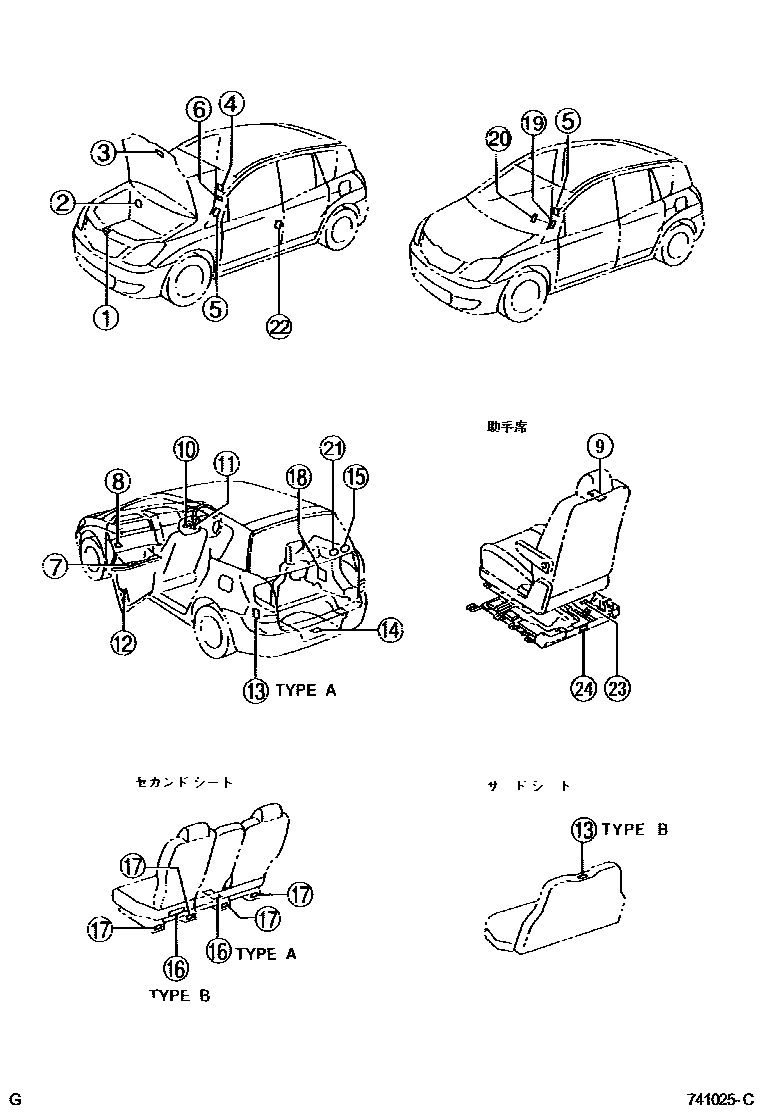

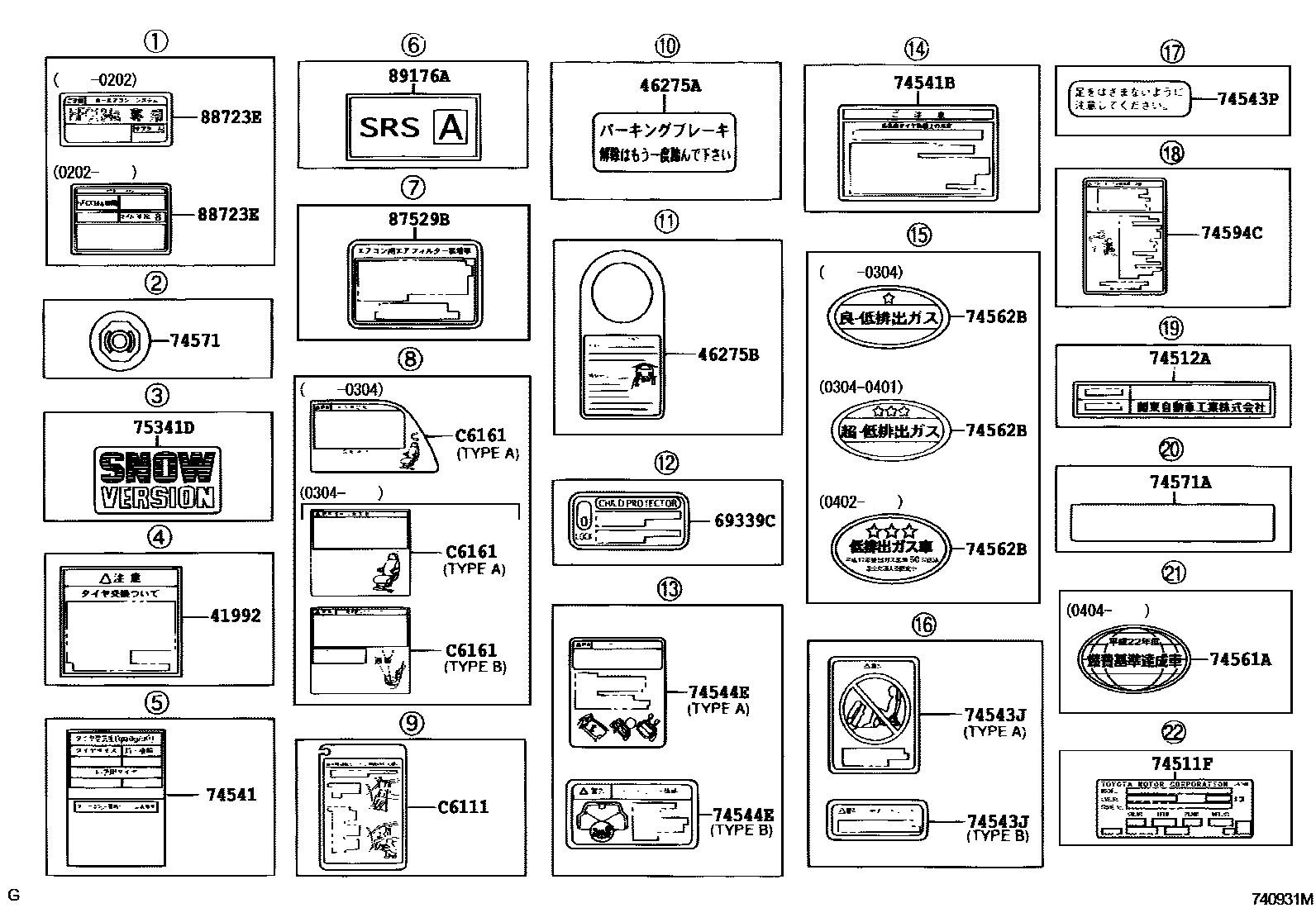

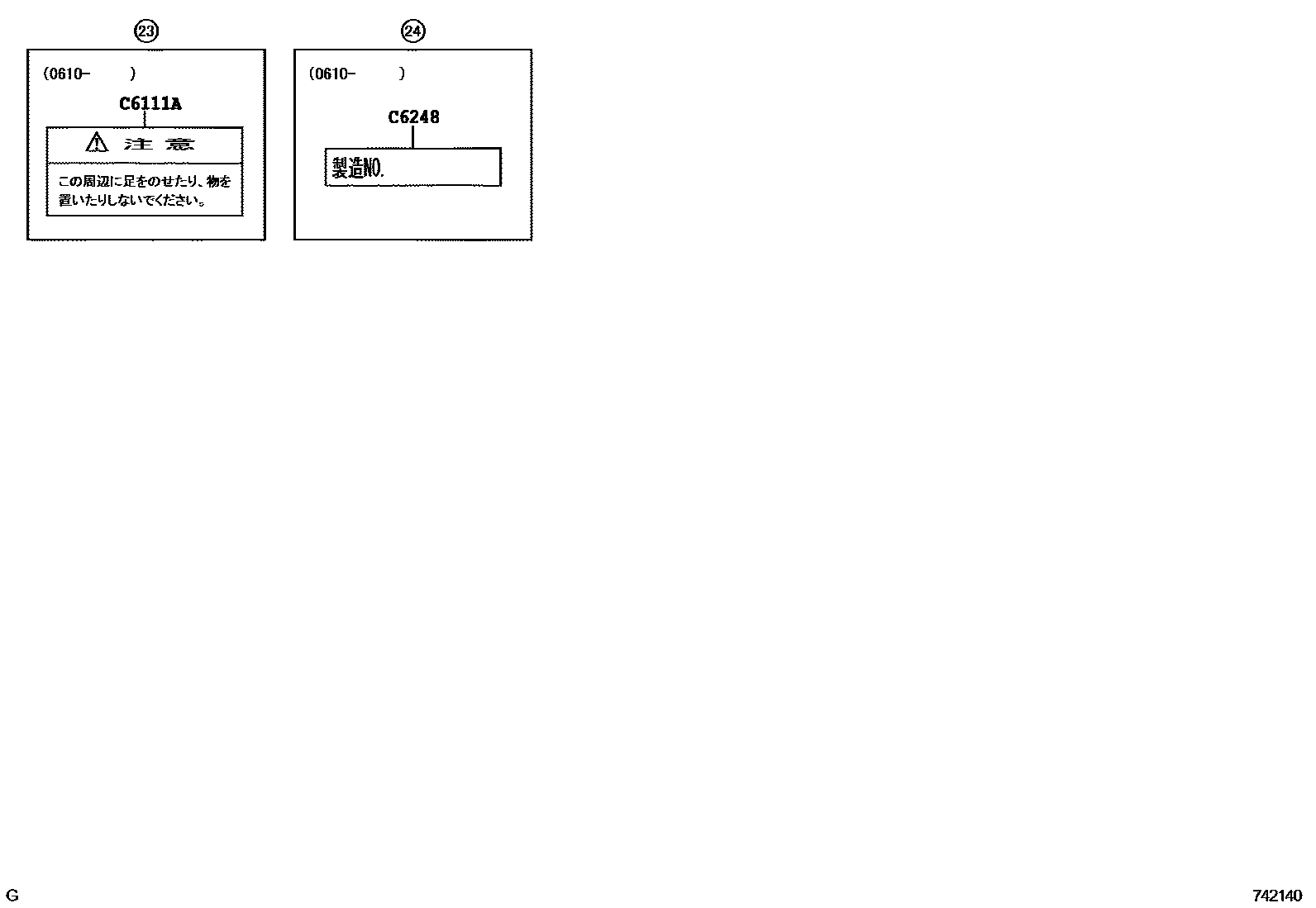

Toyota COROLLA EPC diagram 7403, 警示铭牌(车外和车内), with 3 images and 24 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 41992 | Differential attention label | 41992-33010 |
| 46275A | No. 1 parking brake release information label | 46275-32010 |
| 46275B | No. 2 parking brake release information label | 46275-47010 |
| 69339C | Child Restraint Information Label | 69339-12010 |
| 74511F | Nameplate (laser identification label) | 74511-2B300 |
| 74512A | Identification number plate | 74512-43010 |
| 74541 | tire pressure warning plate | 42661-12A60 · 42661-12A70 · 42661-13210 · 42661-13220 · 42661-13230 · 42661-1E130 · 42661-1E150 |
| 74541B | Small spare tire warning plate | 42668-28060 |
| 74543J | rear seat warning label | 74543-13180 · 74543-13190 |
| 74543P | rear seat warning label | 74543-13230 |
| 74544E | Rear seat number 2 information label | 74544-13040 · 74544-13050 · 74544-13060 |
| 74561A | fuel consumption information label | 74561-52010 |
| 74562B | Emission information label | 74562-12610 · 74562-40040 · 74562-40050 |
| 74571 | Brake fluid warning plate | 47287-12010 |
| 74571A | Label cover protective film | 74571-43010 |
| 74594C | winch warning label | 74594-13010 |
| 75341D | engine cover plate | 75341-20060 |
| 87529B | Cabin filter information label | 87529-50020 |
| 88723E | Cooler maintenance warning label | 88723-22060 · 88723-42050 · 88733-12010 · 88733-17010 |
| 89176A | Air bag deployment information label | 89176-32010 |
| C6111 | Safety warning nameplate | C6111-18060 |
| C6111A | Safety warning nameplate | C6111-22050 |
| C6161 | Electric Lift Warning Label | C6161-18060 · C6161-22270 · C6161-22470 · C6161-D1070 · C6161-D1091 |
| C6248 | Body number label | C6248-D1170 |
