Toyota COROLLA 扶手和遮阳板 — Figure 7401

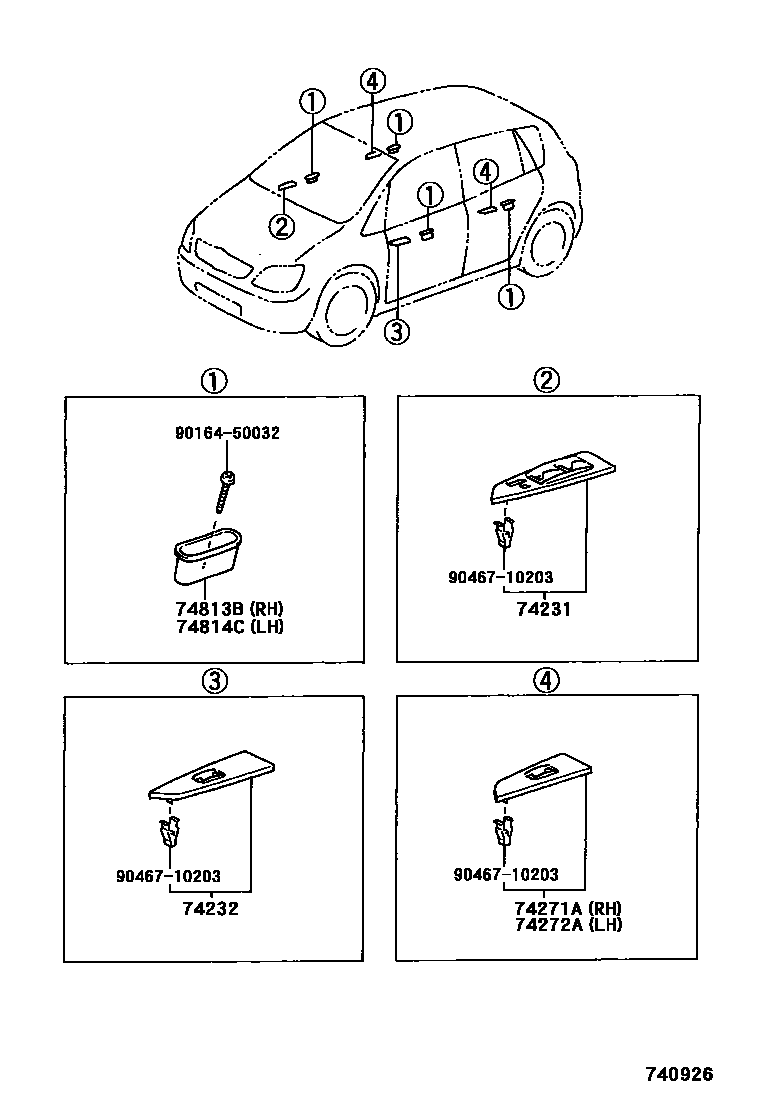

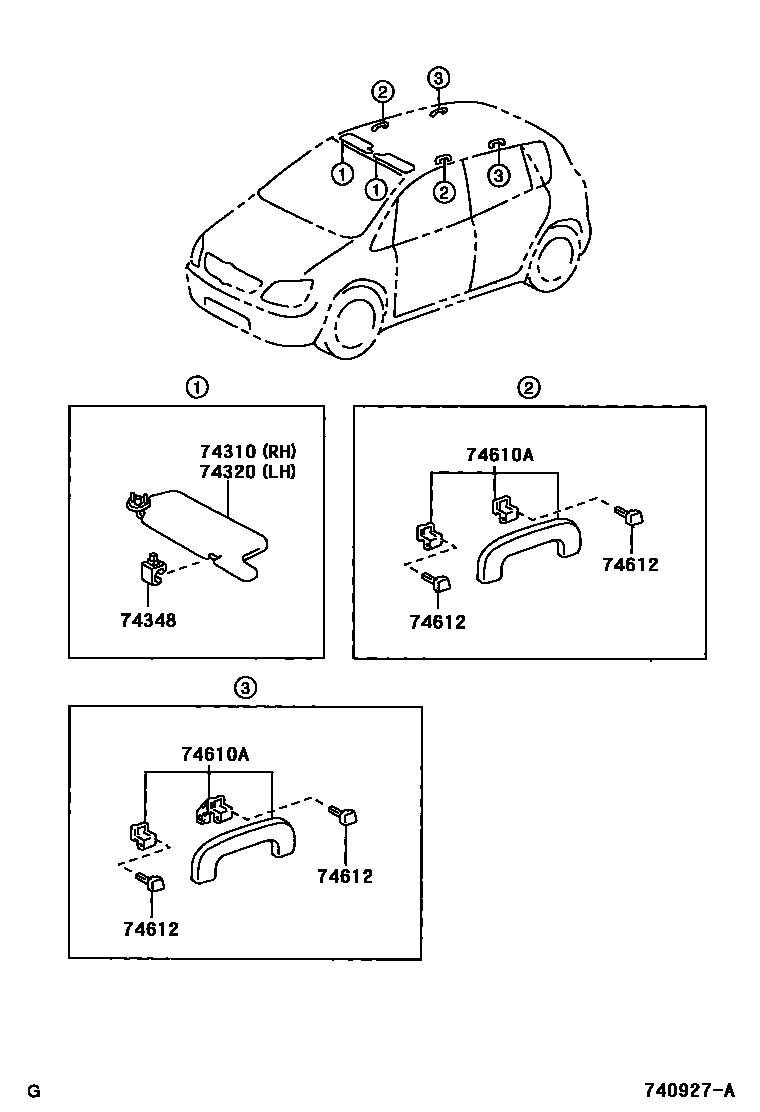

Toyota COROLLA EPC diagram 7401, 扶手和遮阳板, with 2 images and 4 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 74231 | Right front armrest upper panel | 74231-13080 · 74231-13090 · 74231-13180 |
| 74232 | Left front armrest upper panel | 74232-13040 · 74232-13050 · 74232-13140 |
| 74271A | Right rear door armrest upper panel | 74271-13020 · 74271-13030 · 74271-13080 |
| 74272A | Left rear door armrest upper panel | 74272-13020 · 74272-13030 · 74272-13080 |
