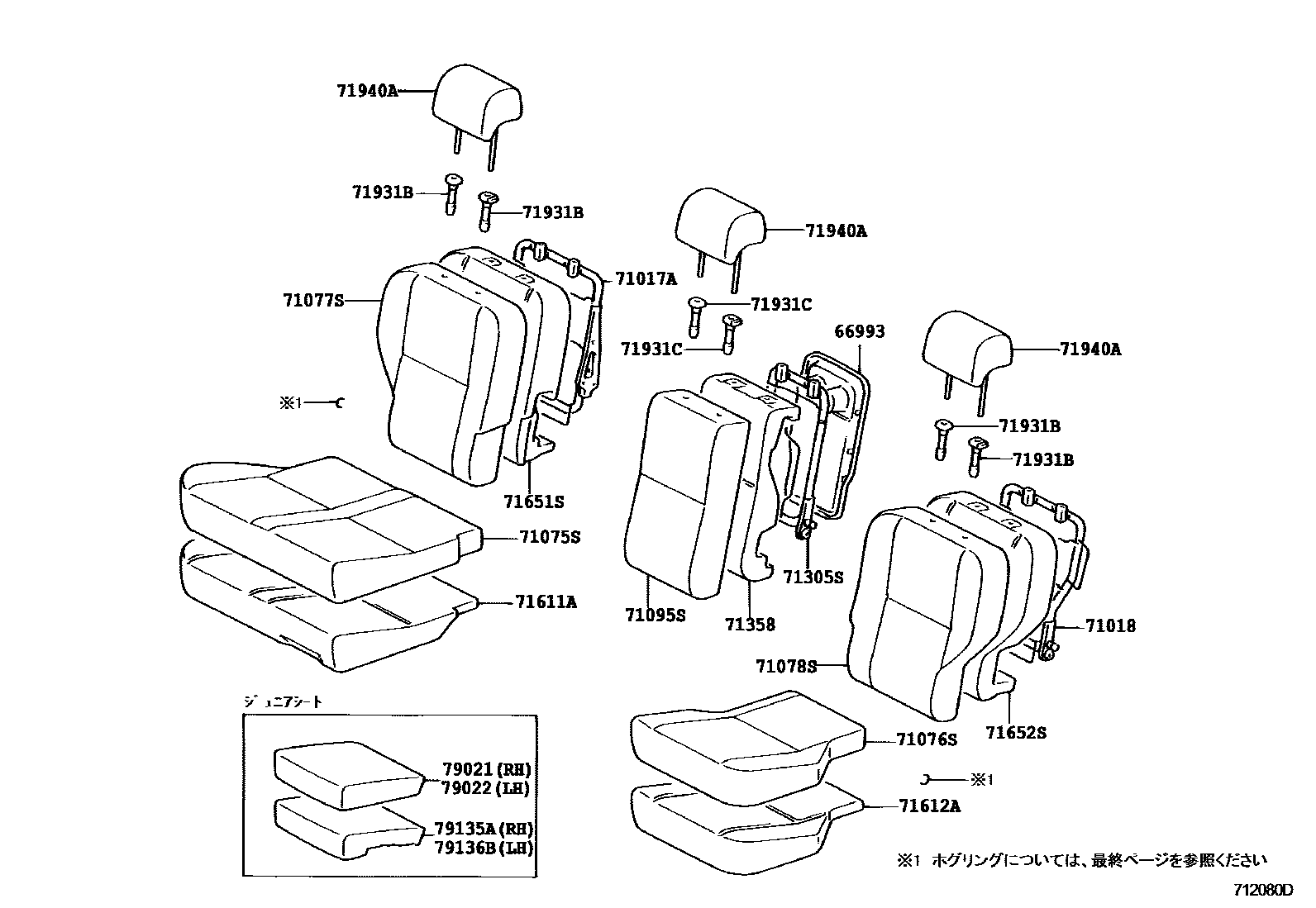

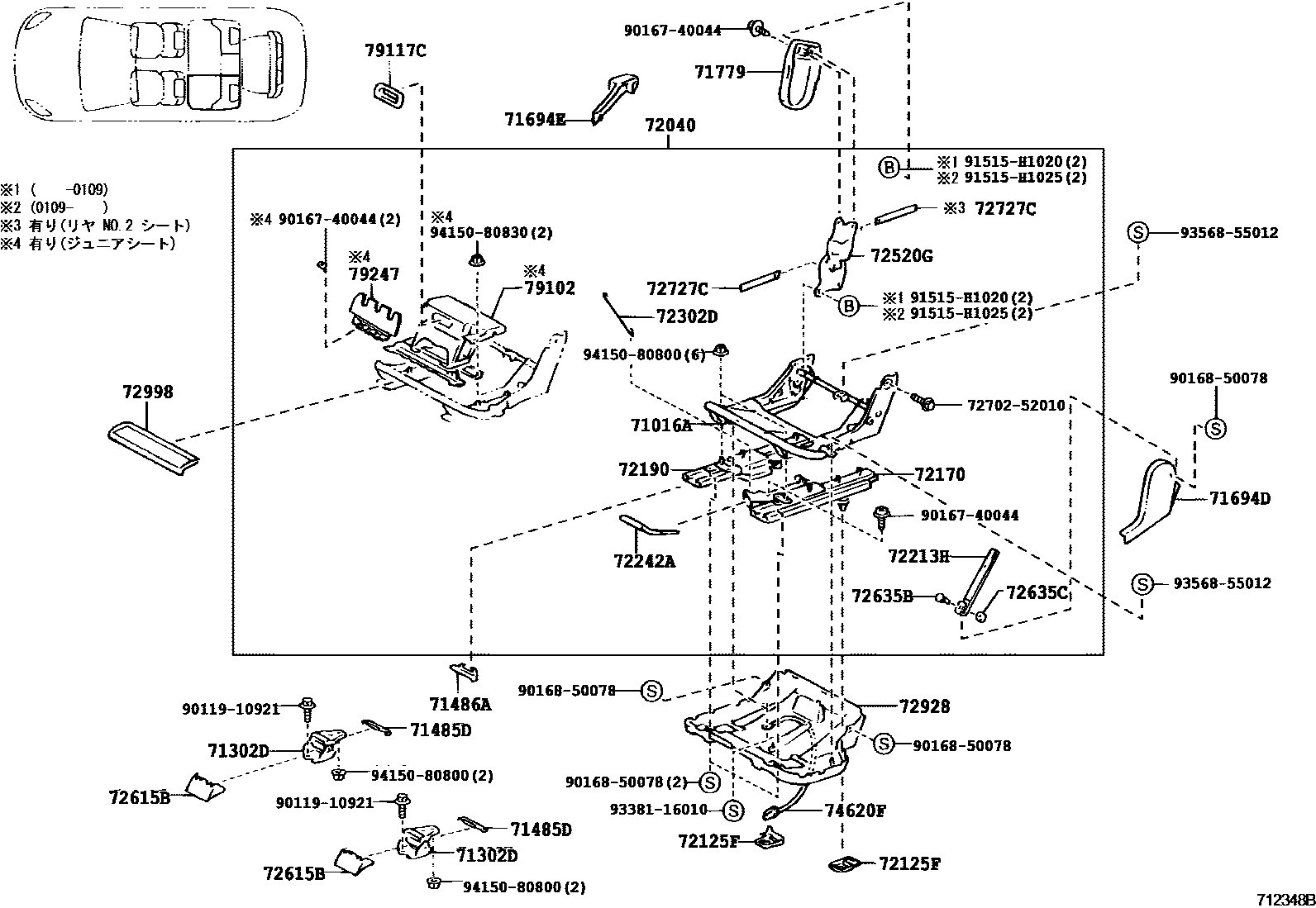

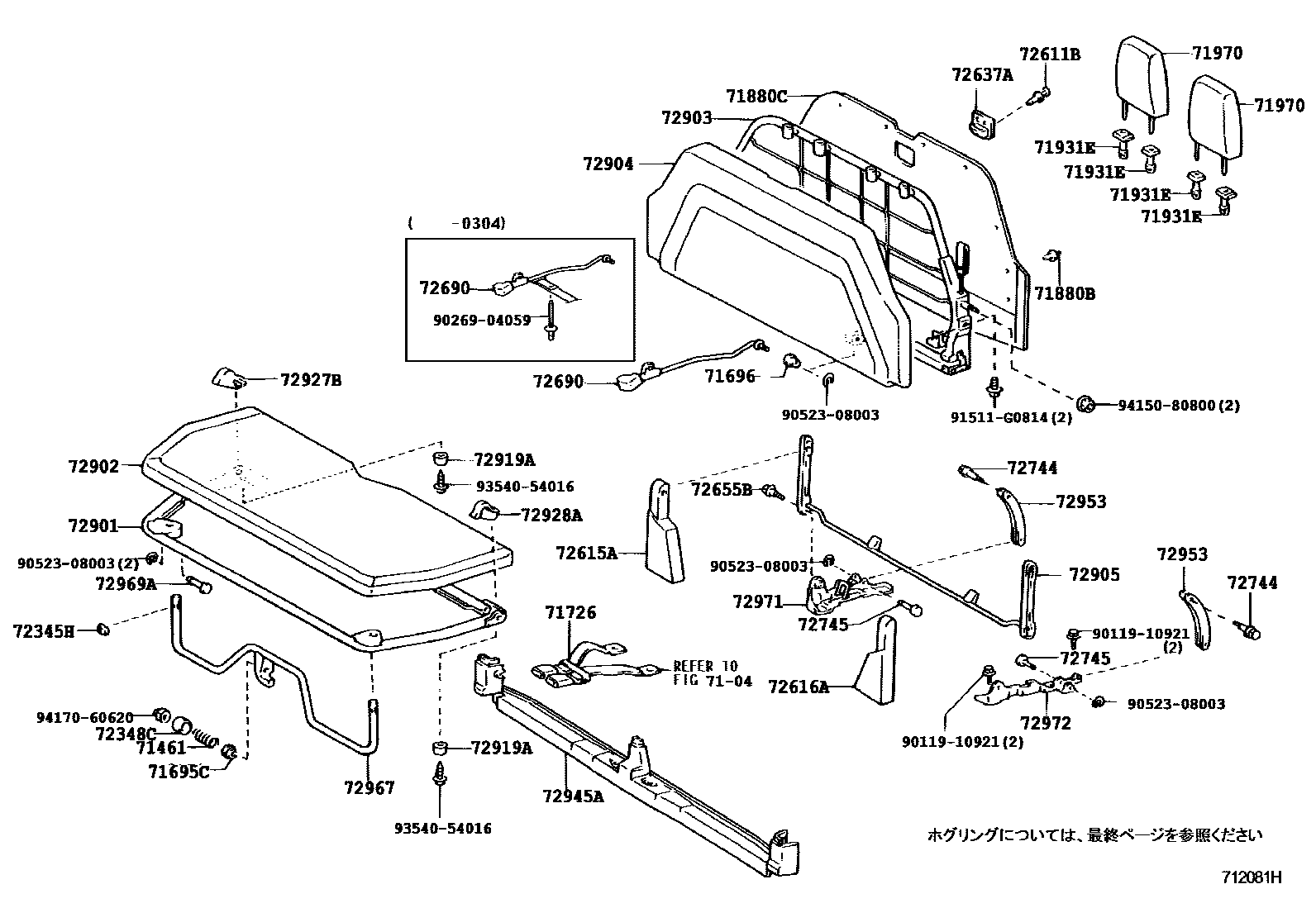

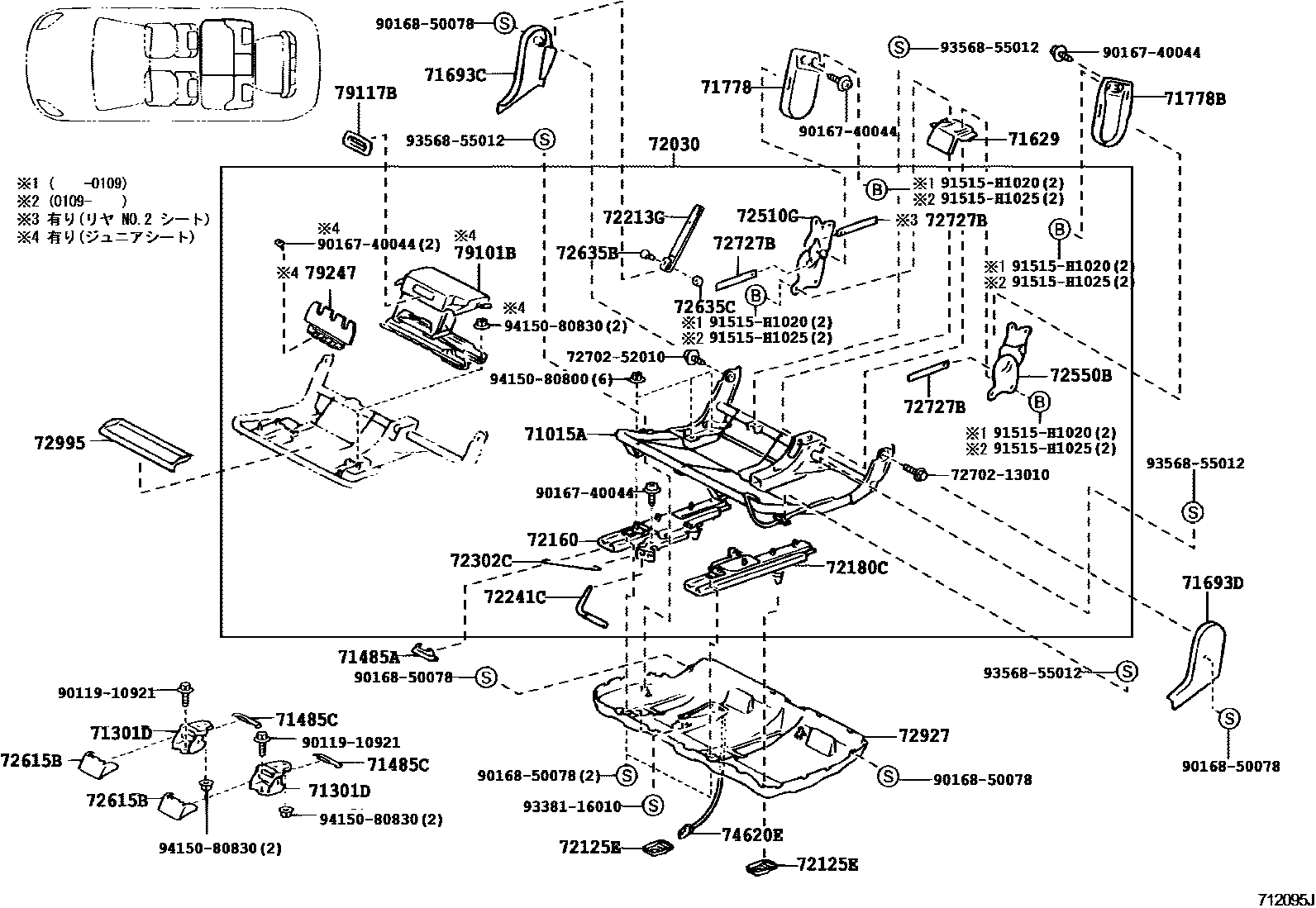

Toyota COROLLA 后排座椅和座椅滑轨 — Figure 7102
Toyota COROLLA EPC diagram 7102, 后排座椅和座椅滑轨, with 5 images and 48 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 71015A | Rear right seat cushion frame sub-assembly | 71015-13100 · 71015-1F010 |
| 71016A | Rear left seat cushion frame sub-assembly | 71016-13070 · 71016-13080 |
| 71017A | Rear seat back frame sub-assembly | 71017-13260 |
| 71018 | Rear left seat back frame sub-assembly | 71018-13110 |
| 71301D | Rear right seat hinge sub-assembly | 71301-13090 |
| 71302D | Rear left seat hinge sub-assembly | 71302-13080 |
| 71305S | Center seat back frame sub-assembly | 71305-13020 · 71305-13030 |
| 71358 | Center seat back cushion | 71365-13010 · 71365-13020 |
| 71461 | Rear seat cushion spring | 71461-13020 |
| 71611A | Rear right seat cushion | 71611-13270 · 71611-13280 |
| 71612A | Rear left seat cushion | 71612-13130 · 71612-13140 |
| 71651S | Rear right seat back cushion (for split seats) | 71651-13300 |
| 71652S | Rear left seat back cushion (for split seats) | 71652-13180 |
| 71695C | Rear seat No. 1 protective cover | 71695-13020 |
| 71696 | Protective cover for rear seat No. 2 | 71696-13010 |
| 71726 | Rear seat belt guide fixing strap | 71726-13010 |
| 72125E | Slide rail cover on right rear seat | 72125-13020 |
| 72125F | Slide rail cover on left rear seat | 72125-13020 · 72125-13030 |
| 72160 | Rear right seat outer slide rail assembly | 72160-13050 · 72160-13060 |
| 72170 | Rear left seat outer slide rail assembly | 72170-13050 · 72170-13060 |
| 72180C | Rear right seat inner slide rail assembly | 72180-13030 · 72180-13040 |
| 72190 | Rear left seat inner slide rail assembly | 72190-13030 · 72190-13040 |
| 72241C | Right seat outer slide rail locking lever | 72241-13010 |
| 72242A | Left seat outer slide rail locking lever | 72242-13010 · 72242-13020 |
| 72302C | Rear right seat slide rail balance harness sub-assembly | 72302-13010 |
| 72302D | Rear left seat slide rail balance harness sub-assembly | 72302-13020 |
| 72345H | Seat base frame cover | 72345-13060 |
| 72348C | Seat base spring retaining bracket | 72348-13010 |
| 72510G | Rear right seat backrest inclination outer adjuster assembly | 72510-13040 · 72510-13050 |
| 72520G | Rear left seat backrest tilt outer adjuster assembly | 72520-13040 |
| 72550B | Right center seat backrest angle adjuster assembly | 72550-13010 · 72550-13020 |
| 72655B | Rear seat back lever pin | 72655-13020 |
| 72690 | Seat cushion lock release lever assembly | 72690-13030 · 72690-13040 |
| 72744 | Rear seat backrest tilt adjustment pawl lock pin | 72744-13010 |
| 72745 | Rear seat backrest tilt hinge pin | 72745-13010 |
| 72901 | Third row seat cushion frame sub-assembly | 72901-13010 |
| 72905 | Third row seat right side link sub-assembly | 72905-13010 |
| 72919A | Third row seat cushion block | 72919-13010 |
| 72953 | Third row seat lower link | 72953-13010 |
| 72967 | Third row seat support | 72967-13010 |
| 72969A | Seat rotation lock guide pin | 72969-13010 |
| 72971 | Rear right seat swivel side panel | 72971-13010 |
| 72972 | Rear left seat swivel side panel | 72972-13010 |
| 74620E | Right auxiliary handle assembly | 74620-13010 |
| 74620F | Left auxiliary handle assembly | 74620-13010 |
| 79135A | Right seat No. 1 seat cushion cushion | 79235-13010 |
| 79136B | Seat cushion, seat No. 1, left | 79235-13010 |
| 79247 | A Junior Seat Cushion Face Protective Cushion | 79247-13010 |
