Toyota COROLLA 前排座椅和座椅滑轨 — Figure 7101

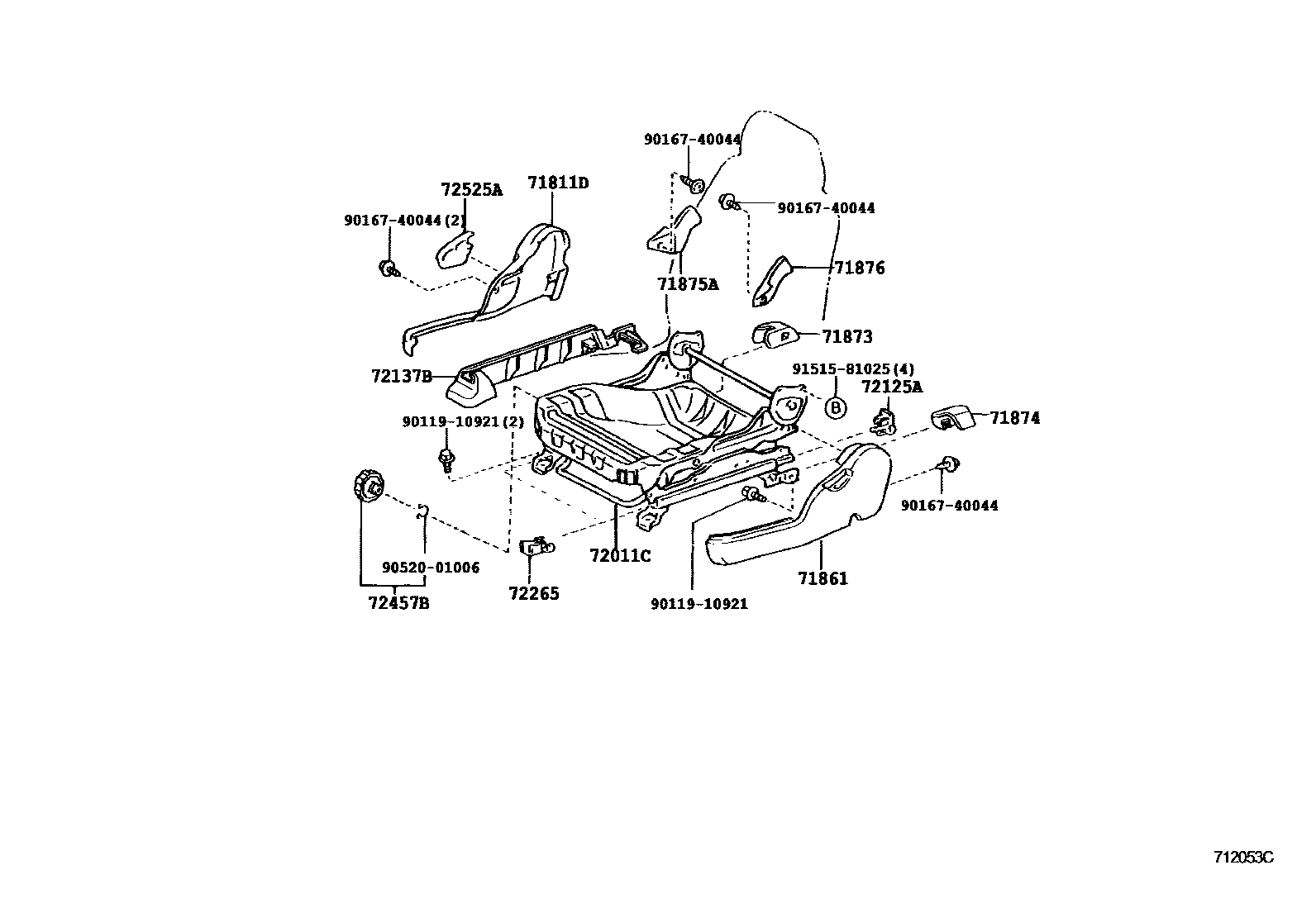

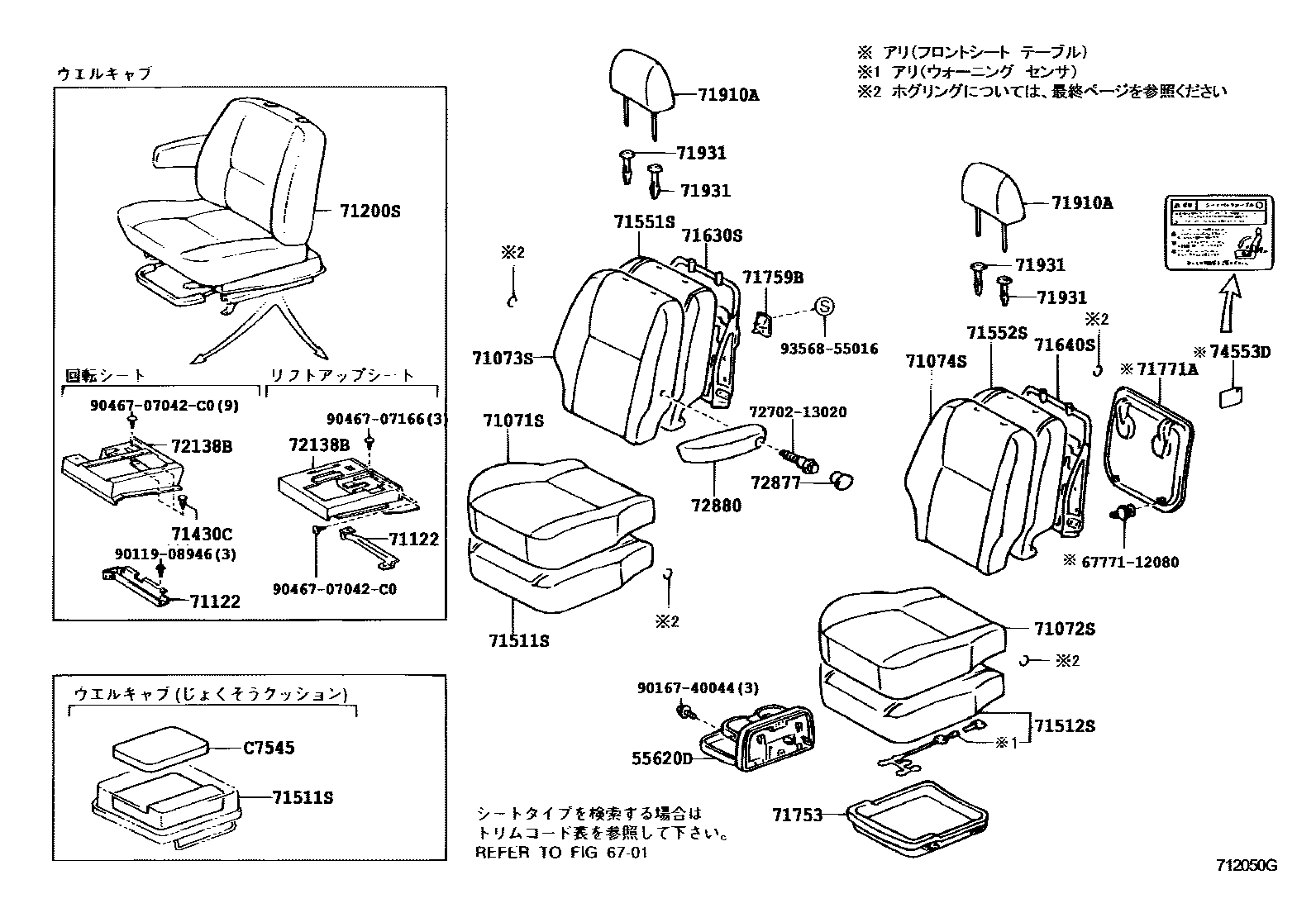

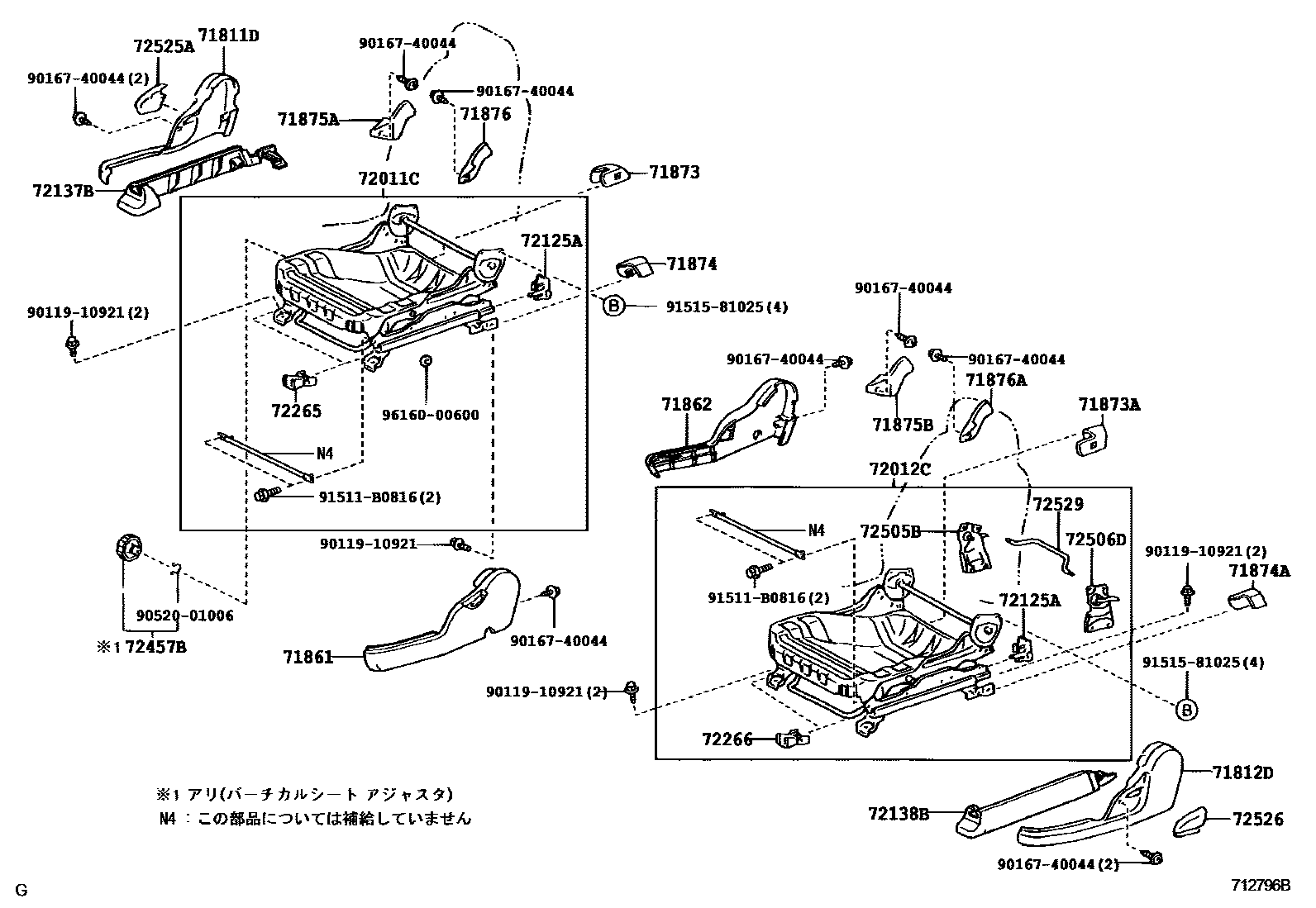

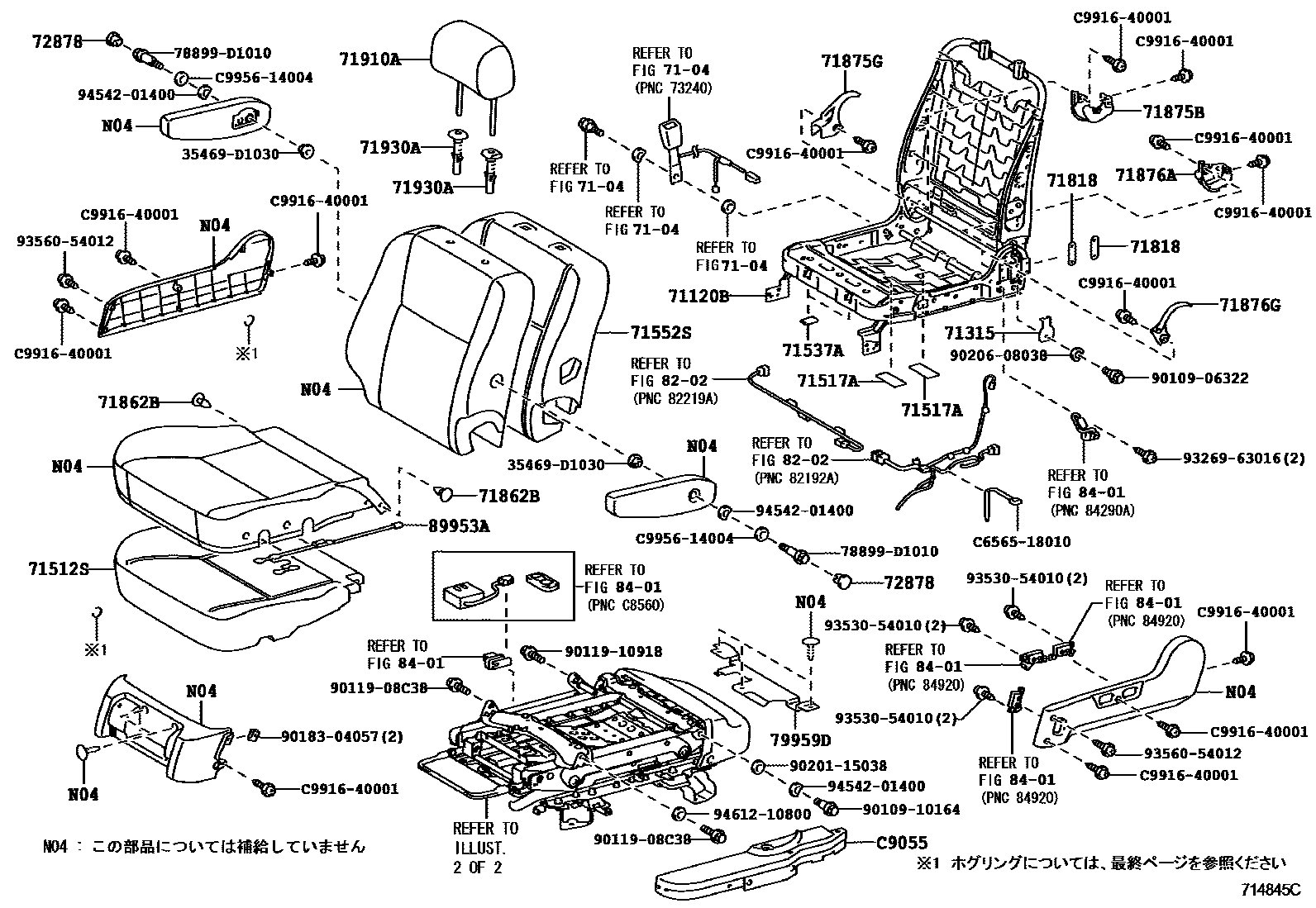

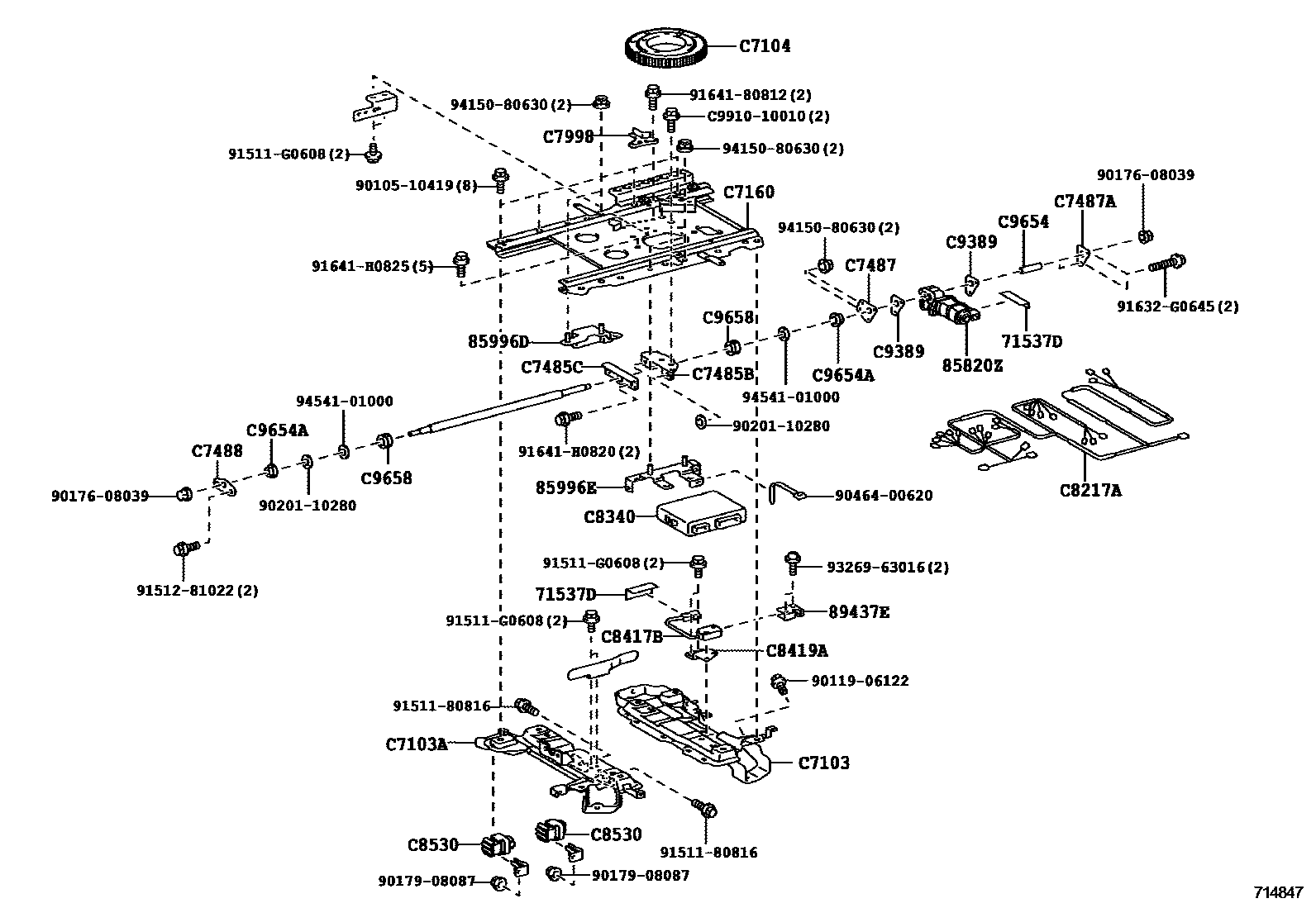

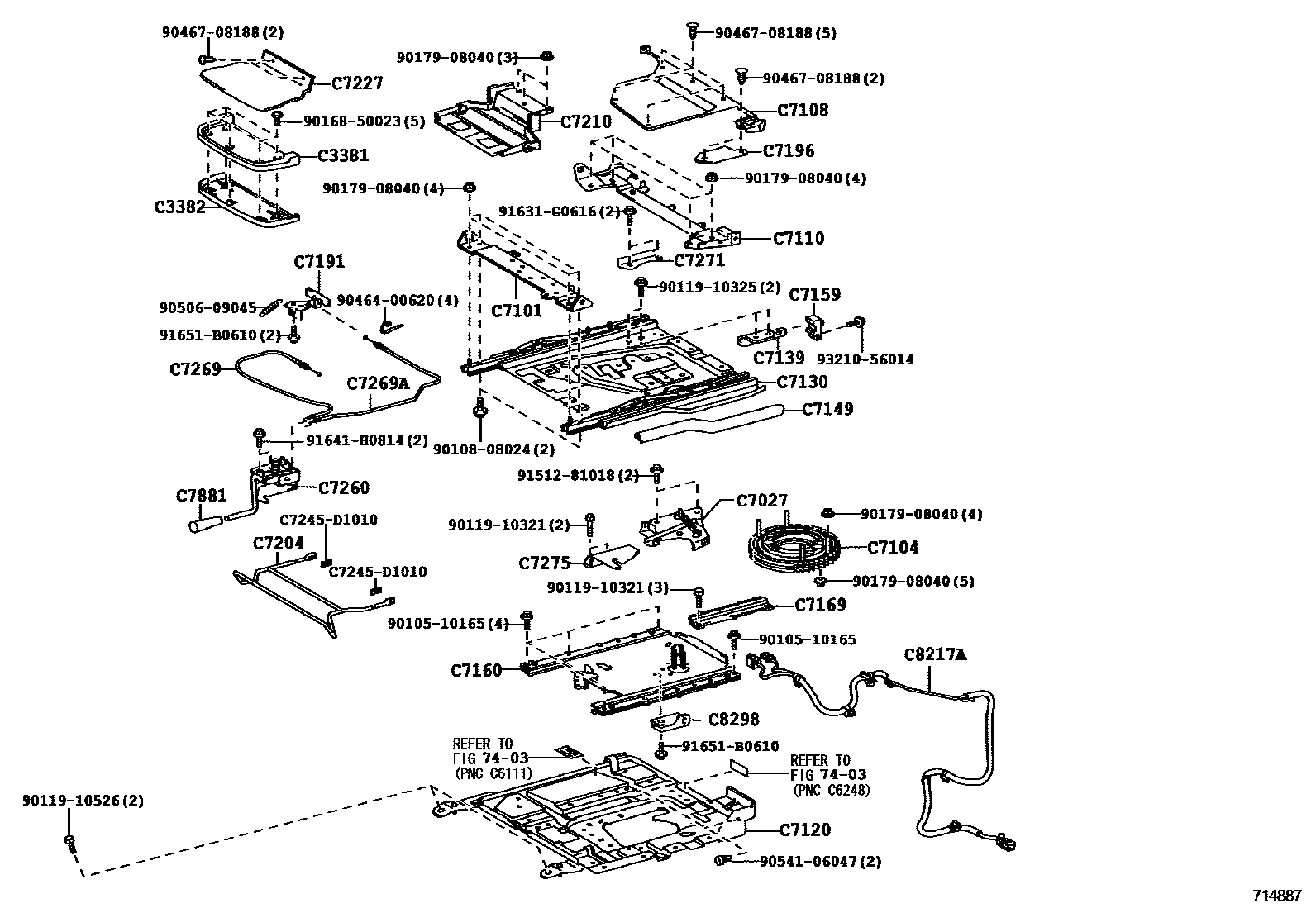

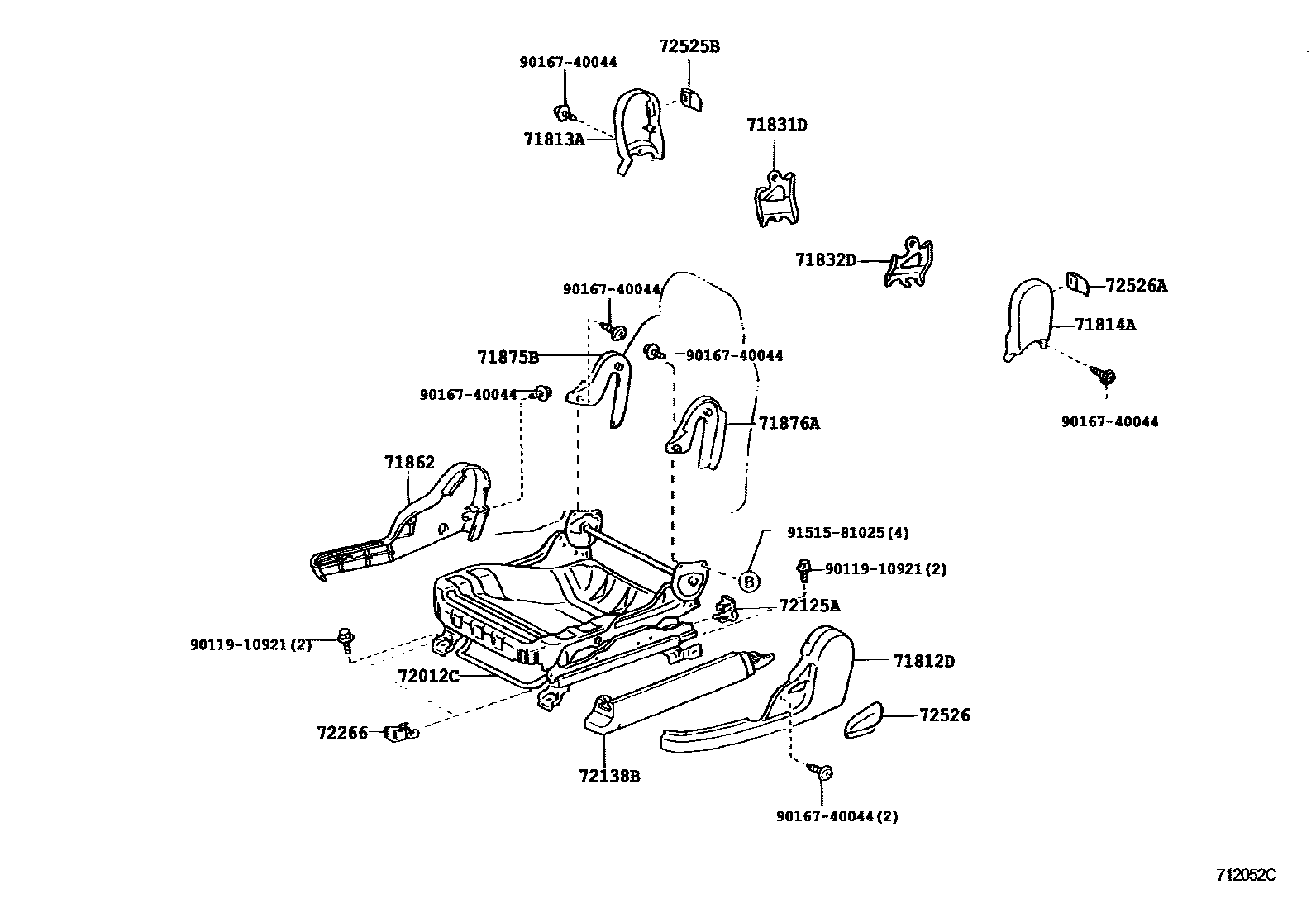

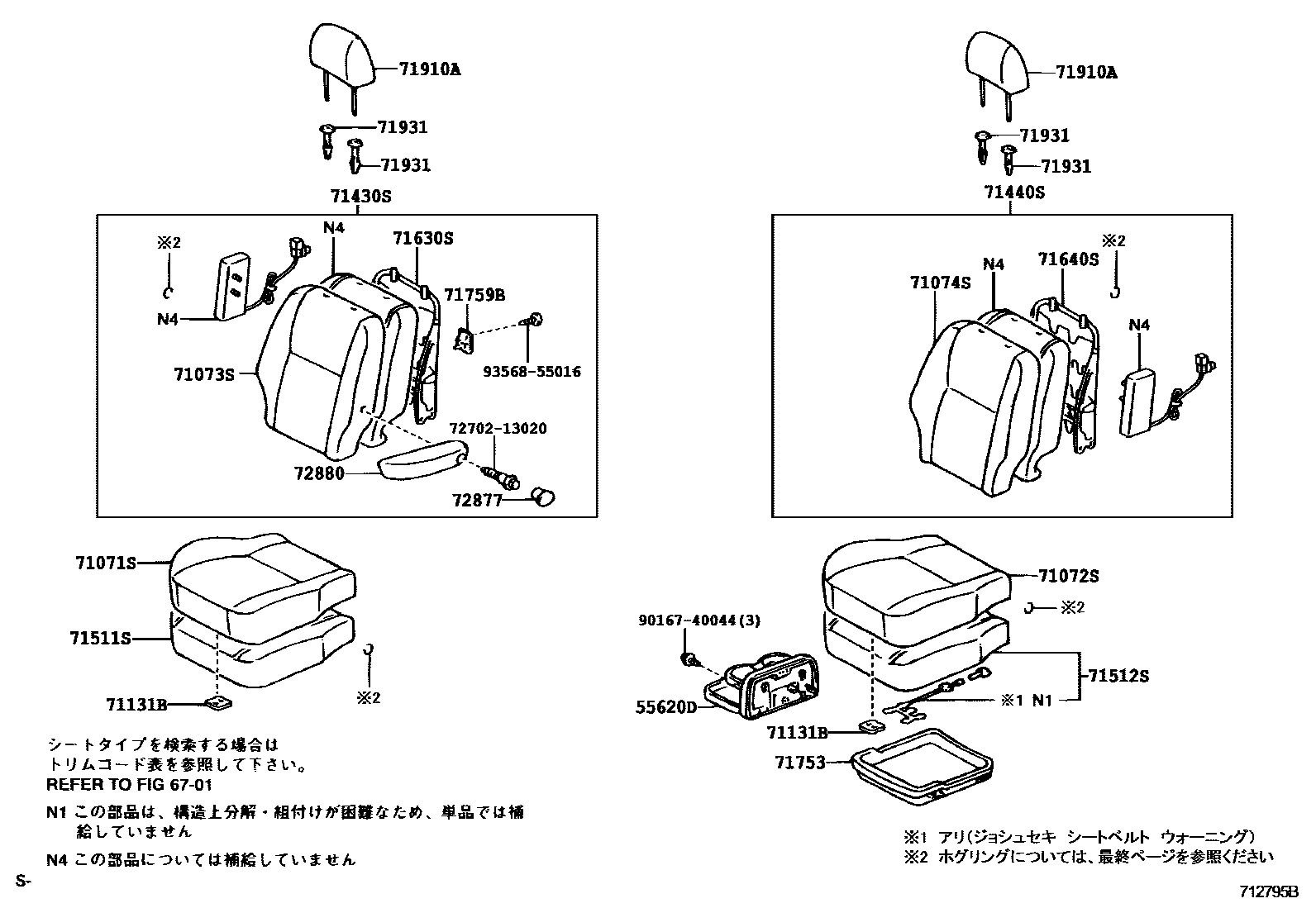

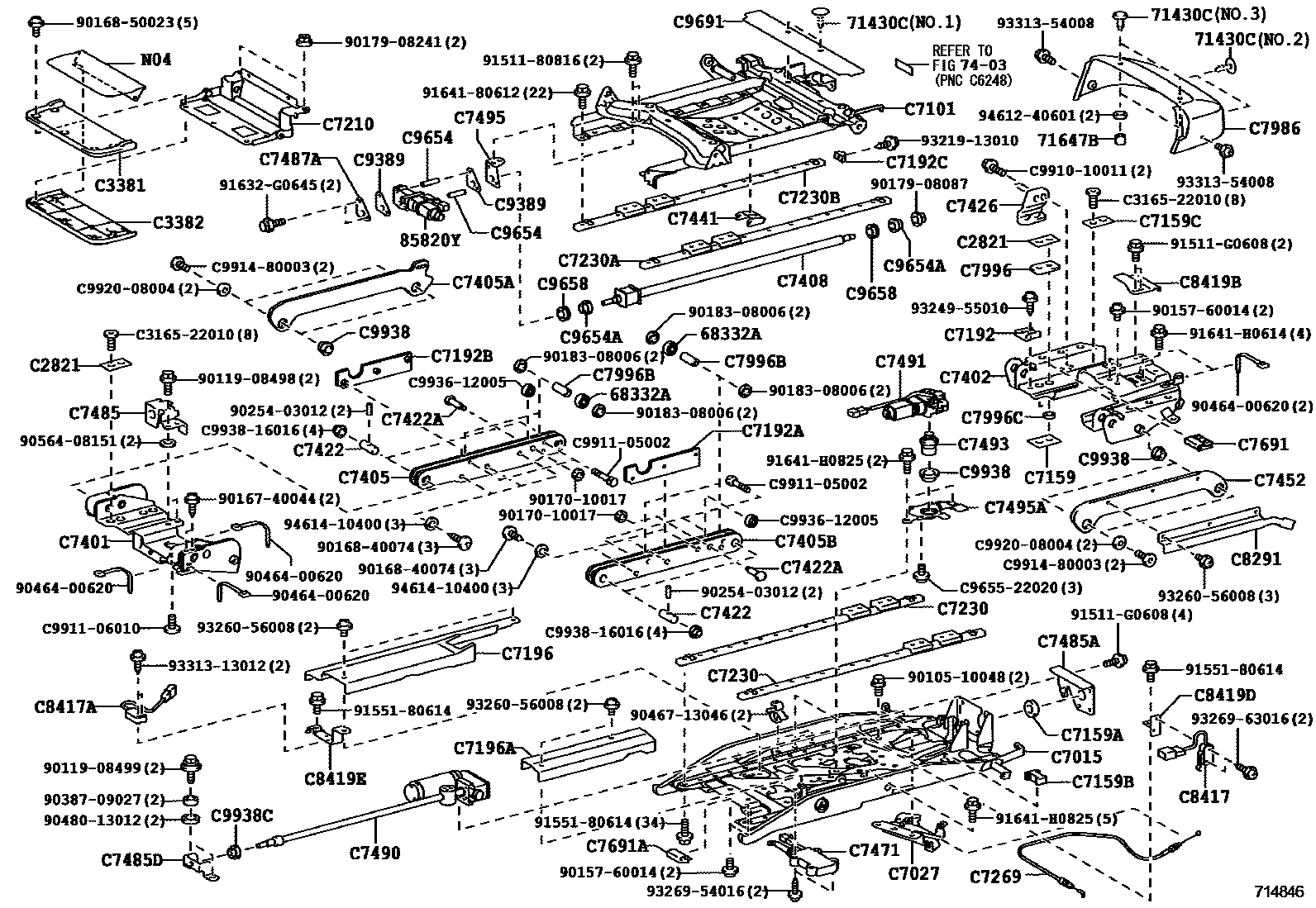

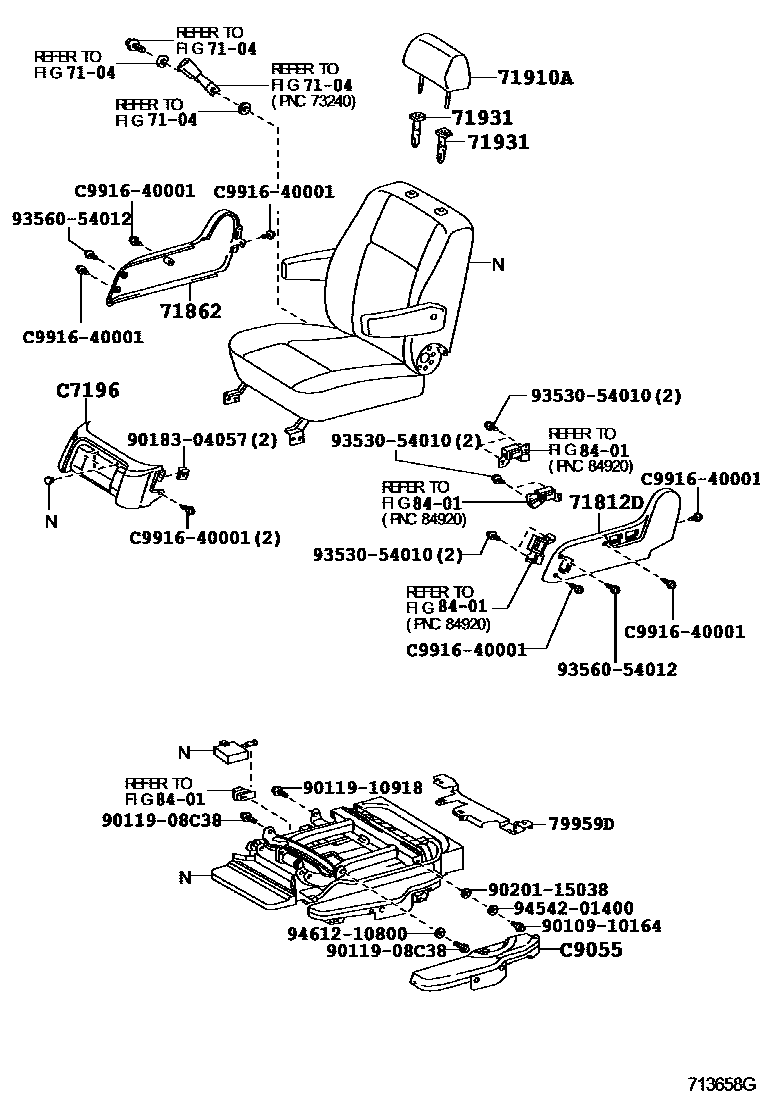

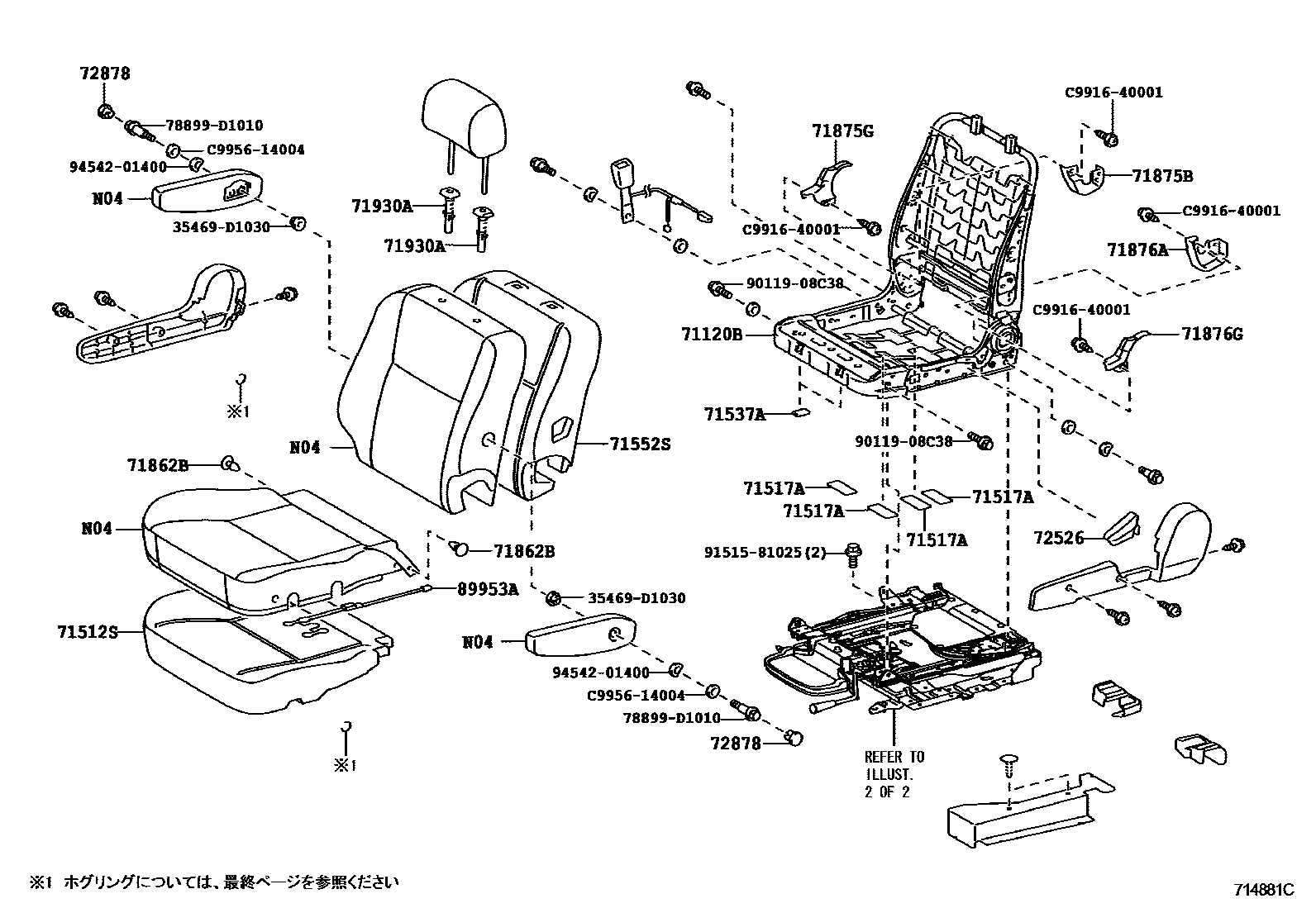

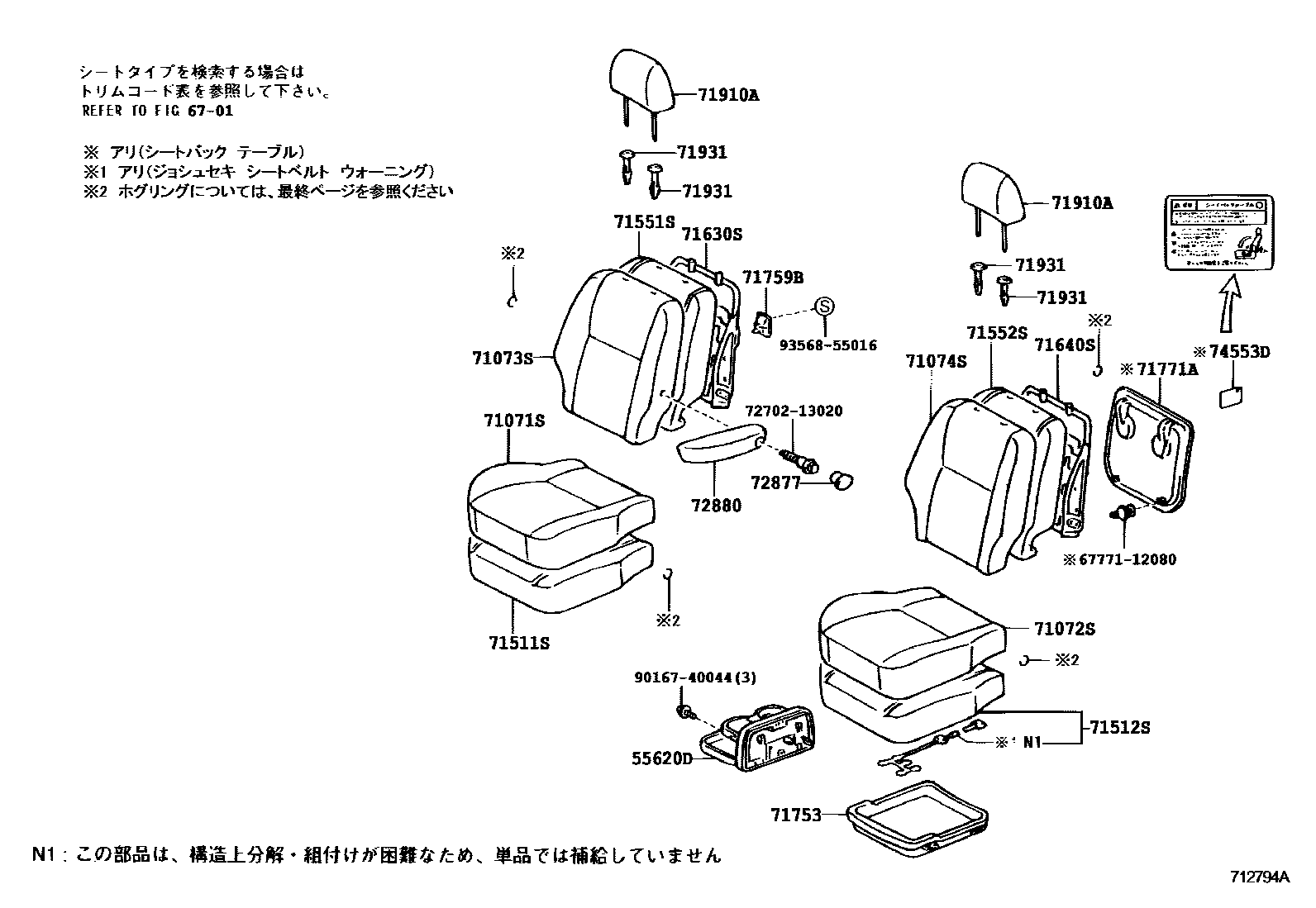

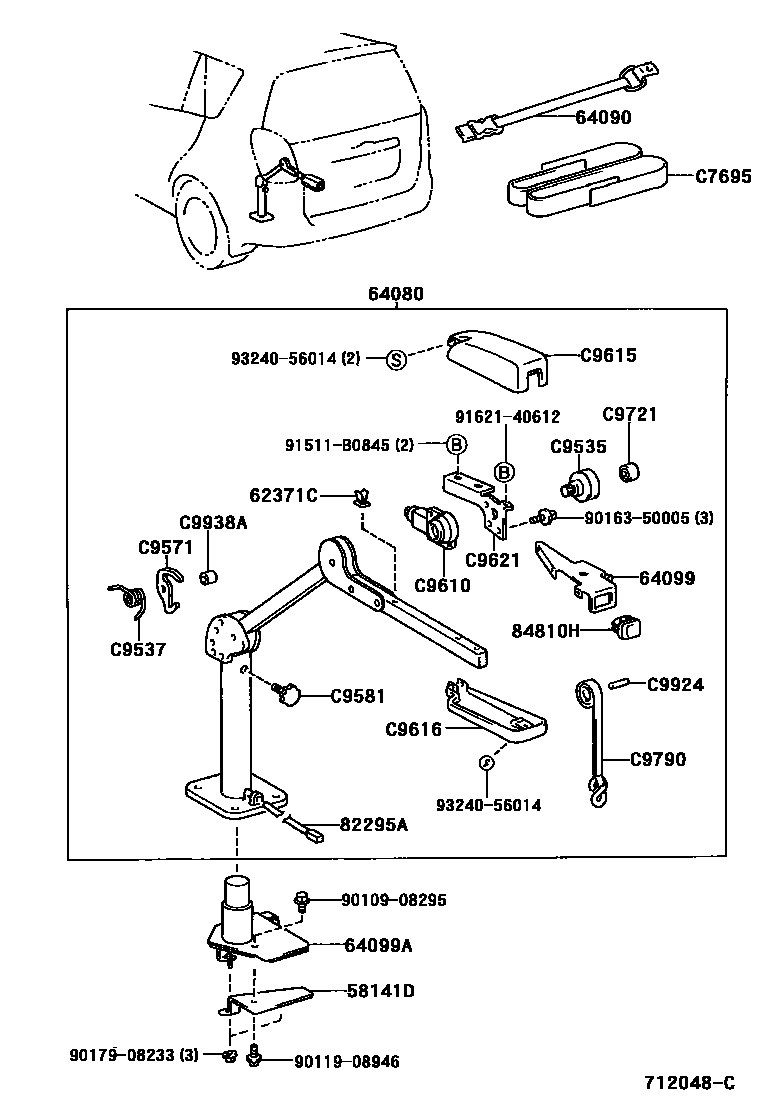

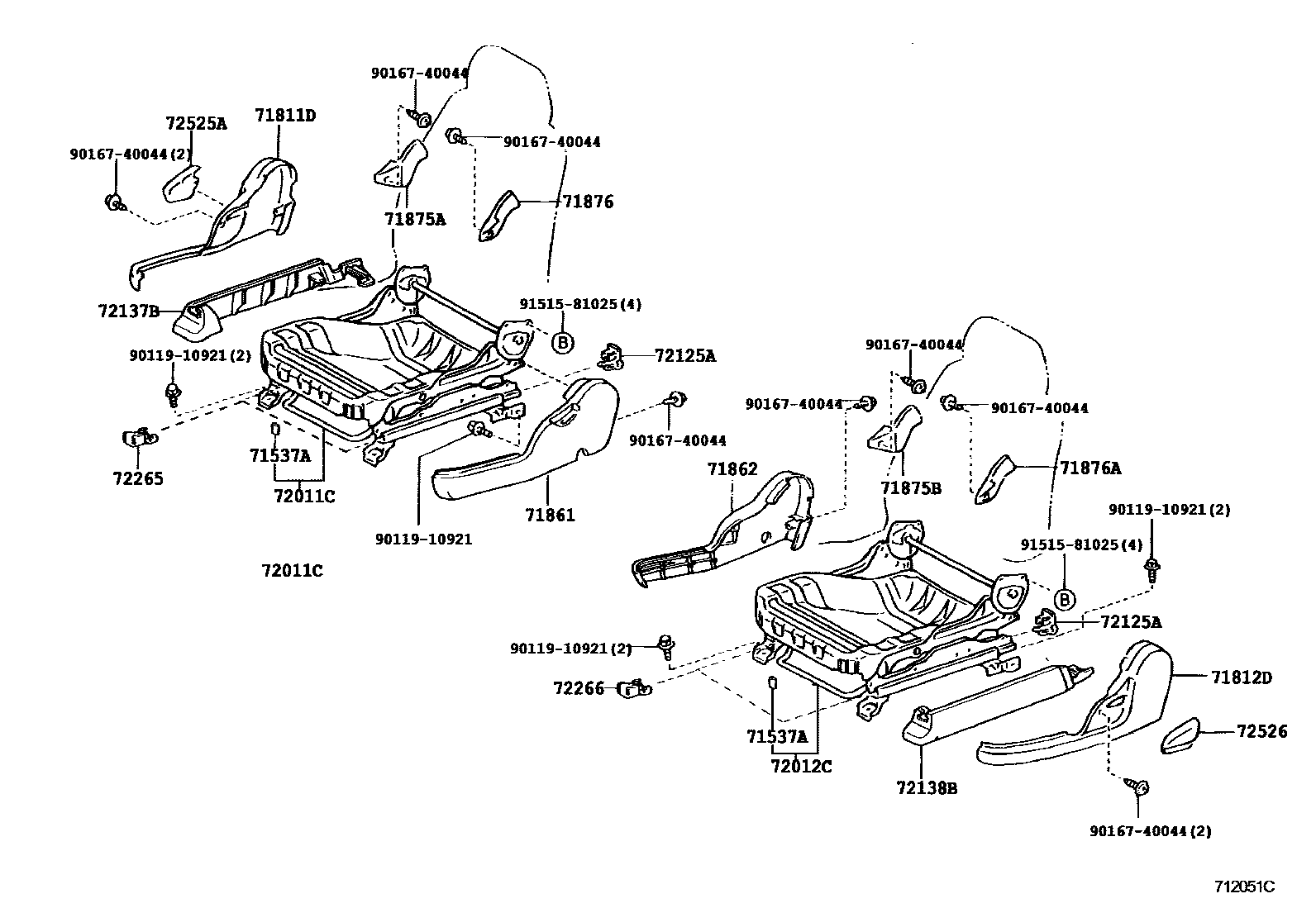

Toyota COROLLA EPC diagram 7101, 前排座椅和座椅滑轨, with 16 images and 148 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 58141D | Floor stringers to floor base reinforcements | 58141-13030 |
| 62371C | Lock | 62371-43010 |
| 64080 | Electric lift arm assembly | 64080-13010 |
| 64090 | Wheelchair safety belt assembly | C7690-18011 |
| 64099 | Electric lift arm guide rail base sub-assembly | 64099-43010 · 64099-D1010 |
| 64099A | Electric lift arm guide rail base sub-assembly | 64025-13010 |
| 68332A | Sliding door lower roller | 68332-28040 |
| 71120B | Front left seat (with adjuster) frame assembly | 71120-D1070 · 71120-D1090 |
| 71122 | Front left seat cushion bracket | 57468-13030 · 57468-13040 · 57468-13041 |
| 71131B | Front seat cushion 1 | 71131-13020 |
| 71200S | Front left seat assembly | 71102-13010 · 71102-13040 · 71102-13041 · 71102-13070 · 71102-13071 · 71102-13080 · 71102-13081 · 71102-13090 · 71102-13100 |
| 71315 | Front seat hinge plate | 71315-D1010 |
| 71511S | Front right seat cushion cushion (for split seats) | 71511-63010 · 71511-63020 · C7546-18010 |
| 71512S | Front left seat cushion cushion (for split seats) | 71052-13050 · 71052-13060 · 71502-13010 · 71512-D1020 · 71512-D1040 |
| 71517A | Front seat cushion face protector | 71517-D1020 |
| 71537A | Front seat cushion protective cover | 71537-26010 |
| 71537D | Front left seat cushion edge protective cover | 71537-28060 |
| 71551S | Front right seat back cushion (for split seats) | 71551-13070 · 71551-13080 · 71551-13090 · 71551-13170 |
| 71552S | Front left seat back cushion (for split seats) | 71551-13070 · 71551-13160 · 71551-63012 · 71551-D1010 · 71551-D1020 |
| 71630S | Front right seat back spring assembly (for split seats) | 71630-13050 · 71630-13060 |
| 71640S | Front left seat back spring assembly (for split seats) | 71630-13040 · 71630-63030 |
| 71647B | Rear seat cushion edge protective cover | 71647-D1010 |
| 71753 | Front seat bottom bracket | 71753-52010 |
| 71812D | Front left seat cushion guard | 71812-D1030 |
| 71818 | seat cover fastener seat | C2815-D1020 |
| 71862 | Front left seat cushion inner guard | 71862-D1030 |
| 71875B | Right backrest tilt adjuster inner cover | 71875-58060 · 71875-60140 |
| 71876A | Left backrest tilt adjuster inner cover | 71876-58060 · 71876-60140 |
| 72011C | Front right seat adjuster sub-assembly | 72010-13040 |
| 72012C | Front left seat adjuster sub-assembly | 72020-13070 · 72020-13080 · 72020-13120 · 72020-13130 · 72020-13160 |
| 72125A | Rear seat upper slide rail cover | 72125-13040 |
| 72138B | Left seat slide cover | 72138-13040 · 72138-13050 |
| 72265 | Right seat rail upper rail cover | 72265-13040 |
| 72266 | Left seat rail upper rail cover | 72265-13040 |
| 72505B | Front right seat back lock sub-assembly | 72505-13010 |
| 72506D | Front left seat back lock sub-assembly | 72506-13020 |
| 72529 | Front seat back lock handle lever | 72529-13010 |
| 74553D | Front seat warning label | 74553-13030 |
| 79959D | seat leg cover | 79959-D1040 |
| 82295A | winch ground wire | 82295-13010 |
| 85820Y | Electric seat motor assembly | 85820-30250 |
| 85820Z | Electric seat motor assembly | 85820-30260 |
| 85996D | No. 1 relay bracket | 85999-D1050 |
| 85996E | No. 2 relay bracket | 85999-D1070 |
| 89437E | sensor cover | 89437-D1010 |
| 89953A | Seat Belt Warning Occupant Detection Sensor | 89953-D1020 |
| C2821 | No. 1 front plate seal | C2821-D1020 |
| C7015 | Turntable plate sub-assembly | C7015-D1051 |
| C7027 | WELCAB seat rotation lock sub-assembly | C7027-D1011 · C7027-D1100 |
| C7101 | Front seat anchor bracket sub-assembly | C7025-D1010 · C7101-D1010 |
| C7103 | No. 1 WELCAB seat foot plate sub-assembly | C7103-D1310 |
| C7103A | No. 2 WELCAB seat foot plate sub-assembly | C7103-D1340 |
| C7104 | Seat turntable sub-assembly | C7104-D1011 · C7104-D1170 |
| C7108 | Turntable cover assembly | C7108-D1010 |
| C7110 | Rear seat anchor bracket sub-assembly | C7110-D1010 |
| C7120 | No. 1 WELCAB seat support | C7120-D1270 |
| C7130 | Turntable plate assembly | C7130-D1010 |
| C7139 | hook bracket | C7139-D1010 |
| C7149 | Left turntable plate edge protective cover | C7149-D1060 |
| C7159 | WELCAB seat leg stop block cushion pad | C7159-D1040 · C7159-D1090 |
| C7159A | No. 1 WELCAB seat leg stop block cushion pad | C7159-D1080 |
| C7159B | No. 3 WELCAB seat foot stop block cushion pad | C7159-D1100 |
| C7159C | No. 4 WELCAB seat foot stop block cushion pad | C7159-D1120 |
| C7160 | Sliding plate assembly | C7160-D1020 · C7160-D1040 |
| C7169 | sliding plate rack gear | C7169-D1011 |
| C7191 | Seat anchor linkage bracket | C7191-D1010 |
| C7192 | No. 1 seat retainer cover | C7192-D1030 |
| C7192A | No. 2 seat retainer cover | C7192-D1040 |
| C7192B | No. 3 seat retainer cover | C7192-D1050 |
| C7192C | No. 4 seat retainer cover | C7192-D1110 |
| C7196 | Turntable cover No. 1 | C7196-D1040 · C7196-D1060 · C7196-D1070 |
| C7196A | No. 2 turntable cover | C7196-D1090 |
| C7204 | WELCAB seat slide handle sub-assembly | C7204-D1030 |
| C7210 | WELCAB seat footrest assembly | C7210-D1030 · C7210-D1060 |
| C7230 | No. 1 WELCAB seat slide assembly | C7230-D1020 |
| C7230A | No. 2 WELCAB seat slide assembly | C7230-D1030 |
| C7230B | No. 3 WELCAB seat slide assembly | C7230-D1060 |
| C7260 | Seat rotation lock handle assembly | C7260-D1010 |
| C7269 | Seat rotation lock release cable | C7269-D1010 · C7269-D1040 |
| C7269A | Seat 1 rotation lock release cable | C7269-D1020 |
| C7271 | Interlocking upper bracket | C7271-D1010 |
| C7275 | No. 1 lock plate | C7275-D1011 |
| C7401 | WELCAB seat front rail sub-assembly | C7401-D1010 |
| C7402 | WELCAB seat rear rail sub-assembly | C7402-D1010 |
| C7405 | No. 1 WELCAB seat link arm sub-assembly | C7405-D1010 |
| C7405A | No. 2 WELCAB seat link arm sub-assembly | C7405-D1020 |
| C7405B | No. 3 WELCAB seat link arm sub-assembly | C7405-D1030 |
| C7408 | WELCAB seat lever sub-assembly | C7408-D1030 |
| C7422 | No. 1 WELCAB seat arm guide pin | C7422-D1020 |
| C7422A | No. 2 WELCAB seat arm guide pin | C7422-D1030 |
| C7426 | No.2 WELCAB seat rail bracket | C7426-D1010 |
| C7441 | WELCAB seat cable guide | C7441-D1040 |
| C7452 | No. 2 WELCAB seat link arm | C7452-D1010 |
| C7471 | WELCAB seat lock control | C7471-D1010 |
| C7485 | No. 1 WELCAB seat rod bracket | C7485-D1010 |
| C7485A | No. 2 WELCAB seat rod bracket | C7485-D1020 |
| C7485B | No. 3 WELCAB seat rod bracket | C7485-D1050 |
| C7485C | No. 4 WELCAB seat rod bracket | C7485-D1060 |
| C7485D | No. 5 WELCAB seat rod bracket | C7485-D1070 |
| C7487 | No. 1 WELCAB seat rod support plate | C7487-D1010 |
| C7487A | No. 2 WELCAB seat rod support plate | C7487-D1020 |
| C7488 | No. 2 WELCAB seat rod support plate | C7488-D1010 |
| C7490 | WELCAB seat hydraulic pump assembly | C7490-D1020 |
| C7491 | WELCAB seat motor | C7491-D1010 |
| C7493 | WELCAB seat motor gear | C7493-D1010 |
| C7495 | No. 1 WELCAB seat motor bracket | C7495-D1010 |
| C7495A | No. 2 WELCAB seat motor bracket | C7495-D1020 |
| C7545 | Folding seat cushion | C7545-18010 |
| C7691 | Seat No. 1 right side flat cushion | C7691-D1010 |
| C7691A | No. 2 right seat flat cushion | C7691-D1030 |
| C7695 | chest support belt | 72781-13010 |
| C7881 | Control linkage handle | C7881-22040 |
| C7996 | No. 1 swivel seat cushion | C7996-D1080 |
| C7996B | No. 3 swivel seat cushion | C7996-D1130 |
| C7996C | No. 4 swivel seat cushion | C7996-D1140 |
| C7998 | Swivel seat lower footboard | C7998-D1170 |
| C8217A | WELCAB seat main wiring harness | C8217-D1010 · C8217-D1060 |
| C8291 | TECS wire harness protection device | C8291-D1010 |
| C8298 | WELCAB seat wire harness clip bracket | C8298-D1030 |
| C8340 | WELCAB equipment control ECU assembly | C8340-D1041 |
| C8417 | No. 1 limit switch | C8417-22040 |
| C8417A | No. 2 limit switch | C8417-22080 |
| C8417B | No. 3 limit switch | C8417-D1010 |
| C8419A | Limit switch bracket | C8419-D1130 |
| C8419B | Limit switch bracket | C8419-D1140 |
| C8419D | No. 1 limit switch bracket | C8419-D1150 |
| C8419E | No. 2 limit switch bracket | C8419-D1160 |
| C8530 | Electric lifter motor relay assembly | C8530-22020 |
| C9055 | No. 1 electric lifter cover sub-assembly | C9055-D1050 |
| C9389 | Platform stop cushion | C9389-22100 |
| C9535 | Electric lift pulley | C9535-18010 · C9535-D1060 |
| C9537 | Electric lift return spring | C9537-18010 · C9537-D1010 |
| C9571 | Electric lift arm lock lever | C9571-18010 |
| C9581 | Electric lift lock handle | C9581-18030 · C9581-D1030 |
| C9610 | Electric lift motor assembly | C9610-18030 |
| C9615 | No. 1 electric lift motor cover | C9615-18020 |
| C9616 | No. 2 electric lift motor cover | C9616-18020 · C9616-D1020 |
| C9621 | Electric lift motor base | C9621-18020 · C9621-D1020 |
| C9654 | Electric lifter cylinder collar | C9654-22030 |
| C9654A | Electric lifter cylinder collar | C9654-58040 |
| C9658 | Electric lift cylinder rod plate | C9658-22040 |
| C9691 | Electric lift motor cover | C9691-D1070 |
| C9721 | No. 2 winch bearing | C9721-18010 · C9721-D1010 |
| C9790 | Winch belt assembly | C9790-18020 |
| C9924 | pin | C9924-18001 |
| C9938 | Bushing | C9938-20017 |
| C9938A | collar | C9938-18020 |
| C9938C | Bushing | C9938-20019 |
