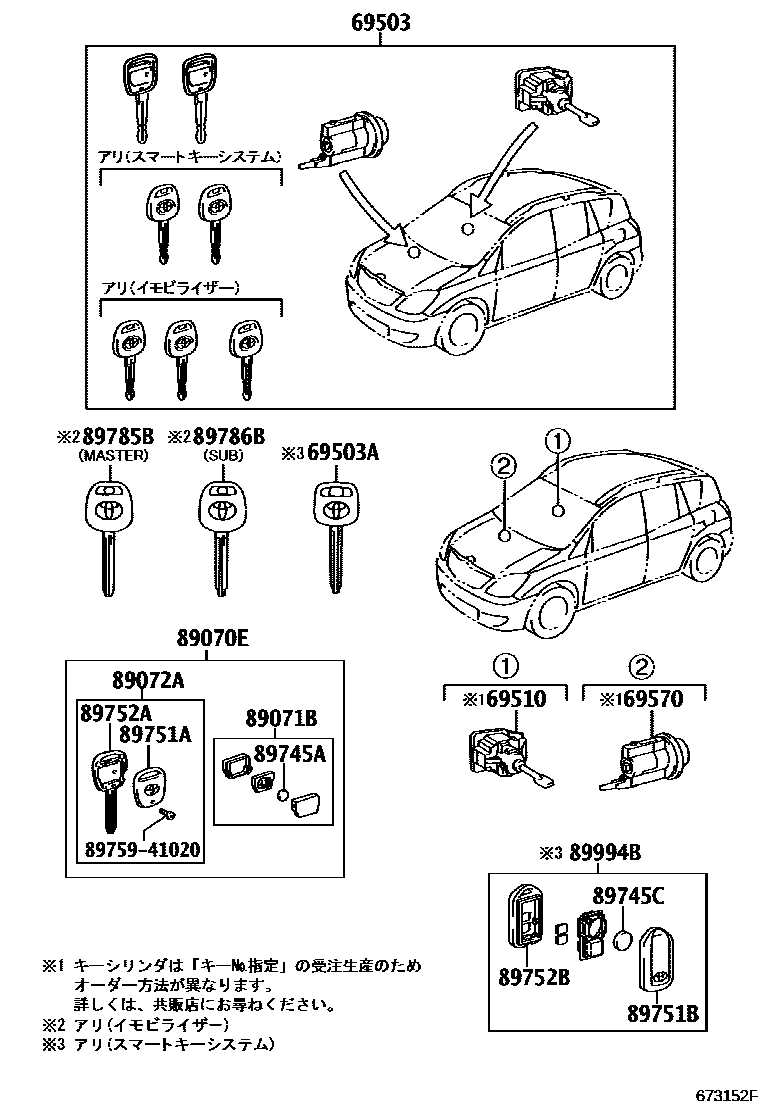

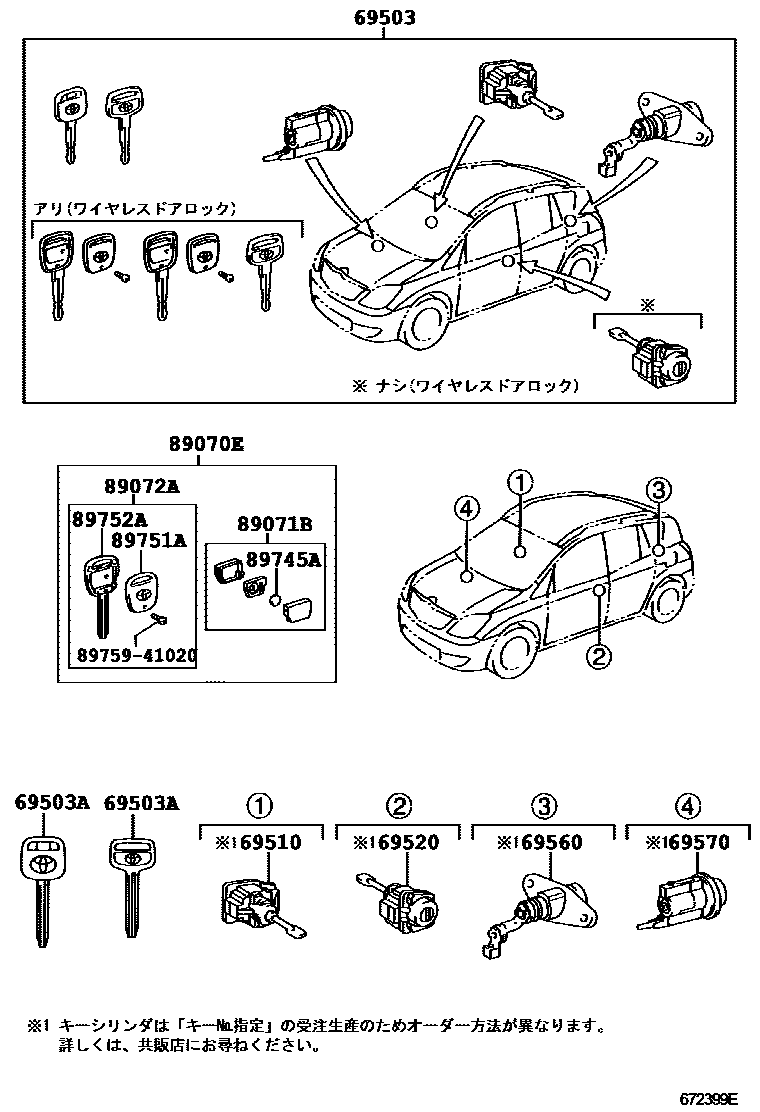

Toyota COROLLA 锁芯组件 — Figure 6712
Toyota COROLLA EPC diagram 6712, 锁芯组件, with 2 images and 18 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 69503 | Door lock cylinder components | 69005-13620 · 69005-13790 · 69005-13860 · 69005-13870 · 89073-13030 |
| 69503A | external tooth key | 90999-00186 · 90999-00199 |
| 69510 | Right front door lock cylinder assembly | 69510-12310 |
| 69520 | Left front door lock cylinder assembly | 69520-12300 |
| 69560 | Rear door lock cylinder assembly | 69560-13130 |
| 69570 | Ignition switch lock cylinder assembly | 69570-13120 |
| 89070E | Remote key assembly | 89070-44070 |
| 89071B | Remote key sub-assembly module assembly | 89071-12021 |
| 89072A | Remote key shell assembly | 89072-47020 |
| 89745A | Transmitter battery | 89745-26010 |
| 89745C | Transmitter battery | 89745-50020 |
| 89751A | Transmitter housing cover | 89751-44010 |
| 89751B | Transmitter housing cover | 89751-68010 |
| 89752A | transmitter housing | 89752-46020 |
| 89752B | transmitter housing | 89752-68010 |
| 89785B | transceiver key master transmitter | 89785-60160 |
| 89786B | transceiver key secondary transmitter | 89786-60170 |
| 89994B | electronic key transmitter | 89994-68030 |
