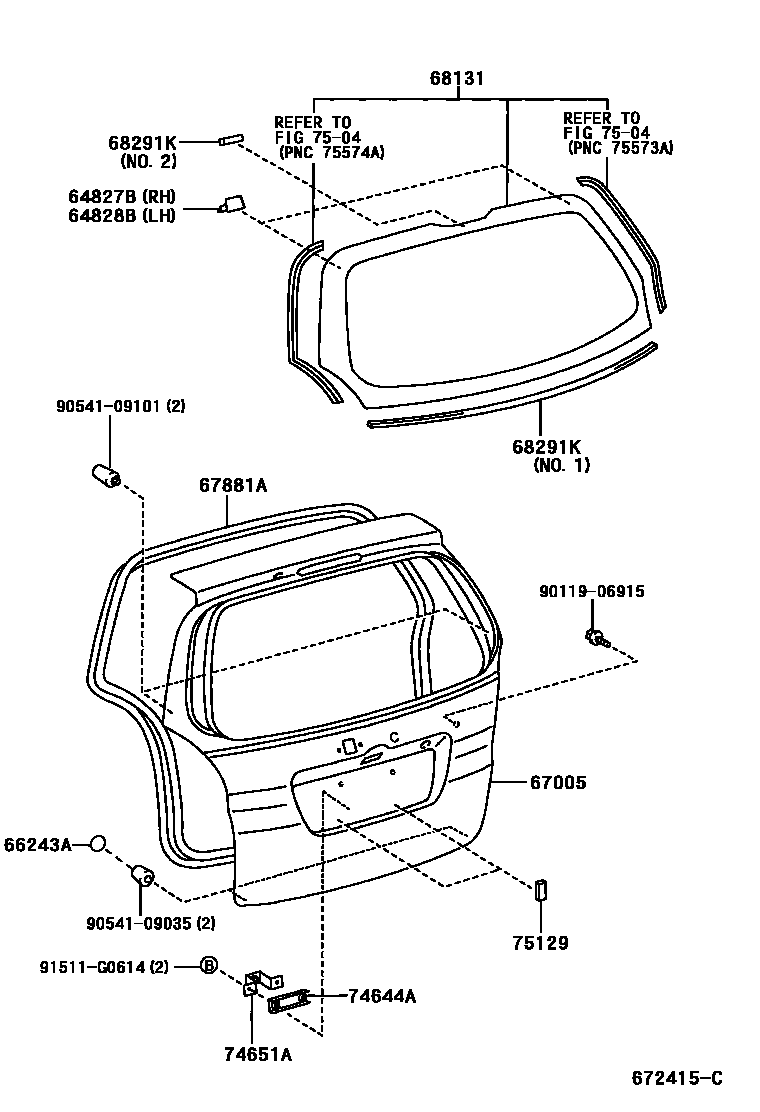

Toyota COROLLA 背门板和背门玻璃 — Figure 6708
Toyota COROLLA EPC diagram 6708, 背门板和背门玻璃, with 2 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 64827B | Catch on the right side of the back window glass | 64827-13010 |
| 64828B | Catch on the left side of the back window glass | 64828-13010 |
| 66243A | Rear body protection piece No. 1 | 66243-13010 |
| 67005 | Rear door panel sub-assembly | 60751-13090 · 60751-13110 · 67005-13A00 · 67005-13A10 · 67005-13A40 · 67005-13A50 · 67005-13A70 · 67005-13A80 · 67005-1F710 · 67005-1F711 · 67005-1F720 · 67005-1F721 · 67005-1F730 · 67005-1F731 · 67005-1F740 · 67005-1F741 · 67005-1F790 · 67005-1F791 · 67005-1F800 · 67005-1F801 |
| 67881A | Back door seal | 67881-13250 · 67881-13251 |
| 68131 | back door glass | 68105-13140 · 68105-13141 · 68105-13150 · 68105-13151 · 68105-13160 · 68105-13161 · 68105-13170 · 68105-13171 · 68105-13180 · 68105-13181 · 68105-13190 · 68105-13191 |
| 68291K | Back window glass sealing strip assembly | 56117-13030 · 64814-13010 |
| 74644A | Auxiliary handle reinforcement | 74644-13010 |
| 74650C | Right auxiliary handle assembly | 67961-13010 · 67961-13011 |
| 74651A | Auxiliary handle bracket | 74651-13010 |
| 75129 | rear license plate cushion | 75129-13020 |
