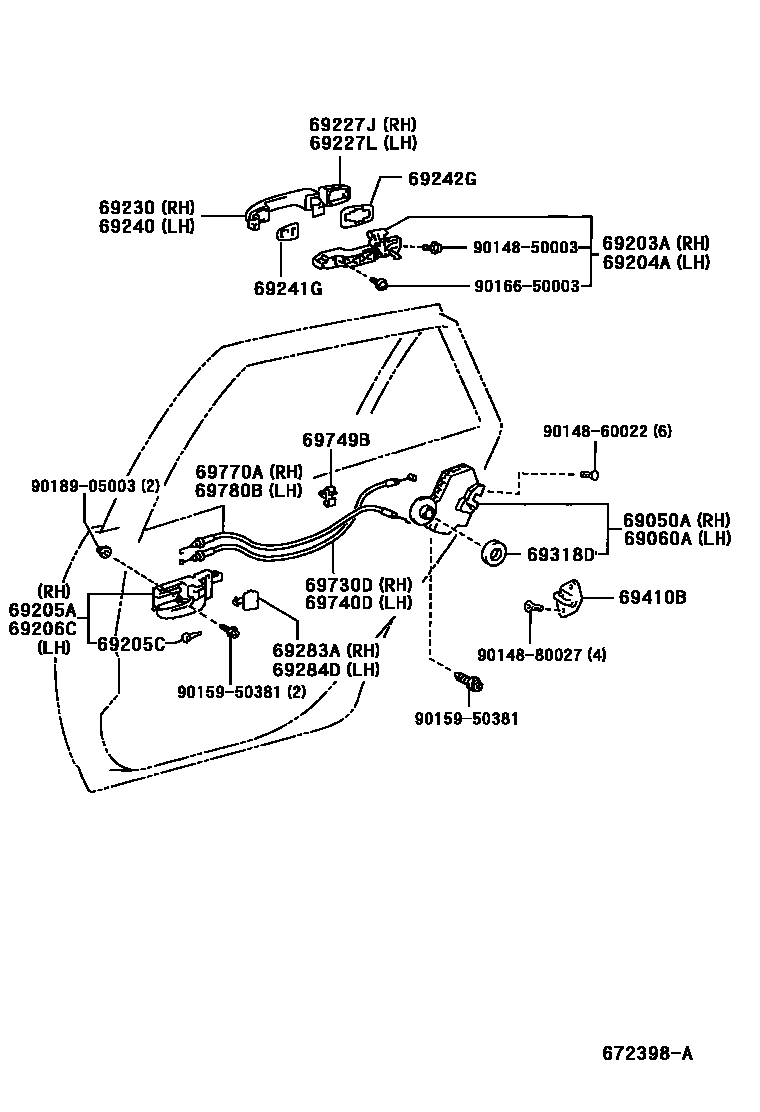

Toyota COROLLA 后门锁和后门把手 — Figure 6706
Toyota COROLLA EPC diagram 6706, 后门锁和后门把手, with 1 images and 18 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 69050A | Right rear door lock assembly with motor | 69050-13040 · 69050-13090 |
| 69060A | Left rear door lock assembly with motor | 69060-13040 · 69060-13090 |
| 69203A | Right rear door outer handle frame sub-assembly | 69203-13010 · 69203-13040 |
| 69204A | Left rear door outer handle frame sub-assembly | 69204-13010 · 69204-13040 |
| 69205C | Cushion pad (for rear door inner handle) | 90541-04027 |
| 69227J | Right rear door outer handle cover | 69227-42060 |
| 69227L | Left rear door outer handle cover | 69227-42060 |
| 69230 | Right rear door outer handle assembly | 69211-42010 |
| 69240 | Left rear door outer handle assembly | 69211-42010 |
| 69241G | Rear door front exterior handle pad | 69241-42020 |
| 69242G | Rear door rear outer handle pad | 69242-42010 |
| 69318D | door lock harness seal | 69318-51010 |
| 69410B | Rear door lock plate assembly | 69410-20110 |
| 69730D | Right rear door lock remote control cable assembly | 69730-13030 |
| 69740D | Left rear door lock remote control cable assembly | 69730-13030 |
| 69749B | Rear door lock link clamp | 69749-32040 |
| 69770A | Right rear door inner locking link assembly | 69770-13020 |
| 69780B | Left rear door inner lock cable assembly | 69780-13020 |
