Toyota COROLLA 前门板和前门玻璃 — Figure 6701

Toyota COROLLA EPC diagram 6701, 前门板和前门玻璃, with 3 images and 26 PNC and OE references.

Toyota COROLLA 前门板和前门玻璃 EPC diagram — 672406C
前门板和前门玻璃 — 672406C (200105 – 999999)

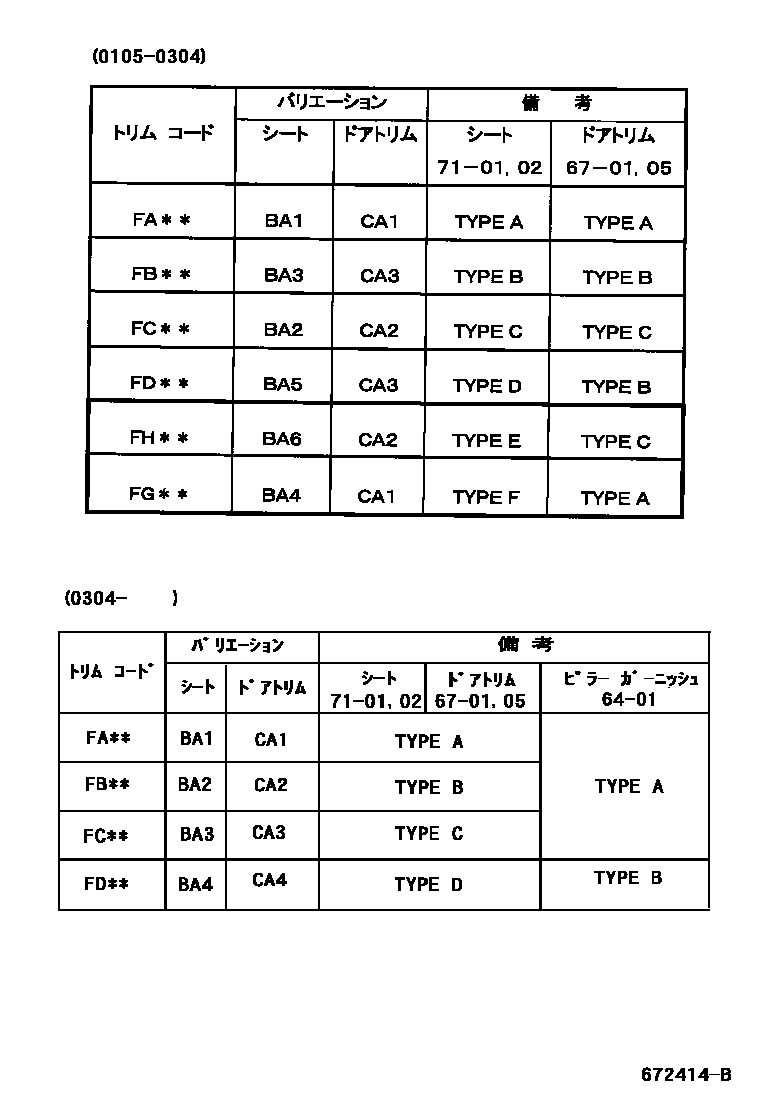

Toyota COROLLA 前门板和前门玻璃 EPC diagram — 672414B
前门板和前门玻璃 — 672414B (200105 – 999999)

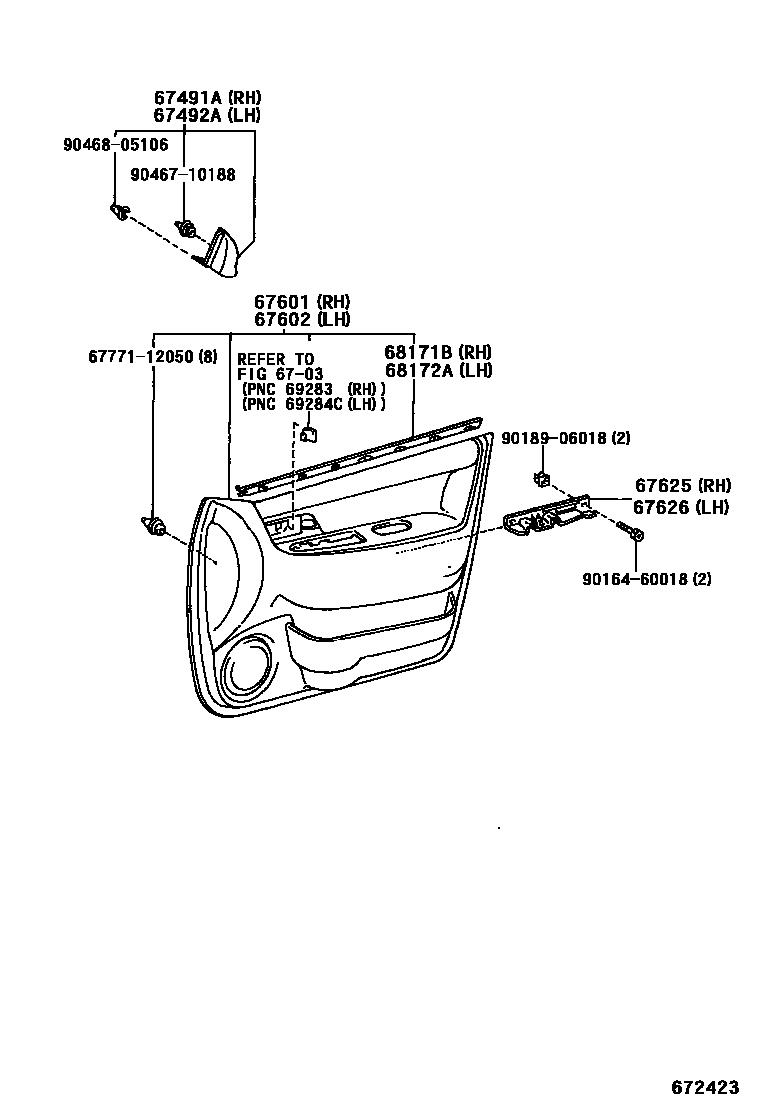

Toyota COROLLA 前门板和前门玻璃 EPC diagram — 672423
前门板和前门玻璃 — 672423 (200105 – 999999)

PNC and OE references

PNCPart nameOE numbers
67001Right front door panel sub-assembly67001-13120 · 67001-13121 · 67001-13160
67002Left front door panel sub-assembly67002-13100 · 67002-13101
67403FRight front door rear lower door frame sub-assembly67403-13020
67404FLeft front door rear lower door frame sub-assembly67404-13020
67491ARight front door lower door frame bracket decorative strip67491-13030 · 67491-13040
67492ALeft front door lower door frame bracket decorative strip67492-13030 · 67492-13040
67625Right front door trim panel bracket67625-13010
67626Left front door trim panel bracket67626-13010
67831Right front door access hole cover67831-12590
67832Left front door access hole cover67832-12380
67861Right front door seal67861-13030 · 67861-13040
67862Left front door seal67862-13030 · 67862-13040
67867CRight front door seal strip fixing67867-12150
67868CLeft front door seal strip fixing67867-12150
67869BFront door seal strip clip67869-30020
68101Right front door glass sub-assembly68101-13050 · 68101-13060 · 68101-13070
68102Left front door glass sub-assembly68102-13050 · 68102-13060 · 68102-13070
68141CRight front door glass lift channel68141-13140 · 68141-13141
68145AFront door window cushion69759-12110
68151CLeft front door glass lift channel68151-13040 · 68151-13041
68171BRight front door glass inner sealing strip68171-13030
68172ALeft front door glass inner sealing strip68172-13020
68610BRight front door opening limiter assembly68610-12160 · 68610-12161 · 68610-13020
68620Left front door opening limiter assembly68620-12090 · 68620-12091 · 68620-13020
75921CNo. 1 right side light-shielding film75921-13010 · 75921-13011 · 75921-13012
75922MNo. 1 left shading film75922-13010 · 75922-13011 · 75922-13012
