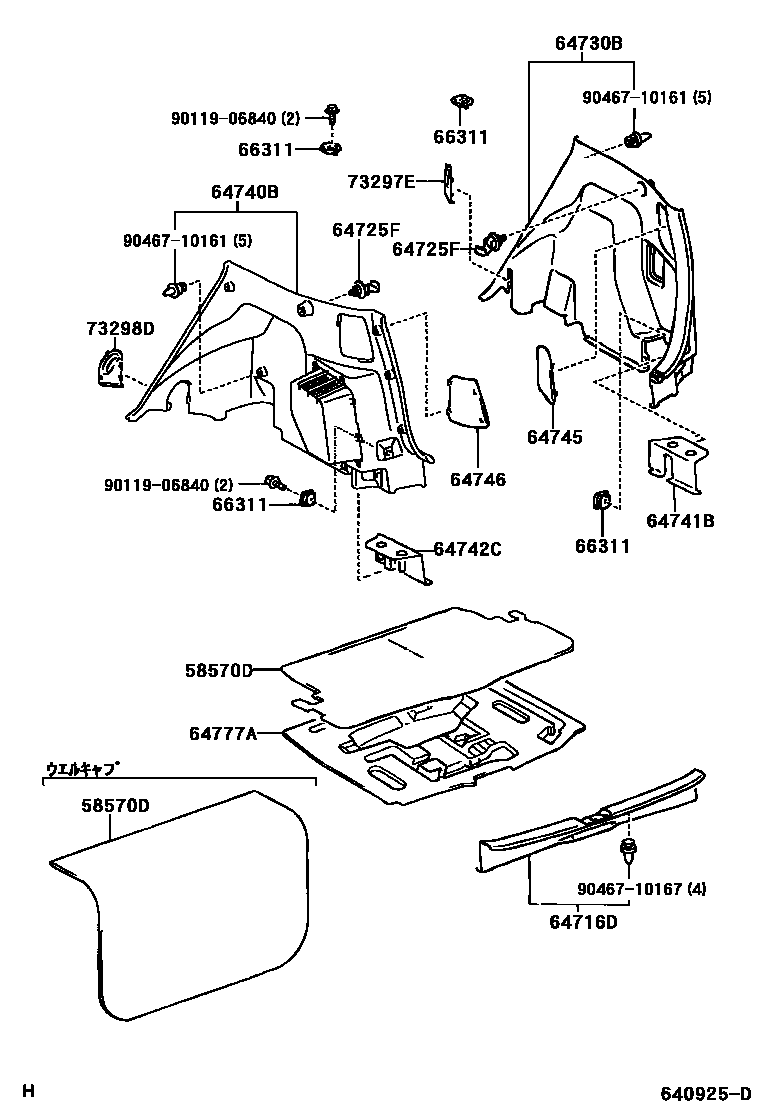

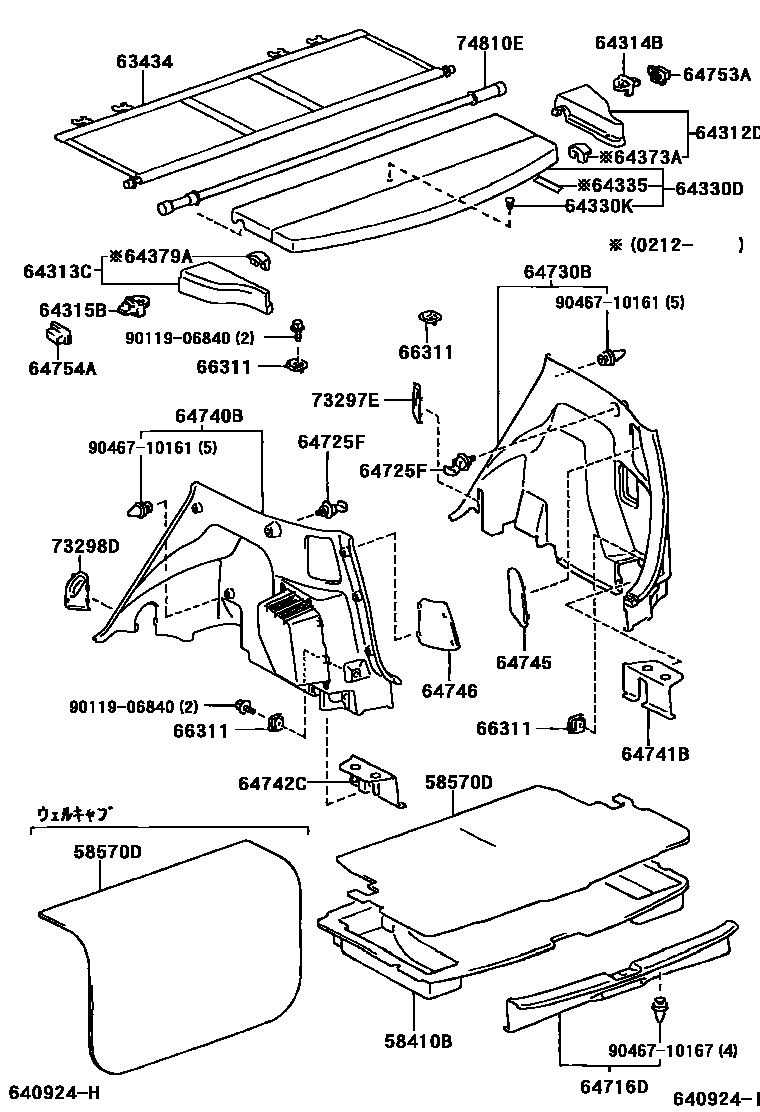

Toyota COROLLA 底板和底板装饰罩 — Figure 6404
Toyota COROLLA EPC diagram 6404, 底板和底板装饰罩, with 2 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 58410B | Base plate assembly | 58410-13140 |
| 58570D | Rear carpet assembly | 58517-13010 |
| 64314B | Glove box bracket right reinforcement | 64314-13010 · 64314-13011 |
| 64315B | Glove box bracket left reinforcement | 64315-13010 · 64315-13011 |
| 64373A | Glove box decorative panel stopper | 64373-13010 |
| 64379A | Glove box decorative panel left stop | 64379-13010 |
| 64753A | Rear floor panel right side | 64753-13010 |
| 64754A | Rear floor left trim panel | 64754-13010 |
| 64777A | Spare tire cover clip | 64777-13020 |
| 66311 | rope hook | 58460-33020 · 66310-13010 |
| 74810E | Separation rod assembly | 74810-13020 |
