Toyota COROLLA 内饰板和车门防水胶条 — Figure 6401

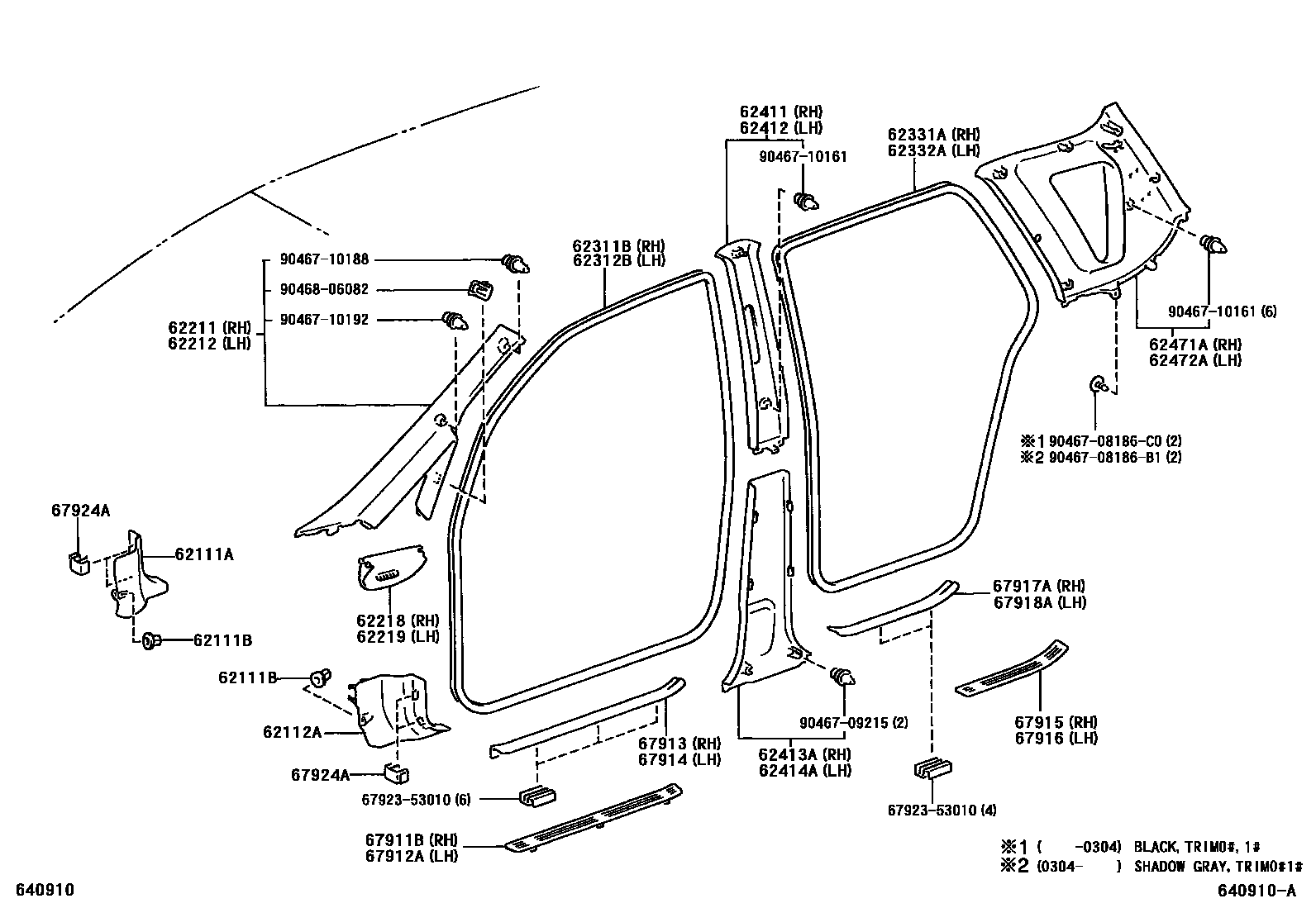

Toyota COROLLA EPC diagram 6401, 内饰板和车门防水胶条, with 1 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 62111B | Clip (for cowl side trim panel) | 90467-06120 |
| 67911B | Right front door outer wear plate | 67911-13010 |
| 67912A | Left front door outer wear plate | 67912-13010 |
| 67915 | Right rear door outer wear plate | 67915-13010 |
| 67916 | Left rear door outer wear plate | 67916-13010 |
| 67924A | Door No. 2 wear plate clip | 67924-46010 |
