Toyota COROLLA 角窗 — Figure 6103

Toyota COROLLA EPC diagram 6103, 角窗, with 1 images and 4 PNC and OE references.

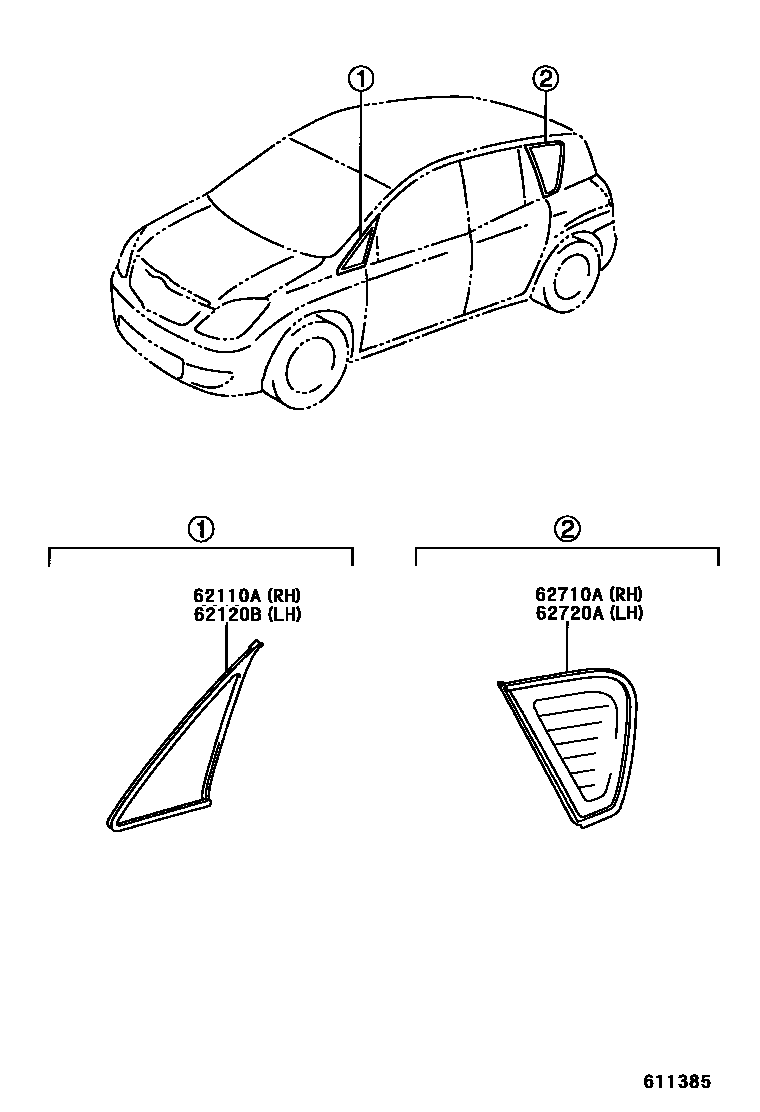

Toyota COROLLA 角窗 EPC diagram — 611385
角窗 — 611385 (200105 – 999999)

PNC and OE references

PNCPart nameOE numbers
62110ARight front side fixed window assembly62110-13040 · 62110-13050
62120BLeft front side fixed window assembly62120-13040 · 62120-13050
62710ARight corner window assembly62710-13120 · 62710-13130 · 62710-13140 · 62710-13150 · 62710-13151 · 62710-13160 · 62710-13161 · 62710-13170 · 62710-13171
62720ALeft corner window assembly62720-13120 · 62720-13130 · 62720-13140 · 62720-13150 · 62720-13151 · 62720-13160 · 62720-13161 · 62720-13170 · 62720-13171
