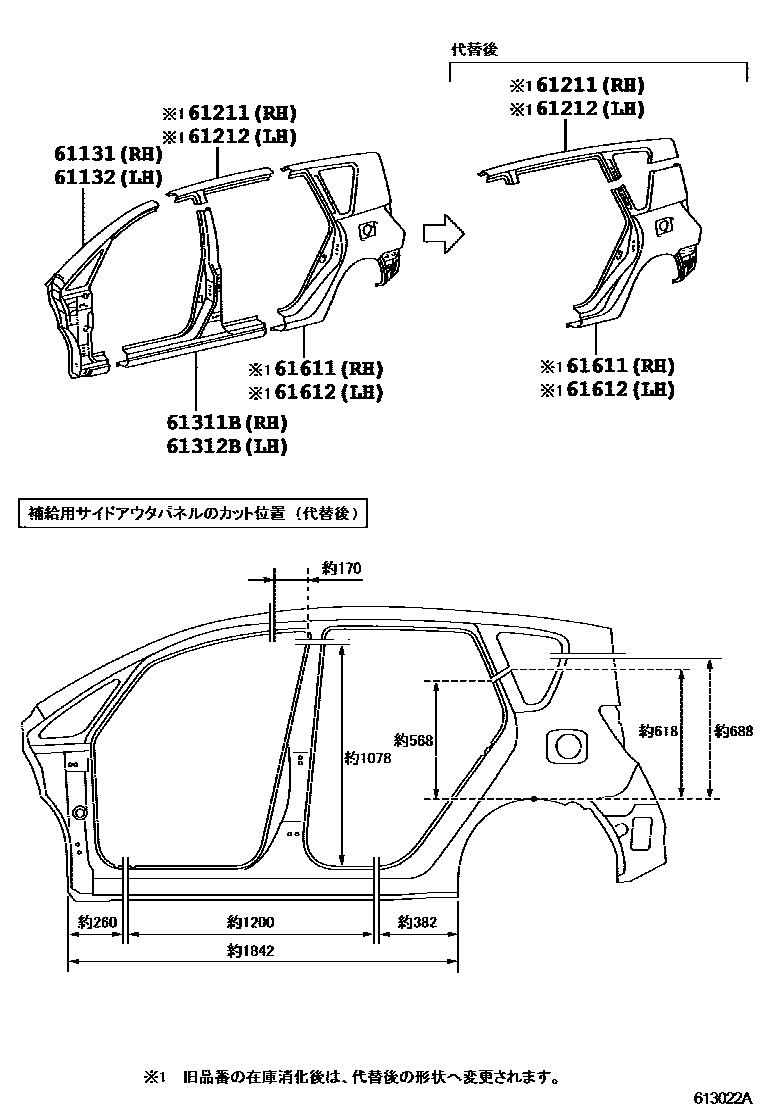

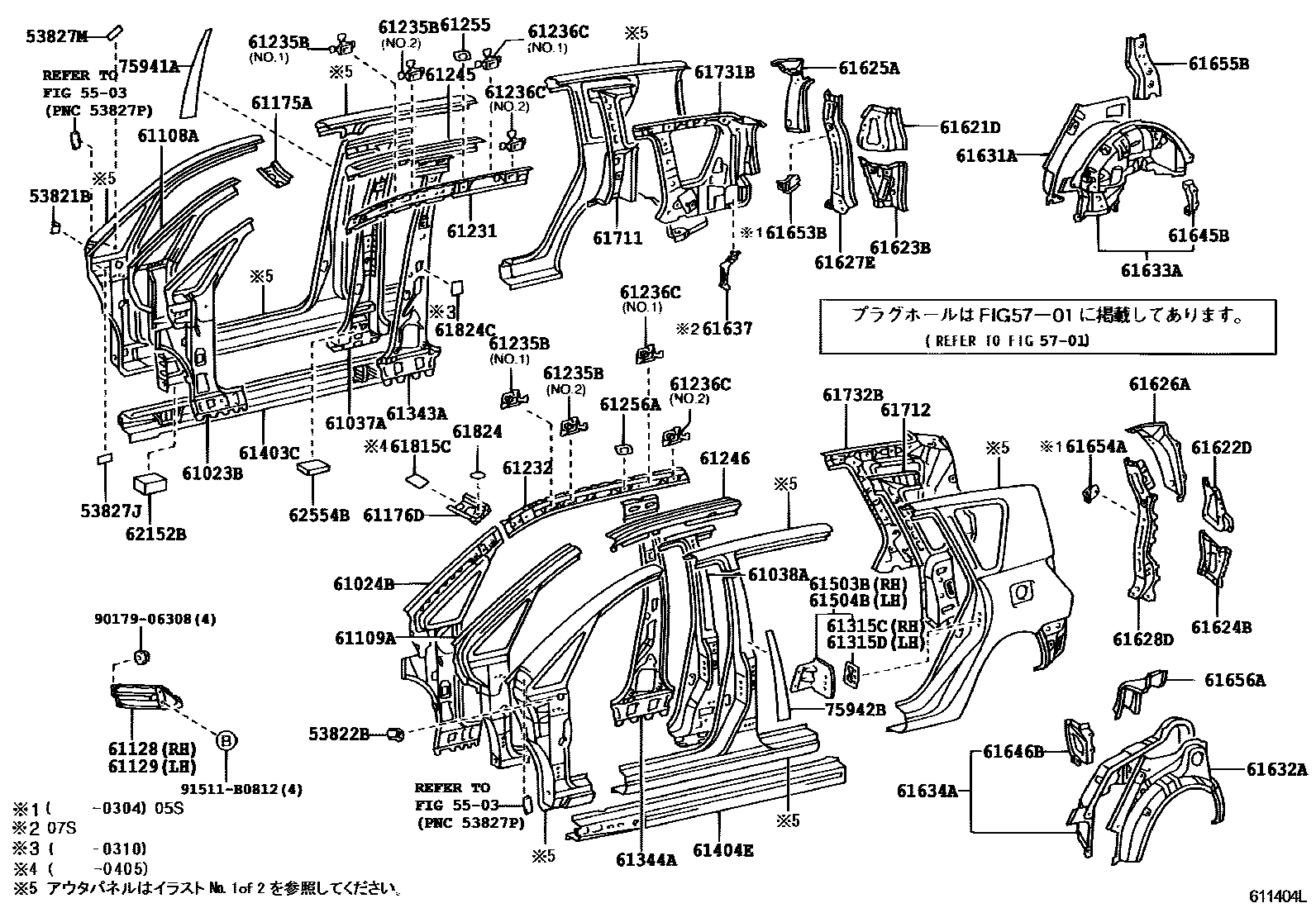

Toyota COROLLA 侧梁 — Figure 6101
Toyota COROLLA EPC diagram 6101, 侧梁, with 2 images and 68 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53821B | Right front fender rear support | 53821-16010 |
| 53822B | Left front fender rear support | 53821-16010 |
| 53827J | Front fender side panel protectors | 53878-28050 |
| 53827M | No. 1 front fender side panel protector | 53878-28050 |
| 61023B | Right body inner front pillar sub-assembly | 61023-13030 · 61023-13031 |
| 61024B | Left body inner front pillar sub-assembly | 61024-13020 · 61024-13021 |
| 61037A | Right body center pillar reinforcement sub-assembly | 61037-13900 |
| 61038A | Left body center pillar reinforcement sub-assembly | 61038-13900 |
| 61108A | Right body front pillar lower reinforcement sub-assembly | 61108-13020 |
| 61109A | Left side body front pillar lower reinforcement sub-assembly | 61109-13020 |
| 61128 | Right front wall side panel reinforcement | 61103-13010 |
| 61129 | Left front wall side panel reinforcement | 61104-13010 |
| 61131 | Right body outer front upper pillar | 61131-13070 · 61131-13080 |
| 61132 | Left body outer front upper pillar | 61132-13070 · 61132-13080 |
| 61175A | No. 2 right outer front pillar upper reinforcement | 61175-13020 |
| 61176D | No. 2 left body exterior front pillar reinforcement | 61176-13020 |
| 61211 | Roof right outer longitudinal beam | 61211-13100 |
| 61212 | Roof left outer longitudinal beam | 61212-13100 |
| 61231 | Inner longitudinal beam on the right side of the roof | 61231-13230 · 61231-13240 |
| 61232 | Roof left inner longitudinal beam | 61232-13210 · 61232-13220 |
| 61235B | Auxiliary handle bracket | 61235-13030 · 61245-13070 |
| 61236C | Auxiliary handle bracket | 61237-13030 · 61247-13030 |
| 61245 | Roof right outer longitudinal beam reinforcement | 61245-13060 |
| 61246 | Roof left outer longitudinal beam reinforcement | 61246-13060 |
| 61255 | Roof right outer longitudinal beam panel | 61255-52010 |
| 61256A | Roof left outer longitudinal beam panel | 61255-52010 |
| 61311B | Right body outer center pillar | 61311-13050 · 61311-13060 |
| 61312B | Left body outer center pillar | 61312-13050 · 61312-13060 |
| 61315C | Right door latch fastener | 61315-22020 |
| 61315D | Left door latch fastener | 61315-22020 |
| 61343A | Right body inner center pillar | 61343-13020 |
| 61344A | Left body inner center pillar | 61344-13020 |
| 61403C | Right door outer sill reinforcement sub-assembly | 61403-13010 |
| 61404E | Left door outer sill reinforcement sub-assembly | 61404-13010 |
| 61503B | Right side locking column reinforcement sub-assembly | 61503-13020 |
| 61504B | Left side locking column reinforcement sub-assembly | 61504-13020 |
| 61611 | Right side hoarding | 61611-13390 · 61611-13400 |
| 61612 | left side panel | 61602-13630 · 61602-13640 |
| 61621D | Back door right opening slot | 61621-13070 |
| 61622D | Rear door left opening slot | 61622-13070 |
| 61623B | Back door right rear opening slot | 61623-13060 |
| 61624B | Back door left rear opening slot | 61624-13050 |
| 61625A | Right side enclosure extension sub-assembly | 61625-13080 |
| 61626A | Left side enclosure extension sub-assembly | 61626-13080 |
| 61627E | Right rear side panel lower extension | 61627-13020 |
| 61628D | Left rear side panel lower extension | 61628-13020 |
| 61631A | Right wheel cover outer panel | 61631-12410 |
| 61632A | Left side wheel cover outer panel | 61632-12430 |
| 61633A | Right wheel housing lining panel | 61607-13900 · 61607-13901 · 61607-13915 |
| 61634A | Left side wheel housing lining panel | 61608-13900 · 61608-13901 · 61608-13917 |
| 61637 | Right wheel cover bracket | 61609-13010 |
| 61645B | Right rear side wheel housing corner panel | 61645-12150 |
| 61646B | Left rear side wheel housing corner panel | 61646-12140 |
| 61653B | Bottom panel side trim bracket | 61653-13020 |
| 61654A | No. 2 floor panel side trim bracket | 61654-13010 |
| 61655B | Right side wheel cover inner corner panel | 61655-13040 |
| 61656A | Left side wheel housing inner corner panel | 61656-13040 · 61656-13041 |
| 61711 | Roof right side outer panel | 61711-13130 |
| 61712 | Roof left outer panel | 61712-13130 |
| 61731B | Roof right inner panel | 61731-13900 · 61731-13901 · 61731-13903 |
| 61732B | Roof left inner panel | 61732-13900 · 61732-13901 · 61732-13902 |
| 61815C | Inner roof cover | 61815-28010 · 61815-32020 |
| 61824 | Noise Control Panel No. 1 | 61824-12040 · 61824-12060 |
| 61824C | No. 1 silencer panel gasket | 61824-50020 |
| 62152B | No. 2 silencer pad on cowl side | 62152-12050 |
| 62554B | No. 4 column pad | 62554-12180 |
| 75941A | Right center pillar trim | 75941-13010 · 75941-13011 |
| 75942B | Left center pillar trim | 75942-13010 · 75942-13011 |
