Toyota COROLLA 地板垫和地毯 — Figure 5804

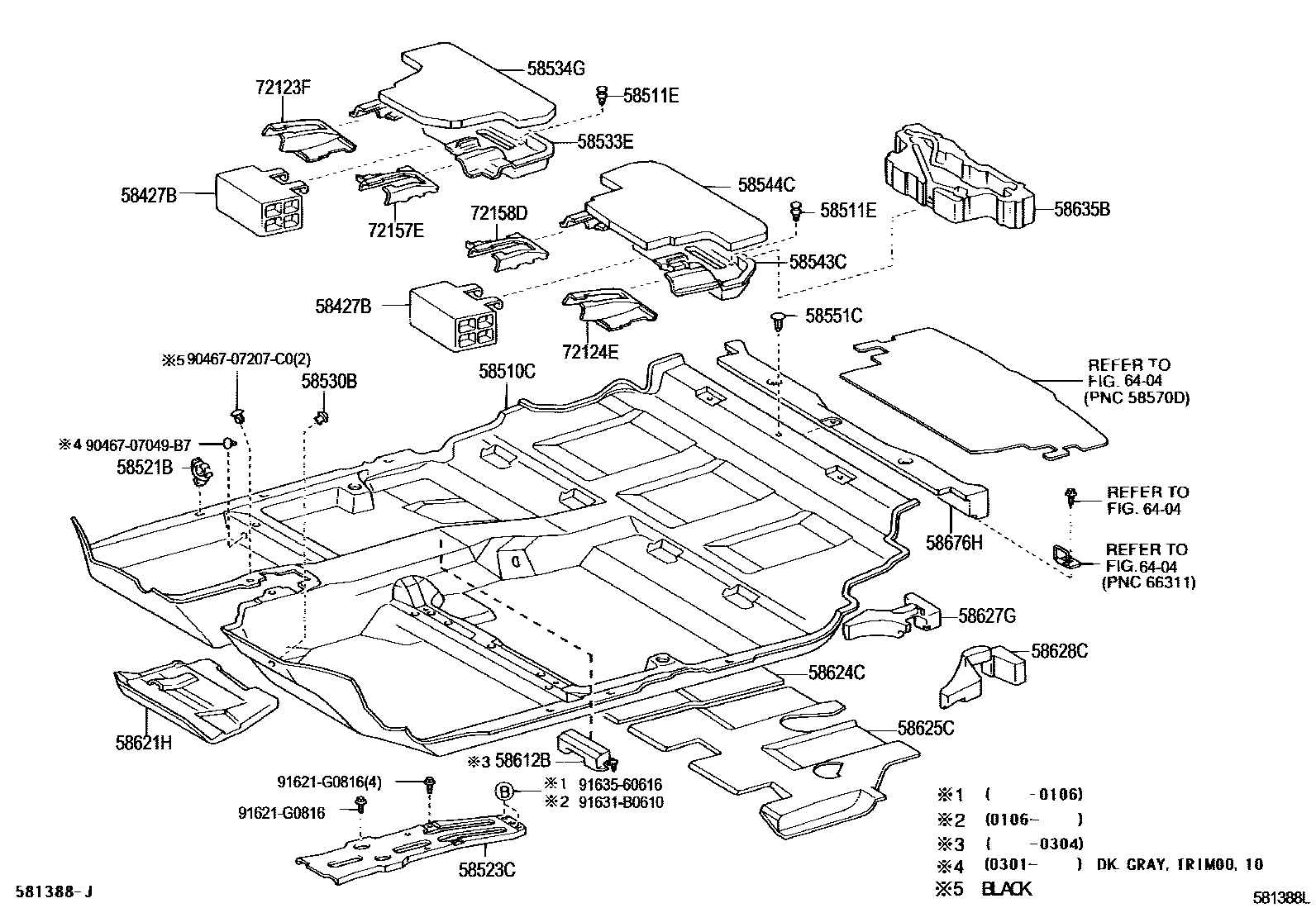

Toyota COROLLA EPC diagram 5804, 地板垫和地毯, with 1 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 58427B | rear floor spacer | 58427-13040 |
| 58511E | Clip (for front floor mat) | 90467-08188 |
| 58521B | carpet hook | 58521-13030 |
| 58523C | Carpet fixing bracket | 58523-13010 · 58523-13011 |
| 58533E | Front floor mat No. 1 center right panel | 58533-13010 · 58533-13020 |
| 58543C | Front floor mat No. 1 center left panel | 58543-13010 · 58543-13020 · 58543-13030 |
| 58612B | No. 2 pad fixing plate | 58612-13080 |
| 58621H | Front floor sound absorbing mat | 58621-13030 |
| 58624C | Center floor right muffler pad | 58624-13020 · 58624-13040 · 58624-13050 · 58624-13060 |
| 58625C | Center floor left silencer pad | 58625-13010 · 58625-13030 · 58625-13040 · 58625-13050 |
| 58627G | Center floor right rear muffler pad | 58627-13020 · 58627-13030 |
| 58628C | Center floor left rear muffler pad | 58628-13020 · 58628-13021 · 58628-13030 · 58628-13031 |
| 58635B | seat floor box | 58635-13030 |
| 58676H | Rear floor sound absorbing mat | 58676-13070 · 58676-13071 |
