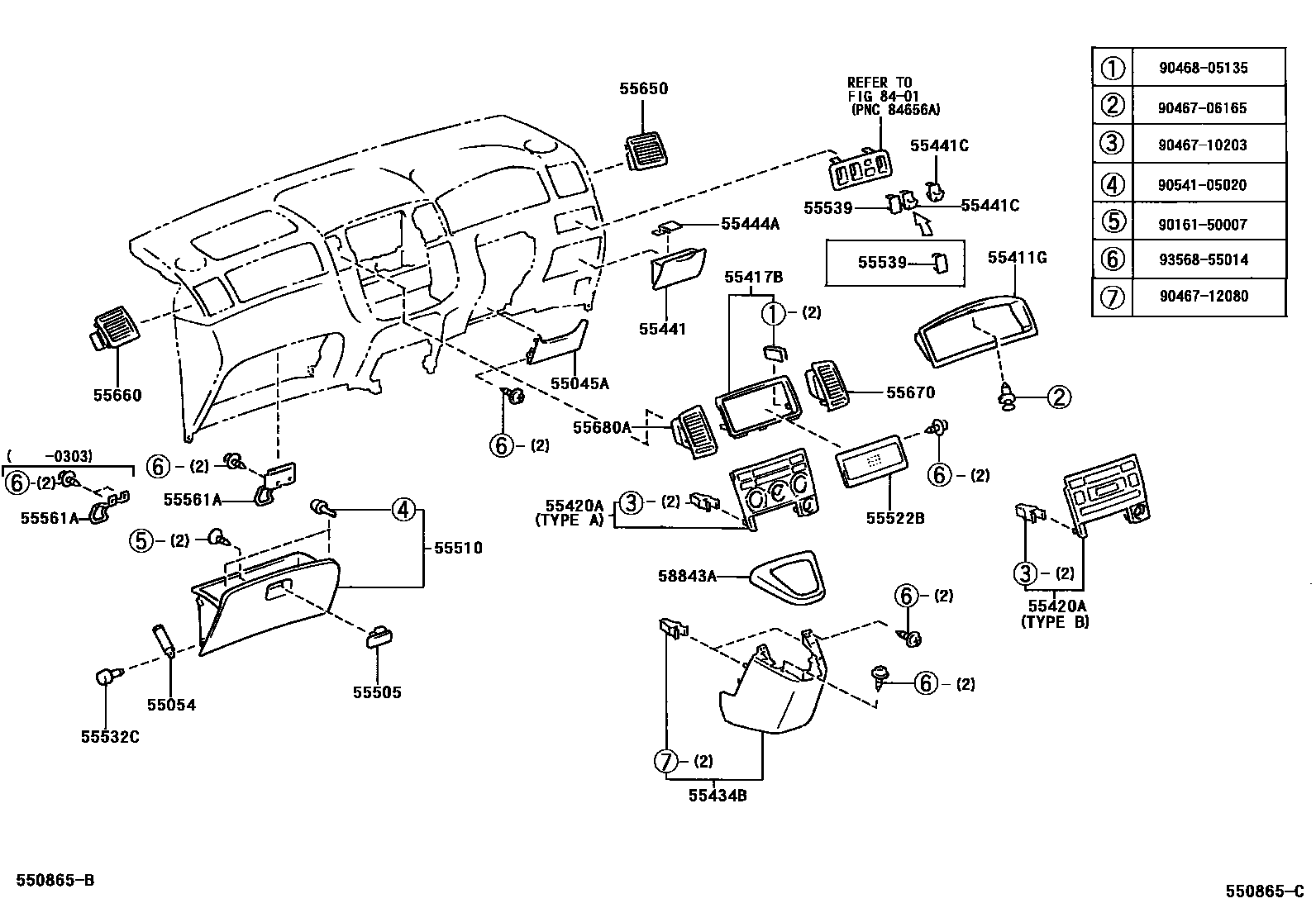

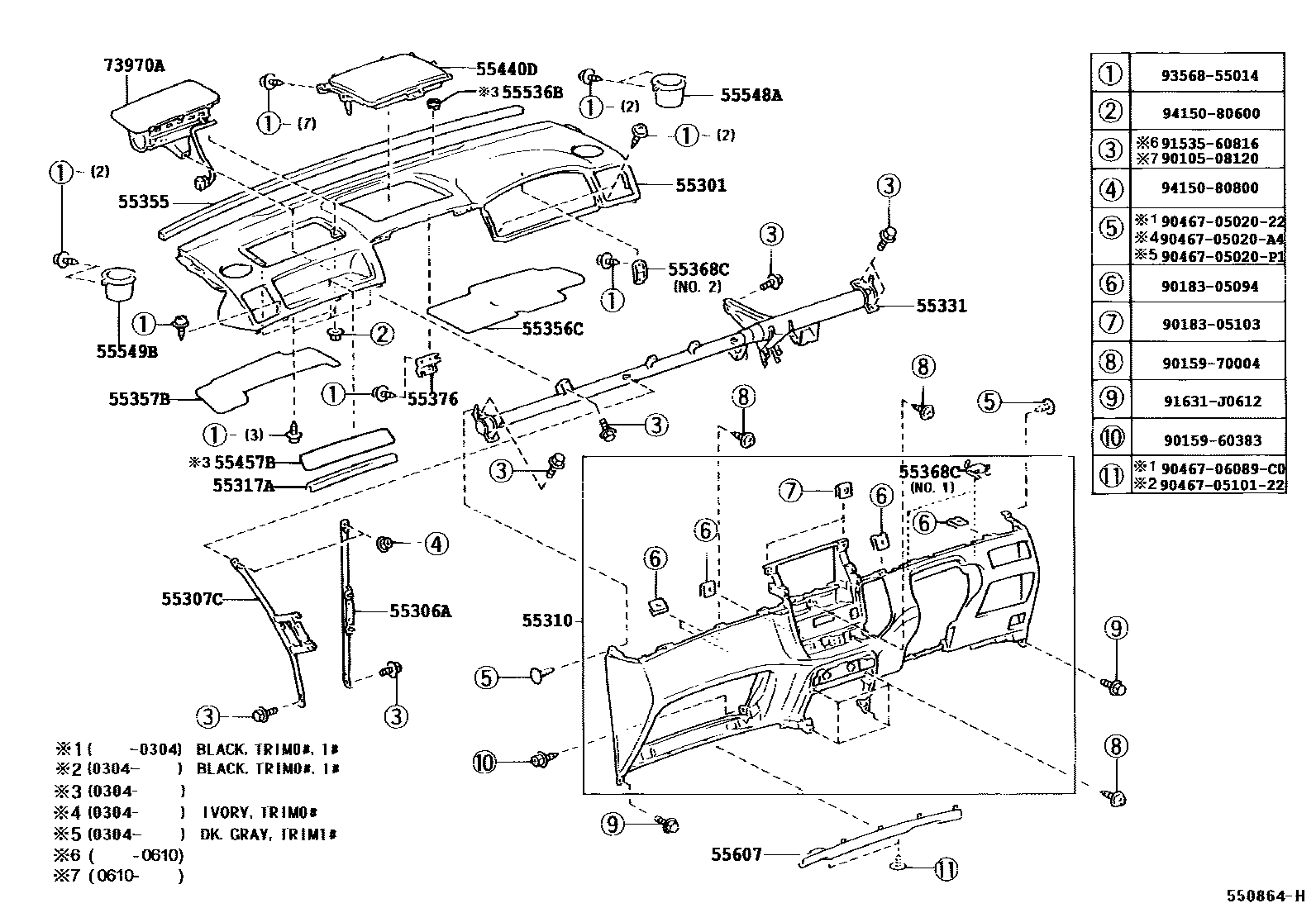

Toyota COROLLA 仪表板和手套箱 — Figure 5501
Toyota COROLLA EPC diagram 5501, 仪表板和手套箱, with 2 images and 16 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55054 | Glove box cover stopper sub-assembly | 55054-12010 |
| 55306A | Instrument panel No. 1 bracket sub-assembly | 55306-13020 |
| 55307C | Instrument panel No. 2 bracket sub-assembly | 55307-13020 |
| 55317A | Dashboard right panel | 55317-13050 |
| 55331 | Dashboard reinforcement | 55330-13030 · 55330-13031 · 55330-13040 · 55330-13041 · 55330-13060 · 55330-13070 |
| 55355 | Dashboard No. 1 Cushion Pad | 55355-52012 |
| 55356C | Dashboard No. 2 Cushion Pad | 55356-13010 |
| 55357B | Dashboard No. 3 Cushion Pad | 55357-13040 |
| 55368C | Instrument mounting bracket | 55362-12050 · 55368-13020 |
| 55376 | Instrument panel mounting bracket No. 1 | 55376-13020 |
| 55420A | Center instrument cluster decorative panel assembly | 55420-13020 · 55420-13030 |
| 55444A | Dashboard storage box spring | 55444-12080 |
| 55457B | Dashboard safety pad spacer | 55457-13010 |
| 55522B | Radio tuner opening cover | 55522-52020 |
| 55532C | Glove box cover stop | 55532-13010 |
| 55561A | Glove box lid lock | 55308-13020 · 55561-13030 |
