Toyota COROLLA radiator grille — Figure 5301

Toyota COROLLA EPC diagram 5301, radiator grille, with 2 images and 2 PNC and OE references.

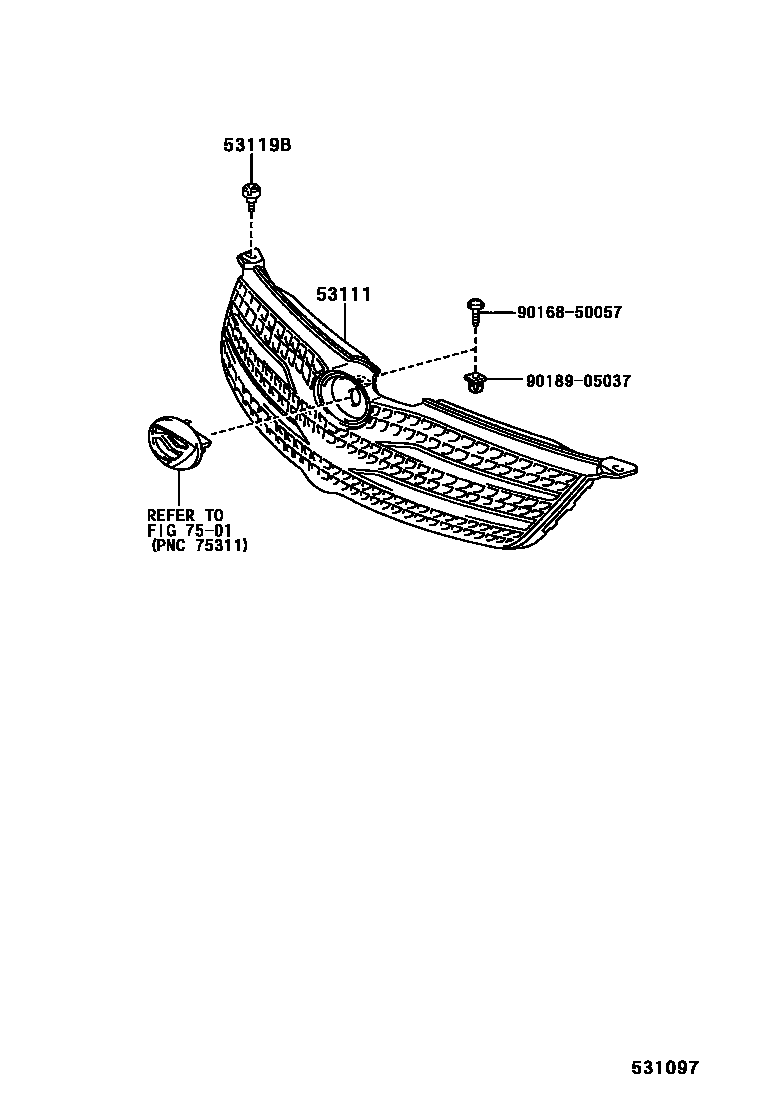

Toyota COROLLA radiator grille EPC diagram — 531097
radiator grille — 531097 (200105 – 200304)

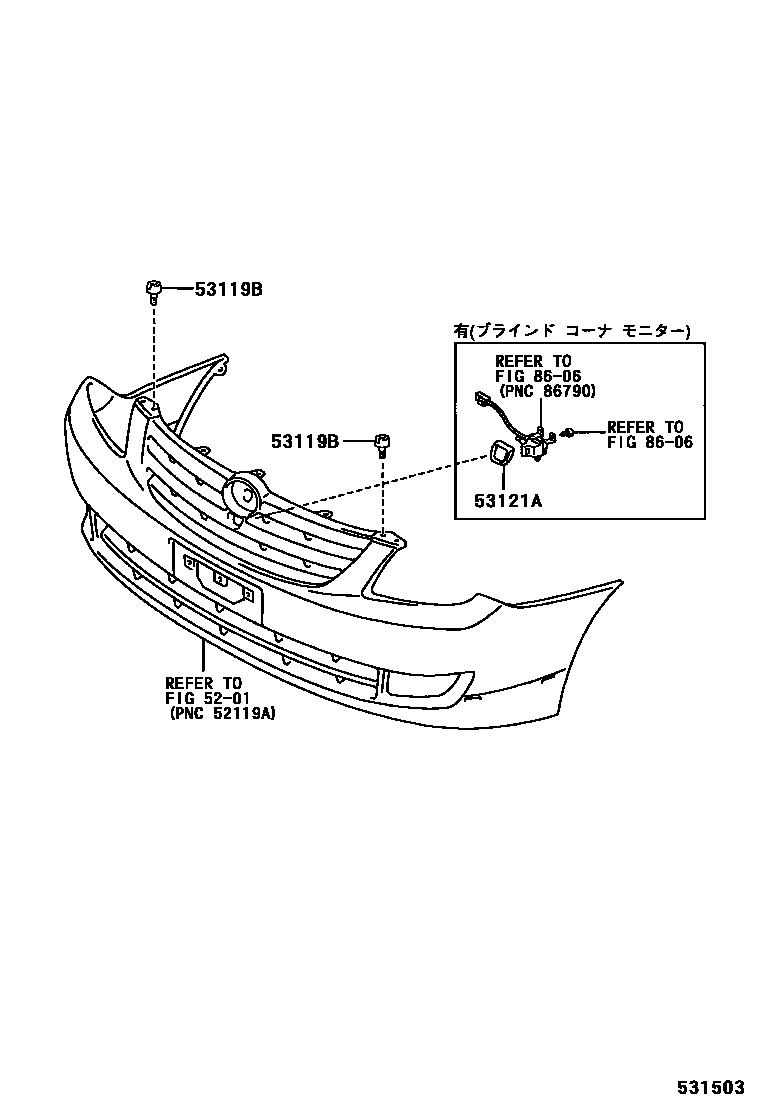

Toyota COROLLA radiator grille EPC diagram — 531503
radiator grille — 531503 (200304 – 999999)

PNC and OE references

PNCPart nameOE numbers
53111radiator grille53111-13240
53119BRadiator grille protector53119-12150
