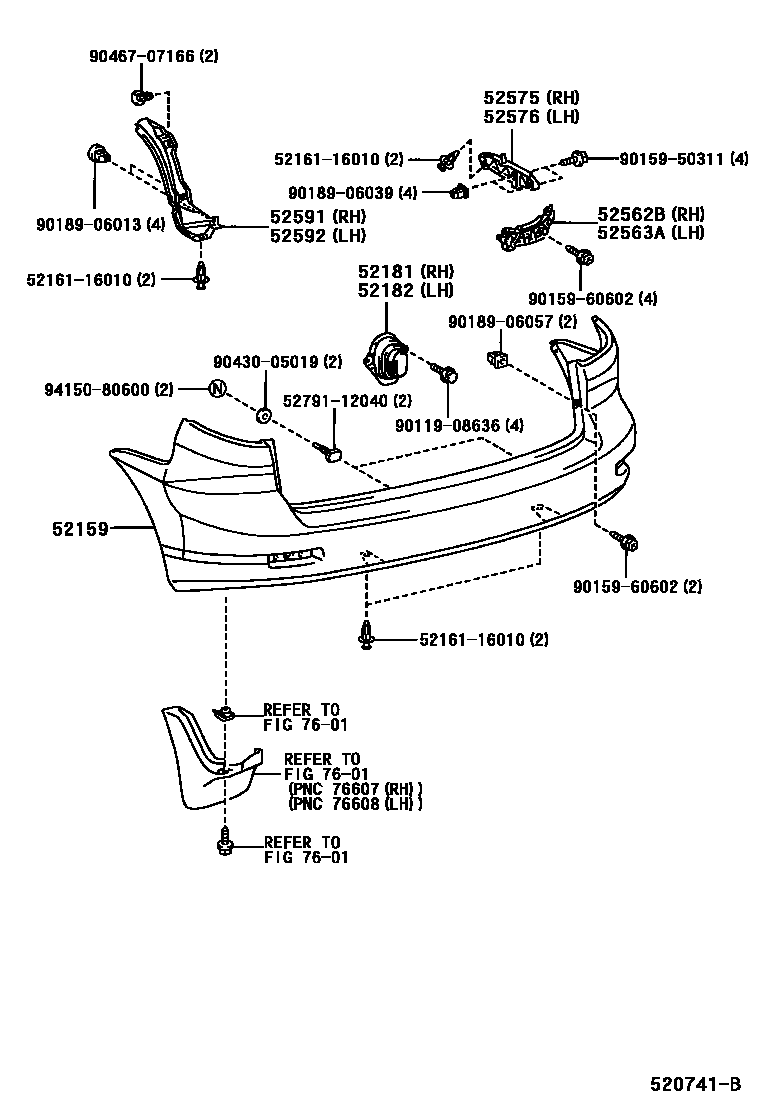

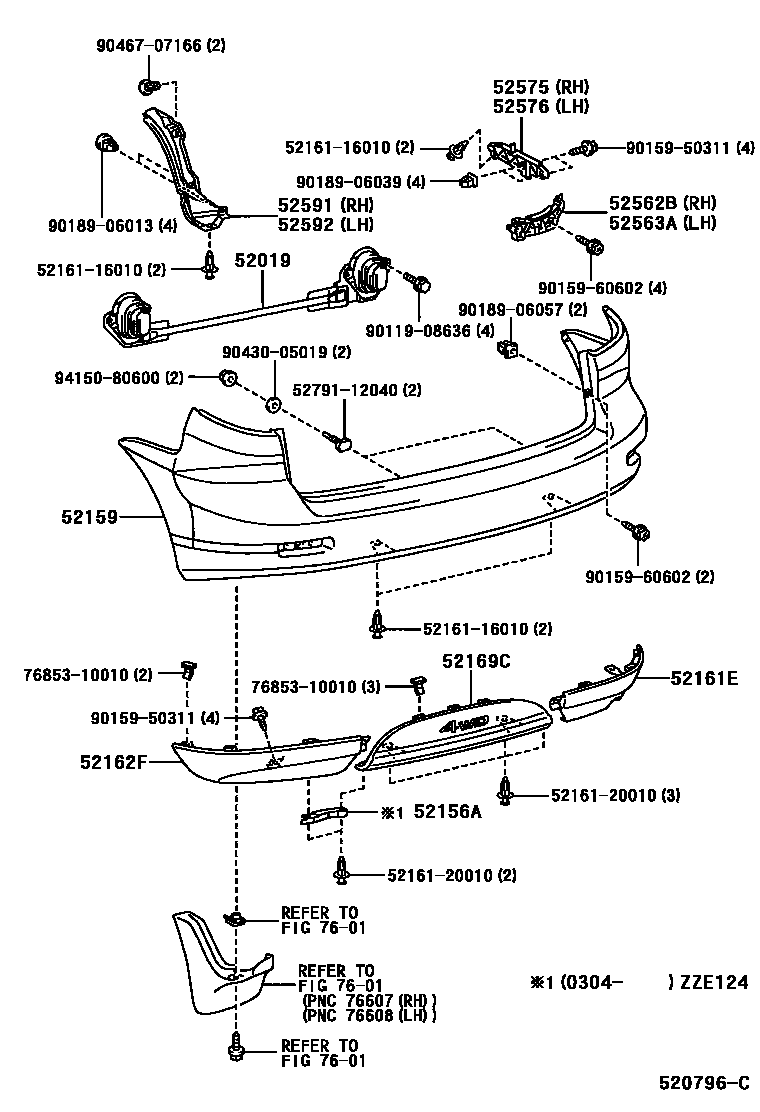

Toyota COROLLA 后保险杠及附件 — Figure 5202
Toyota COROLLA EPC diagram 5202, 后保险杠及附件, with 2 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52019 | Rear bumper sub-assembly | 52019-13010 |
| 52156A | Rear bumper left bracket | 52156-13060 |
| 52169C | Rear bumper lower cover | 52169-13050 |
| 52181 | Rear bumper right arm | 52181-13120 |
| 52182 | Rear bumper left arm | 52181-13120 |
| 52562B | Rear bumper upper right fixing bracket | 52562-13050 |
| 52563A | Rear bumper upper left fixing bracket | 52563-13050 |
| 52575 | Rear bumper right side fixing bracket | 52575-13040 |
| 52576 | Rear bumper left side fixing bracket | 52576-13040 |
| 52591 | Rear bumper right seal | 52591-13050 |
| 52592 | Rear bumper left seal | 52592-13050 |
