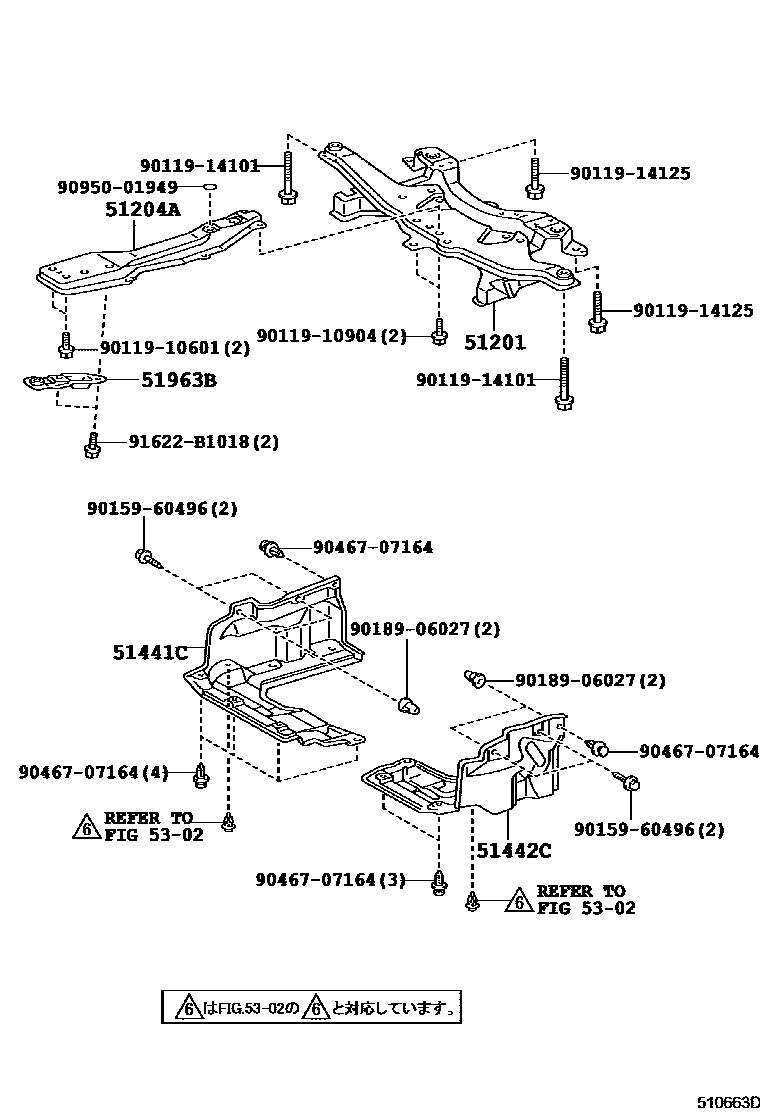

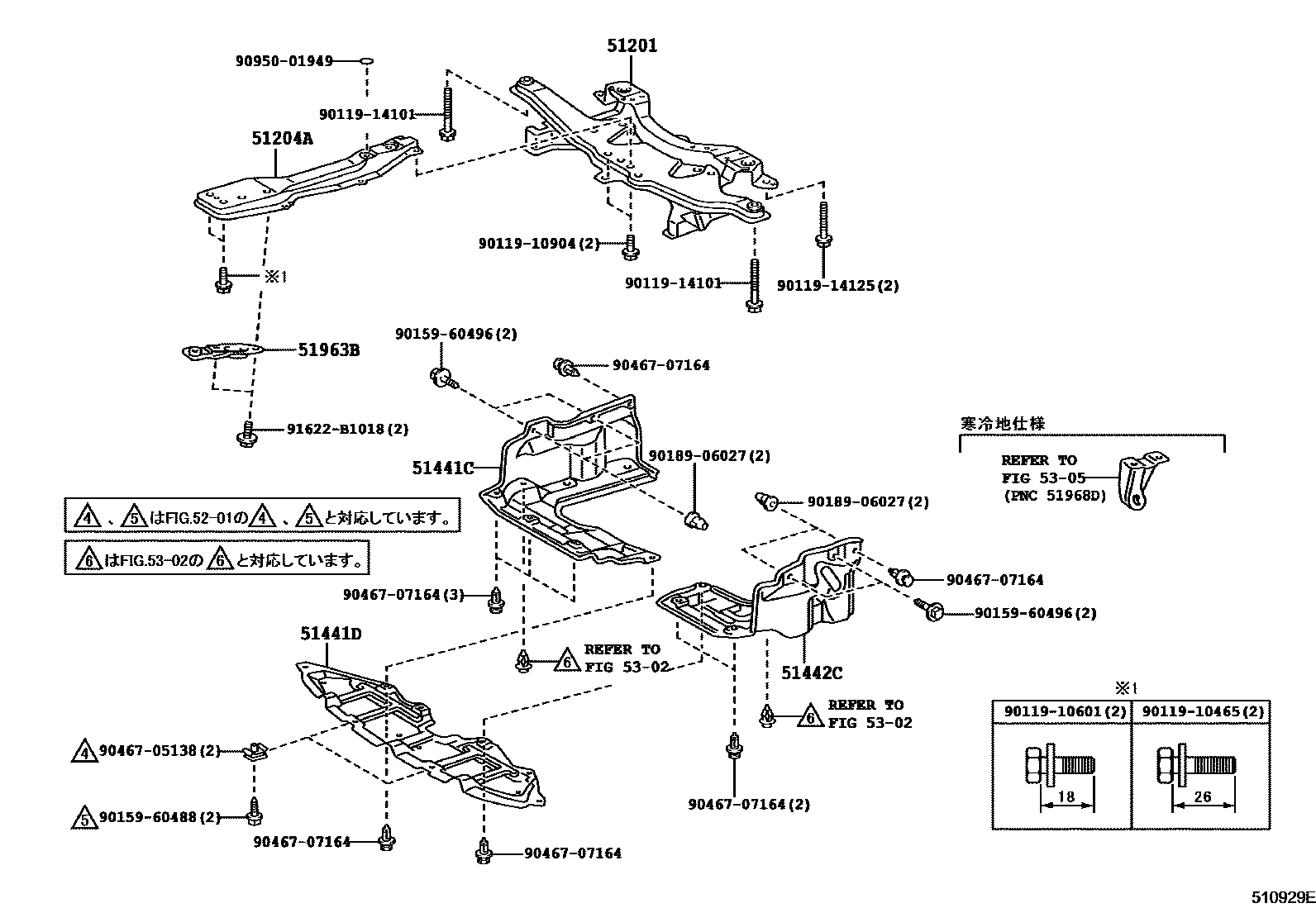

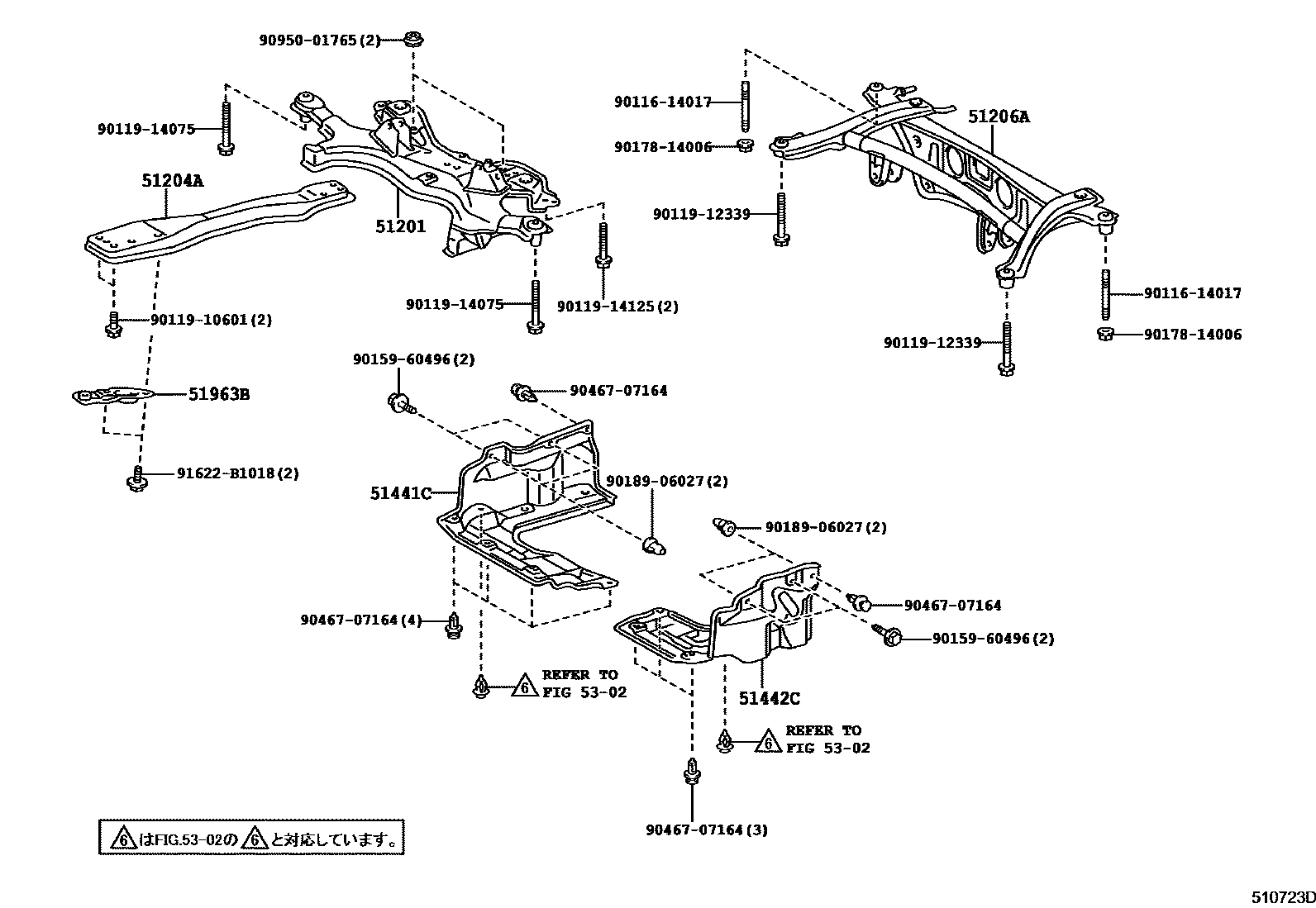

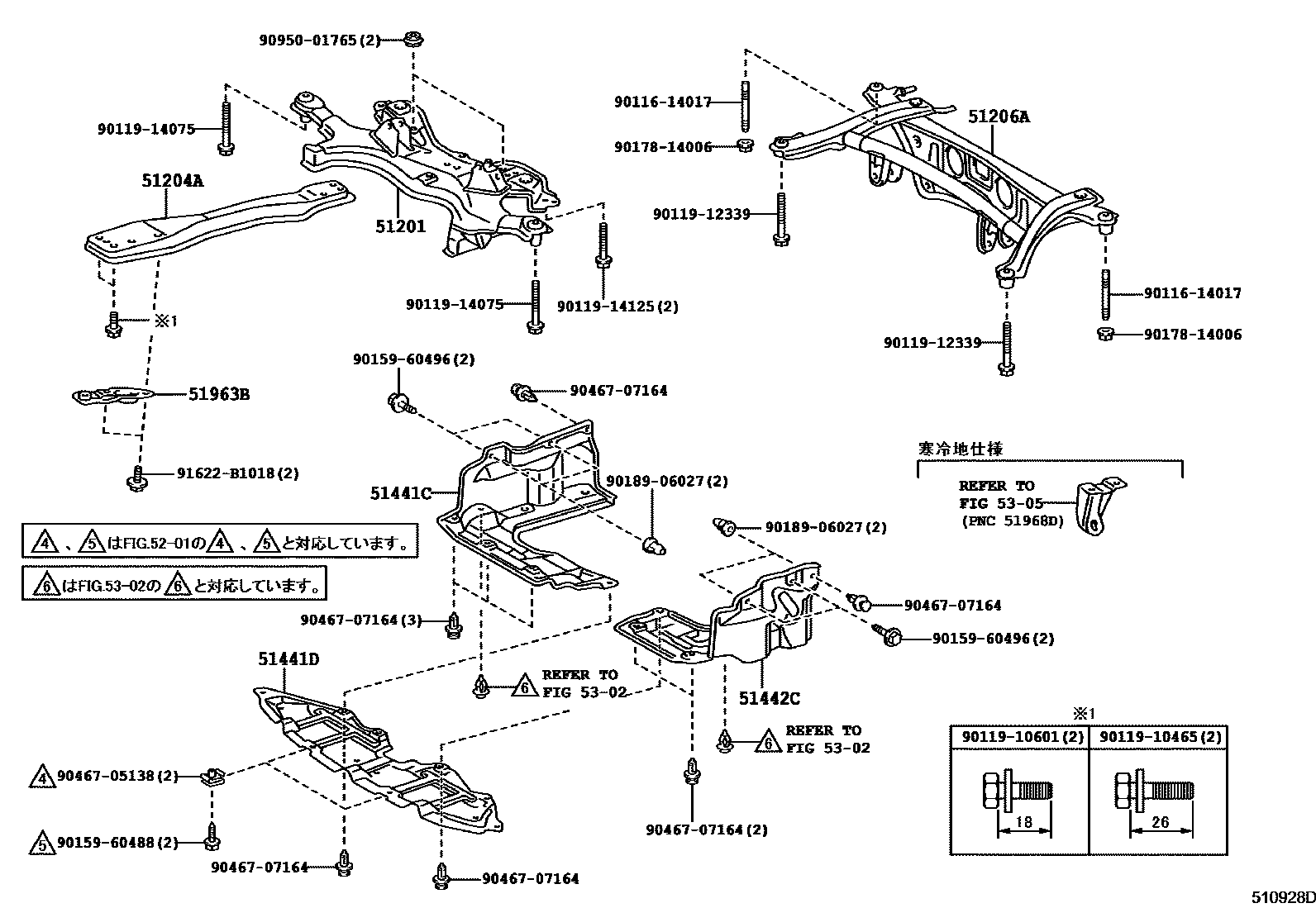

Toyota COROLLA 悬架横梁和发动机底罩 — Figure 5102
Toyota COROLLA EPC diagram 5102, 悬架横梁和发动机底罩, with 4 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 51201 | Front suspension cross member sub-assembly | 51201-12420 · 51201-12421 · 51201-12430 · 51201-12431 · 51201-20350 |
| 51204A | Engine center mount beam sub-assembly | 51204-12120 · 51204-12130 |
| 51206A | Rear suspension cross member sub-assembly | 51206-12080 · 51206-12081 · 51206-12100 |
| 51441C | Engine right bottom cover | 51441-12190 |
| 51441D | engine cover | 51451-13010 |
| 51442C | Engine left bottom cover | 51442-12190 |
| 51963B | Right front transport hook | 51963-12240 |
