Toyota COROLLA 后鼓式制动器分泵和底板 — Figure 4706

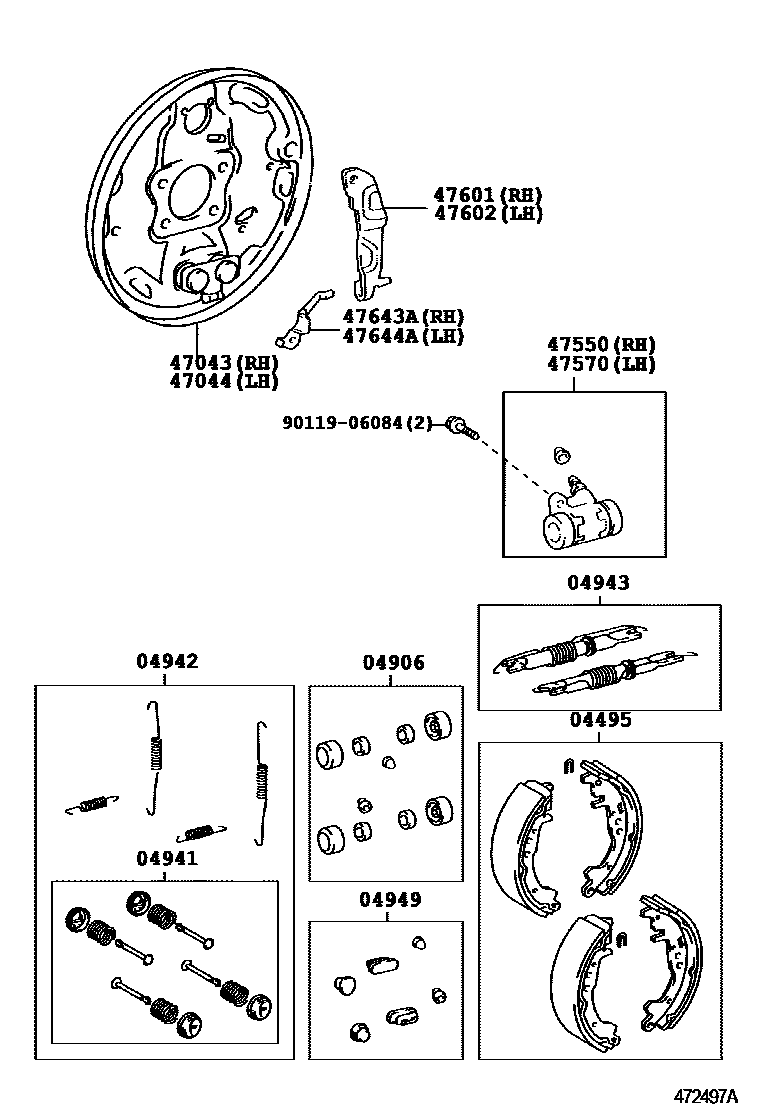

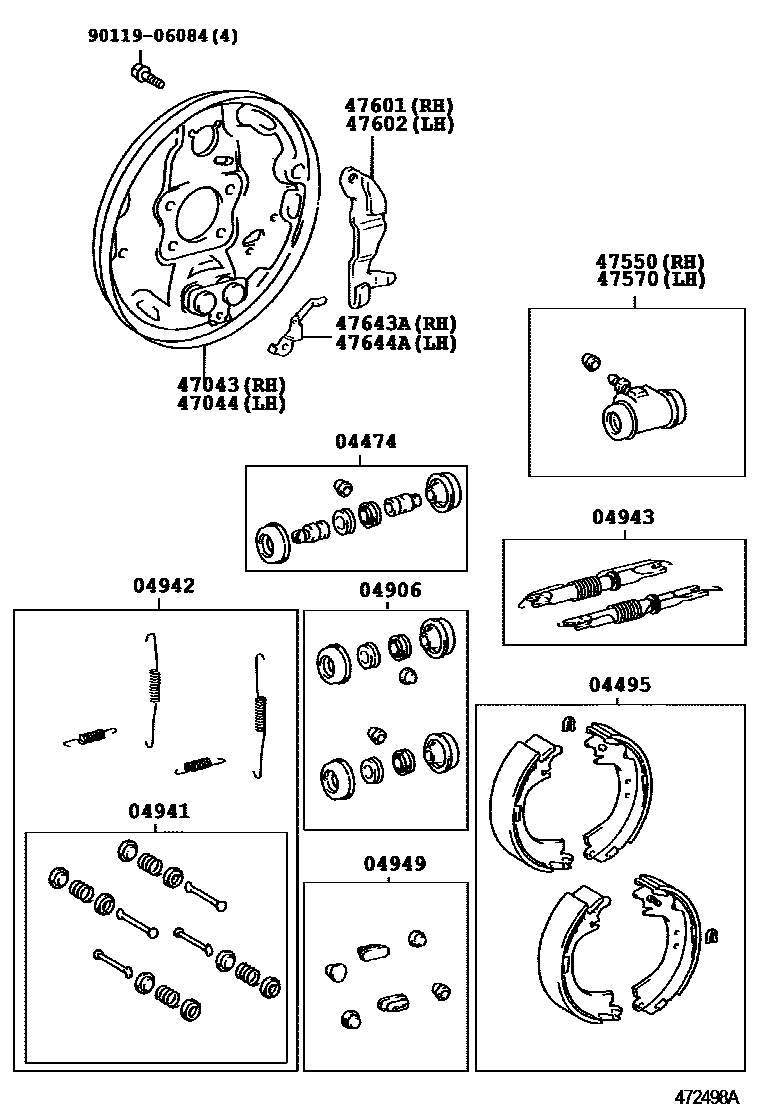

Toyota COROLLA EPC diagram 4706, 后鼓式制动器分泵和底板, with 2 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04474 | rear wheel pump assembly | 04474-42020 |
| 04495 | Rear brake shoe assembly | 04495-52020 · 04495-52030 · 04495-63010 · 04495-63011 |
| 04906 | Rear wheel pump cup assembly | 04906-20030 · 04906-42020 · 04906-52010 |
| 04941 | Rear brake shoe limit spring assembly | 04941-12010 · 04941-28010 |
| 04942 | Rear brake spring assembly | 04942-12010 · 04942-13020 · 04942-13030 |
| 04943 | Right rear brake bracket assembly | 04943-12010 · 04943-13010 |
| 04949 | Rear brake plug assembly | 04949-12010 · 04949-13010 |
| 47043 | Right rear brake base plate sub-assembly | 47043-20140 · 47043-63010 |
| 47044 | Left rear brake base plate sub-assembly | 47044-20140 · 47044-63010 |
| 47550 | Rear wheel brake cylinder assembly (for front right or upper right) | 47550-42020 · 47550-52011 |
| 47570 | Rear wheel brake cylinder assembly (for front left or upper left) | 47550-42020 · 47570-52011 |
| 47601 | Right parking brake shoe lever sub-assembly (for rear wheel brake) | 47601-47010 · 47611-68030 · 47612-33010 |
| 47602 | Left parking brake shoe lever sub-assembly (for rear wheel brake) | 47602-47010 · 47611-33010 · 47612-68030 |
| 47643A | Right rear wheel brake automatic adjustment lever | 47643-42010 · 47643-47010 |
| 47644A | Left rear wheel brake automatic adjustment lever | 47644-42010 · 47644-47010 |
