Toyota COROLLA Parking Brake & Cable — Figure 4601

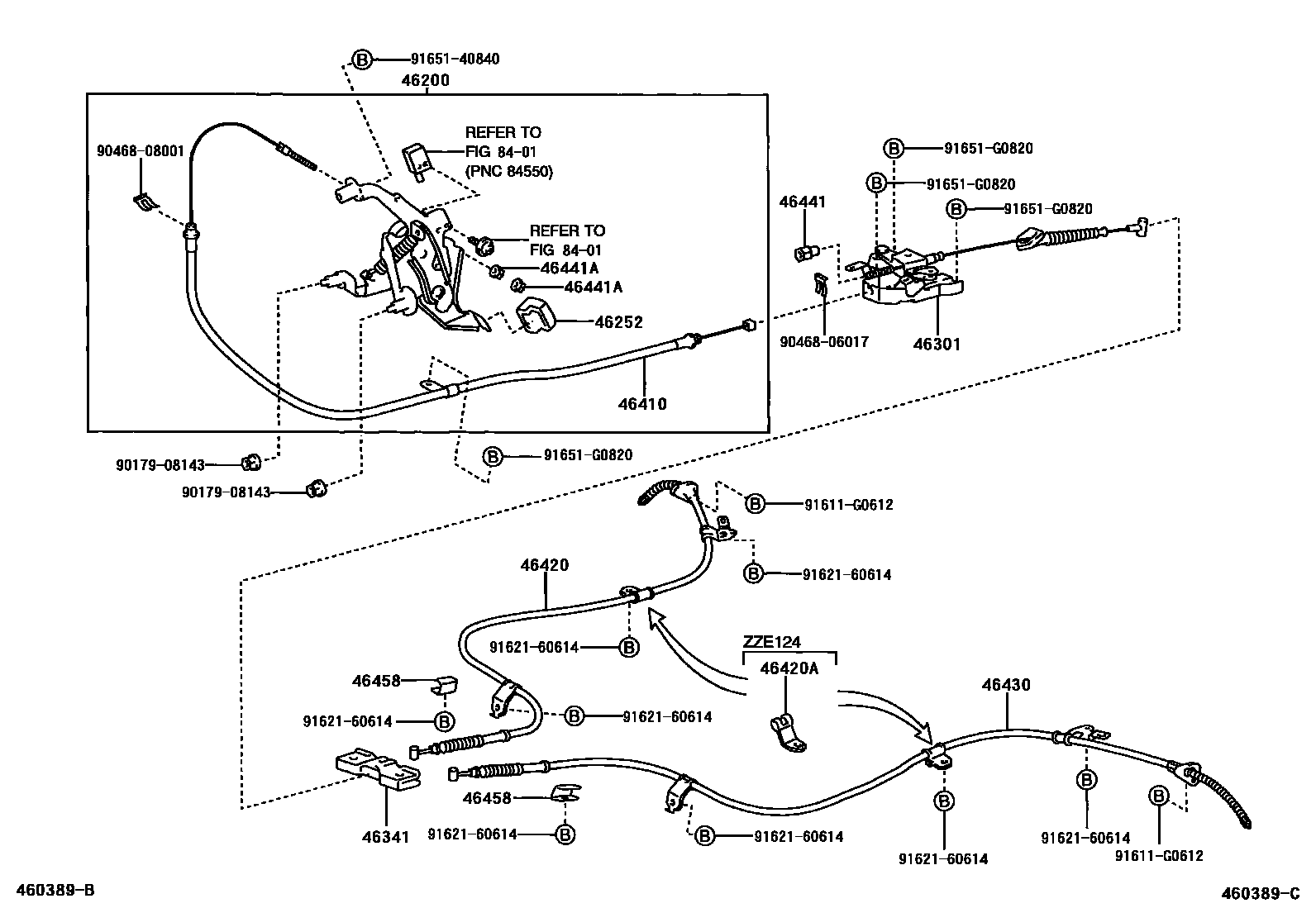

Toyota COROLLA EPC diagram 4601, Parking Brake & Cable, with 1 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 46200 | Parking brake control pedal assembly | 46200-13030 |
| 46252 | Parking brake pedal pad | 46252-52010 |
| 46301 | Parking brake intermediate lever sub-assembly | 46320-13030 |
| 46341 | Parking brake balancer | 46341-20070 |
| 46410 | Parking brake cable assembly No. 1 | 46410-13030 |
| 46420 | Parking brake No. 2 cable assembly | 46420-12510 · 46420-13080 · 46420-13090 |
| 46420A | Clamp No. 1 (for parking brake cable) | 90949-01C31 |
| 46430 | Parking brake No. 3 cable assembly | 46430-12410 · 46430-13080 · 46430-13090 |
| 46441 | No. 1 cable adjustment nut | 46441-47010 · 46441-47020 |
| 46441A | No. 2 cable adjustment nut | 90179-06058 · 90179-06299 |
| 46458 | Cable fixings | 46458-28010 |
