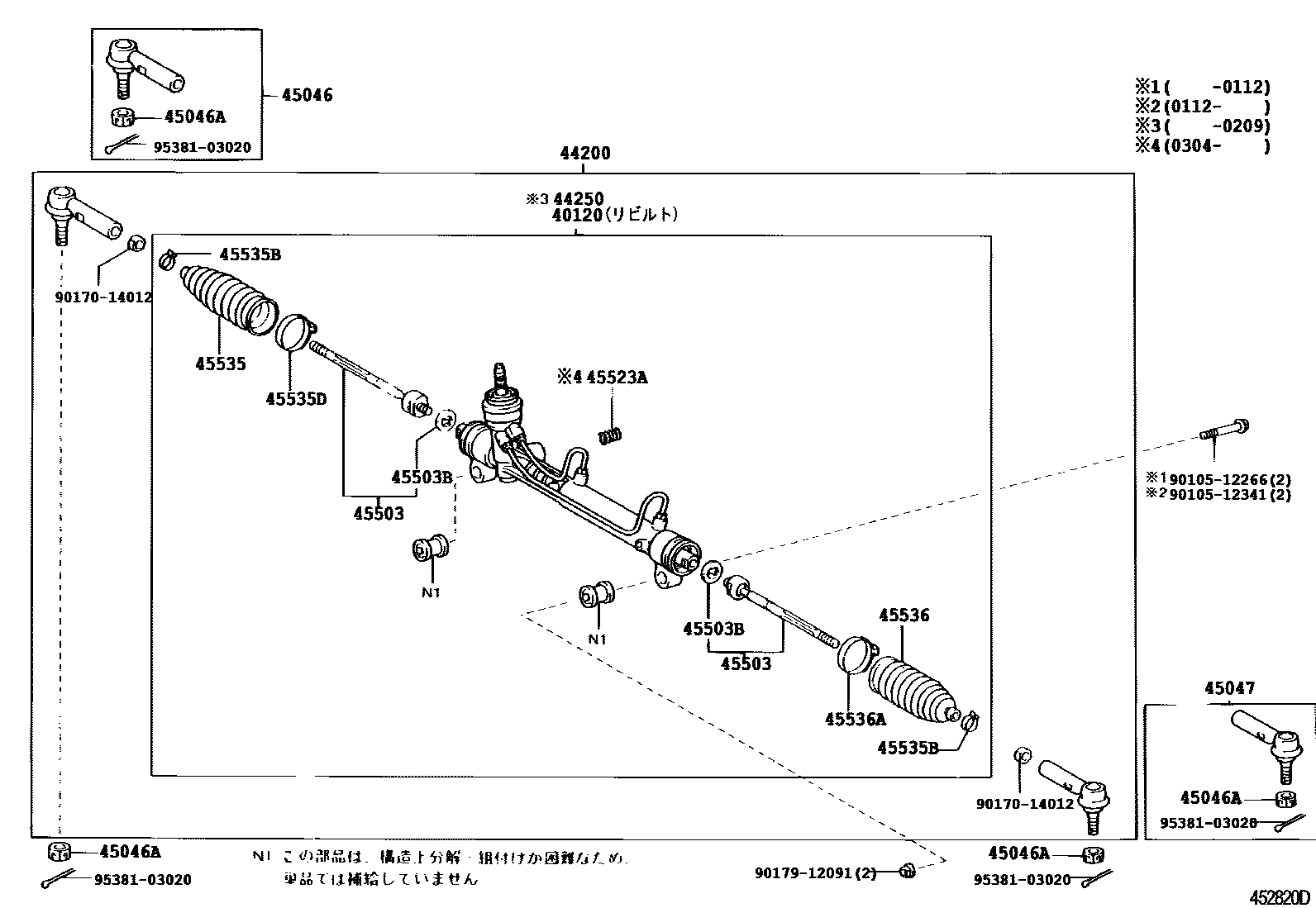

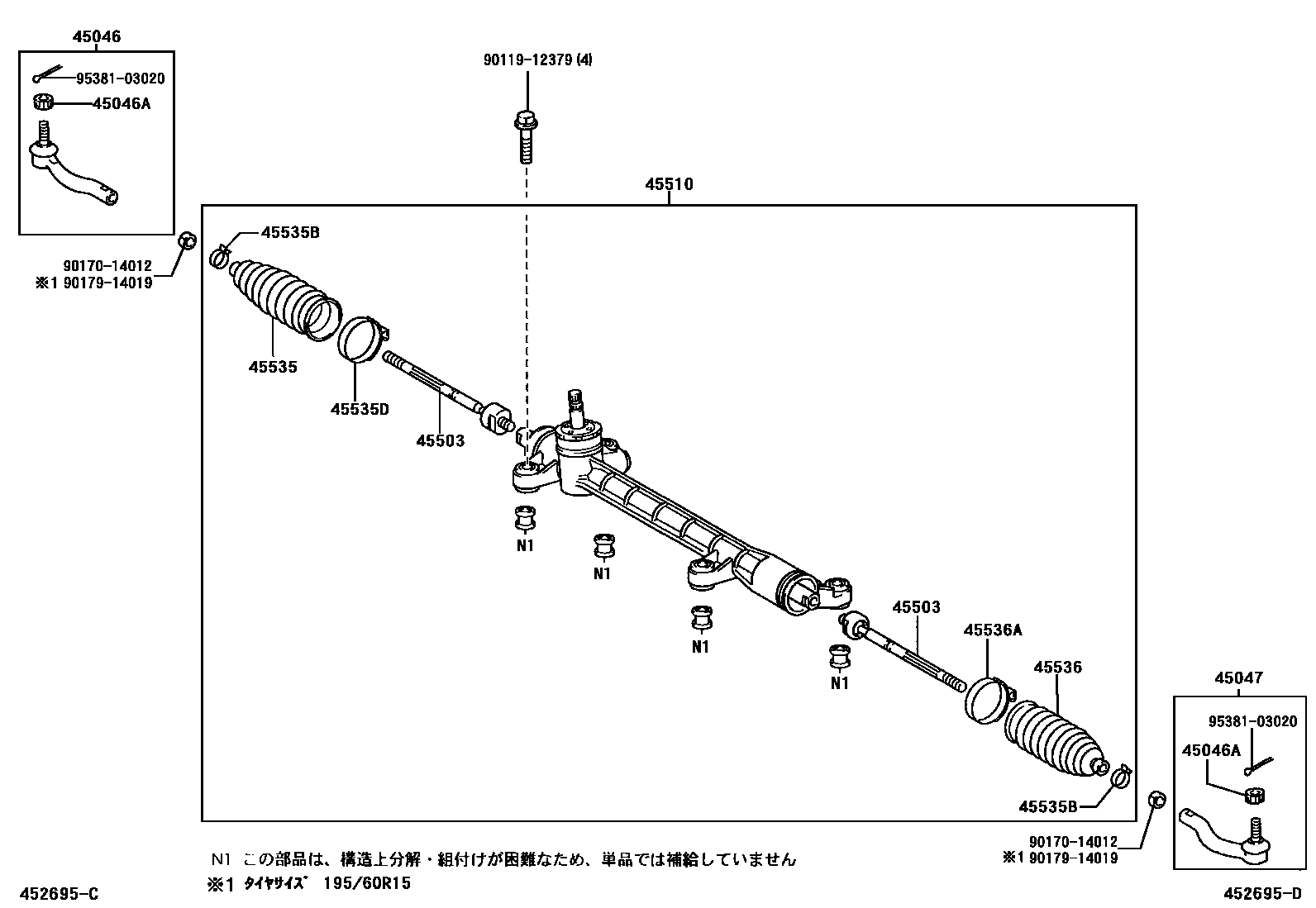

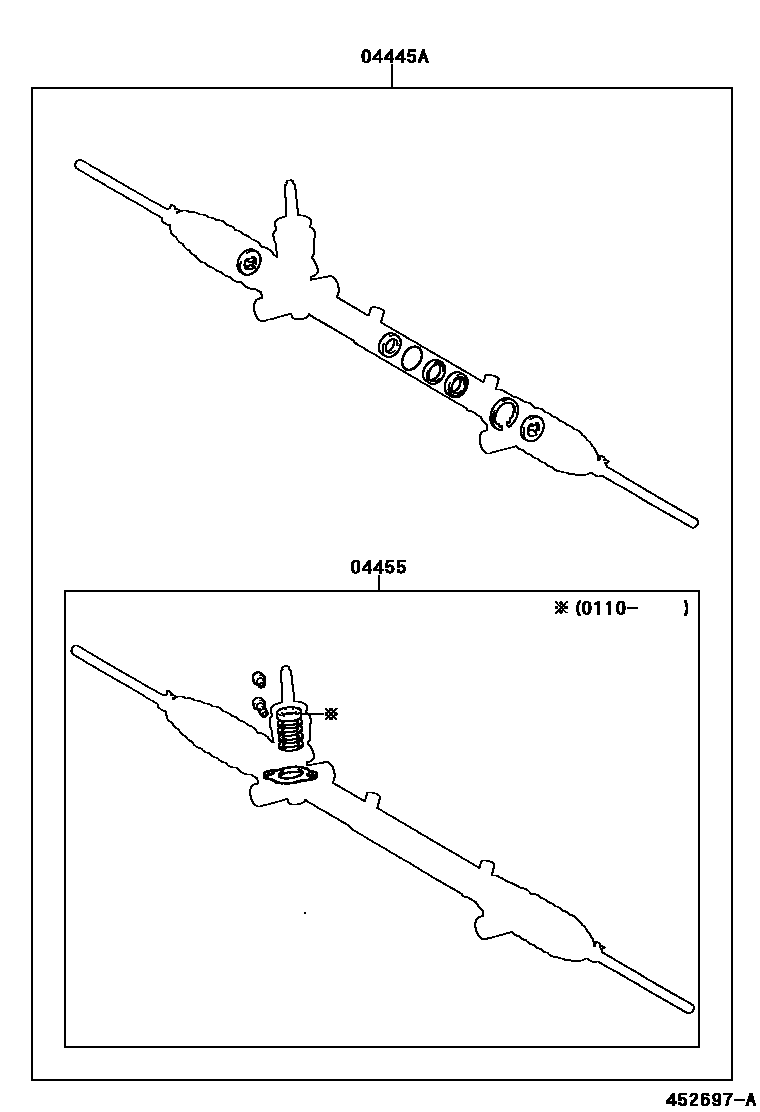

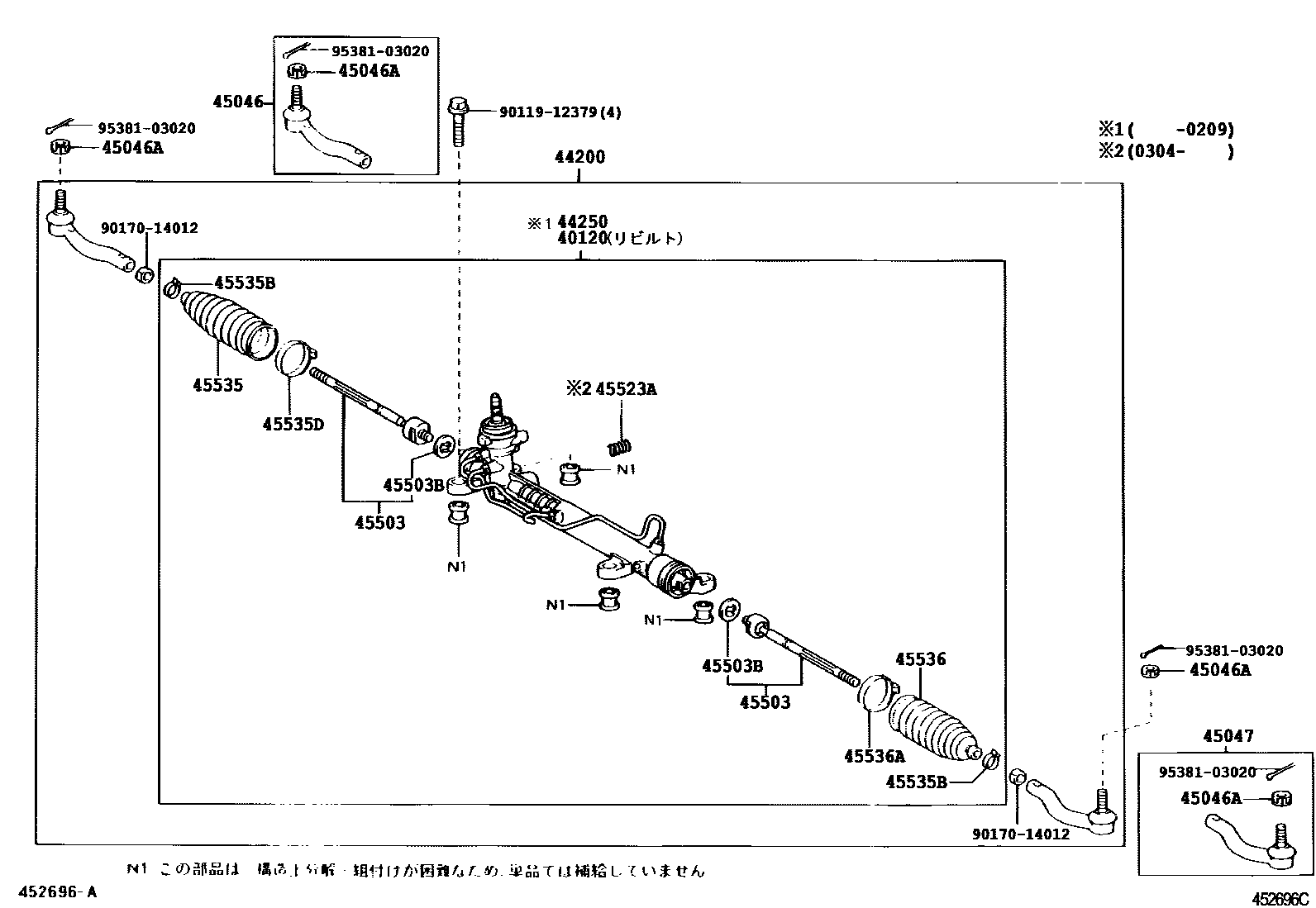

Toyota COROLLA 前转向齿轮和连杆 — Figure 4505
Toyota COROLLA EPC diagram 4505, 前转向齿轮和连杆, with 4 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04445A | Power steering gear gasket assembly (for rack and pinion) | 04445-13010 |
| 04455 | Power steering control valve overhaul gasket assembly | 04455-13010 · 04455-44010 |
| 40120 | Refurbished power steering assembly | 40120-13010 · 40120-13011 · 40120-13041 · 40120-13050 · 40120-13051 · 40120-13061 · 40120-20830 · 40120-20840 · 40120-68020 |
| 44200 | Power steering tie rod assembly | 44200-13011 · 44200-13051 · 44200-2B030 · 44200-2B040 · 44200-68020 |
| 44250 | Power steering gear assembly (for rack and pinion) | 44250-13010 · 44250-13011 · 44250-13041 · 44250-13050 · 44250-13051 · 44250-13061 · 44250-20830 · 44250-20840 |
| 45046 | Right tie rod end sub-assembly | 45046-19265 · 45046-29305 · 45046-49115 |
| 45046A | Castle nuts (for tie rod ends) | 90171-12028 |
| 45047 | Left tie rod end sub-assembly | 45046-29305 · 45047-19115 · 45047-49045 |
| 45503 | Steering rack end sub-assembly | 45503-12130 · 45503-19255 · 45503-19265 |
| 45503B | Jaw washer (for steering rack end) | 90214-14009 |
| 45510 | Steering gear assembly | 45510-12290 · 45510-12330 |
| 45523A | Spring (for steering gear rack guide block) | 90501-29044 · 90501-30026 |
| 45535 | No. 1 steering rack dust cover | 45535-13010 · 45535-52050 · 45535-52060 |
| 45535B | Clamp (for steering rack dust boot) | 90080-46174 · 90467-19017 · 90467-19019 · 90467-19021 |
| 45535D | Clamp (for No. 1 steering rack dust boot) | 90460-55016 · 90460-58008 |
| 45536 | No. 2 steering rack dust cover | 45535-13010 · 45535-52050 · 45535-52060 |
| 45536A | Clamp (for No. 2 steering rack dust boot) | 90460-55016 · 90460-58008 |
