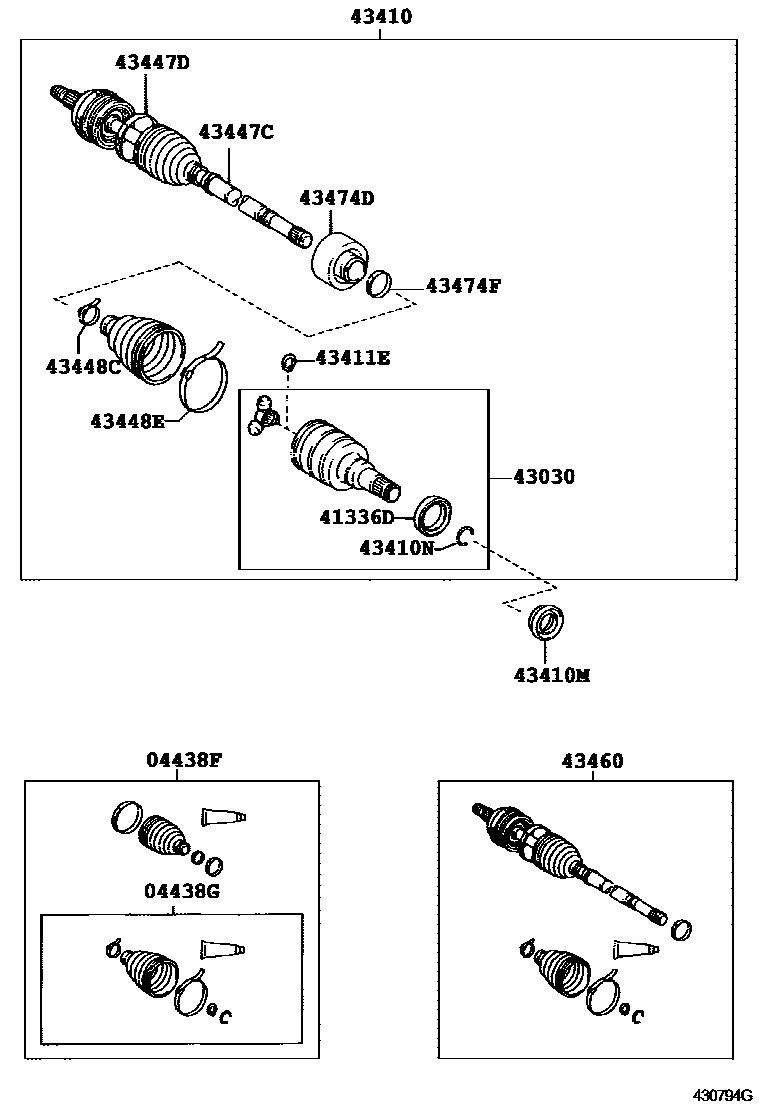

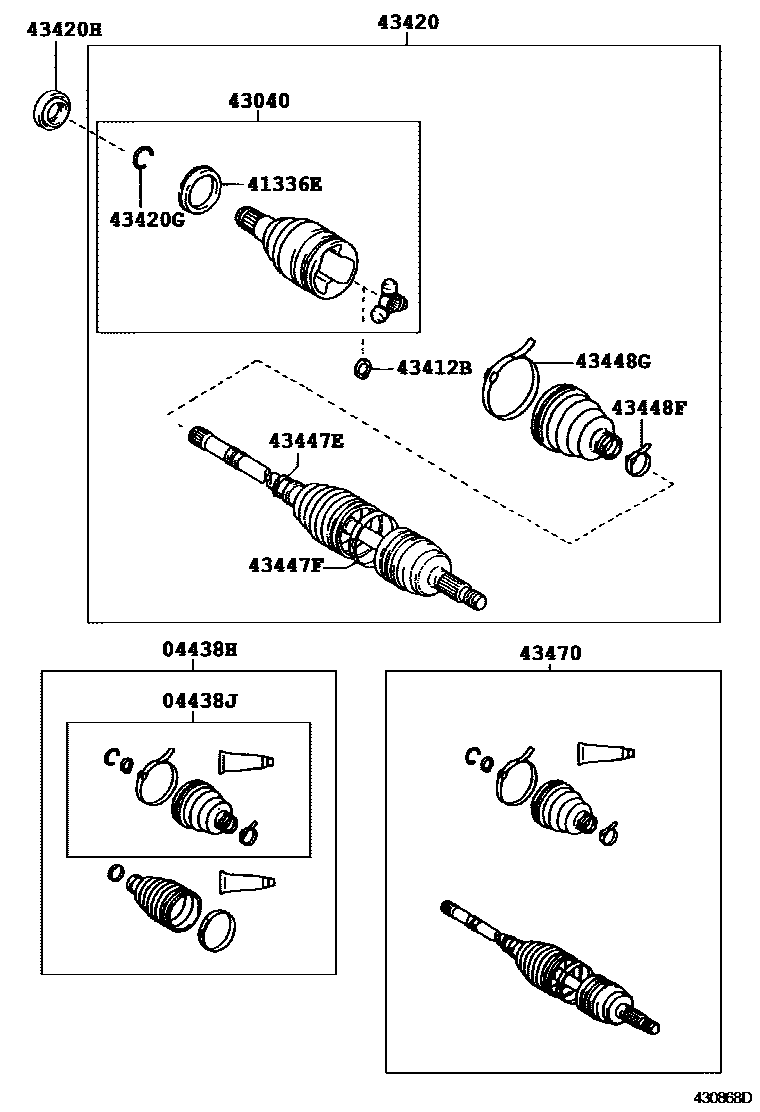

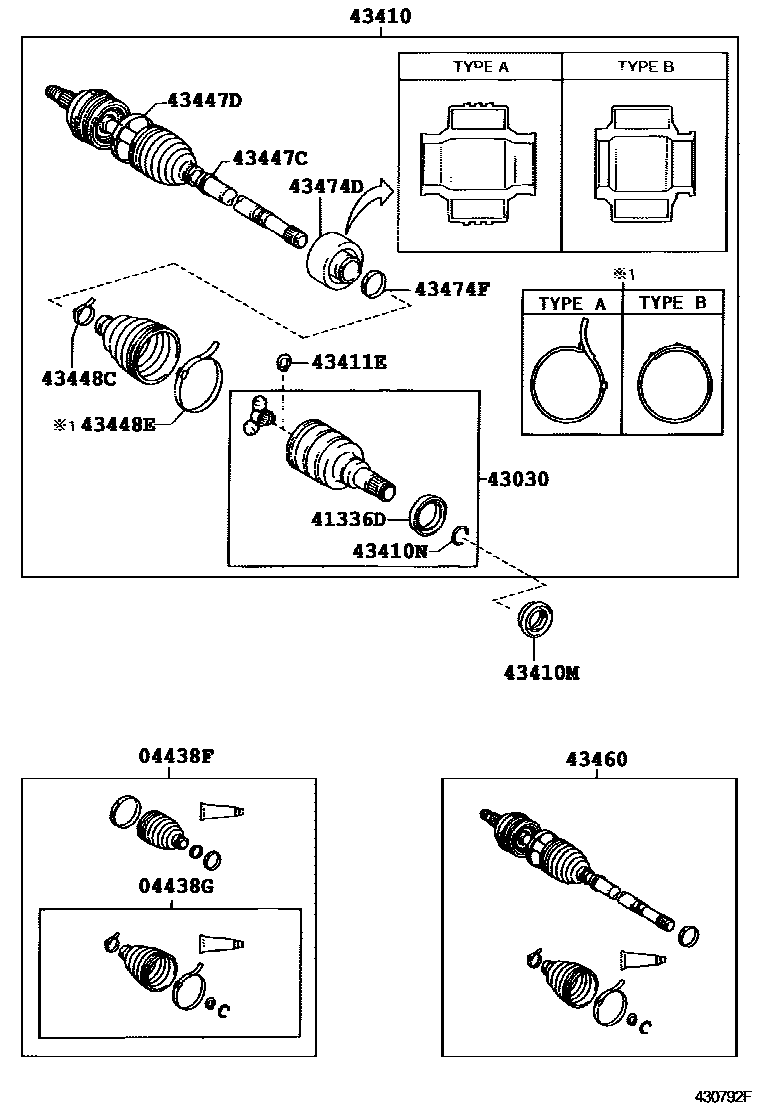

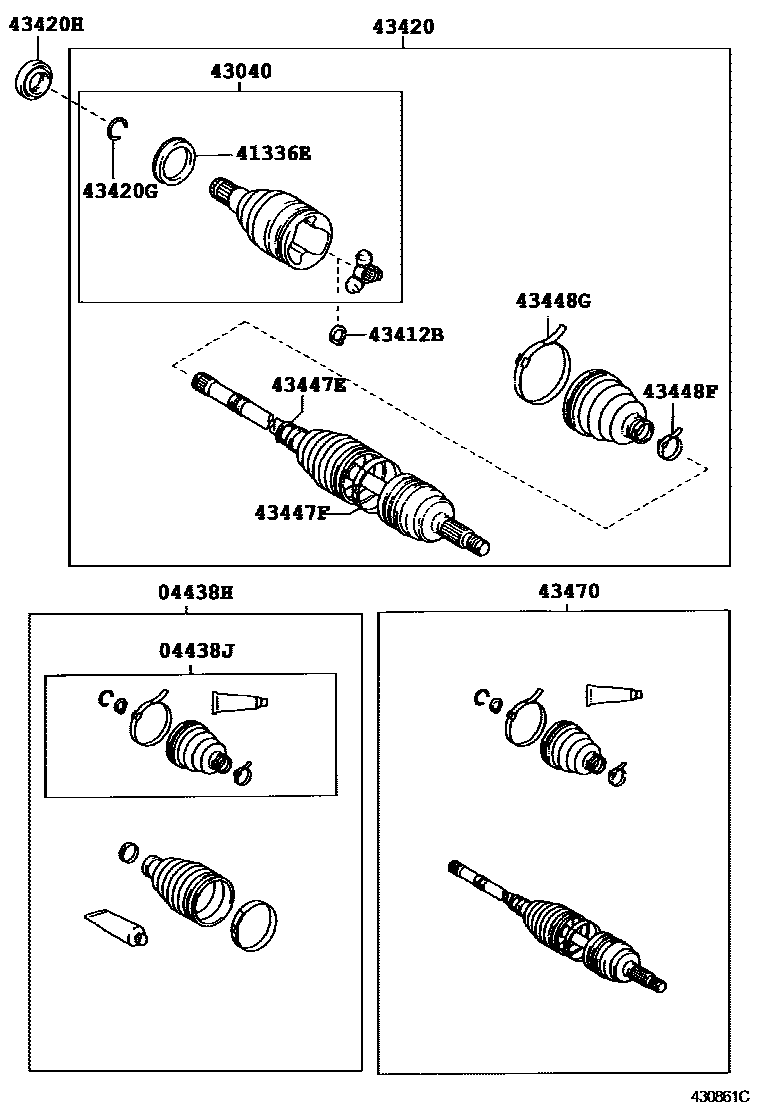

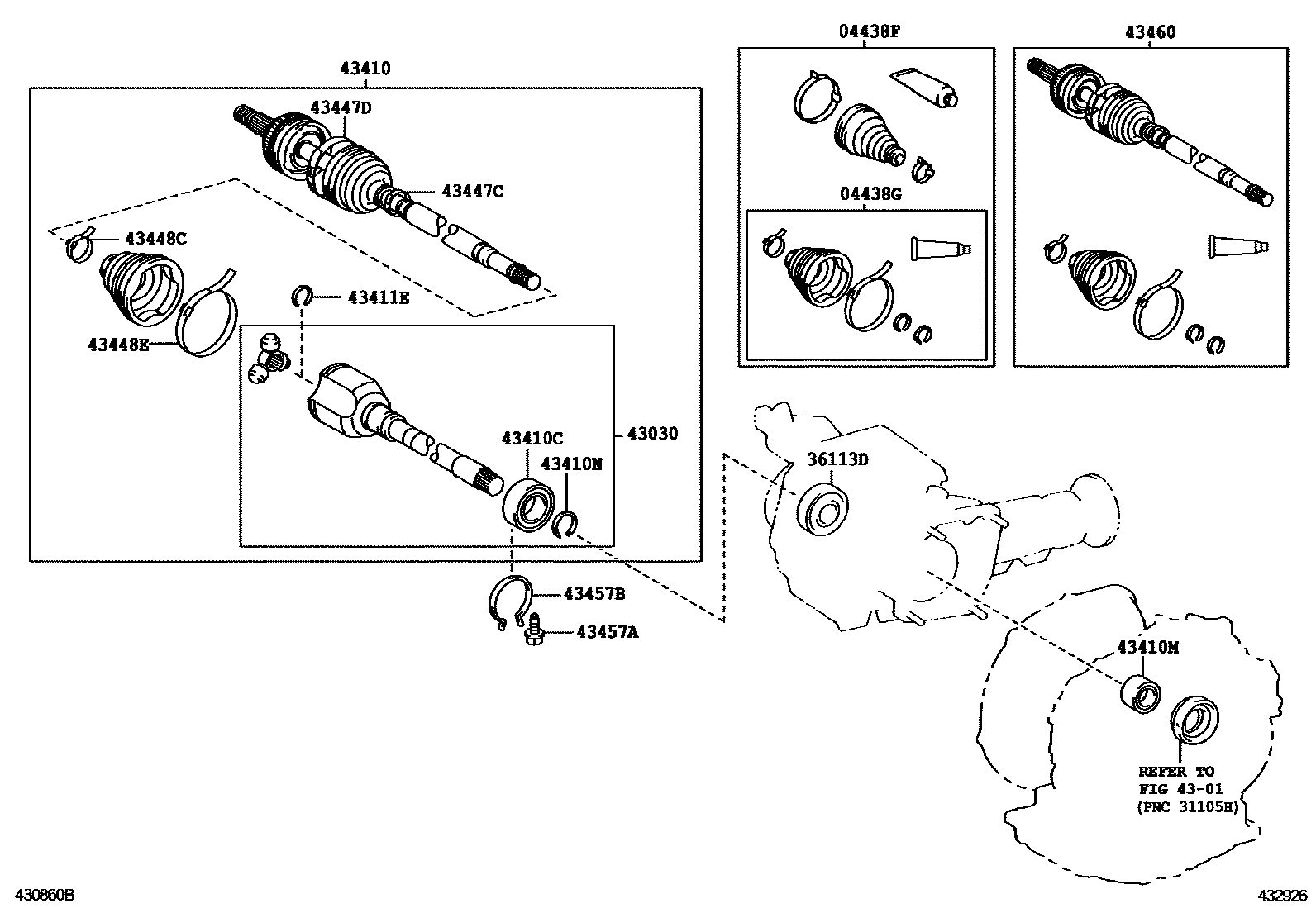

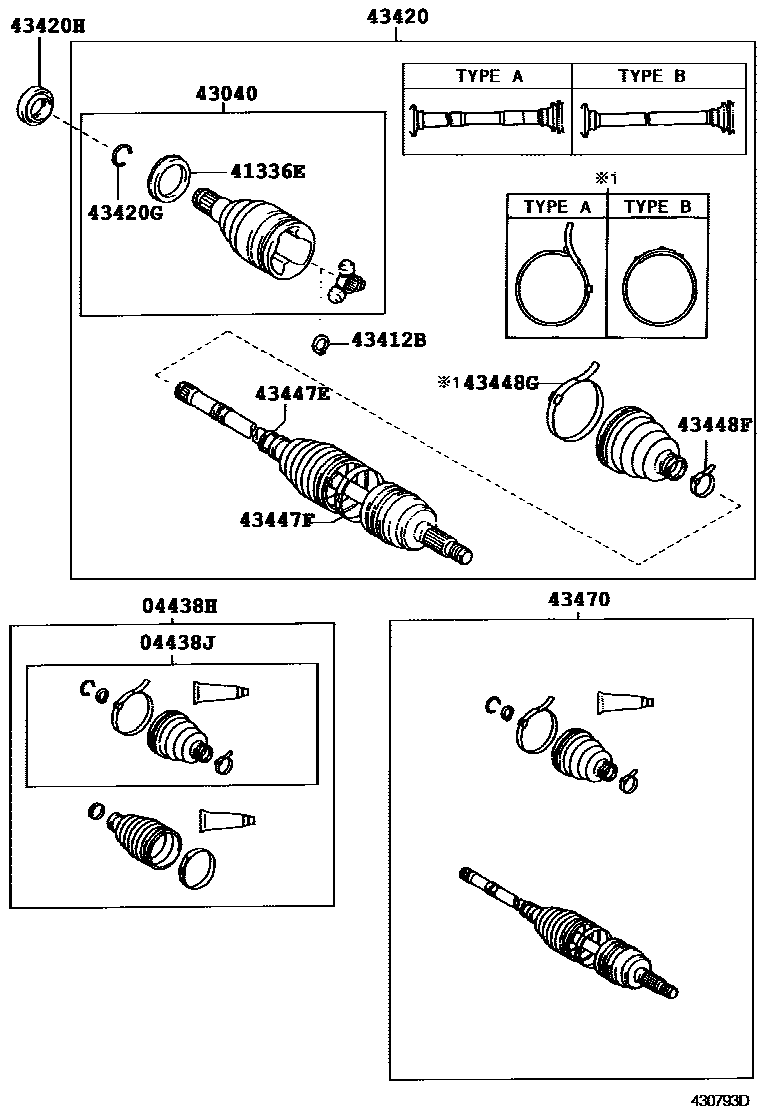

Toyota COROLLA Front Drive Shaft — Figure 4302
Toyota COROLLA EPC diagram 4302, Front Drive Shaft, with 6 images and 32 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04438F | Right front driveshaft inboard and outboard dust boot assembly | 04427-42080 · 04427-52260 · 04427-52580 · 04438-12481 · 04438-12501 · 04438-12502 · 04438-12610 · 04438-63010 |
| 04438G | Right front drive shaft inner universal joint dust boot assembly | 04437-42060 · 04437-52190 · 04438-12470 · 04438-12490 · 04438-32240 · 04438-42200 · 04438-52030 · 04438-52051 · 04438-52230 |
| 04438H | Left front driveshaft inboard and outboard dust boot assembly | 04427-52260 · 04427-52580 · 04428-12310 · 04428-42100 · 04438-12481 · 04438-12501 · 04438-12502 · 04438-12610 · 04438-12640 · 04438-63010 |
| 04438J | Left front drive shaft inner universal joint dust boot assembly | 04437-52190 · 04438-12470 · 04438-12490 · 04438-32240 · 04438-42200 · 04438-52030 · 04438-52051 · 04438-52230 |
| 36113D | Toyota part | 90311-36006 |
| 41336D | Right front driveshaft dust cover | 41336-12010 · 41336-12060 |
| 41336E | Left front driveshaft dust cover | 41336-12010 · 41336-12060 |
| 43030 | Right front drive shaft inner universal joint assembly | 43030-12070 · 43030-32040 · 43040-32040 · 43403-10011 · 43403-12040 |
| 43040 | Left front drive shaft inner universal joint assembly | 43040-32040 · 43403-10011 · 43403-12040 |
| 43410 | Right front driveshaft assembly | 43410-12490 · 43410-12531 · 43410-12660 · 43410-12670 |
| 43410C | Bearings (for front driveshaft) | 90363-36006 |
| 43410M | Toyota part | 90311-34023 · 90311-34031 · 90311-35045 · 90311-35055 · 90316-28003 |
| 43410N | Hole snap ring (for right front driveshaft) | 90520-33008 · 90521-26004 · 90521-27005 |
| 43411E | Inner shaft snap ring (for right front axle inner drive shaft) | 90520-22001 · 90520-22005 |
| 43412B | Inner shaft snap ring (for left front axle inner drive shaft) | 90520-22001 · 90520-22005 |
| 43420 | Left front drive shaft assembly | 43420-12420 · 43420-12580 · 43420-12590 · 43420-20581 |
| 43420G | Hole snap ring (for left front driveshaft) | 90521-26004 · 90521-27005 |
| 43420H | Toyota part | 90311-34022 · 90311-34030 · 90311-35046 · 90311-35054 |
| 43447C | Clamp (for the outer universal joint dust cover of the right front axle) | 42345-12150 · 42345-52110 |
| 43447D | No. 2 clip (for the universal joint dust cover on the outside of the right front axle) | 42345-12140 · 42345-52100 |
| 43447E | Clamp (for left front axle outer universal joint dust cover) | 42345-12150 · 42345-52110 |
| 43447F | No. 2 clip (for left front axle outer universal joint dust cover) | 42345-12140 · 42345-52100 |
| 43448C | Clamp (for the universal joint dust cover inside the right front axle) | 90949-01078 |
| 43448E | No. 2 clip (for the universal joint dust cover inside the right front axle) | 42345-12160 · 90949-01146 |
| 43448F | Clamp (for left front axle inner universal joint dust cover) | 90949-01078 |
| 43448G | Clamp No. 2 (for the universal joint dust cover inside the left front axle) | 42345-12160 · 90949-01146 |
| 43457A | Bolts (for securing the No. 1 drive shaft bearing bracket) | 90119-10952 · 90901-19060 |
| 43457B | Hole snap ring (for drive shaft bearing bracket) | 90521-75002 |
| 43460 | Right front outer drive universal joint shaft assembly | 43460-19795 · 43460-39126 · 43460-80001 · 43460-80004 · 43460-80040 · 43460-80043 · 43460-80045 · 43460-80046 |
| 43470 | Left front outer drive universal joint shaft assembly | 43470-29655 · 43470-80003 · 43470-80015 · 43470-80018 · 43470-80095 · 43470-80096 · 43470-80097 · 43470-80165 |
| 43474D | Right front driveshaft shock absorber | 43474-12120 · 43474-52030 |
| 43474F | Clamp (for right front driveshaft shock absorber) | 42345-14010 |
