Toyota COROLLA 前桥壳和差速器 — Figure 4301

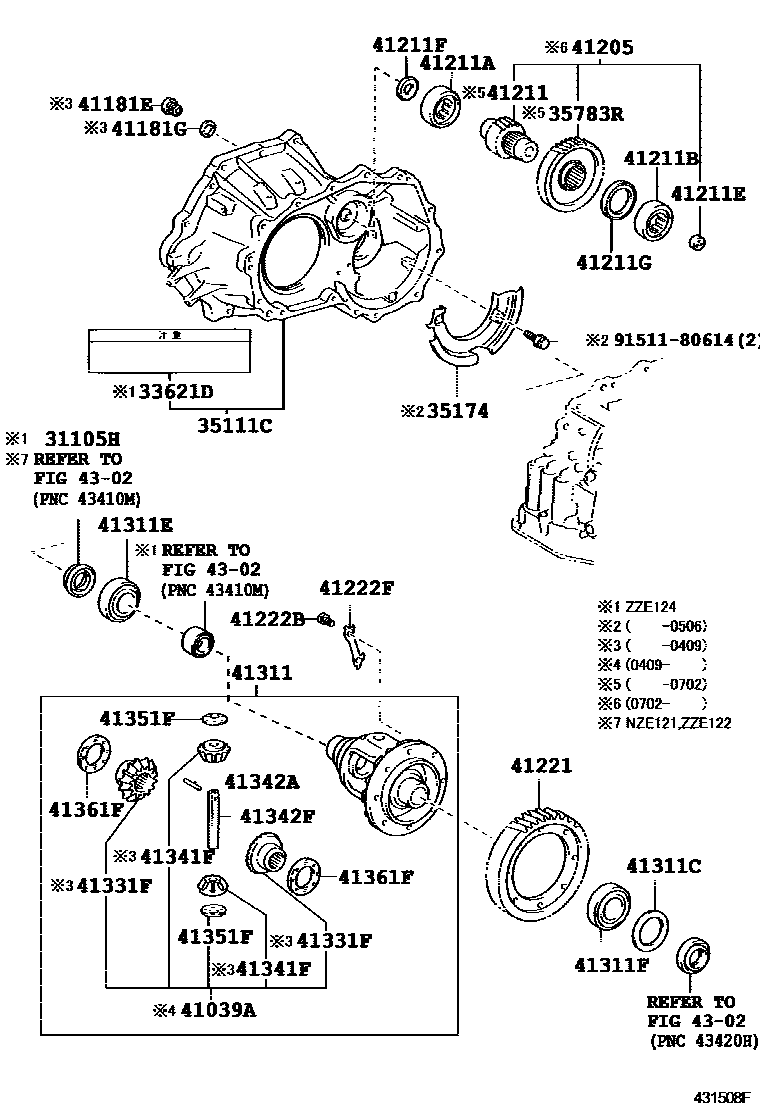

Toyota COROLLA EPC diagram 4301, 前桥壳和差速器, with 1 images and 28 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 31105H | No. 2 oil seal (for transmission axle housing) | 90311-49002 |
| 33621D | Transaxle oil information label | 33621-12150 · 33621-16060 |
| 35111C | Transmission axle housing | 35105-20160 · 35105-20161 · 35105-52070 · 35105-52071 · 35105-63020 |
| 35174 | Transmission axle housing oil separator | 35174-20010 · 35174-52030 · 35174-63010 |
| 35783R | countershaft driven gear | 35783-52020 |
| 41039A | Differential gear assembly | 41039-12010 · 41039-32020 |
| 41181E | Screw plug (for front differential drain port) | 90341-18021 |
| 41181G | Gasket (for front differential drain plug) | 90430-18008 |
| 41205 | Differential drive pinion sub-assembly | 41205-52021 |
| 41211 | Differential drive pinion | 41211-52040 |
| 41211A | Front roller tapered bearing (for front driving pinion) | 90365-35004 |
| 41211B | Rear tapered bearing (for front driving pinion) | 90365-35003 |
| 41211E | Plug (for differential drive pinion) | 90331-17017 |
| 41211F | Right side thrust needle bearing (for front drive pinion) | 90374-18005 |
| 41211G | Left side thrust needle bearing (for front drive pinion) | 90374-45001 |
| 41221 | Front differential ring gear | 41221-52090 |
| 41222B | Bolt (for front differential ring gear assembly) | 90101-11003 |
| 41222F | Front differential ring gear fixing bolt locking plate | 41222-32010 |
| 41311 | front differential case | 41301-12210 · 41301-32071 · 41301-52040 · 41301-52070 · 41301-63020 |
| 41311C | Rear gasket (for front differential case) | 90564-49001 · 90564-49002 · 90564-49003 · 90564-49004 · 90564-49005 · 90564-49006 · 90564-49007 · 90564-49008 · 90564-49009 · 90564-49010 · 90564-49011 · 90564-49012 · 90564-49013 · 90564-49014 · 90564-49015 · 90564-49016 · 90564-49017 · 90564-49018 · 90564-49019 |
| 41311E | Front roller tapered bearing (for front differential housing) | 90366-40016 · 90366-50045 |
| 41311F | Rear tapered bearing (for front differential housing) | 90366-44001 |
| 41331F | Front differential side gear | 41331-12011 · 41331-32010 |
| 41341F | Front differential planetary gear | 41341-12030 · 41341-30011 |
| 41342A | Direct sales (for front differential planetary gear shaft) | 90250-06058 |
| 41342F | No. 1 front differential planetary gear shaft | 41342-20060 · 41342-32020 · 41342-32030 |
| 41351F | Front differential planetary gear thrust washer | 41351-12020 · 41351-32010 |
| 41361F | No. 1 front differential side gear thrust washer | 41361-17010 · 41361-17020 · 41361-17030 · 41361-17040 · 41361-17050 · 41361-17060 |
