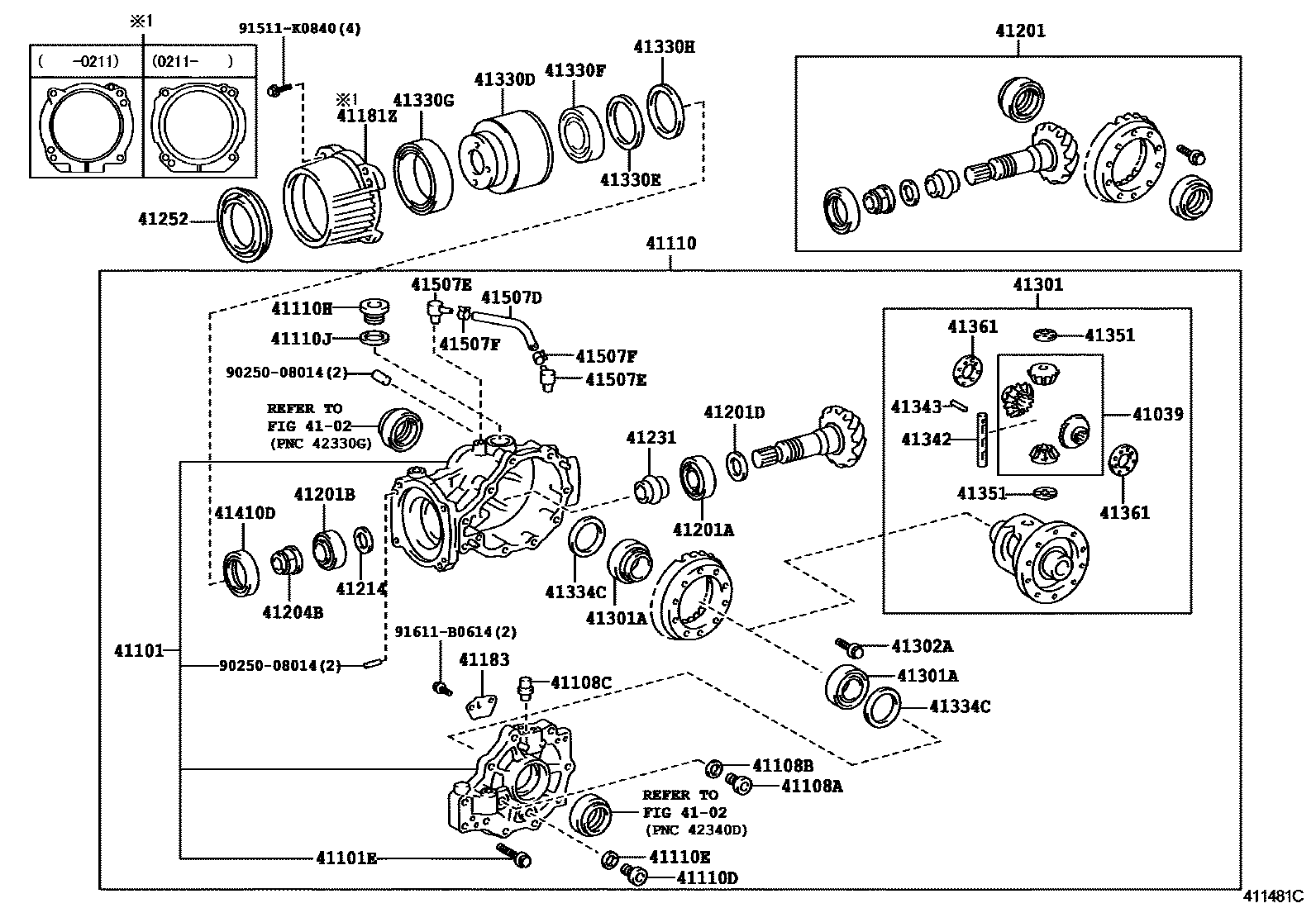

Toyota COROLLA 后桥壳和差速器 — Figure 4101
Toyota COROLLA EPC diagram 4101, 后桥壳和差速器, with 2 images and 42 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 41039 | rear differential gear assembly | 41039-33010 · 41039-44011 |
| 41101 | Rear differential bracket sub-assembly | 41101-33031 · 41101-33032 |
| 41101E | Bolt (for rear differential case) | 90105-10371 |
| 41108A | Screw plug (for rear differential case cover) | 90341-18023 |
| 41108B | Gasket (for rear differential case cover) | 12157-10010 |
| 41108C | Breather plug (for rear differential case cover) | 90930-03170 |
| 41110 | Rear differential bracket assembly | 41110-21051 · 41110-21052 · 41110-73010 |
| 41110D | Screw plug (for rear differential drain port) | 90341-18051 |
| 41110E | Gasket (for rear differential drain plug) | 12157-10010 |
| 41110H | Plug (for rear differential oil filling port) | 90341-36001 |
| 41110J | Gasket (for rear differential oil plug) | 90430-36003 |
| 41181Z | Rear differential case cover | 41181-33040 · 41181-33041 |
| 41183 | Rear differential breather plug oil baffle | 41183-33010 |
| 41196 | Rear differential power damper | 41196-33010 |
| 41201 | Rear differential final drive gear assembly | 41201-80124 |
| 41201A | Rear tapered bearing (for rear driving pinion) | 90366-35093 |
| 41201B | Front roller tapered bearing (for rear drive pinion) | 90366-30047 |
| 41201D | Flat washer (for rear differential drive pinion) | 90564-35041 · 90564-35042 · 90564-35043 · 90564-35044 · 90564-35045 · 90564-35046 · 90564-35047 · 90564-35048 · 90564-35049 · 90564-35050 · 90564-35051 · 90564-35052 · 90564-35053 · 90564-35054 · 90564-35055 · 90564-35056 · 90564-35057 · 90564-35058 · 90564-35059 · 90564-35060 · 90564-35061 · 90564-35062 · 90564-35063 · 90564-35064 · 90564-35065 · 90564-35070 · 90564-35071 · 90564-35072 · 90564-35073 · 90564-35074 · 90564-35075 · 90564-35076 · 90564-35077 · 90564-35078 · 90564-35079 · 90564-35080 · 90564-35081 · 90564-35082 · 90564-35083 · 90564-35084 · 90564-35085 · 90564-35086 · 90564-35087 · 90564-35088 · 90564-35089 · 90564-35090 · 90564-35091 · 90564-35092 · 90564-35093 · 90564-35094 · 90564-35095 |
| 41204B | Nut (for rear driving pinion) | 90178-30001 |
| 41214 | Rear differential drive pinion oil retaining ring | 90560-30012 |
| 41231 | Rear differential drive pinion bearing spacer | 41231-33030 |
| 41252 | Dust cover (for rear differential) | 41252-33010 |
| 41301 | Rear differential housing sub-assembly | 41301-21030 |
| 41301A | Bearings (for rear differential housing) | 90366-38017 |
| 41302A | Bolt (for rear differential case) | 90105-11034 |
| 41330D | Transmission coupling assembly | 41330-12020 · 41330-21020 |
| 41330E | Tapered spring washer (for transmission coupling) | 90208-74002 |
| 41330F | No. 1 radial ball bearing (for transmission coupling) | 90363-65002 |
| 41330G | No. 2 radial ball bearing (for transmission coupling) | 90363-95003 |
| 41330H | Spacer (for transmission coupling) | 90560-68001 |
| 41334C | Flat washer (for rear differential side gear shaft) | 90564-55025 · 90564-55026 · 90564-55027 · 90564-55028 · 90564-55029 · 90564-55030 · 90564-55031 · 90564-55032 · 90564-55033 · 90564-55034 · 90564-55035 · 90564-55036 · 90564-55037 · 90564-55038 · 90564-55039 · 90564-55040 · 90564-55041 · 90564-55042 · 90564-55043 · 90564-55044 · 90564-55045 · 90564-55046 · 90564-55047 · 90564-55048 · 90564-55049 · 90564-55050 · 90564-55051 · 90564-55052 · 90564-55053 · 90564-55054 · 90564-55055 · 90564-55056 · 90564-55057 · 90564-55058 · 90564-55059 · 90564-55060 |
| 41342 | Rear differential planetary gear shaft | 41342-33020 |
| 41343 | Rear differential planetary gear pin | 90250-04053 |
| 41351 | Rear differential planetary gear thrust washer | 41351-10030 |
| 41361 | No. 1 rear differential half gear thrust washer | 41361-10070 · 41361-10080 · 41361-10090 · 41361-10100 · 41361-10110 · 41361-10120 |
| 41410D | Diaphragm oil seal | 90310-54001 |
| 41507D | Differential pressure control hose | 95333-06020 · 95337-06020 |
| 41507E | Pressure differential control hose elbow | 90407-10026 |
| 41507F | Differential pressure control hose clamp | 96132-41100 · 96132-51100 |
| 41651 | No. 1 rear differential fixed cushion | 41651-33020 |
| 52380 | Rear differential No. 1 bracket | 52380-32020 |
| 52391B | Differential bracket | 52391-32030 |
