Toyota COROLLA Transfer Case & Extension Housing — Figure 3609

Toyota COROLLA EPC diagram 3609, Transfer Case & Extension Housing, with 1 images and 22 PNC and OE references.

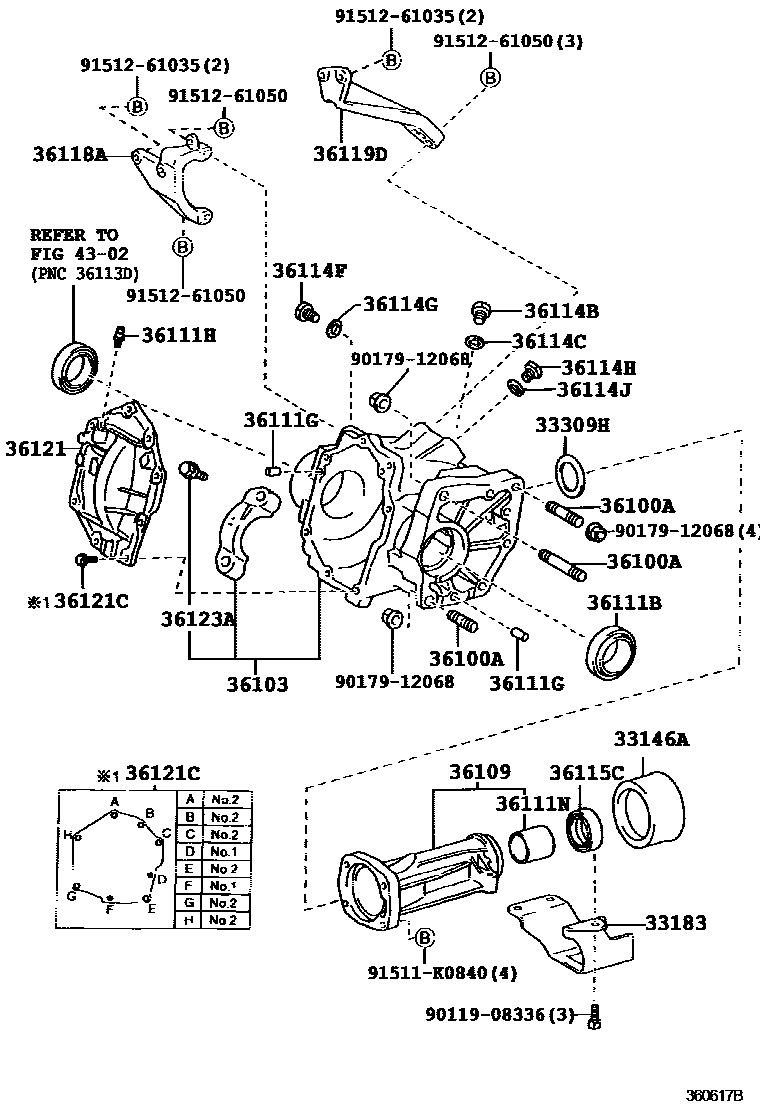

Toyota COROLLA Transfer Case & Extension Housing EPC diagram — 360617B
Transfer Case & Extension Housing — 360617B (200108 – 999999)

PNC and OE references

PNCPart nameOE numbers
33146ATransfer case extension housing dust cover33146-30020
33183Transfer case dynamic damper33183-21020
33309HTransfer case output shaft washer36275-33010 · 36275-33030 · 36275-33050 · 36275-33070 · 36275-33090 · 36275-33110 · 36275-33130 · 36275-33150 · 36275-33170 · 36275-33190 · 36275-33210 · 36275-33230 · 36275-33250 · 36275-33270 · 36275-33290 · 36275-33310 · 36275-33330 · 36275-33350 · 36275-33370 · 36275-33390 · 36275-33410 · 36275-33430 · 36275-33450
36100AStud bolts (for securing transfer case and transaxle)90116-12028 · 90116-12034 · 90116-12041
36103Transfer case sub-assembly36103-21010
36109Transfer case extension housing sub-assembly36109-33010
36111BOil seal (for transfer case)90311-49001
36111GDirect sales (for transfer case)90250-08030 · 90250-08046 · 90250-10017
36111HBreather plug (for transfer case)90930-03133
36111NBushing (for transfer case)90999-73105
36114BNo. 1 screw plug (for transfer case)90341-18045
36114CNo. 1 gasket (for transfer case)12157-10010
36114FScrew plug (for transfer case oil drain)90341-18057
36114GGasket (for transfer case drain plug)12157-10010
36114HNo. 2 screw plug (for transfer case)90341-18006
36114JNo. 2 gasket (for transfer case)12157-10010
36115CT-type oil seal (for transfer case extension case)90311-38062 · 90311-38090
36118ATransfer case right side reinforcement plate36118-12070 · 36118-12080
36119DTransfer case center reinforcement plate36119-12050
36121No. 1 transfer case cover36121-52010
36121CHexagon head bolt with washer base (for transfer case cover)90105-08351 · 91511-60820 · 91511-J0820
36123ADifferential bearing cap bolts41114-16010
