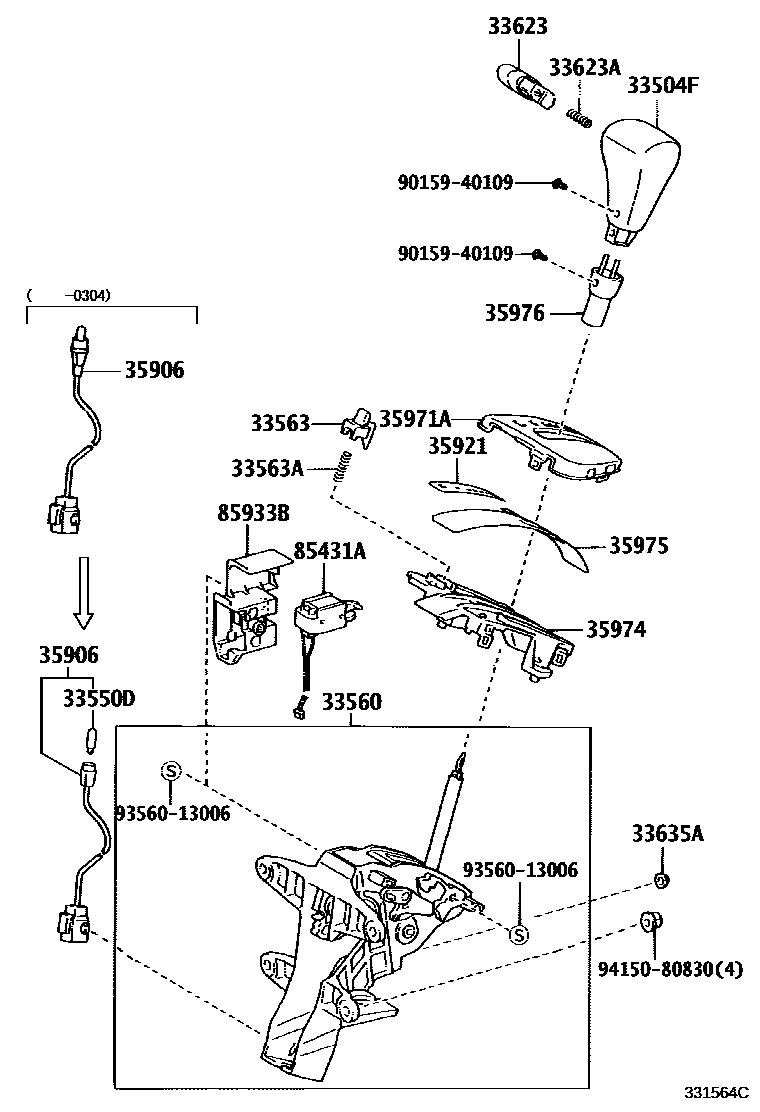

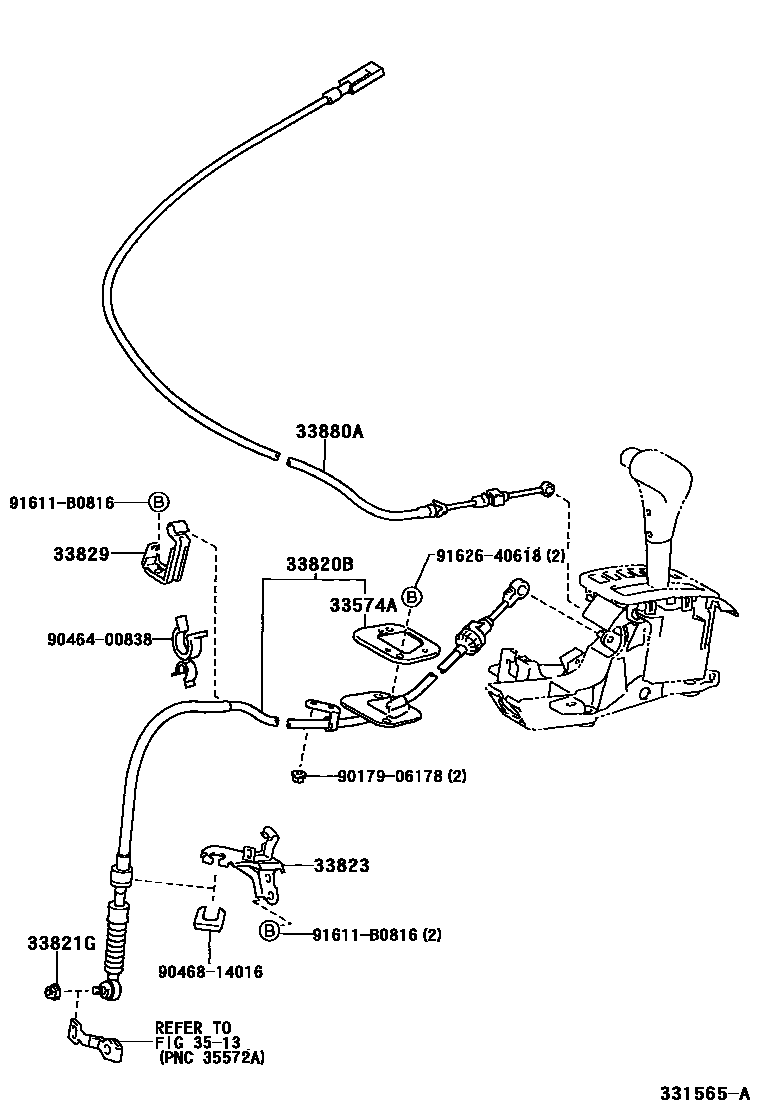

Toyota COROLLA Shift Lever & Retainer — Figure 3312
Toyota COROLLA EPC diagram 3312, Shift Lever & Retainer, with 2 images and 21 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 33550D | position indicator light bulb | 90981-11014 |
| 33560 | Shift lock control unit assembly | 33560-13010 |
| 33563 | Shift lock release button | 33563-13010 |
| 33563A | Compression spring (for shift lock release button) | 90501-06118 |
| 33574A | No. 1 shift cable retaining ring retaining ring | 33574-12100 |
| 33623 | Shift lever handle button | 33623-13020 |
| 33623A | Compression spring (for shift lever knob button) | 90501-05063 |
| 33635A | Cable guide No. 1 (for gear selector) | 33635-13010 |
| 33820B | Transmission control cable assembly | 33820-13010 |
| 33821G | Nut (for transmission control cable) | 90179-08061 |
| 33823 | No. 1 transmission control cable bracket | 33823-12270 · 33823-20230 |
| 33829 | Transmission control cable bracket | 33829-12070 · 33829-12110 |
| 33880A | Parking lock cable assembly (for floor shift) | 33880-13010 · 33880-13011 |
| 35906 | Indicator light wiring harness sub-assembly | 35906-13020 |
| 35921 | control position indicator board | 35921-13010 |
| 35971A | Position indicator light upper shell | 35971-13020 · 35971-13060 |
| 35974 | Position indicator light lower shell | 35974-13010 · 35974-13011 |
| 35975 | Slide cover (for position indicator light) | 35975-13010 |
| 35976 | Slide No. 2 (for position indicator light) | 35976-13030 |
| 85431A | Shift lock solenoid valve | 85431-13010 |
| 85933B | Shift lock control ECU | 85933-13040 |
