Toyota COROLLA 燃油喷射系统 — Figure 2211
Toyota COROLLA EPC diagram 2211, 燃油喷射系统, with 4 images and 24 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

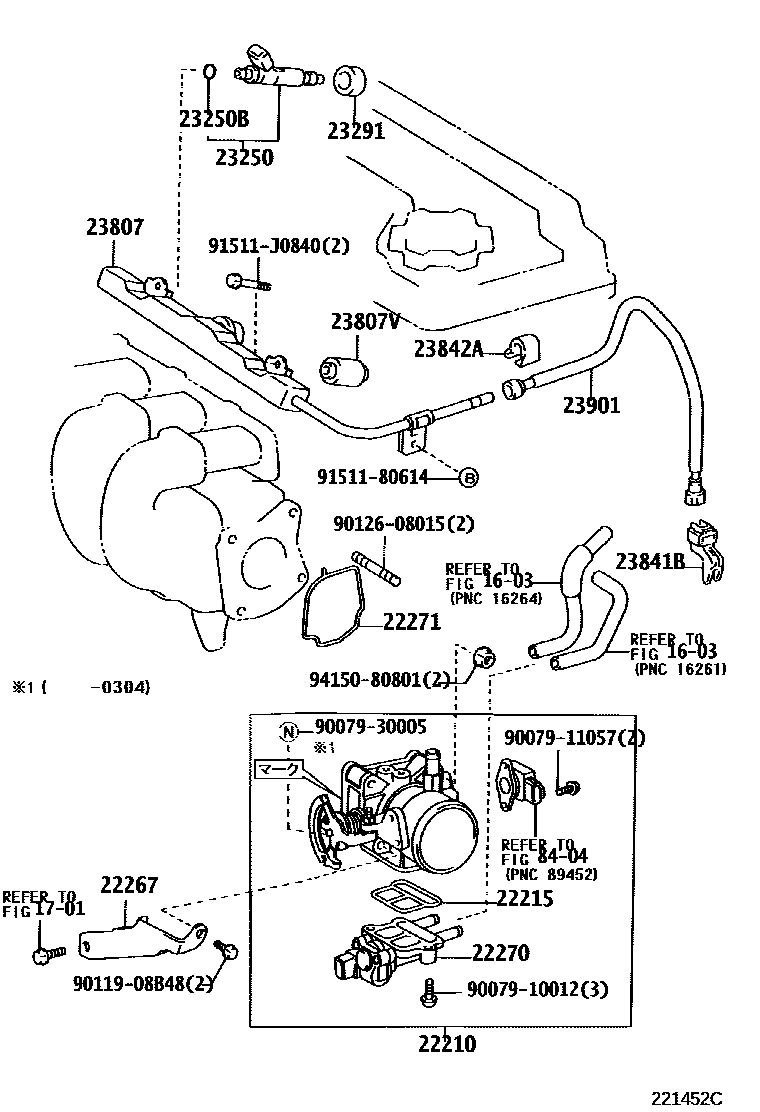

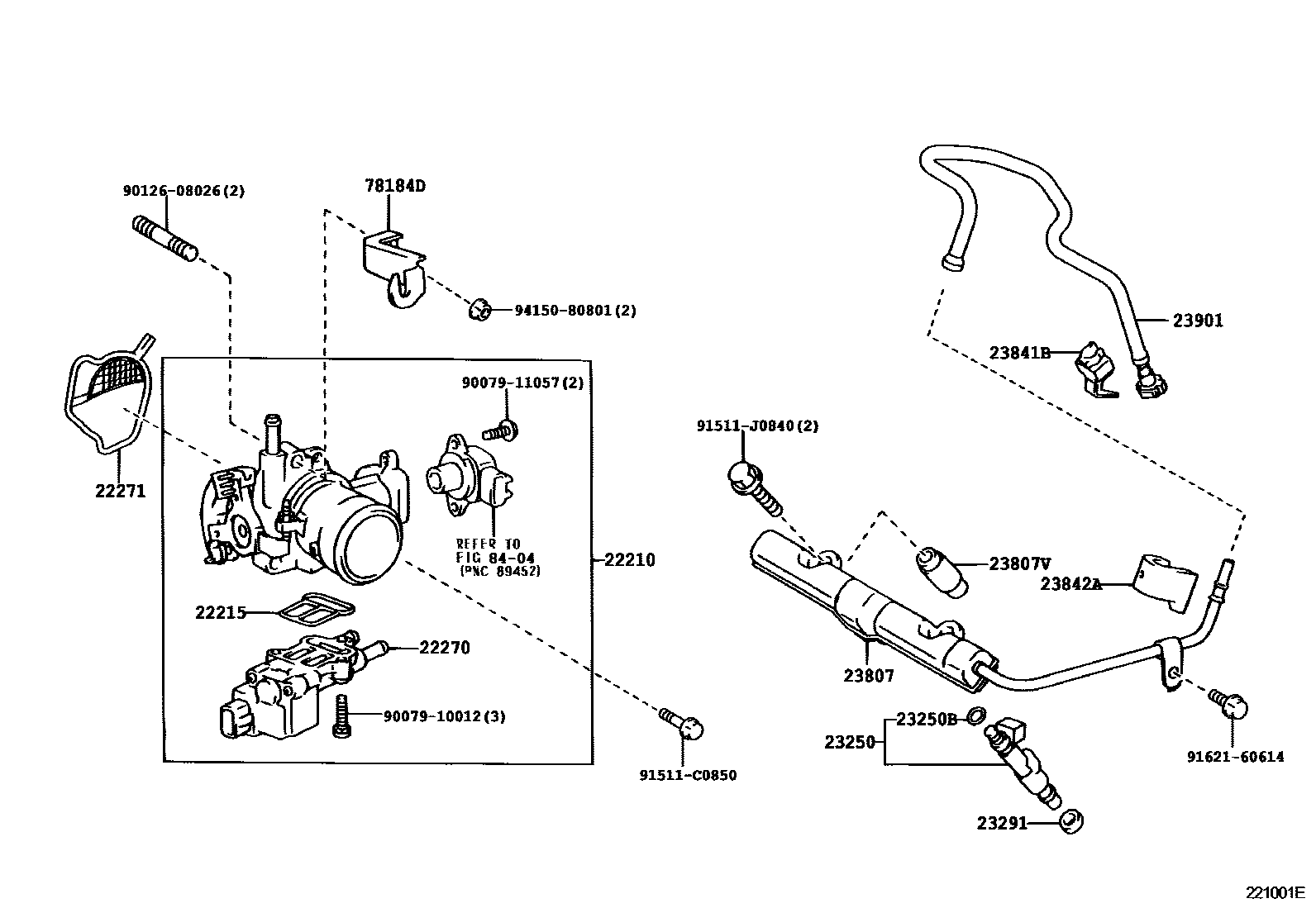

| 22210 | Throttle body assembly | 22210-21010 · 22210-22080 · 22210-22130 |
| 22215 | Throttle body cover gasket | 22215-7A680 |
| 22267 | Throttle body bracket | 22267-22030 |
| 22270 | Idle speed control valve assembly (for throttle body) | 22270-0D040 · 22270-21010 · 22270-21011 · 22270-22060 · 22270-22061 |
| 22271 | Throttle body gasket | 22271-21020 · 22271-22040 |

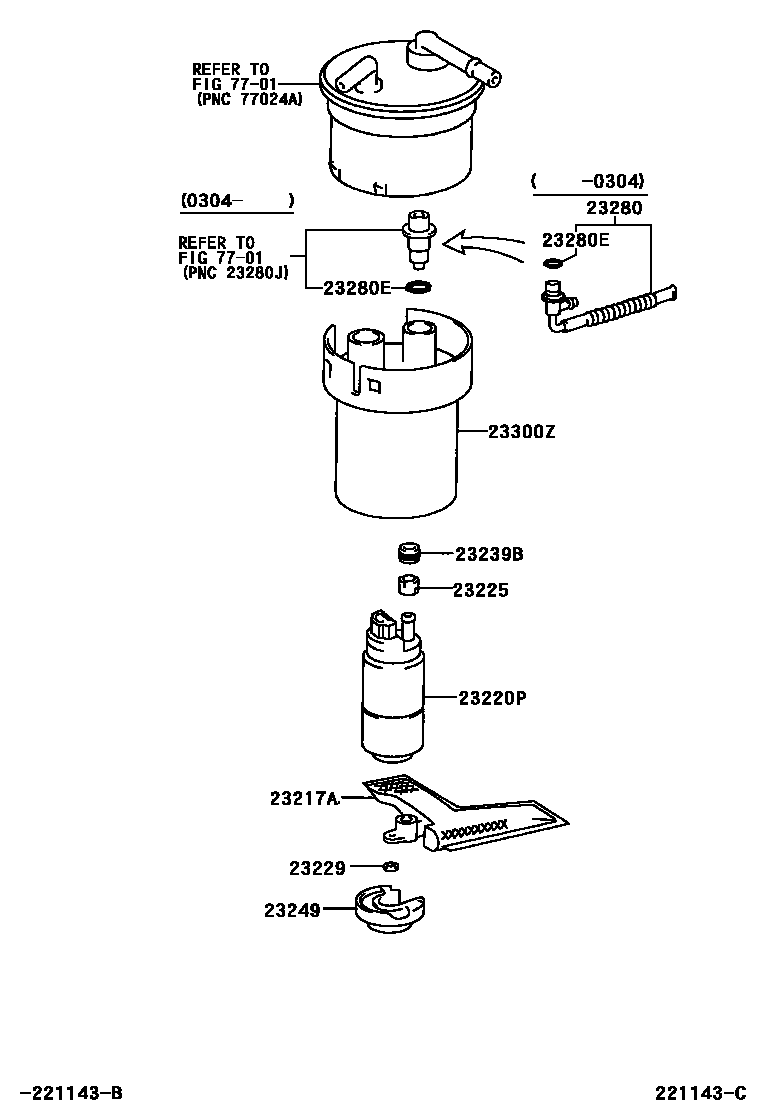

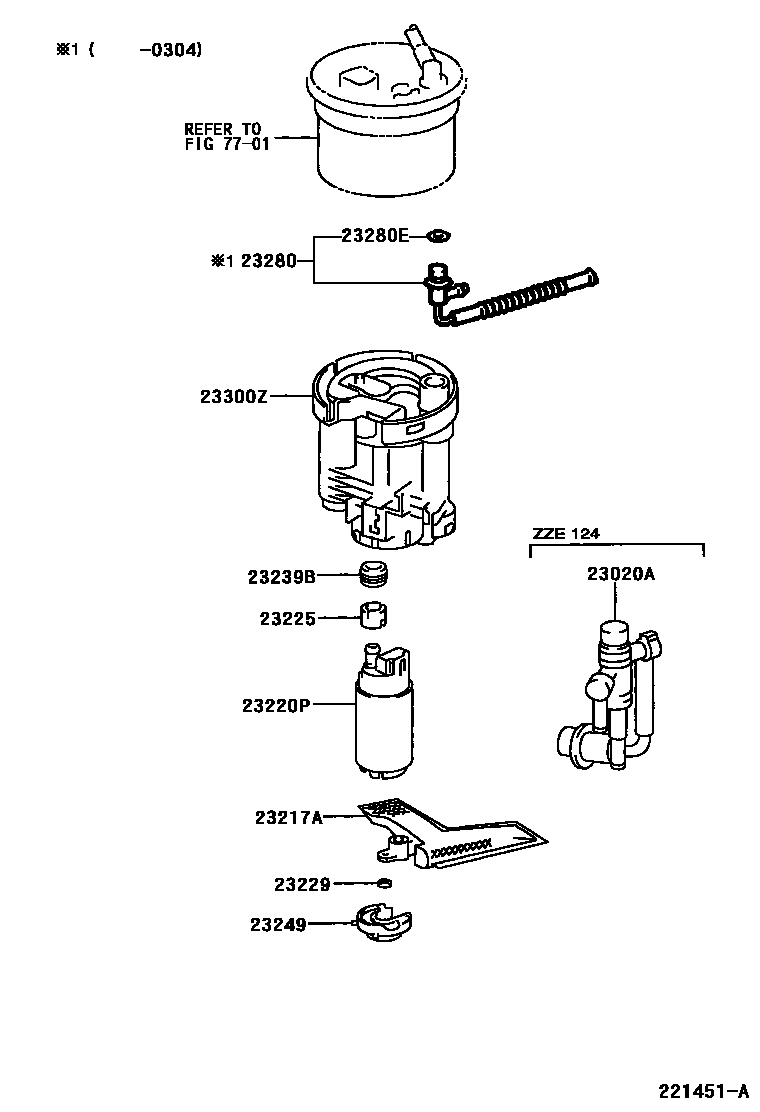

| 23020A | Fuel pressure regulator assembly with fuel injection pump | 23020-70010 |
| 23217A | fuel pump filter | 23217-0D090 · 23217-23010 |
| 23220P | fuel pump assembly | 23221-22030 · 23221-22140 · 23221-28030 · 23221-28280 |
| 23225 | fuel pump septum | 23225-21010 |
| 23229 | Clip (for fuel pump filter) | 23229-16010 |
| 23239B | fuel pump filter seal | 23239-21010 |
| 23249 | Rubber gasket (for fuel pump) | 23249-46180 |
| 23250 | Fuel injector assembly | 23209-21020 · 23209-22040 |
| 23250B | O-ring (for fuel injector) | 90301-07024 · 90301-07037 |
| 23280 | Fuel pressure regulator assembly | 23020-20010 |
| 23280E | O-ring (for fuel pressure regulator) | 90301-07020 |
| 23291 | Injector vibration isolation pad | 23291-22020 · 23291-41010 · 23291-73010 |
| 23300Z | Fuel filter (for fuel tank) | 23300-21010 |
| 23807 | Oil pipe sub-assembly | 23807-21010 · 23807-21021 · 23807-22030 |
| 23807V | No. 1 spacer (for oil pipe) | 23891-21010 · 90561-08055 |
| 23841B | No. 1 fuel pipe clamp (for EFI) | 23841-21050 · 23841-28010 |
| 23842A | No. 2 fuel line clamp (for EFI) | 23842-22020 |
| 23901 | Fuel pipe sub-assembly | 23901-21030 · 23901-22140 |
| 78184D | Throttle pedal control cable bracket | 78184-12380 |
