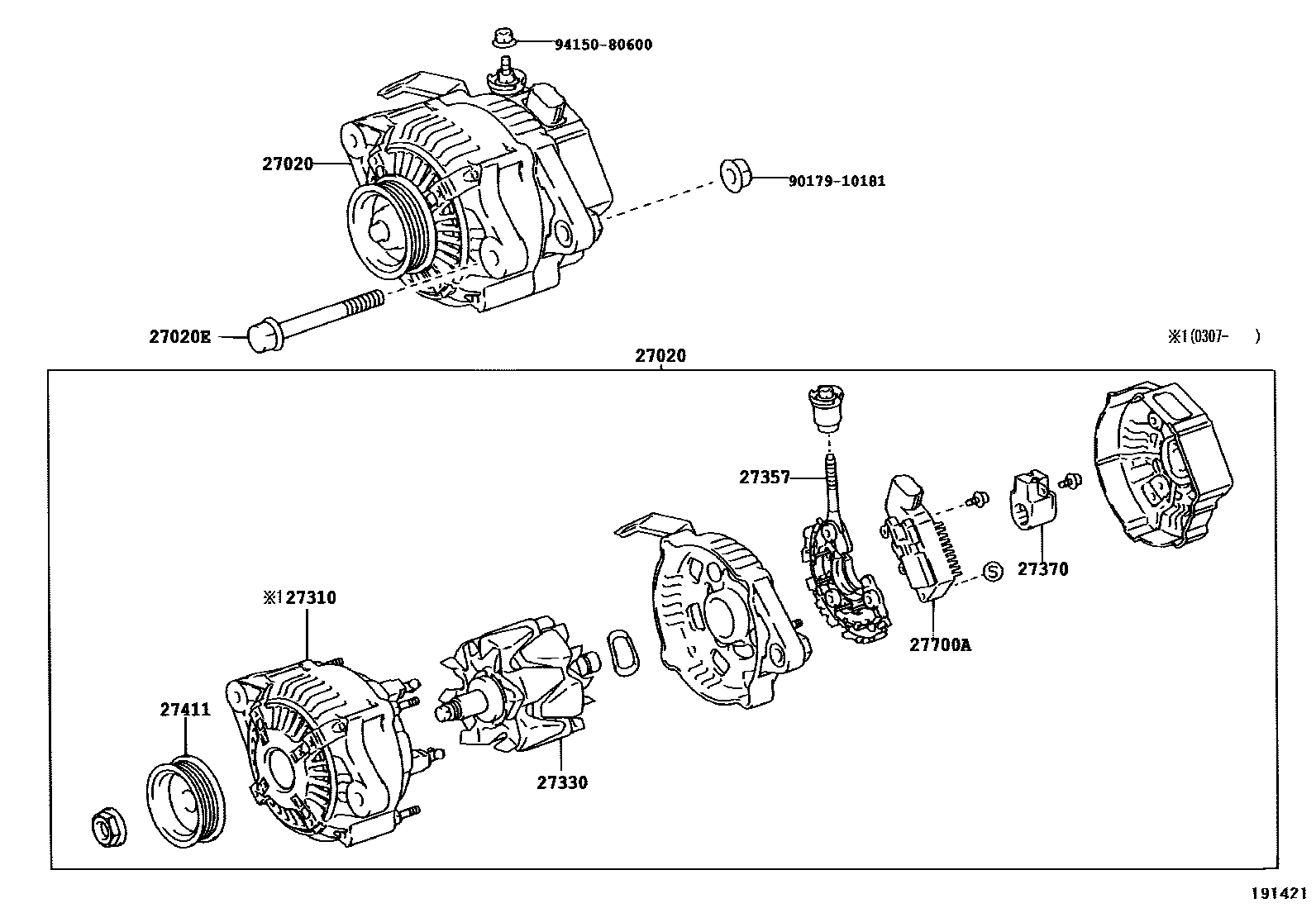

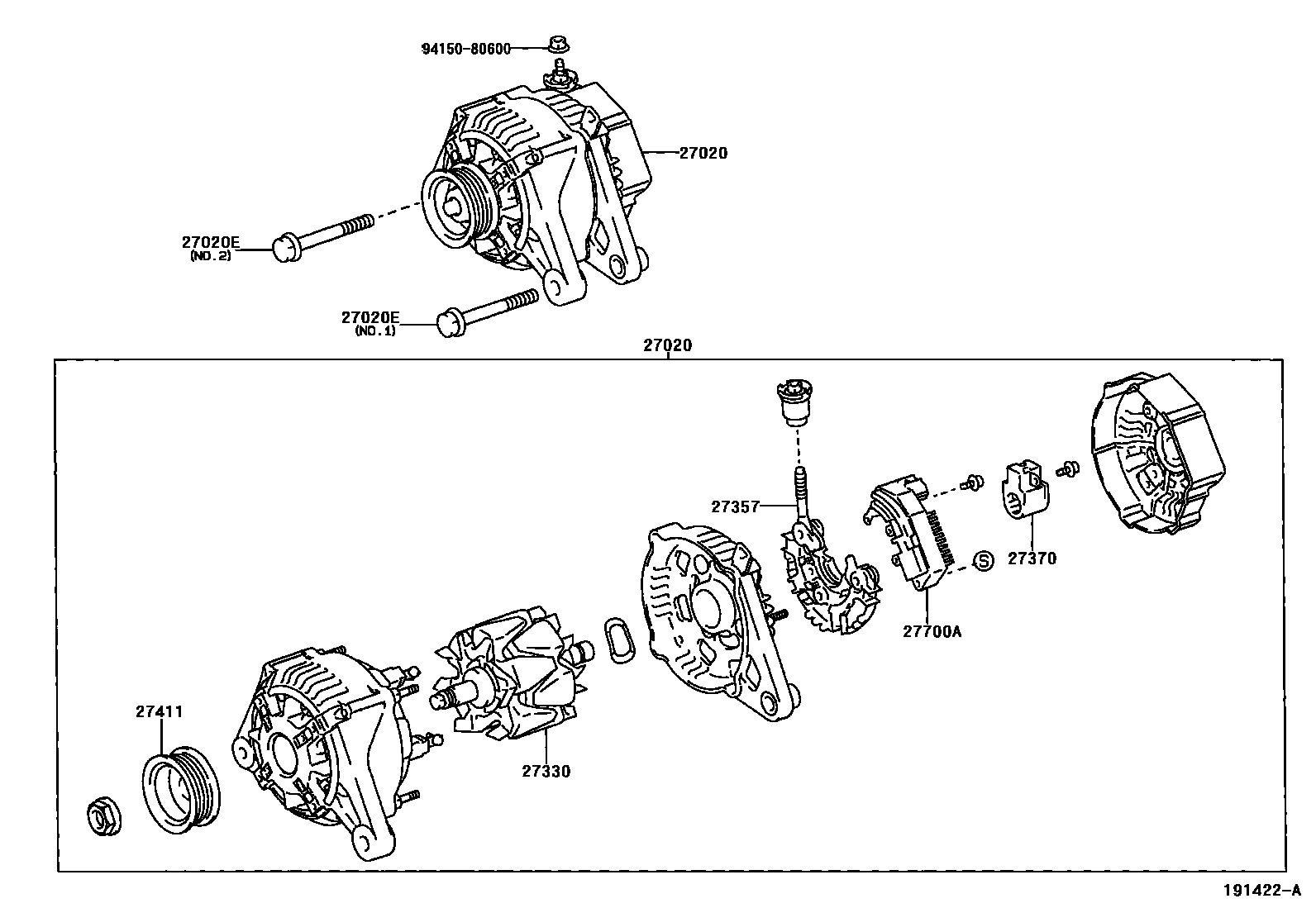

Toyota COROLLA Alternator — Figure 1903
Toyota COROLLA EPC diagram 1903, Alternator, with 2 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 27020 | Alternator Assembly | 27060-21090 · 27060-22040 |
| 27020E | Bolts (for generator) | 90105-10038 · 90105-10075 · 91511-80830 |
| 27310 | Alternator Drive End Frame Assembly | 27310-21040 |
| 27330 | Alternator Rotor Assembly | 27330-74550 |
| 27357 | Generator rectifier frame | 27357-22050 |
| 27370 | Alternator Brush Holder Assembly | 27370-75060 |
| 27411 | Alternator Pulley | 27411-11060 · 27411-50050 |
| 27700A | Generator voltage regulator assembly | 27700-20050 · 27700-21040 |
