Toyota COROLLA vacuum tube — Figure 1708

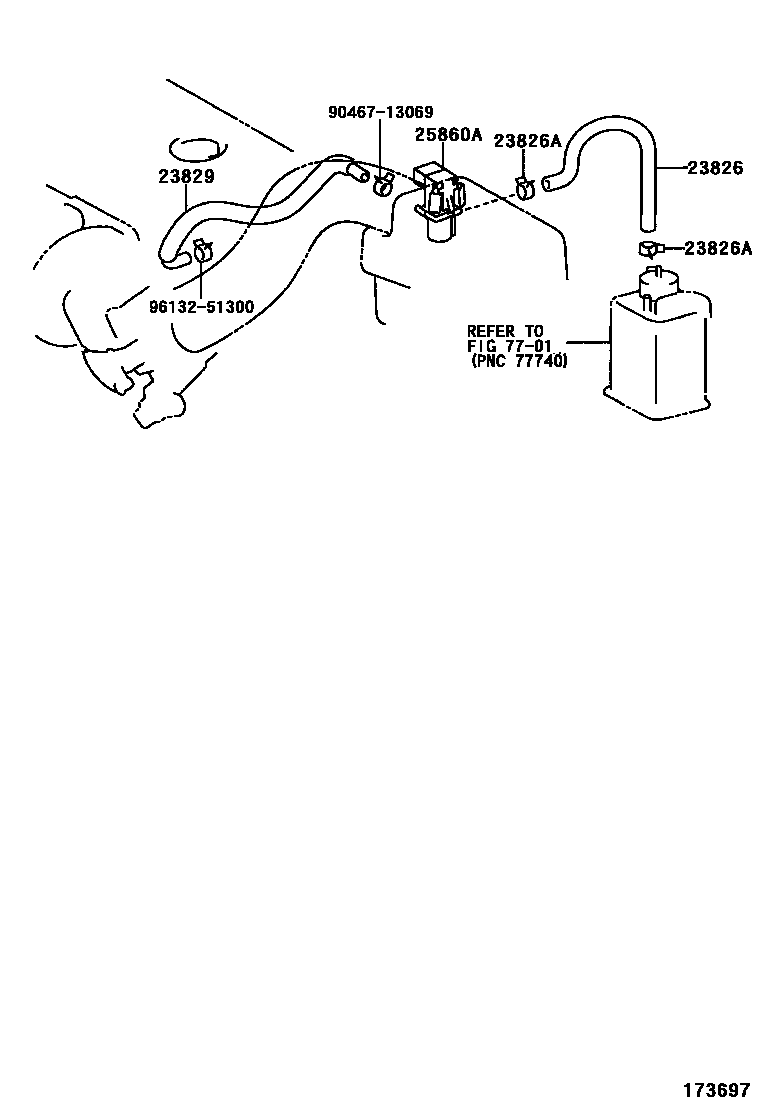

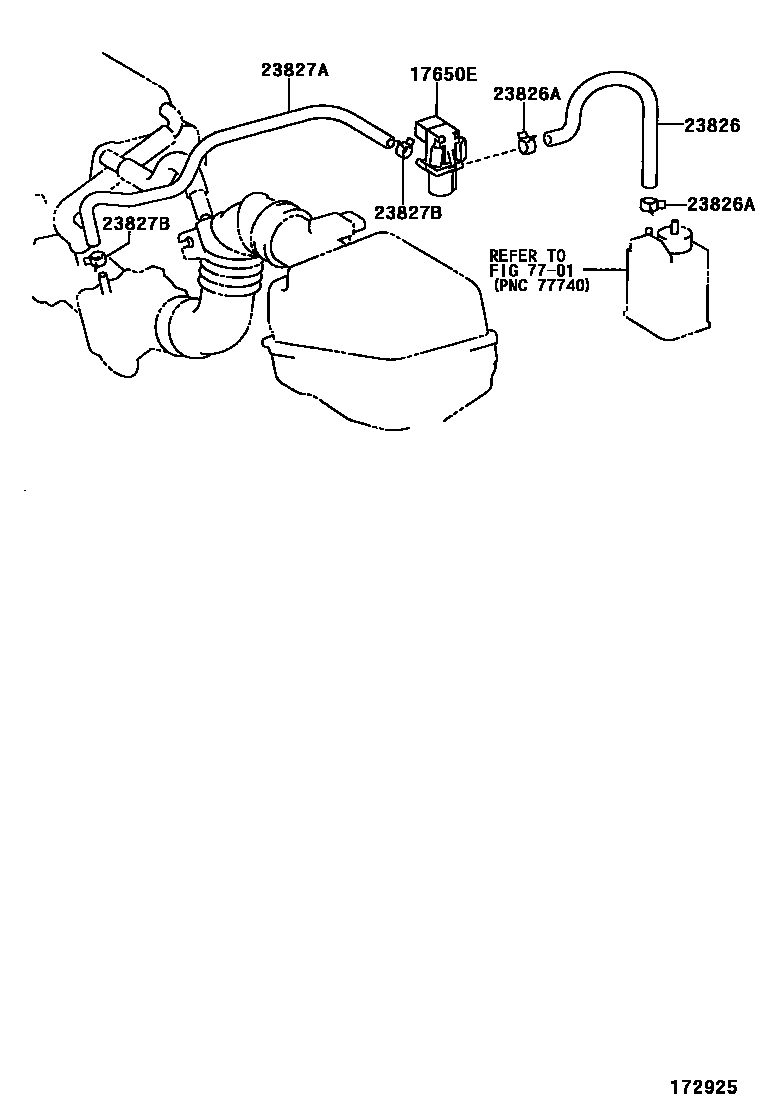

Toyota COROLLA EPC diagram 1708, vacuum tube, with 2 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17650E | Vacuum switch valve | 90910-12257 |
| 23826 | No. 1 fuel vapor supply hose | 23826-21030 |
| 23826A | Clamp (for No. 1 fuel vapor supply hose) | 96132-41100 · 96132-51100 |
| 23827A | No. 2 fuel vapor supply hose | 23827-21030 |
| 23827B | Clamp (for No. 2 fuel vapor supply hose) | 90467-13069 · 96132-51300 |
| 23829 | No. 3 fuel vapor supply hose | 23829-22050 · 23829-22080 |
| 25860A | No. 1 vacuum switch valve | 90910-12257 |
