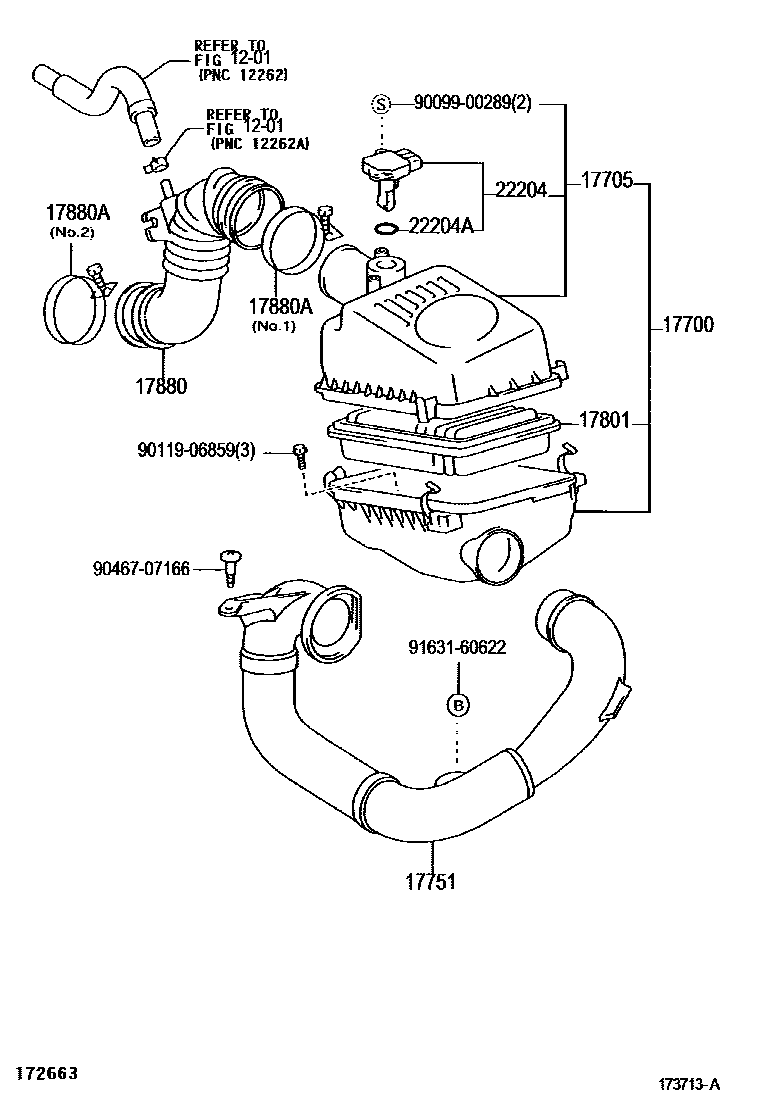

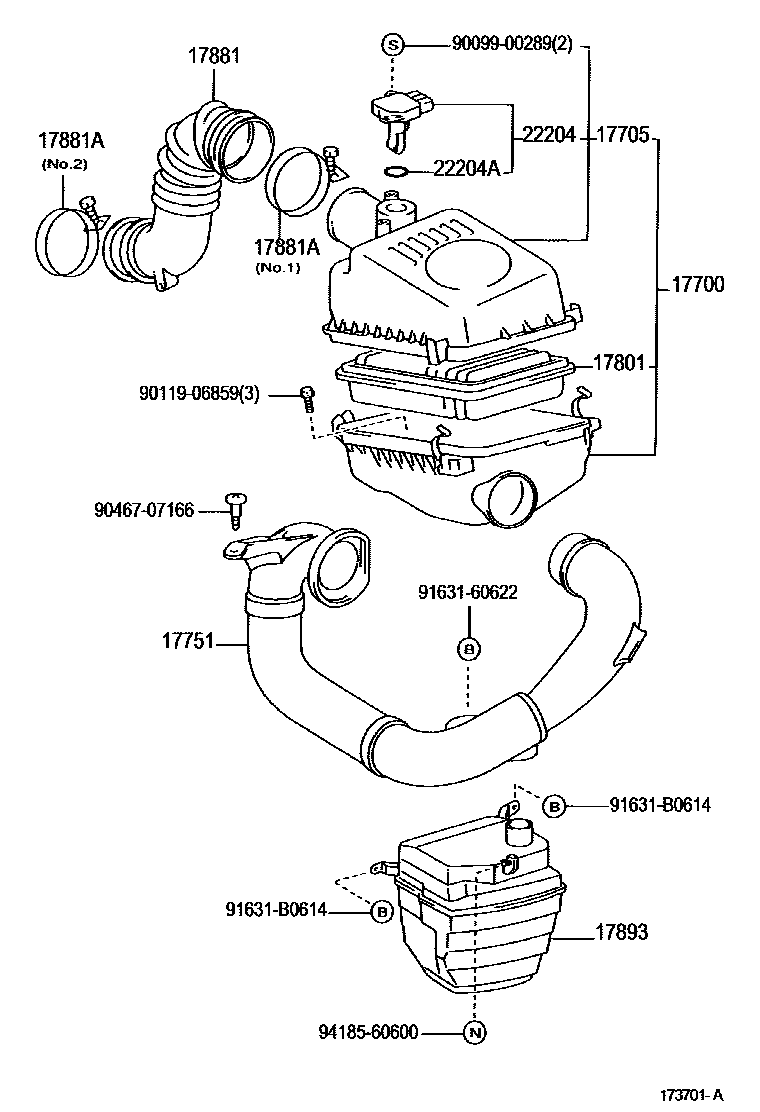

Toyota COROLLA Air Cleaner — Figure 1703
Toyota COROLLA EPC diagram 1703, Air Cleaner, with 2 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17700 | air filter assembly | 17700-21070 · 17700-22120 |
| 17705 | Air filter cover sub-assembly | 17705-21050 · 17705-22120 |
| 17751 | No. 1 air filter air inlet | 17751-21060 · 17751-21110 · 17751-21140 · 17751-22070 · 17751-22120 · 17751-22130 |
| 17801 | Air filter element sub-assembly | 17801-22020 |
| 17880 | Air cleaner hose assembly | 17880-21030 |
| 17880A | hose clamp | 96111-10650 · 96111-10710 |
| 17881 | No. 1 air cleaner hose | 17881-22080 |
| 17881A | Clamp (for No. 1 air cleaner hose) | 96111-10800 |
| 17893 | Intake resonator | 17893-64080 |
| 22204 | Intake air flow meter assembly | 22204-22010 |
| 22204A | O-ring (for intake air flow meter) | 90099-14141 |
