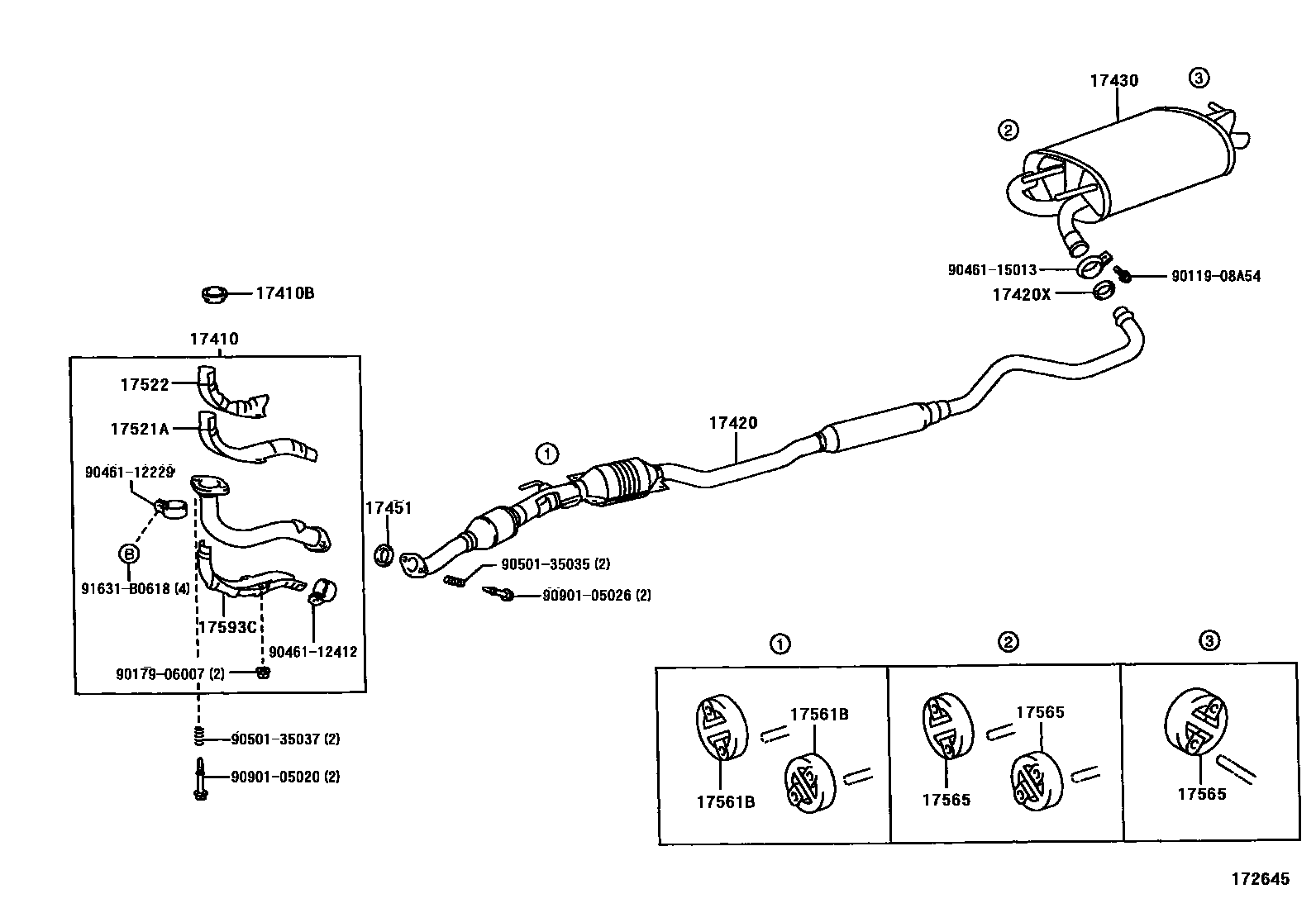

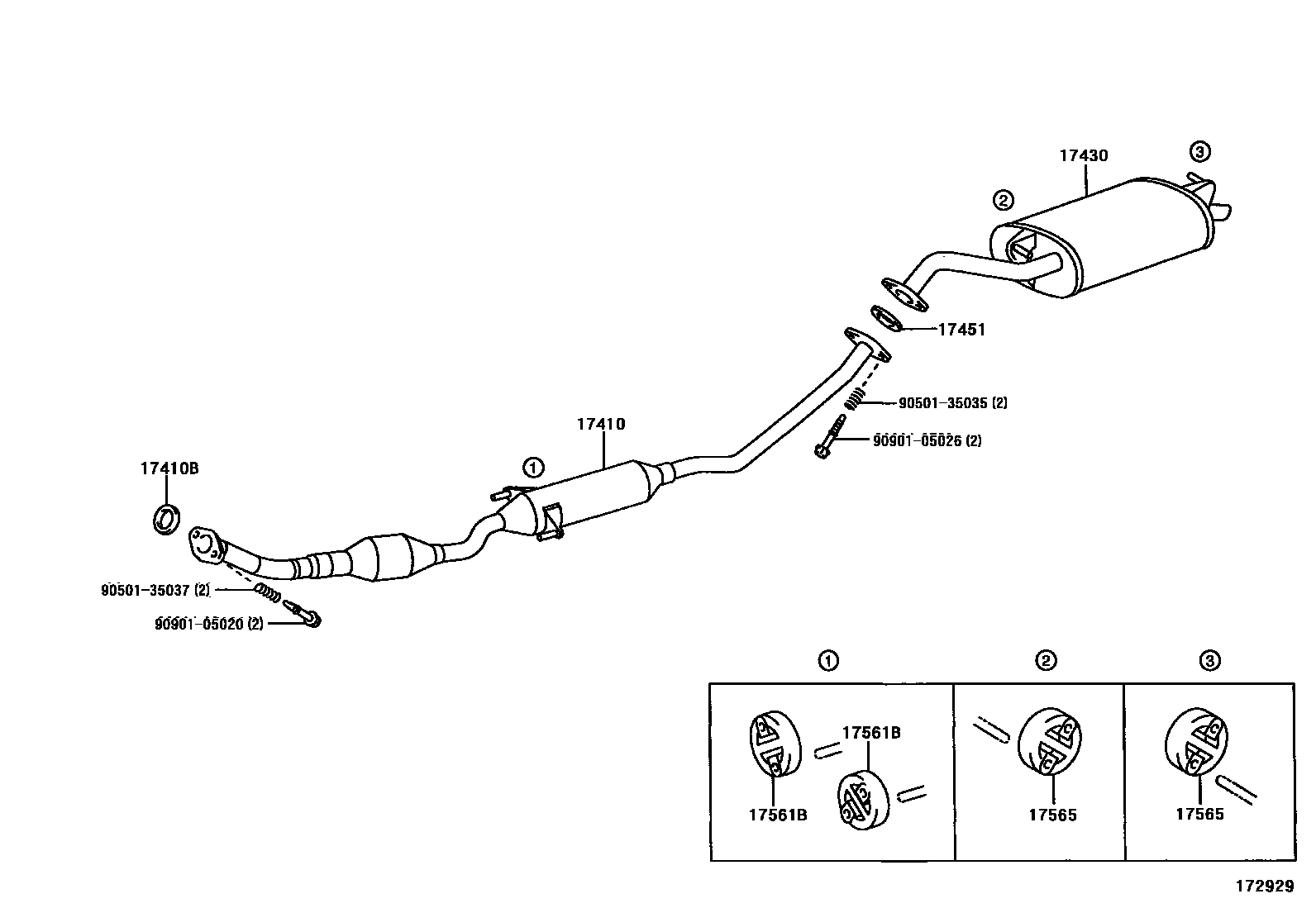

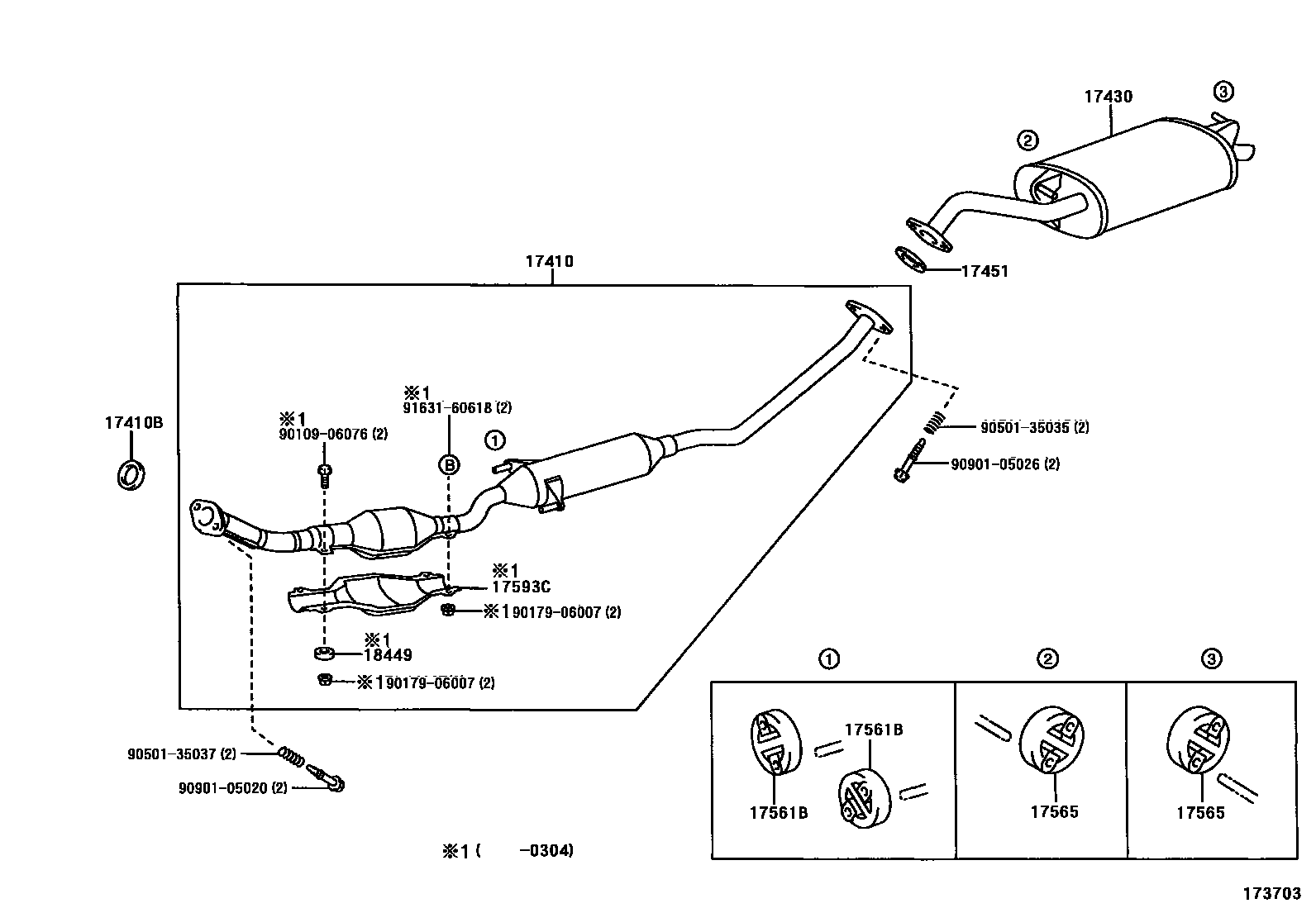

Toyota COROLLA Exhaust Pipe — Figure 1702
Toyota COROLLA EPC diagram 1702, Exhaust Pipe, with 3 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17410 | Front exhaust pipe assembly | 17410-21220 · 17410-21590 · 17410-22210 · 17410-22280 · 17410-22290 · 17410-22430 |
| 17410B | Exhaust pipe gasket | 17451-21030 · 17451-22070 |
| 17420 | Central exhaust pipe assembly | 17420-22040 · 17420-22070 |
| 17420X | Center exhaust pipe liner | 90917-06082 |
| 17430 | Exhaust tailpipe assembly | 17430-21210 · 17430-21440 · 17430-22260 · 17430-22330 · 17430-22410 · 17430-22411 |
| 17451 | Exhaust pipe gasket | 17451-16030 · 17451-21050 · 17451-23010 · 17451-64030 |
| 17521A | No. 1 upper exhaust pipe protection device | 17521-22050 · 17521-22060 |
| 17522 | No. 2 upper exhaust pipe protection device | 17522-22030 · 17522-22040 |
| 17561B | No. 1 exhaust pipe lifting lug | 17565-21030 |
| 17565 | No. 5 exhaust pipe lifting lug | 17565-21040 |
| 17593C | No. 1 lower exhaust pipe protection device | 17593-22020 · 17593-22070 · 17593-22090 |
| 18449 | Three-way catalytic converter protection device gasket | 18449-74010 |
