Toyota COROLLA Engine Mounting — Figure 1107

Toyota COROLLA EPC diagram 1107, Engine Mounting, with 3 images and 9 PNC and OE references.

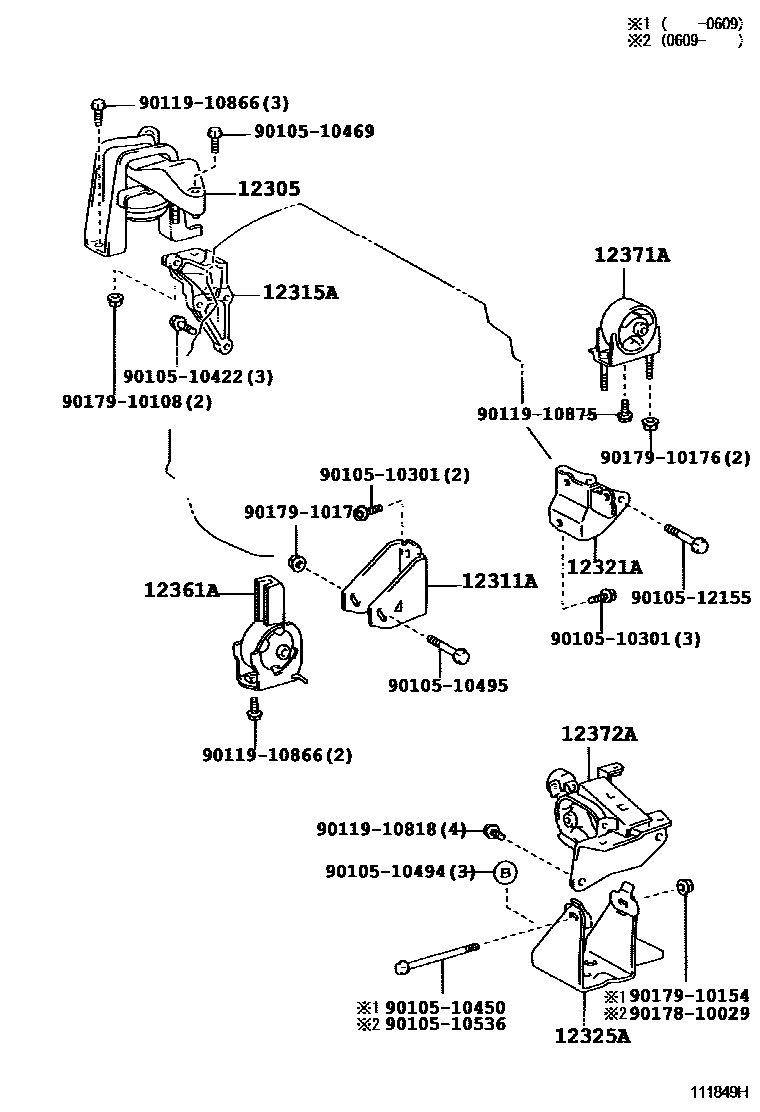

Toyota COROLLA Engine Mounting EPC diagram — 111849H
Engine Mounting — 111849H (200108 – 999999)

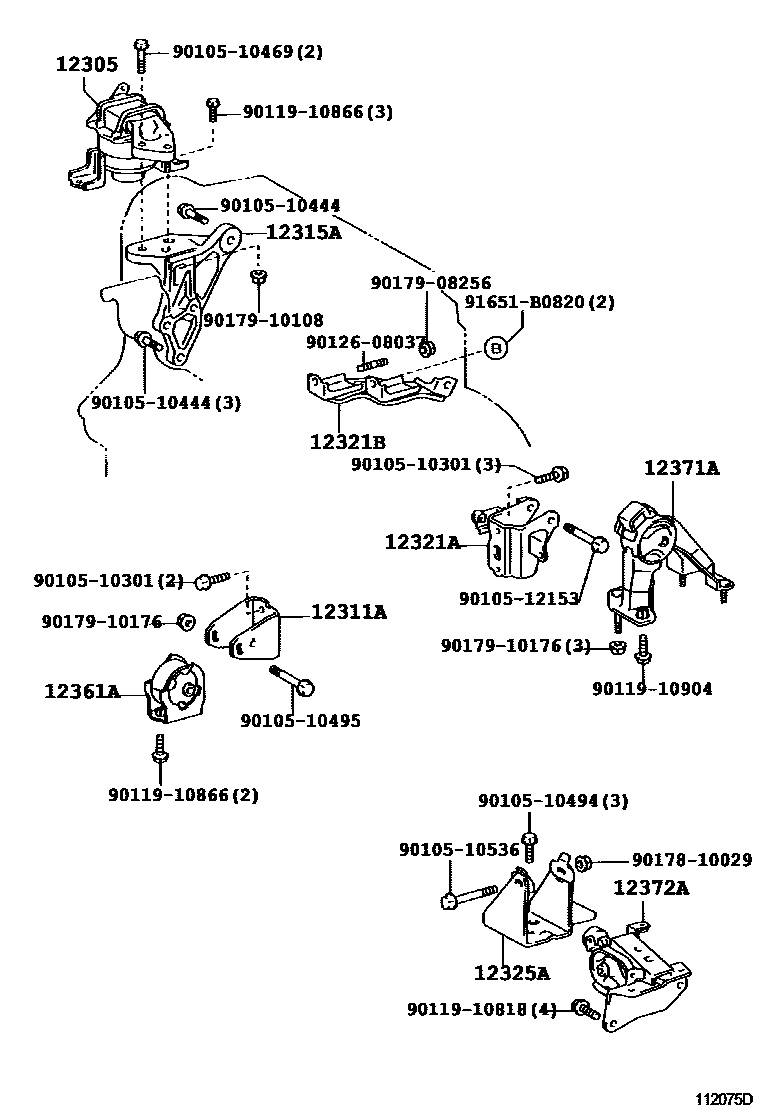

Toyota COROLLA Engine Mounting EPC diagram — 112075D
Engine Mounting — 112075D (200105 – 999999)

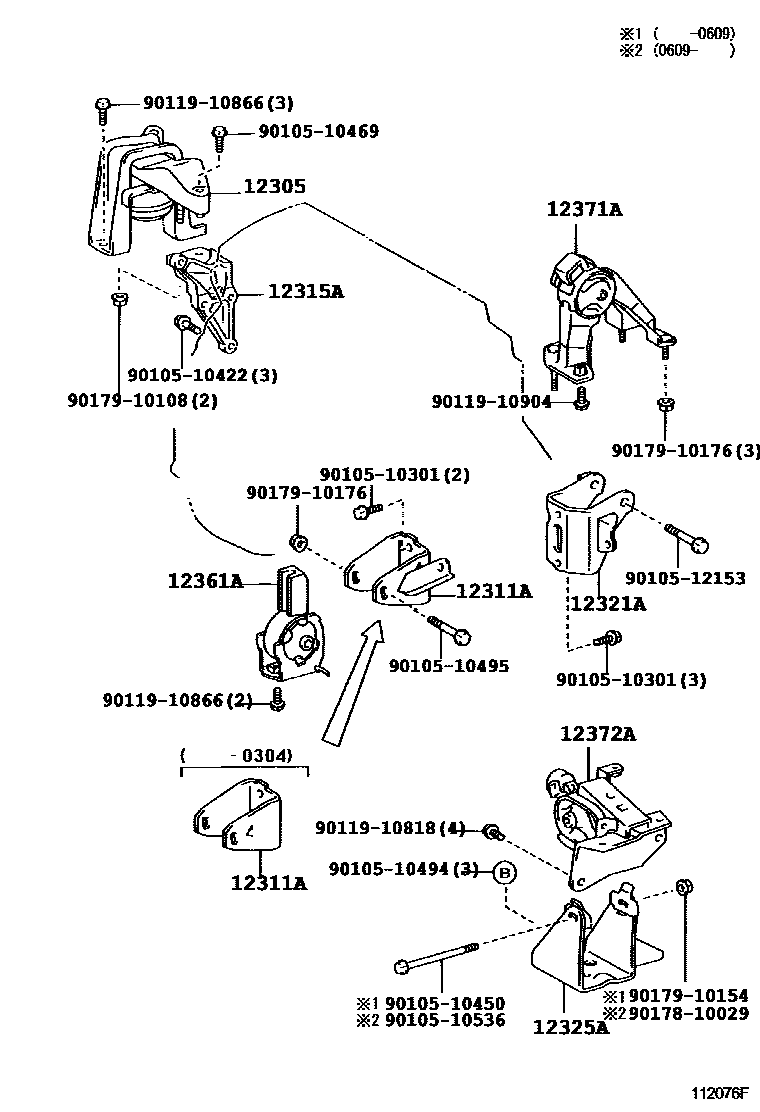

Toyota COROLLA Engine Mounting EPC diagram — 112076F
Engine Mounting — 112076F (200105 – 999999)

PNC and OE references

PNCPart nameOE numbers
12305Engine right side mounting vibration isolation pad sub-assembly12305-21130 · 12305-22110 · 12305-22130 · 12305-22170 · 12305-22190 · 12305-22240 · 12305-22260
12311AEngine front mounting bracket (for transverse engine)12311-21010 · 12311-22110 · 12311-22140 · 12311-22190
12315AEngine right side mounting bracket (for transversely mounted engine)12315-21040 · 12315-21041 · 12315-22020 · 12315-22050
12321ARear engine mounting bracket (for transverse engine)12321-21070 · 12321-22130 · 12321-22150
12321BDrive shaft heat insulation pad sub-assembly43409-52010 · 43409-52020
12325AEngine left side mounting bracket (for transversely mounted engine)12325-21110 · 12325-22110 · 12325-22140
12361AEngine front mounting vibration isolation pad (for transversely mounted engine)12361-21020 · 12361-22090
12371AEngine rear mount vibration isolation pad12371-21110 · 12371-21120 · 12371-22140
12372AEngine left-side mounting vibration isolation pad (for transversely mounted engines)12372-21070 · 12372-22060
