Toyota COROLLA Cylinder Head — Figure 1104

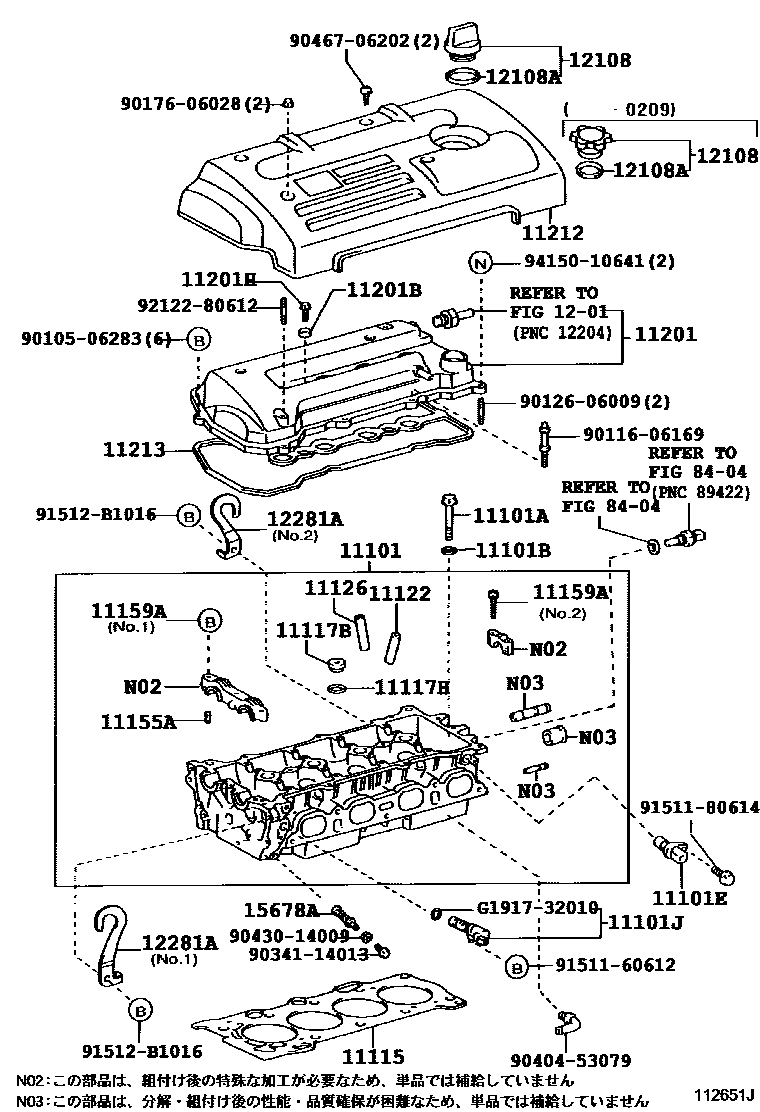

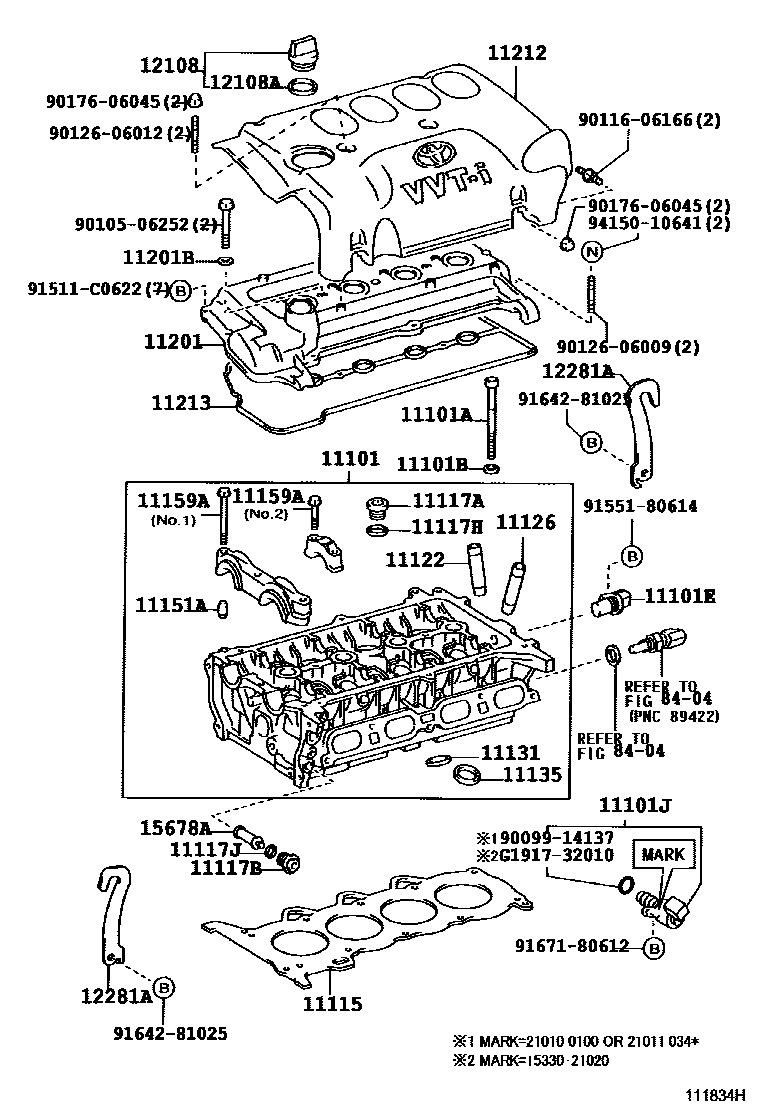

Toyota COROLLA EPC diagram 1104, Cylinder Head, with 2 images and 26 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11101 | CYLINDER HEAD SUB-ASSY | 11101-0D010 · 11101-21031 · 11101-21033 · 11101-22051 · 11101-22052 · 11101-22071 · 11101-22101 |
| 11101A | BOLT (FOR CYLINDER HEAD) | 90910-02126 · 90910-02134 · 90910-02152 · 90910-02170 |
| 11101B | Flat Washer (for cylinder head assembly) | 90201-09024 · 90201-10344 |
| 11101E | Cam position sensor | 90919-05024 · 90919-05026 |
| 11101J | Camshaft timing oil control valve assembly | 15330-21010 · 15330-21011 · 15330-22030 |
| 11115 | GASKET, CYLINDER HEAD | 11115-21030 · 11115-21040 · 11115-21050 · 11115-22040 · 11115-22041 · 11115-22050 |
| 11117A | No. 1 headed tapered thread plug | 90341-20002 |
| 11117B | No. 2 headed tapered thread plug | 90341-14013 · 90341-20002 |
| 11117H | Gasket (for coolant hole) | 90430-20004 |
| 11117J | Gasket (for cylinder head thread plug) | 90430-14009 |
| 11122 | BUSH, INTAKE VALVE GUIDE | 11122-20020 · 11122-21010 · 11122-22030 · 11123-20020 · 11123-21010 · 11123-22030 |
| 11126 | BUSH, EXHAUST VALVE GUIDE | 11122-20020 · 11122-21010 · 11122-22030 · 11123-20020 · 11123-21010 · 11123-22030 |
| 11131 | intake valve seat | 11131-21020 · 11132-21020 |
| 11135 | Exhaust valve seat | 11135-21020 · 11135-21040 · 11136-21020 · 11136-21040 |
| 11151A | Ring pin (for securing camshaft bearing cap) | 90250-06001 |
| 11155A | PIN, RING W/HEAD | 90250-06001 · 90250-A0011 |
| 11159A | BOLT (FOR CYLINDER HEAD TO CAMSHAFT BEARING CAP) | 90080-11414 · 90080-11415 · 90109-06080 · 90119-08A29 |
| 11201 | CYLINDER HEAD COVER SUB-ASSY | 11201-21050 · 11201-22060 |
| 11201B | Gasket (for cylinder head cover) | 90210-06013 |
| 11201H | Bolts (for cylinder head cover) | 90105-06202 · 90105-06281 |
| 11212 | No. 2 cylinder head cover | 11212-21010 · 11212-21011 · 11212-21012 · 11212-22070 · 11212-22130 |
| 11213 | GASKET, CYLINDER HEAD COVER | 11213-21011 · 11213-22050 |
| 12108 | OIL FILLER CAP SUB-ASSY | 12180-21010 · 12180-55010 |
| 12108A | GASKET (FOR OIL FILLER CAP) | 90430-37140 |
| 12281A | Engine No. 1 hanger | 12281-15050 · 12281-21010 · 12281-22021 |
| 15678A | Oil control valve filter | 15678-21010 |
