Toyota COROLLA Engine Overhaul Gasket Kit — Figure 1103

Toyota COROLLA EPC diagram 1103, Engine Overhaul Gasket Kit, with 4 images and 2 PNC and OE references.

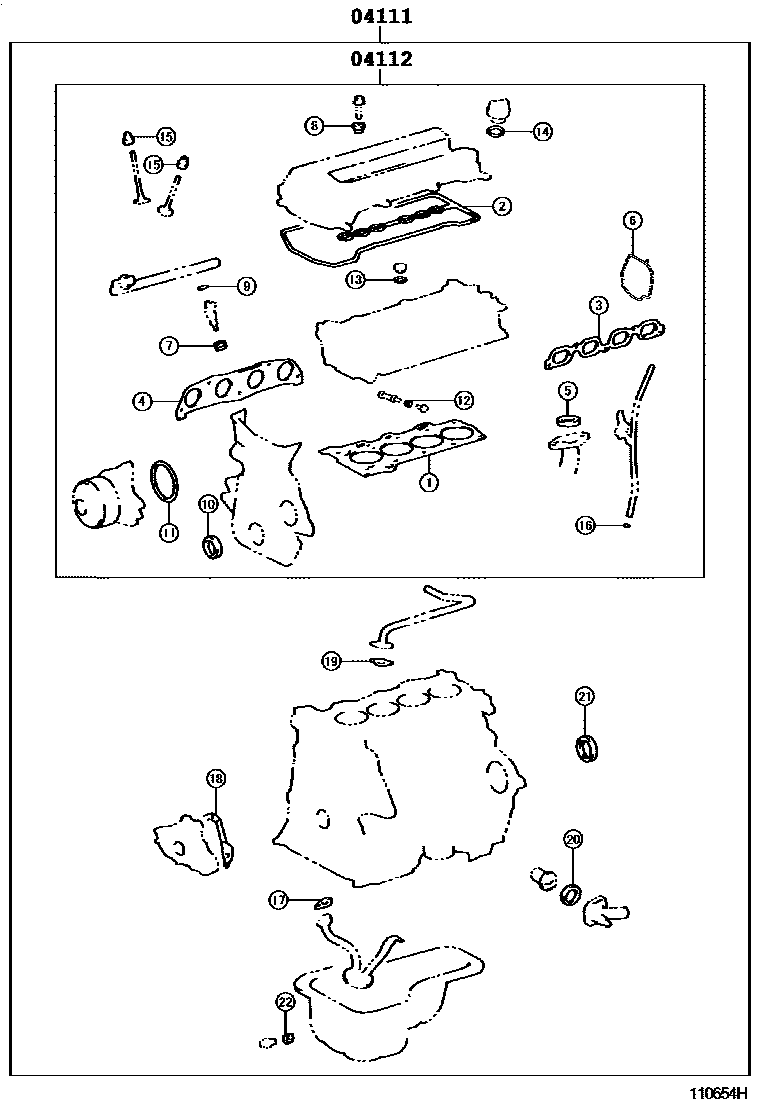

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 110654H
Engine Overhaul Gasket Kit — 110654H (200105 – 999999)

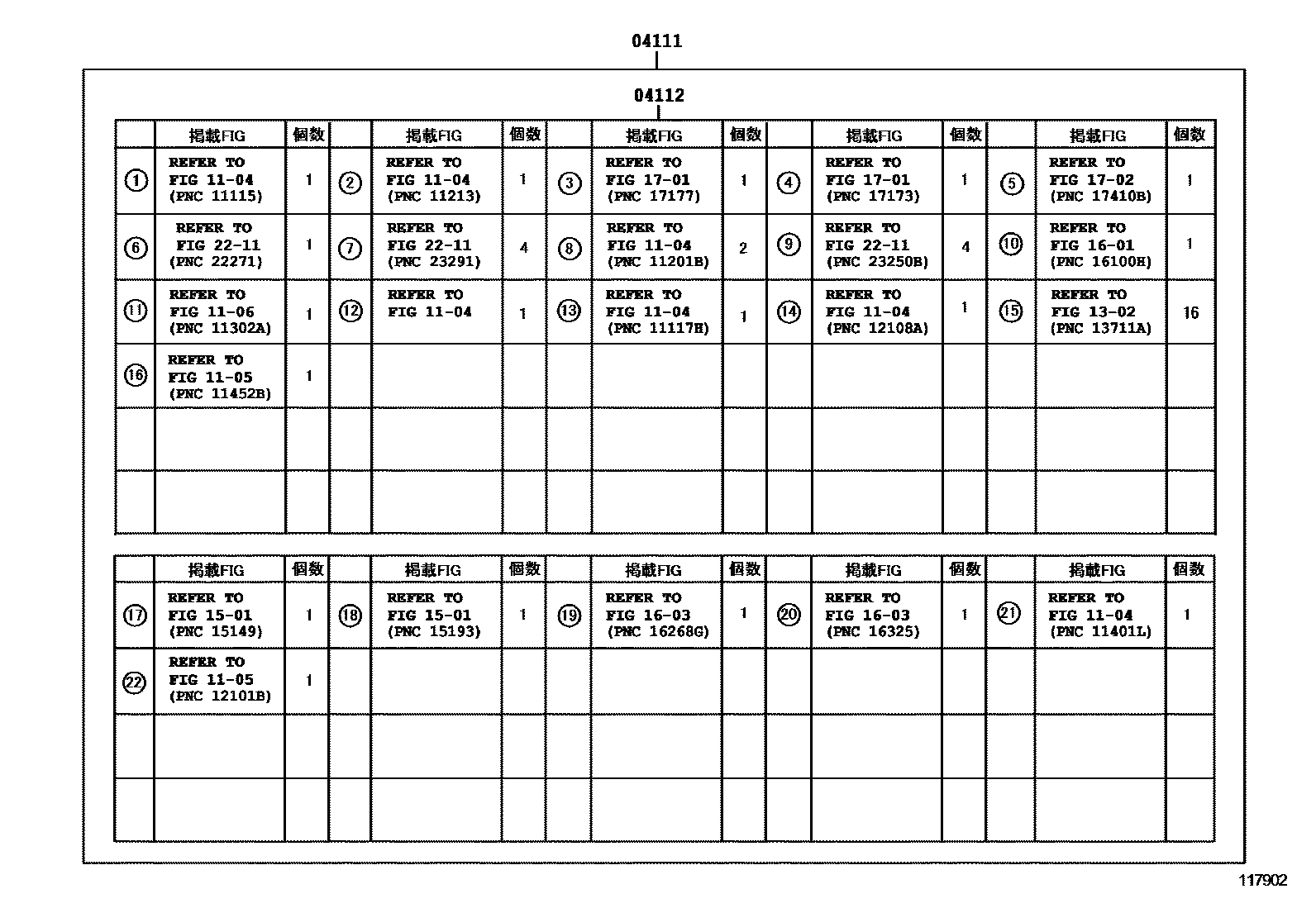

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 117902
Engine Overhaul Gasket Kit — 117902 (200105 – 999999)

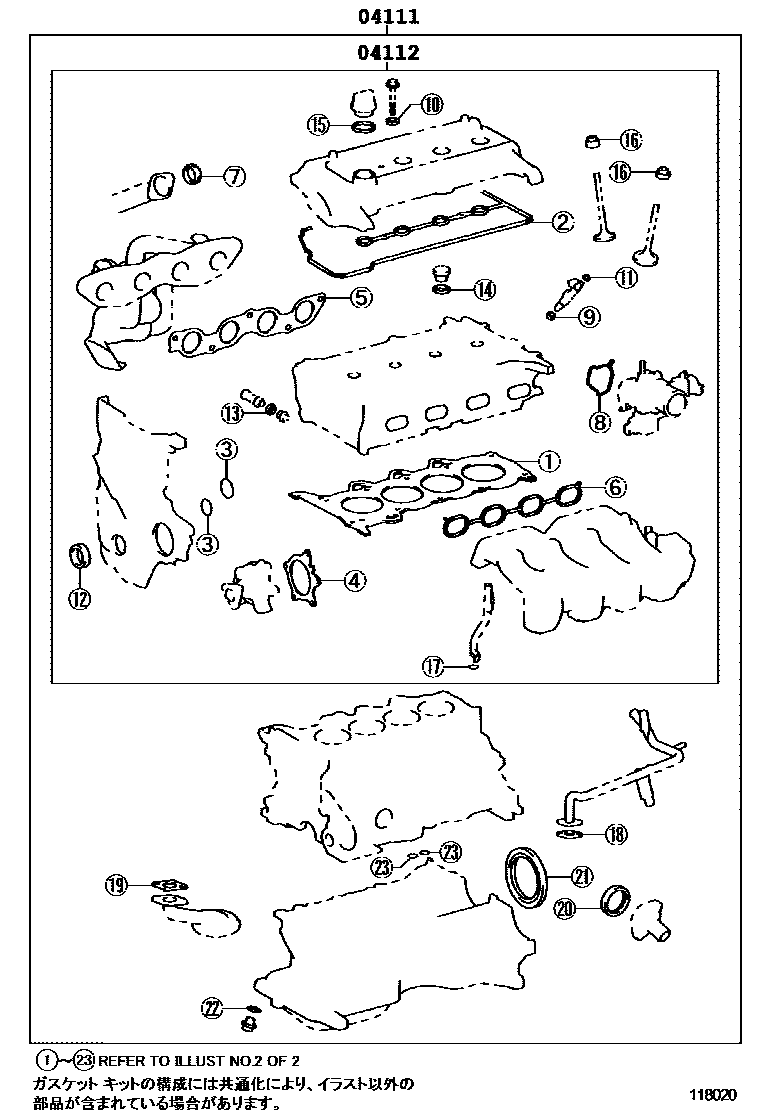

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 118020
Engine Overhaul Gasket Kit — 118020 (200105 – 999999)

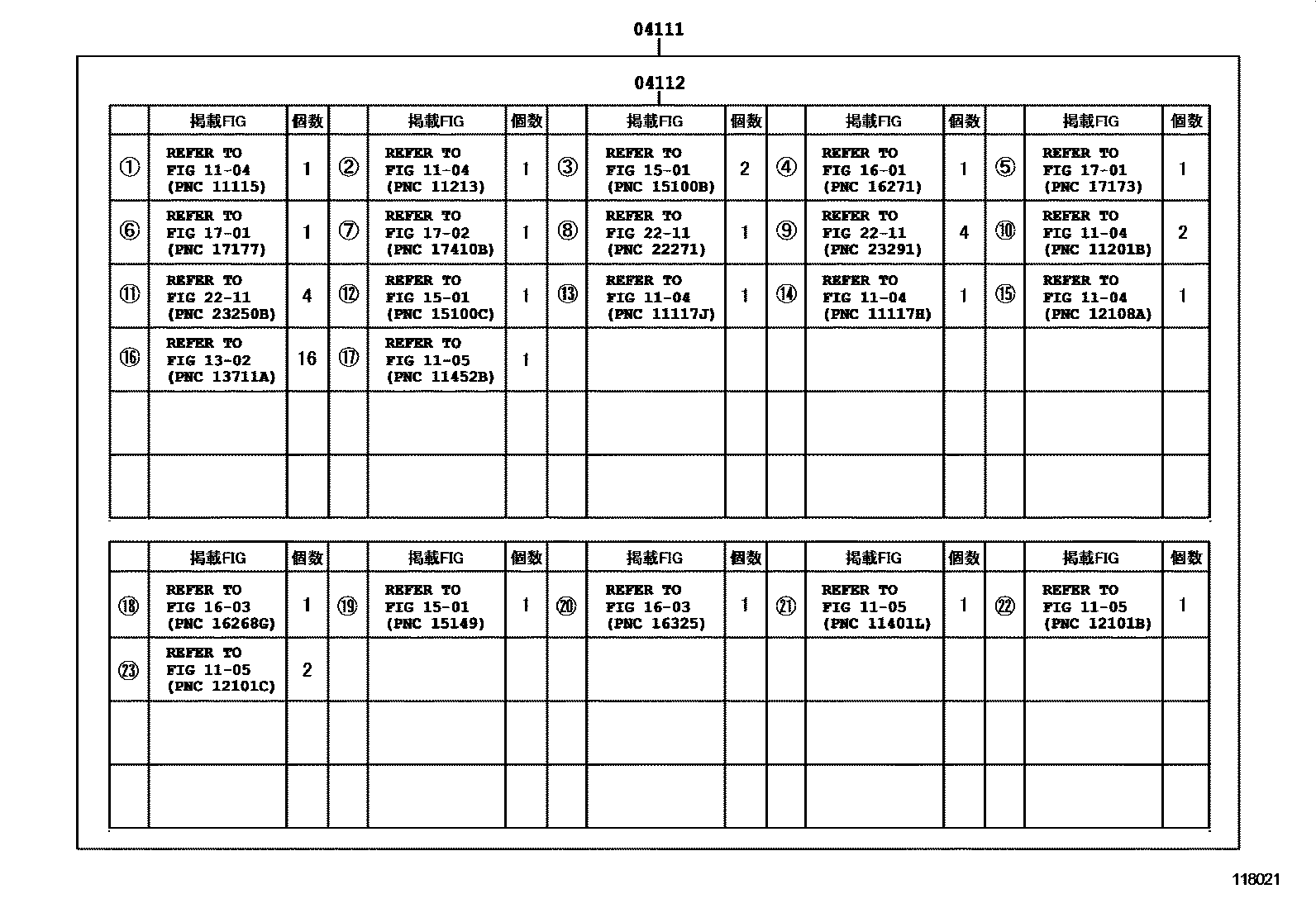

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 118021
Engine Overhaul Gasket Kit — 118021 (200105 – 999999)

PNC and OE references

PNCPart nameOE numbers
04111Engine overhaul gasket assembly04111-21040 · 04111-21041 · 04111-21042 · 04111-21043 · 04111-22131 · 04111-22132 · 04111-22152 · 04111-22160 · 04111-22511 · 04111-22512
04112Engine valve grinding pad assembly04112-21040 · 04112-21041 · 04112-21042 · 04112-21043 · 04112-22131 · 04112-22132 · 04112-22152 · 04112-22160 · 04112-22481 · 04112-22482
