Toyota COROLLA Short Block Assembly — Figure 1102

Toyota COROLLA EPC diagram 1102, Short Block Assembly, with 1 images and 1 PNC and OE references.

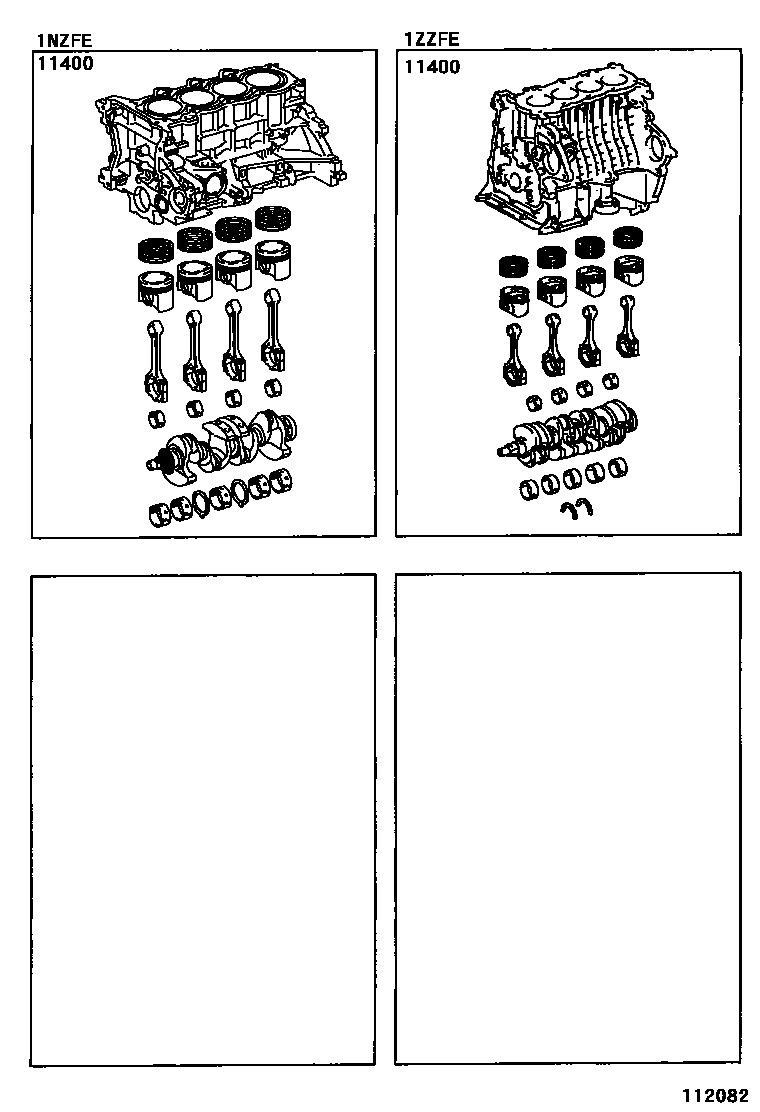

Toyota COROLLA Short Block Assembly EPC diagram — 112082
Short Block Assembly — 112082 (200105 – 999999)

PNC and OE references

PNCPart nameOE numbers
11400Short Block Assembly11400-21051 · 11400-21220 · 11400-22120 · 11400-22121 · 11400-22180 · 11400-22190
