Toyota COROLLA Heating & Air Conditioning - Compressor — Figure 8719

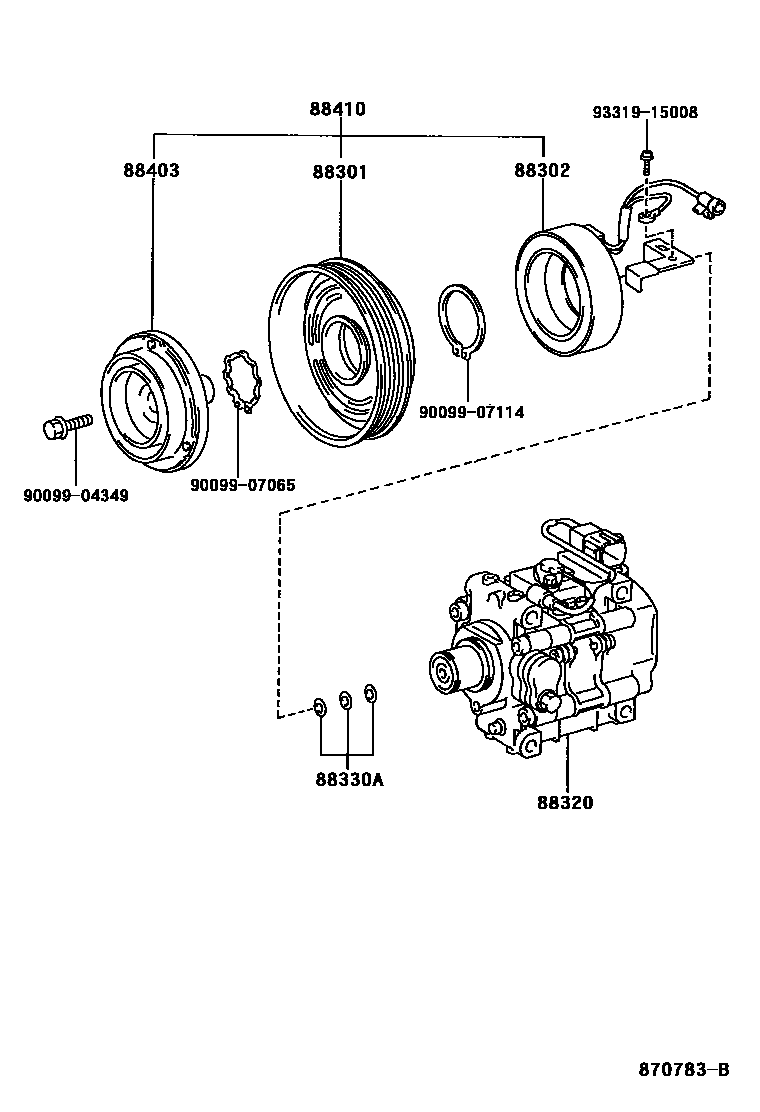

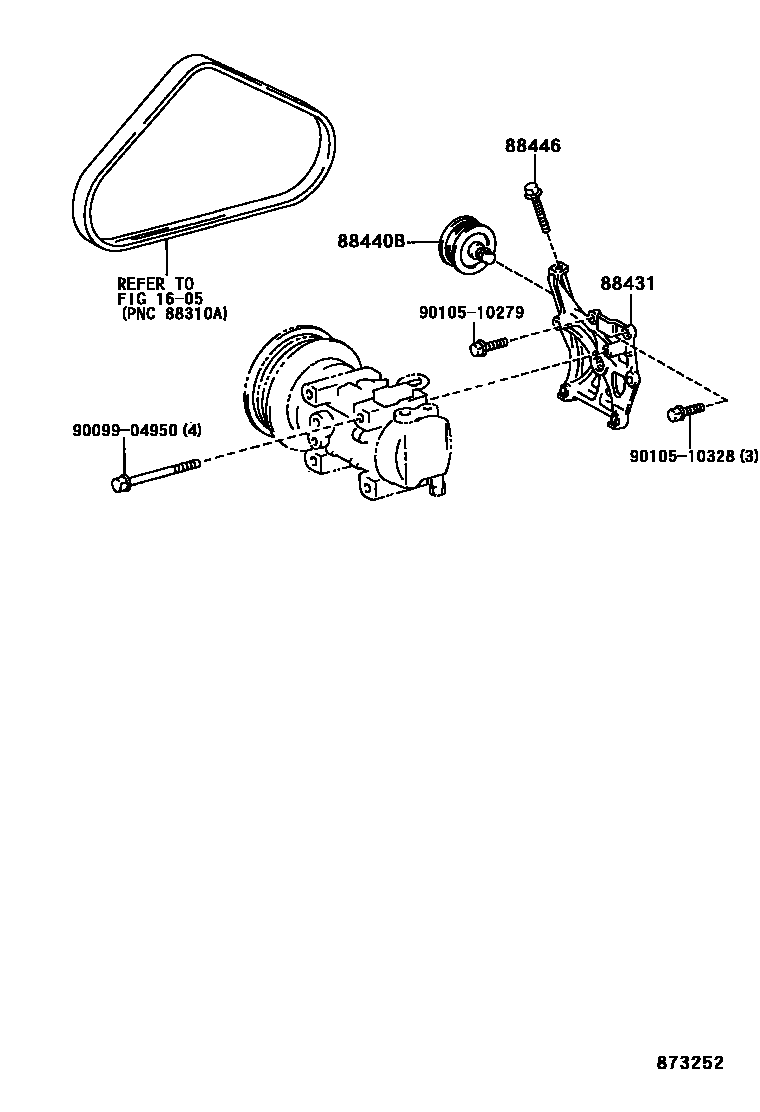

Toyota COROLLA EPC diagram 8719, Heating & Air Conditioning - Compressor, with 2 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 88301 | Electromagnetic clutch rotor sub-assembly | 88412-1A040 |
| 88302 | Electromagnetic clutch stator sub-assembly | 88411-1A040 |
| 88320 | Cooler Compressor Assembly | 88320-1A380 |
| 88330A | Washer (for electromagnetic clutch) | 88335-14020 |
| 88403 | Electromagnetic clutch hub sub-assembly | 88403-1A010 |
| 88410 | Magnetic Clutch Assembly | 88410-1A050 |
| 88431 | Compressor No. 1 mounting bracket | 88431-12560 |
| 88440B | Idler gear assembly | 88440-20160 · 88440-20170 |
| 88446 | Idler gear bolt | 88446-12030 |
