Toyota COROLLA 暖风和空调系统 - 控制器和风管 — Figure 8715
Toyota COROLLA EPC diagram 8715, 暖风和空调系统 - 控制器和风管, with 4 images and 28 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

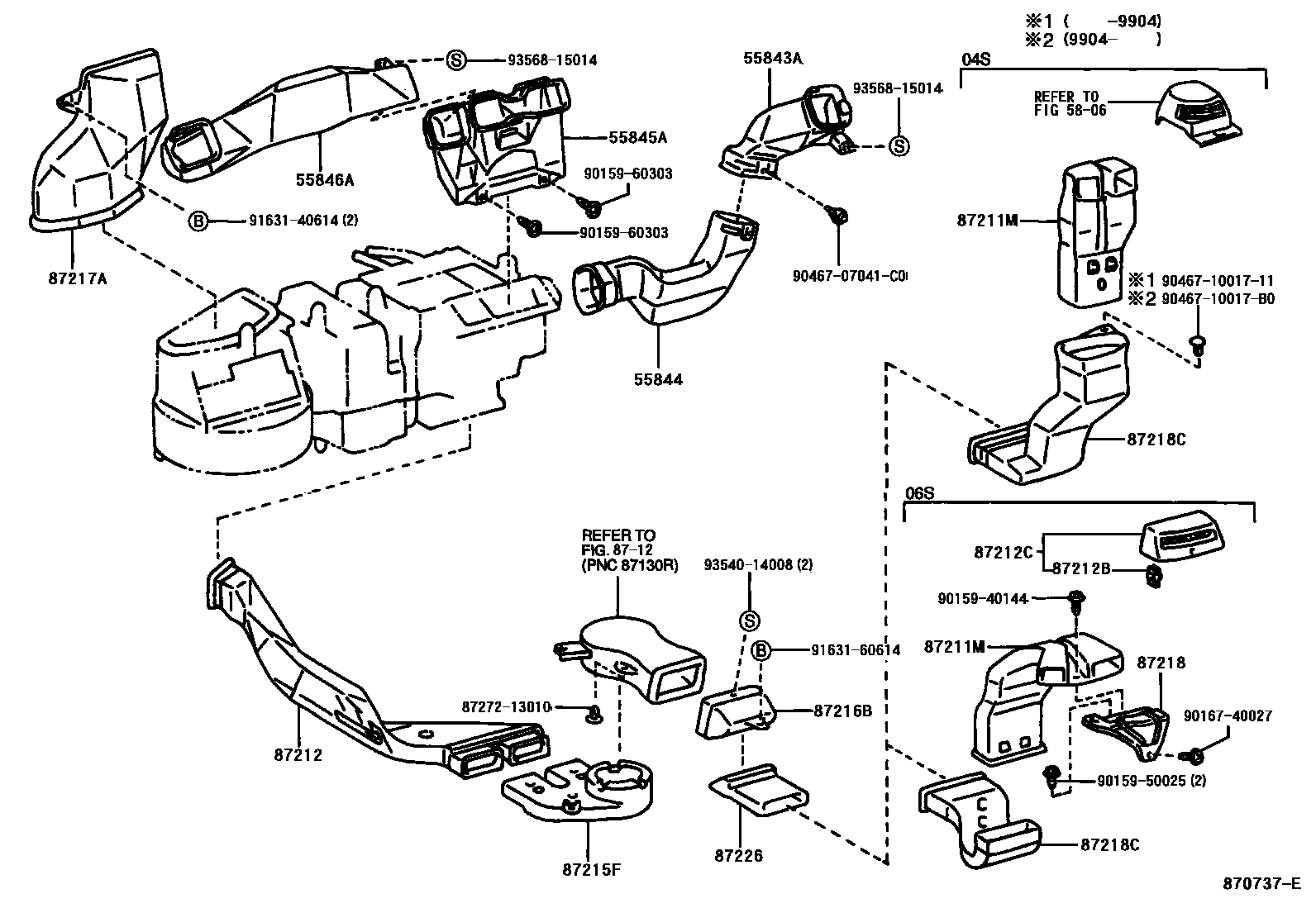

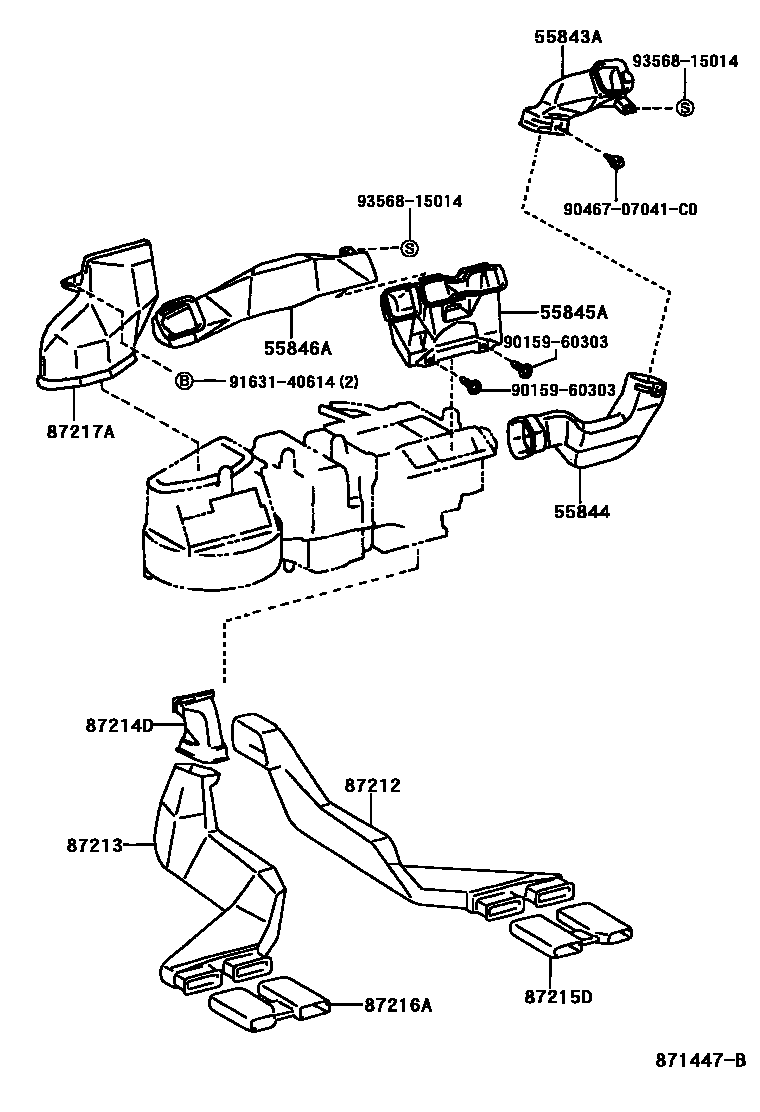

| 55843A | Air duct No. 1 from heater to air register | 55843-13010 |
| 55844 | Air duct No. 2 from heater to air regulator | 55844-13010 |
| 55845A | Air duct No. 3 from heater to air regulator | 55870-13010 |
| 55846A | Air duct No. 4 from heater to air register | 55846-13010 |

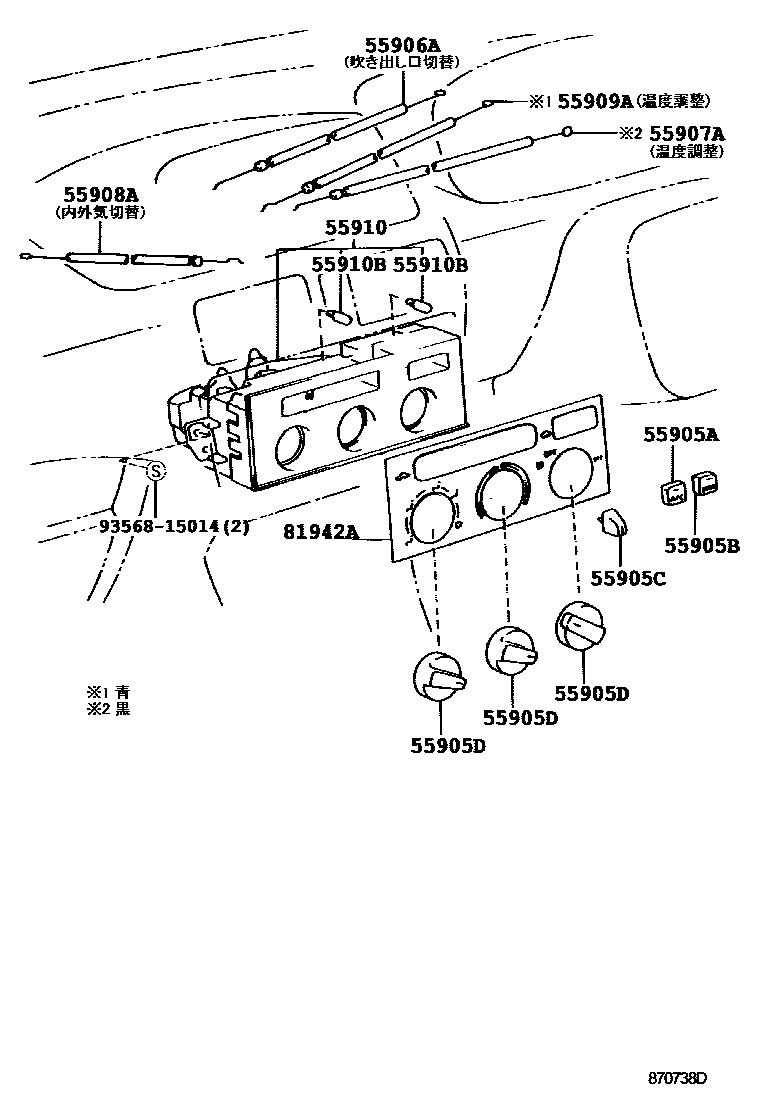

| 55905A | Heater control button | 55905-13010 · 55905-13030 |
| 55905B | Heater control button 2 | 55905-13020 |
| 55905C | Heater control button No. 3 | 55905-2B040 |
| 55906A | Defroster damper control cable sub-assembly | 55906-13010 |
| 55907A | Water valve control cable sub-assembly | 55907-13010 |
| 55908A | Intake air valve control cable sub-assembly | 55908-13010 |
| 55909A | Air mix damper control cable sub-assembly | 55909-13010 |
| 55910B | heater control light bulb | 90981-11014 |
| 87211M | Rear foot air duct | 87211-13050 · 87211-13060 |
| 87212 | No. 1 rear air duct | 87212-12100 · 87212-13010 |
| 87212B | Air duct clip | 90468-05077 |
| 87213 | No. 2 rear air duct | 87213-13030 · 87213-13040 |
| 87214D | No. 3 rear air duct | 87214-13010 |
| 87215D | No. 4 rear air duct | 87215-12020 · 87215-12030 |
| 87215F | No. 3 rear air duct | 87215-13010 · 87215-13020 |
| 87216A | No. 5 rear air duct | 87216-12010 |
| 87216B | No. 4 rear air duct | 87216-13010 |
| 87217A | No. 6 rear air duct | 87217-13010 |
| 87218 | Rear air duct bracket | 87218-13010 |
| 87218C | No. 6 rear air duct | 87218-13020 · 87218-13030 |
| 87226 | Duct adapter | 87226-13010 |

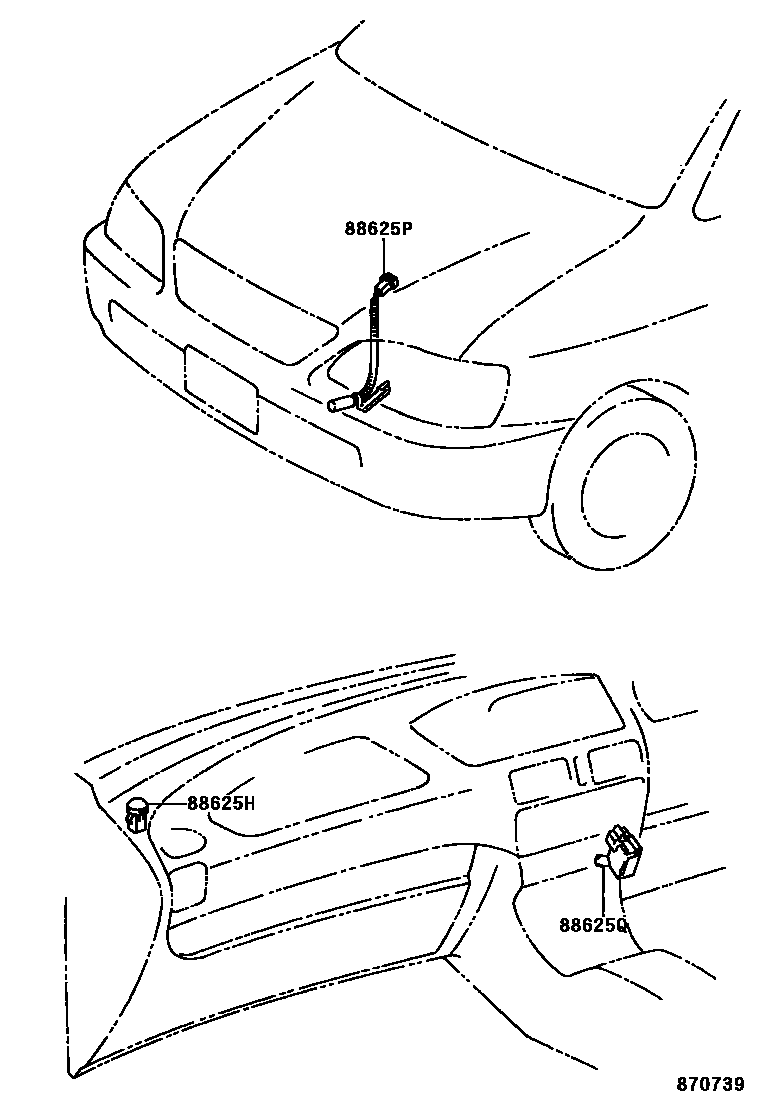

| 88625H | Cooler thermistor (sunlight sensor) | 88625-32160 |
| 88625P | Cooler thermistor (ambient temperature sensor) | 88625-13010 |
| 88625Q | Cooler thermistor (interior temperature sensor) | 88790-35020 |
