Toyota COROLLA 暖风和空调系统 - 加热装置和鼓风机 — Figure 8712

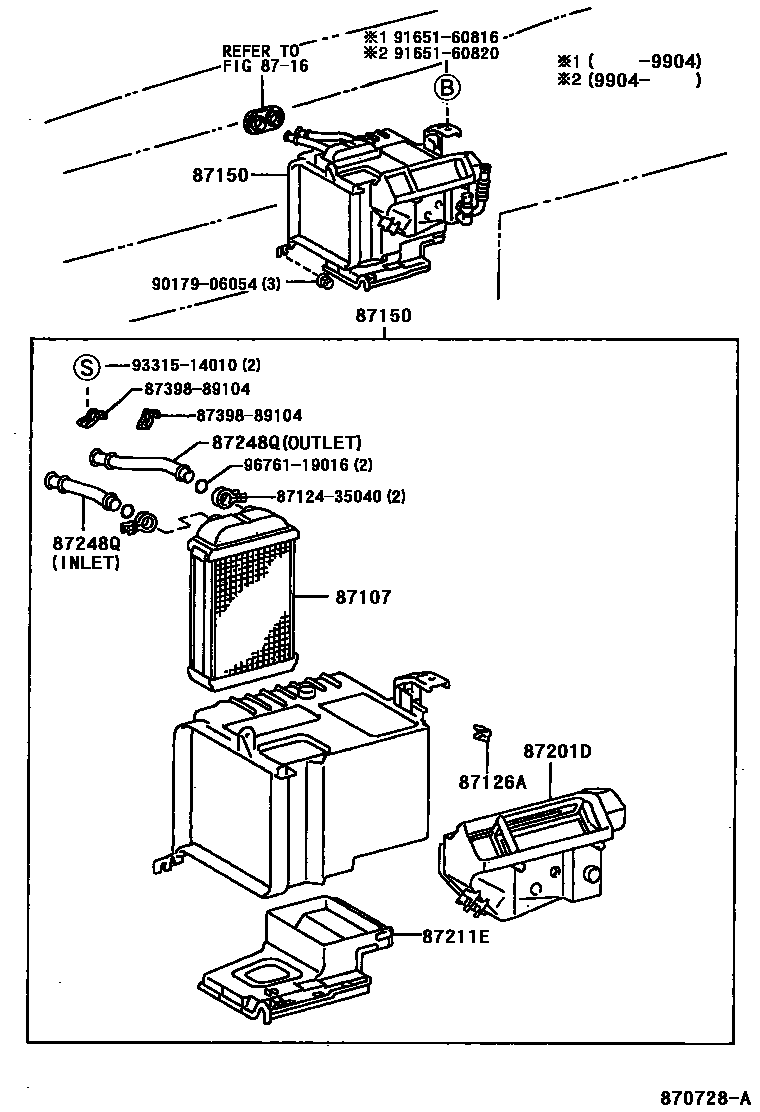

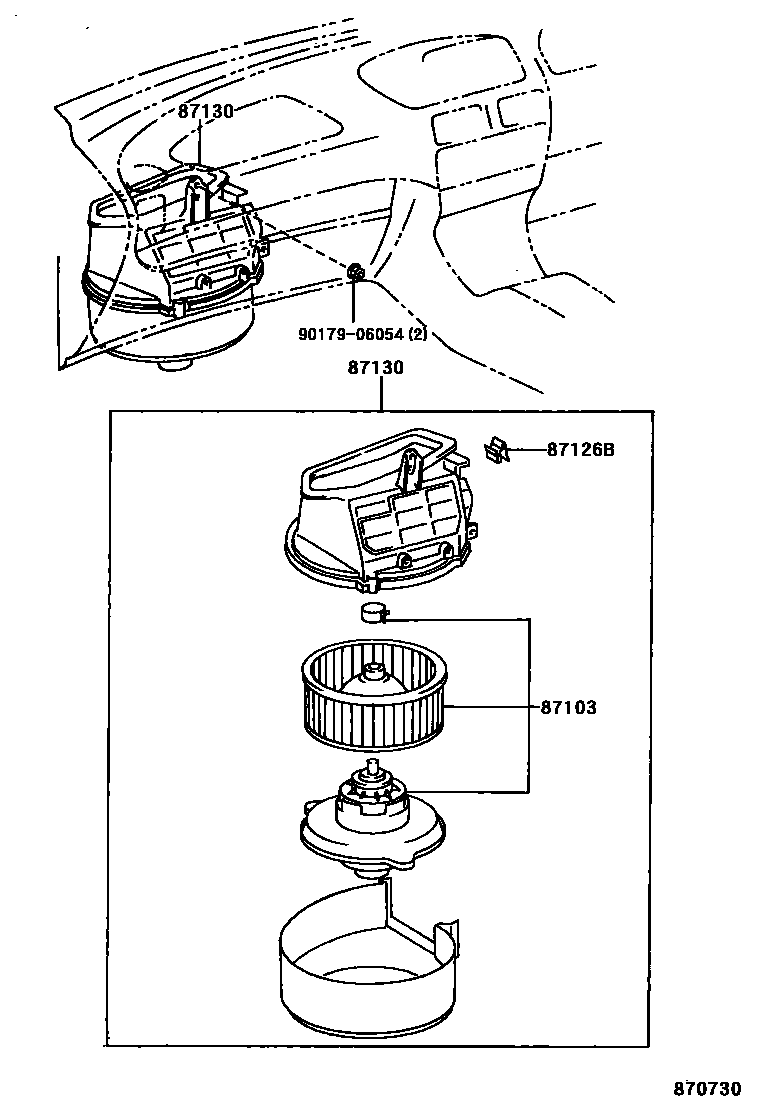

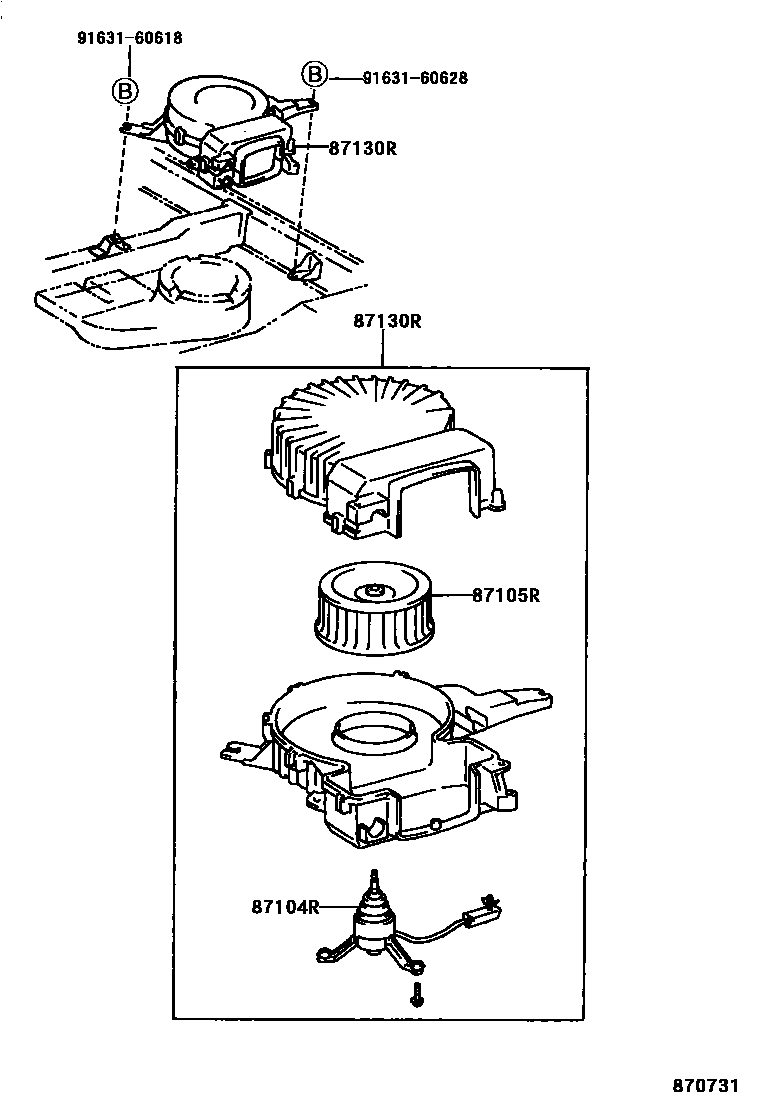

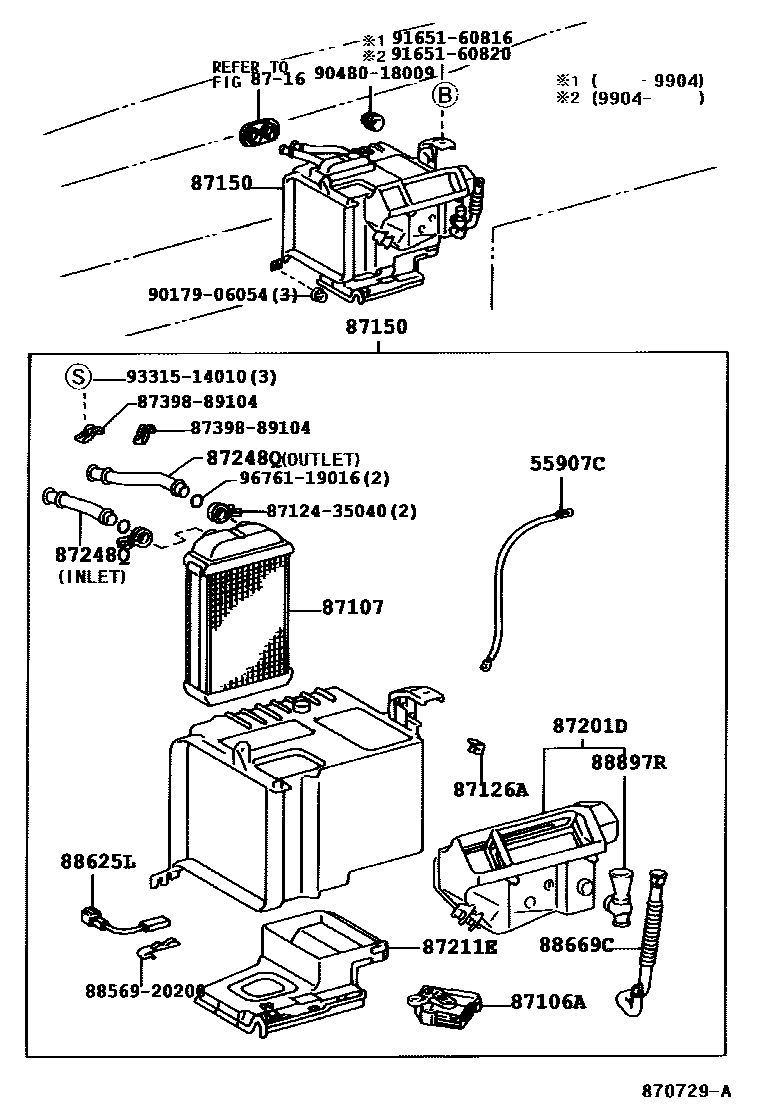

Toyota COROLLA EPC diagram 8712, 暖风和空调系统 - 加热装置和鼓风机, with 4 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55907C | Water valve control cable sub-assembly | 55907-12440 |
| 87103 | Heater blower motor sub-assembly with fan | 87103-12030 |
| 87104R | Rear heater blower motor sub-assembly | 87104-13020 |
| 87105R | Rear heater blower fan sub-assembly | 87105-13010 |
| 87106A | Damper servo mechanism sub-assembly | 87106-12080 · 87106-12110 |
| 87107 | Heater radiator device sub-assembly | 87107-12500 · 87107-12510 |
| 87126A | heater control clip | 87126-13010 |
| 87126B | heater control clip | 87126-12040 |
| 87130 | Front heater blower assembly | 87130-12321 · 87130-12322 |
| 87130R | Rear heater blower assembly | 87130-13010 |
| 87150 | Heater radiator assembly | 87150-13010 · 87150-13020 · 87150-13021 · 87150-13030 · 87150-13040 · 87150-13041 · 87150-13050 · 87150-13060 · 87150-13061 |
| 87201D | Air duct sub-assembly | 87201-12480 · 87201-12490 · 87201-12510 · 87201-12520 |
| 87211E | air duct | 87211-12220 · 87211-12230 · 87211-13010 · 87211-13020 · 87211-13030 · 87211-13040 |
| 87248Q | Front heater radiator water pipe | 87156-12020 · 87156-12030 · 87156-12040 · 87156-12050 |
| 88625L | Cooler thermistor | 88790-12030 · 88790-12031 |
| 88669C | air hose | 88669-12040 |
| 88897R | aspirator | 88897-12210 |
