Toyota COROLLA 后视镜 — Figure 8701

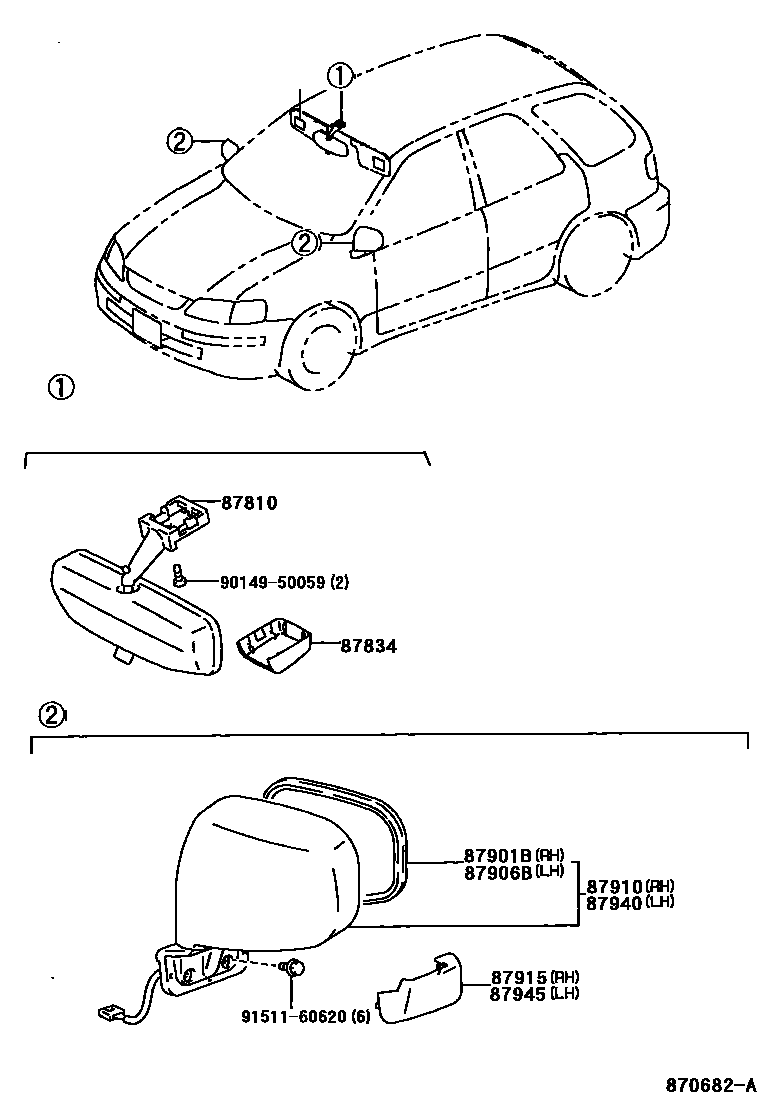

Toyota COROLLA EPC diagram 8701, 后视镜, with 1 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 87901B | Right exterior rearview mirror sub-assembly | 87931-13060 · 87931-13130 |
| 87906B | Left exterior rearview mirror sub-assembly | 87961-13060 · 87961-13130 |
| 87910 | Right exterior rearview mirror assembly | 87910-13060 · 87910-13120 · 87910-13130 |
| 87915 | Right exterior rearview mirror cover | 87915-13010 |
| 87940 | Left exterior rearview mirror assembly | 87940-13060 · 87940-13120 · 87940-13130 |
| 87945 | Left exterior rearview mirror cap | 87945-13010 |
