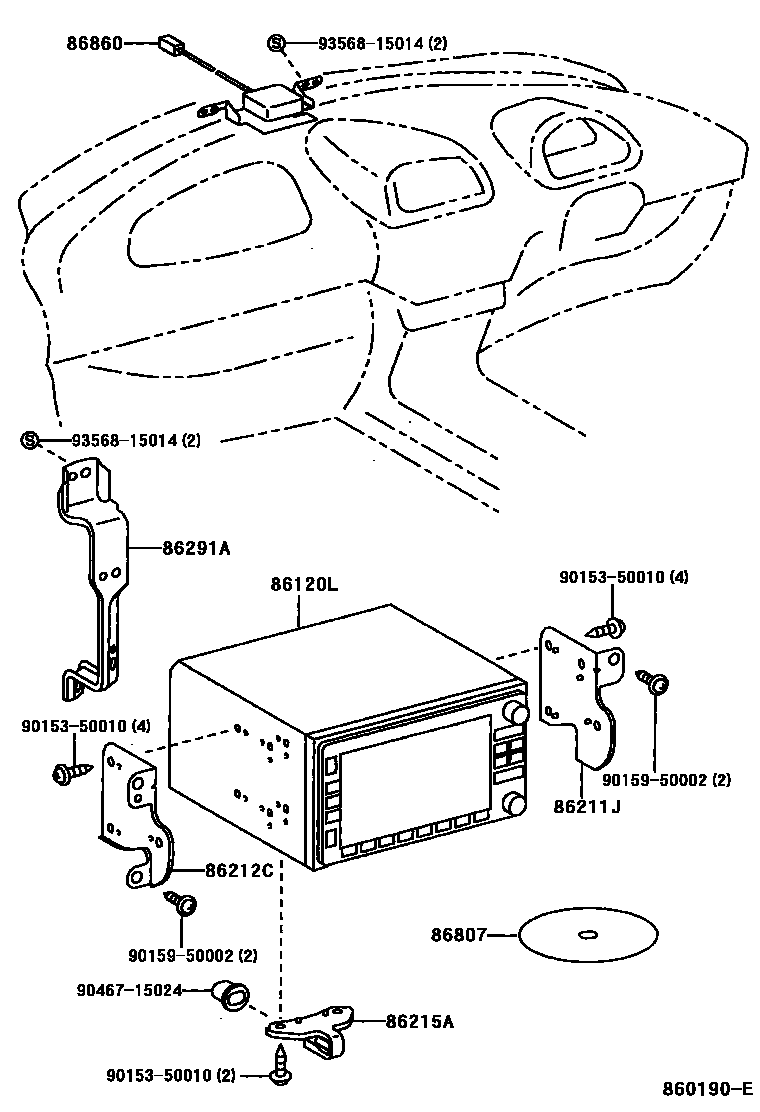

Toyota COROLLA 导航和前监视器显示屏 — Figure 8603
Toyota COROLLA EPC diagram 8603, 导航和前监视器显示屏, with 1 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86120L | Navigation receiver assembly | 86120-13030 · 86120-13031 · 86120-13032 · 86120-28320 · 86120-28321 |
| 86211J | No. 1 radio bracket | 86211-13020 |
| 86212C | No. 2 radio bracket | 86212-13020 |
| 86215A | Radio rear bracket | 86215-13010 |
| 86291A | monitor stand | 86291-13010 |
| 86807 | CD-ROM disc repair kit | 86807-13010 · 86807-13011 |
| 86860 | Navigation antenna assembly | 86860-13010 |
