Toyota COROLLA 挡风玻璃清洗器 — Figure 8503

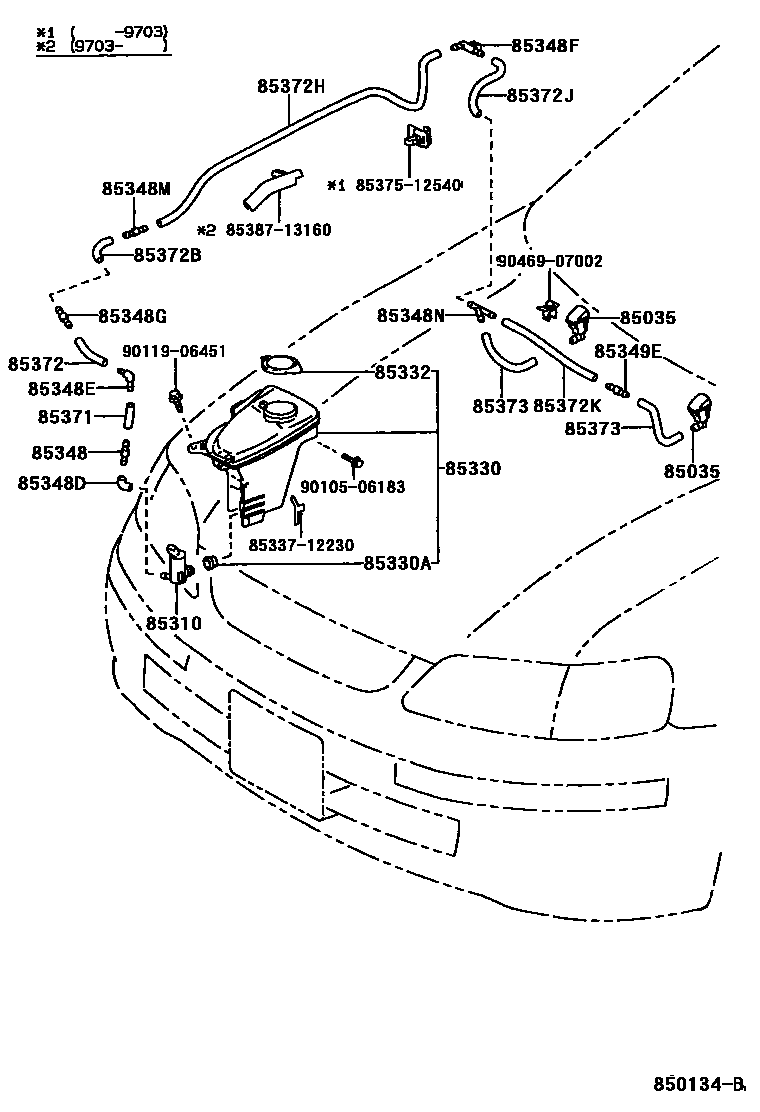

Toyota COROLLA EPC diagram 8503, 挡风玻璃清洗器, with 1 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85035 | Cleaner nozzle sub-assembly | 85381-44010 |
| 85310 | Windshield washer motor and pump assembly | 85330-12280 |
| 85330 | Windshield washer fluid tank assembly | 85315-12221 |
| 85330A | Windshield washer fluid tank bushing | 90099-32089 |
| 85332 | Windshield washer fluid tank cap | 85316-12221 |
| 85348 | Windshield washer hose connector No. 1 | 85375-10260 |
| 85348D | No. 1 windshield washer elbow joint | 85336-12230 |
| 85348E | No. 2 windshield washer elbow joint | 85317-12230 |
| 85348F | No. 3 windshield washer elbow joint | 85375-20800 |
| 85348G | Windshield washer hose connector No. 2 | 85317-12220 |
| 85348M | No. 3 windshield washer hose connector | 85375-10260 |
| 85348N | No. 4 windshield washer hose connector | 85348-14390 |
| 85349E | No. 5 windshield washer hose connector | 85375-10260 |
| 85371 | Windshield washer hose (from motor to connector) | 85319-12221 |
| 85372 | Windshield washer hose No. 1 (from connector to connector) | 85319-12421 |
