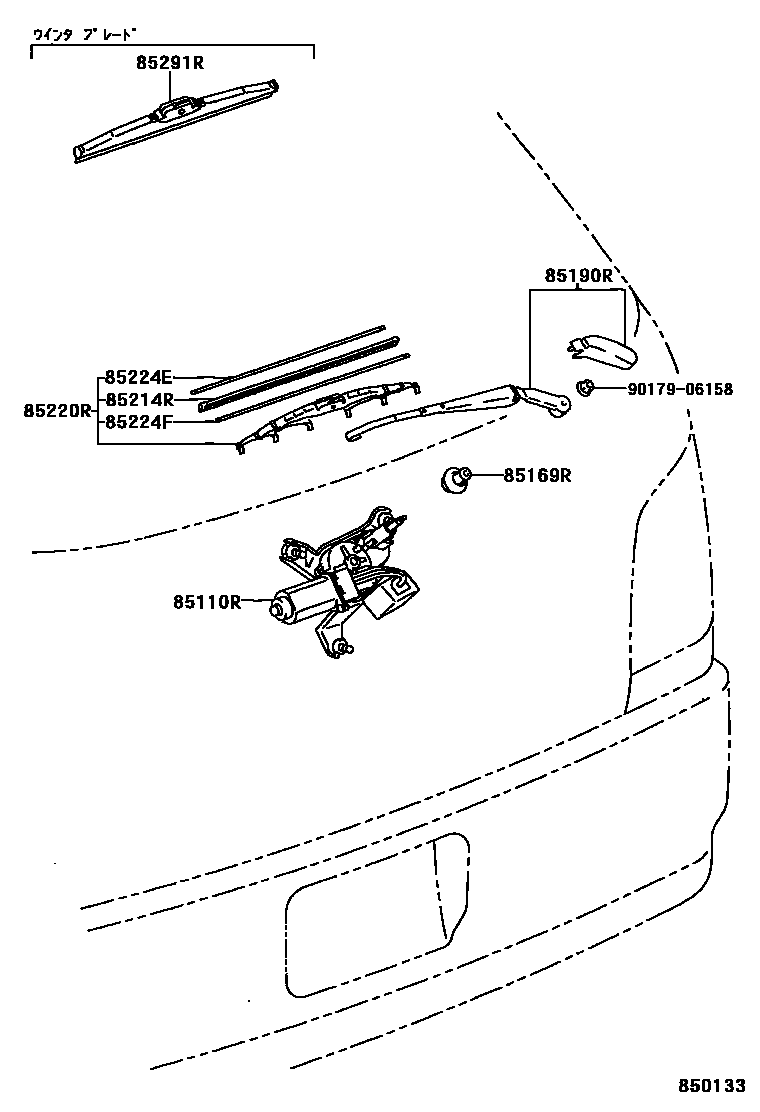

Toyota COROLLA 后刮水器 — Figure 8502
Toyota COROLLA EPC diagram 8502, 后刮水器, with 1 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85110R | Rear wiper motor assembly | 85130-13100 |
| 85169R | No. 1 rear wiper link pivot washer | 85143-13060 |
| 85190R | Rear wiper arm assembly | 85241-13050 |
| 85214R | Rear wiper rubber strip | 85214-10100 |
| 85220R | Rear wiper blade assembly | 85242-60050 |
| 85224E | No. 1 rear wiper rubber strip back plate | 85224-10200 |
| 85224F | No. 2 rear wiper rubber strip back plate | 85224-10200 |
| 85291R | Rear wiper blade for winter | 85291-60060 |
