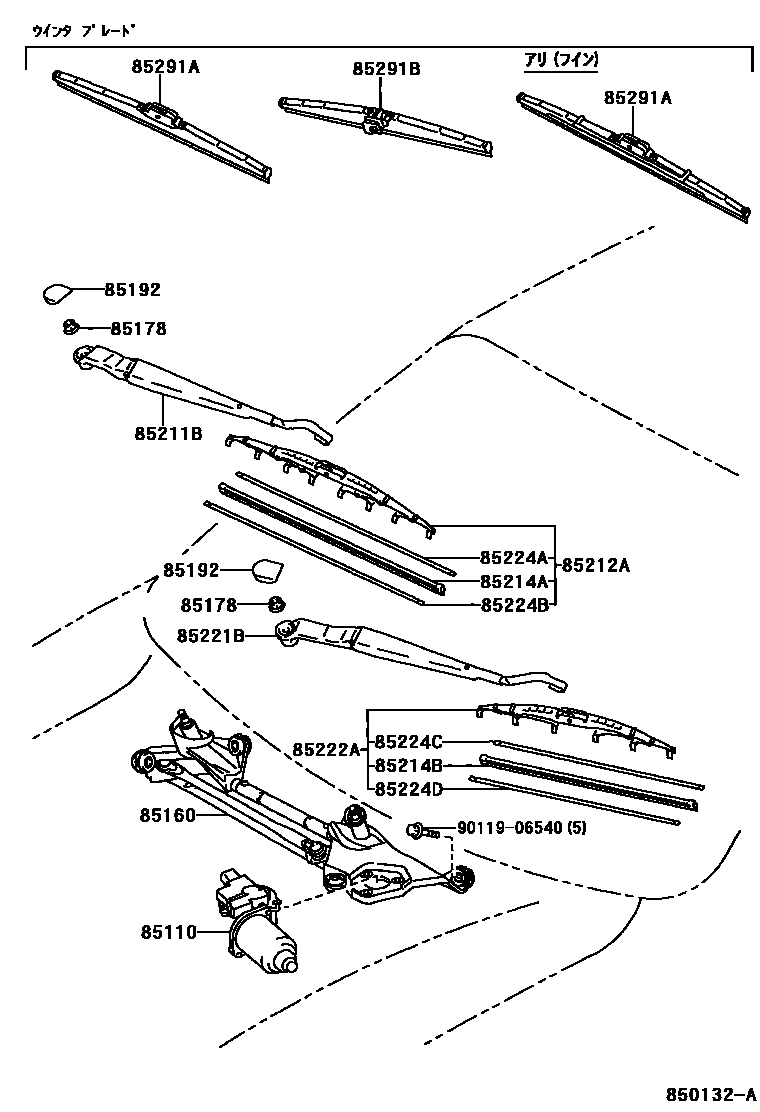

Toyota COROLLA 挡风玻璃刮水器 — Figure 8501
Toyota COROLLA EPC diagram 8501, 挡风玻璃刮水器, with 2 images and 16 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

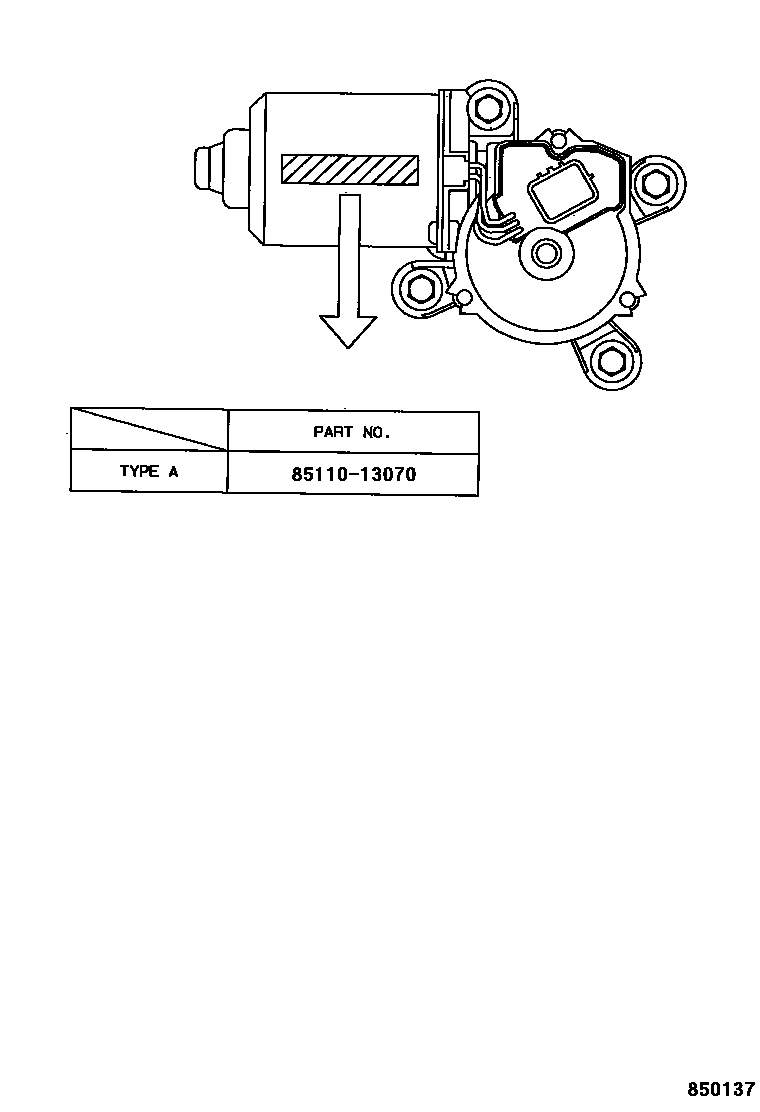

| 85110 | Windshield wiper motor assembly | 85110-13060 · 85110-13070 |
| 85160 | Windshield wiper connecting rod assembly | 85150-13060 |
| 85178 | Nut (for securing front wiper arm) | 90179-10223 |
| 85192 | windshield wiper arm cover | 85292-13010 |
| 85211B | Right front wiper arm | 85211-13010 |
| 85212A | Right front wiper blade | 85212-13010 · 85212-44010 |
| 85214A | Right wiper rubber strip | 85214-44010 |
| 85214B | Left wiper rubber strip | 85214-20350 |
| 85221B | Left front wiper arm | 85221-13020 |
| 85222A | Left front wiper blade | 85222-20390 |
| 85224A | No. 1 wiper rubber strip back plate | 85224-44010 |
| 85224B | No. 2 wiper rubber strip back plate | 85224-44010 |
| 85224C | No. 3 wiper rubber strip back plate | 85224-20310 |
| 85224D | No. 4 wiper rubber strip back plate | 85224-20310 |
| 85291A | Right front wiper blade for winter use | 85291-13030 · 85291-13040 |
| 85291B | Left front wiper blade for winter use | 85291-30030 |
