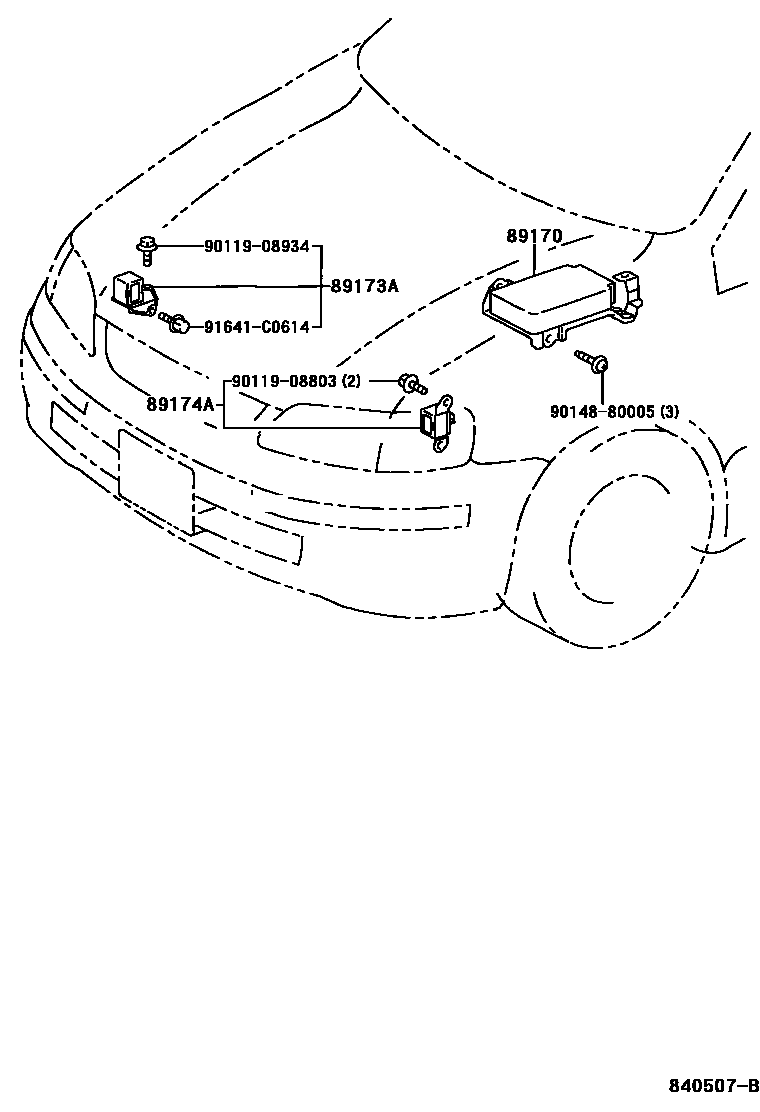

Toyota COROLLA 空气囊 — Figure 8421
Toyota COROLLA EPC diagram 8421, 空气囊, with 1 images and 3 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 89170 | air bag sensor assembly | 89170-12130 · 89170-12250 · 89170-13010 · 89170-13020 |
| 89173A | Right front air bag sensor | 89173-19195 |
| 89174A | Left front air bag sensor | 89173-19125 |
