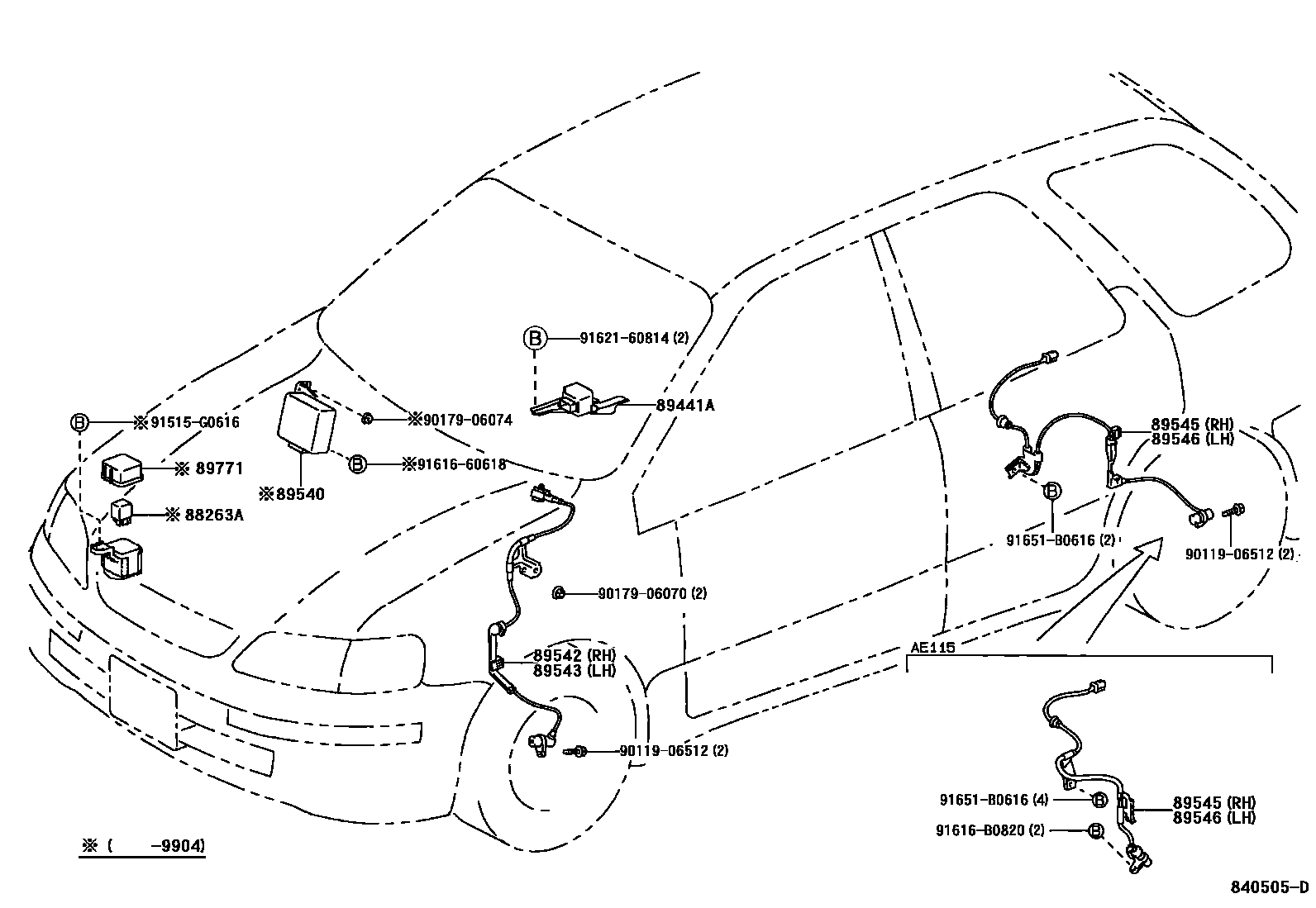

Toyota COROLLA ABS 和 VSC — Figure 8414
Toyota COROLLA EPC diagram 8414, ABS 和 VSC, with 1 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 88263A | Anti-skid control relay | 88263-24030 |
| 89441A | deceleration sensor | 89440-13020 |
| 89540 | Anti-skid control ECU assembly | 89540-13020 · 89540-13030 · 89540-13040 · 89540-13050 |
| 89542 | Right front wheel speed sensor | 89542-12040 |
| 89543 | Left front wheel speed sensor | 89543-12040 |
| 89545 | Right rear wheel speed sensor | 89545-12030 · 89545-12040 |
| 89546 | Left rear wheel speed sensor | 89546-12030 · 89546-12040 |
| 89771 | ABS relay box upper cover | 89771-13010 |
