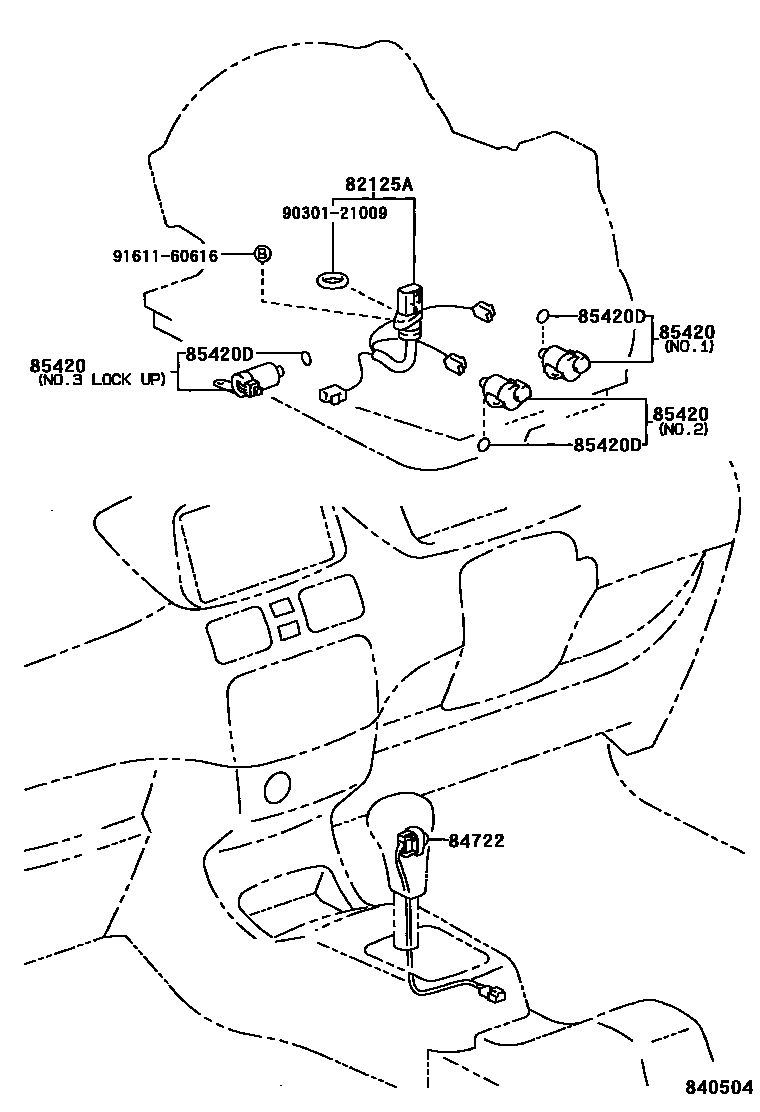

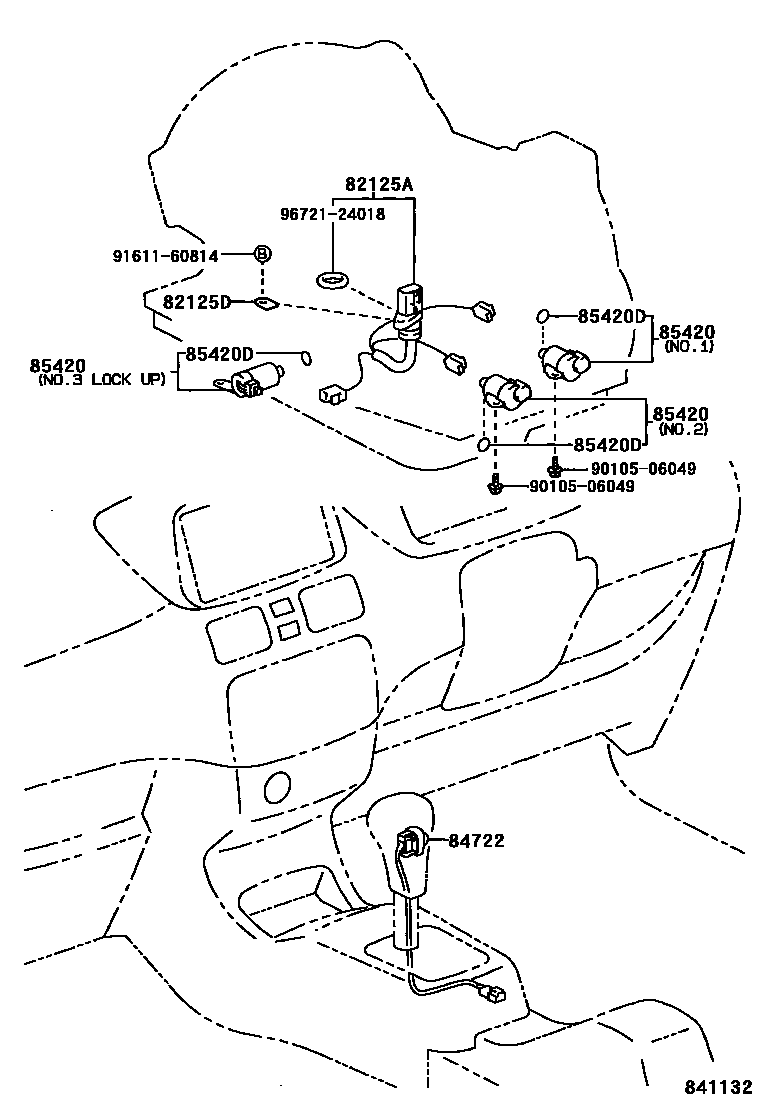

Toyota COROLLA 超速档和电子控制变速器 — Figure 8410
Toyota COROLLA EPC diagram 8410, 超速档和电子控制变速器, with 2 images and 4 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 82125A | Transmission wiring harness | 82125-12350 · 82125-20220 |
| 82125D | Transmission harness locking plate | 33485-30020 |
| 85420 | Transmission solenoid valve assembly | 85420-12100 · 85420-12120 · 85420-12140 · 85420-20140 · 85420-21010 · 85420-21020 · 85420-21030 · 85420-21040 · 85420-21050 · 85420-21060 · 85420-21070 · 85420-21080 · 85420-21090 · 85420-21100 · 85420-30200 |
| 85420D | O-ring (for transmission solenoid valve) | 90301-06004 |
