Toyota COROLLA 线束和卡夹 — Figure 8202
Toyota COROLLA EPC diagram 8202, 线束和卡夹, with 8 images and 42 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

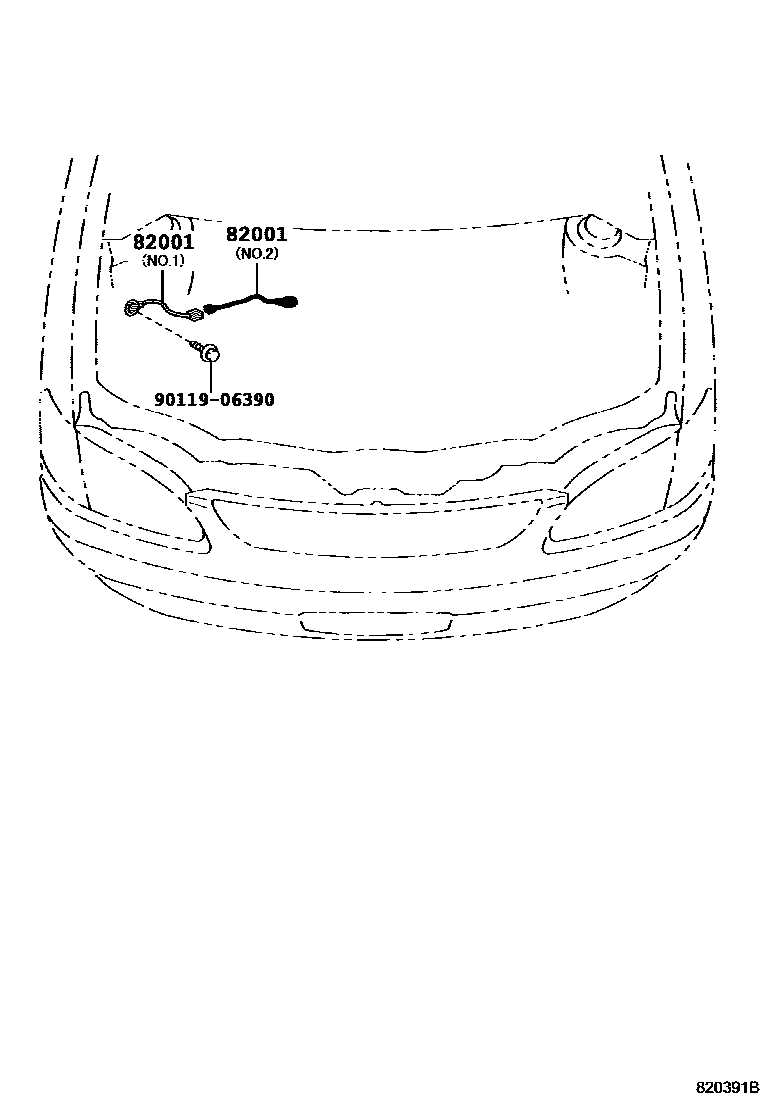

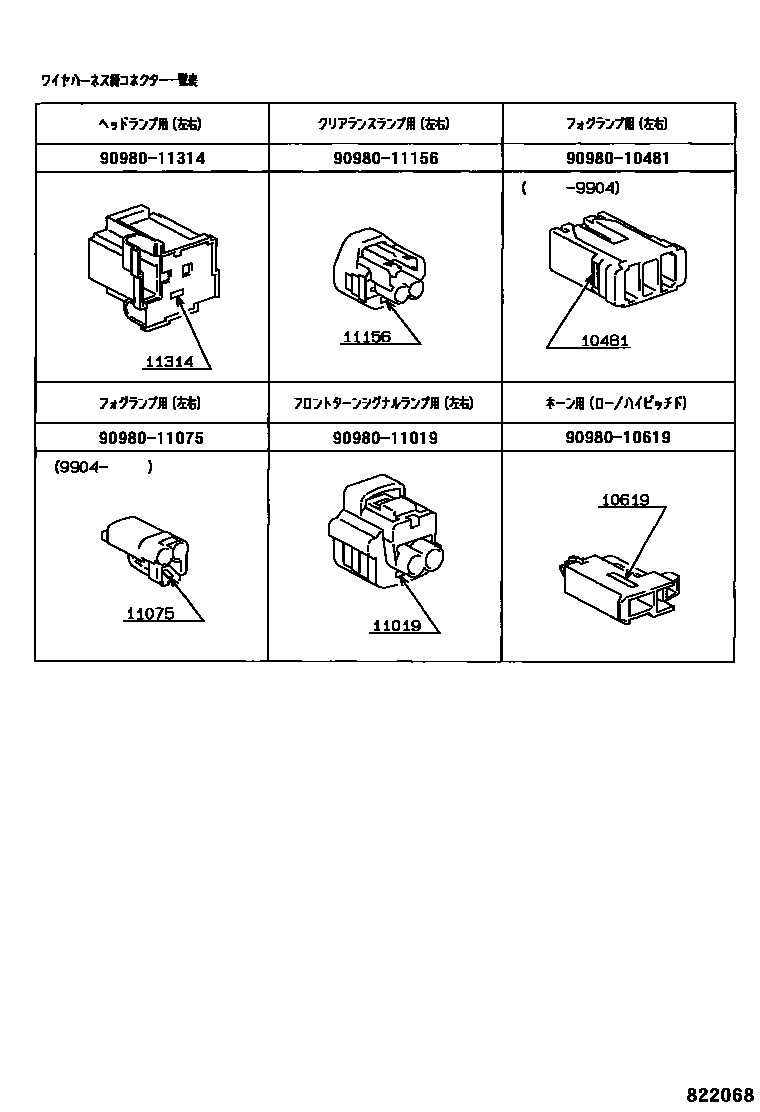

| 82001 | Connection cable No. 1 | 90980-07206 · 90980-07299 |

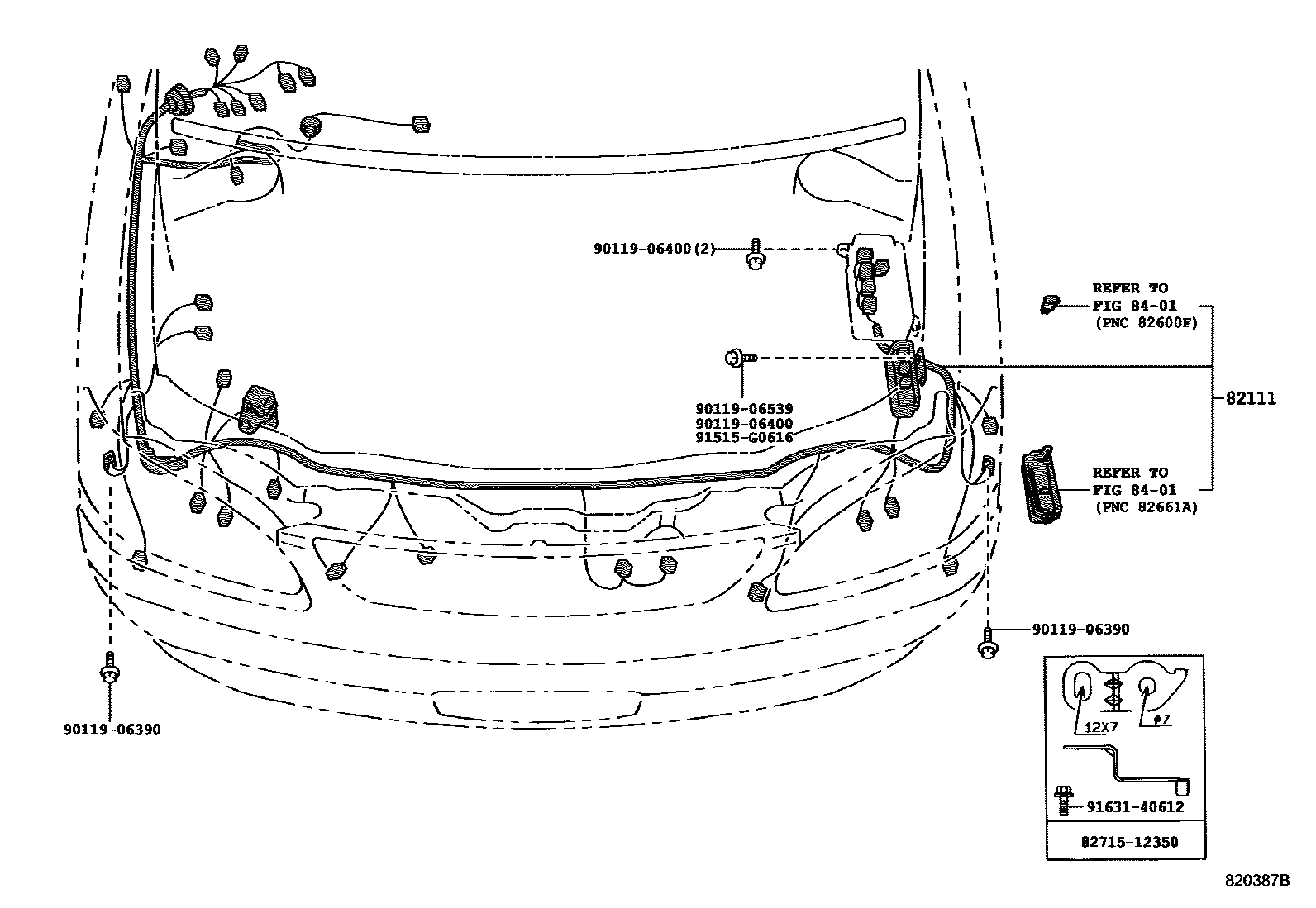

| 82111 | Engine room main wiring harness | 82111-13420 · 82111-13430 · 82111-13530 · 82111-13540 · 82111-13590 · 82111-13600 · 82111-13610 |

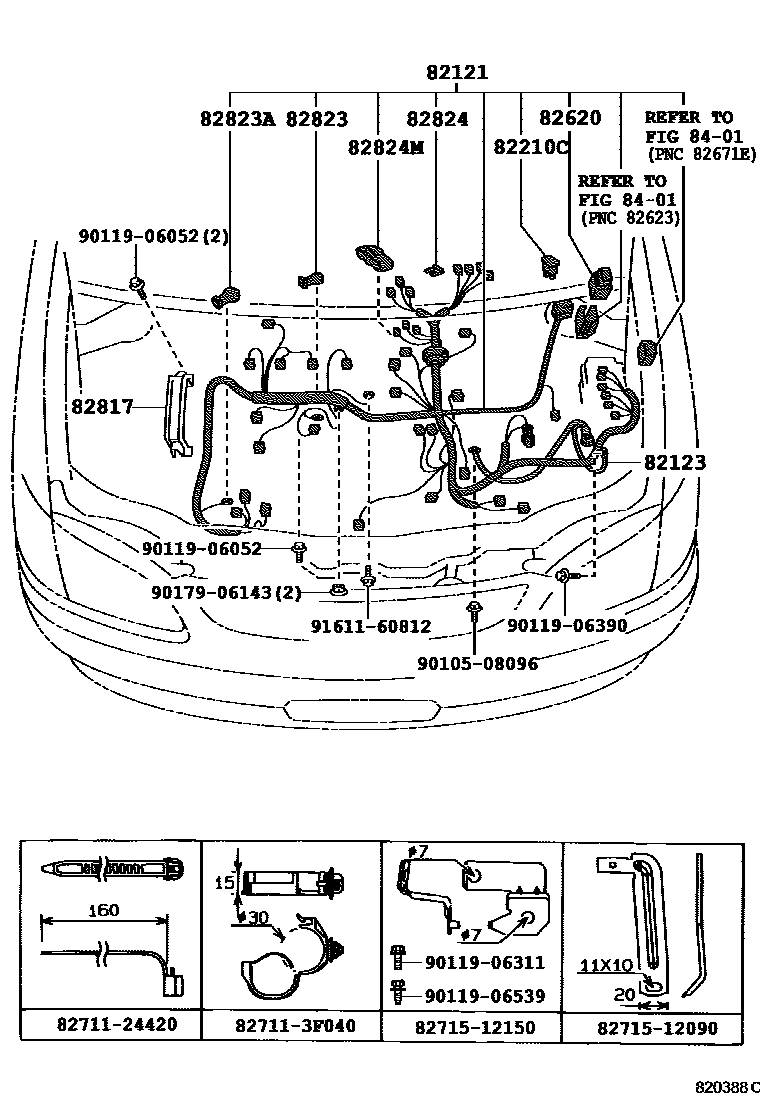

| 82121 | Engine wiring harness | 82121-13450 · 82121-13451 · 82121-13640 · 82121-13650 · 82121-13660 · 82121-13760 · 82121-13770 |
| 82123 | Engine No. 3 wiring harness | 82123-13010 |
| 82131 | Front panel wiring harness | 82131-13840 · 82131-13841 · 82131-13850 · 82131-13851 · 82131-13860 · 82131-13861 · 82131-13870 · 82131-13871 · 82131-13880 · 82131-13881 · 82131-13890 · 82131-13891 · 82135-13010 · 82135-13020 · 82135-13030 · 82135-13040 · 82135-13050 · 82135-13060 · 82135-13070 · 82135-13110 · 82135-13120 · 82135-13130 · 82135-13140 · 82135-13150 · 82135-13160 · 82135-13170 |

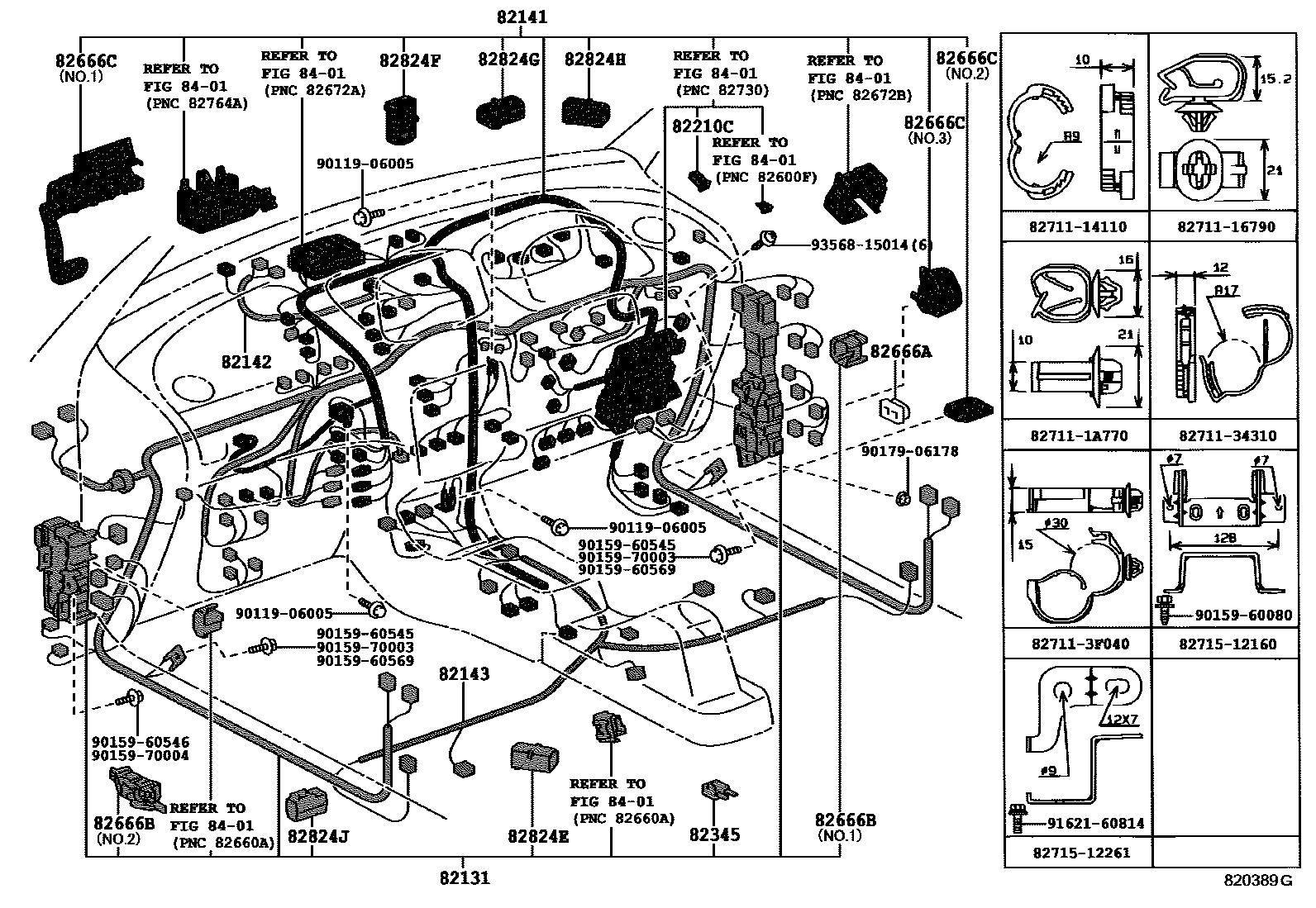

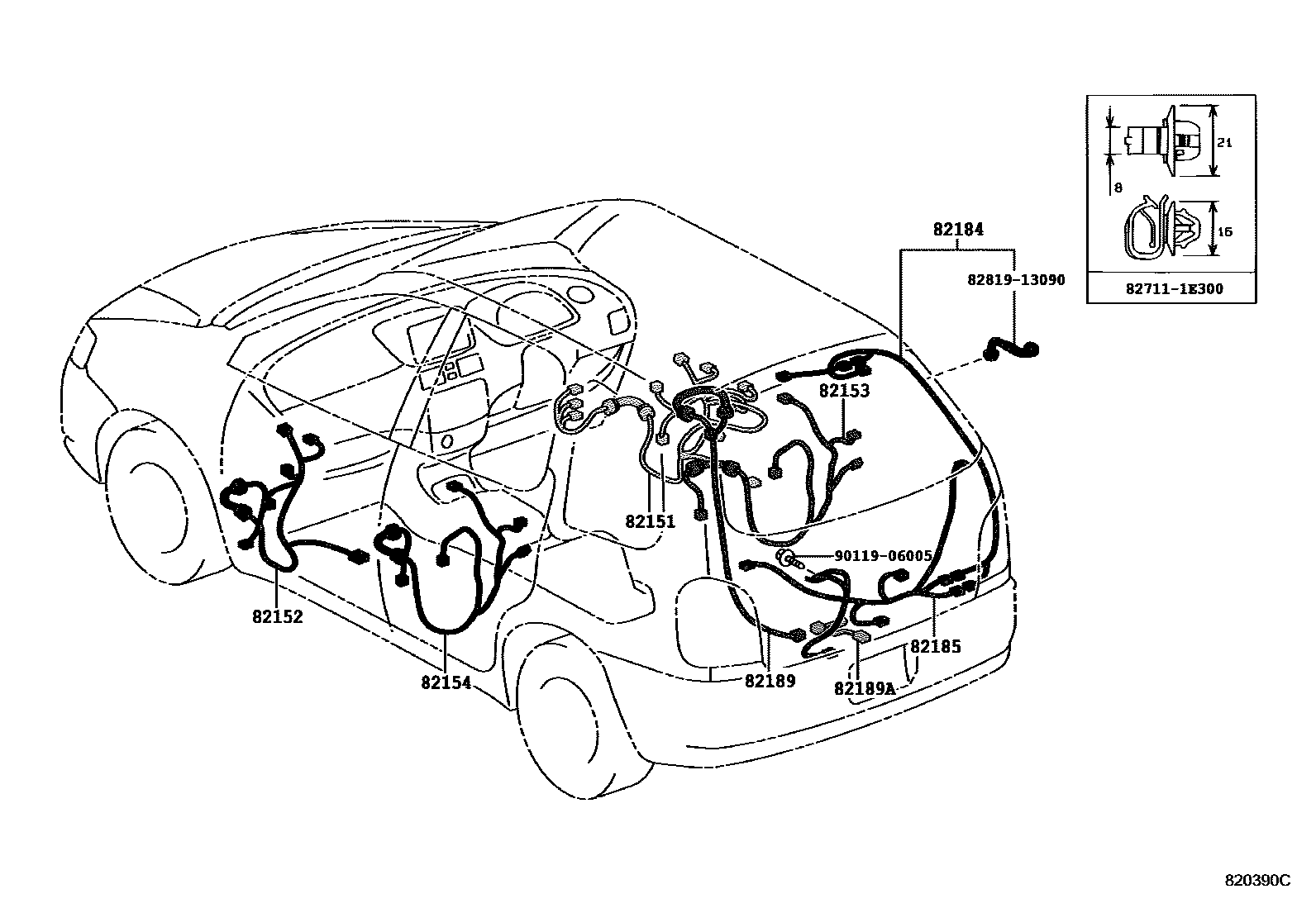

| 82141 | Dashboard wiring harness | 82141-13850 · 82141-13851 · 82141-13852 · 82141-13860 · 82141-13861 · 82141-13862 · 82141-13870 · 82141-13871 · 82141-13872 · 82141-13880 · 82141-13881 · 82141-13882 · 82141-1F710 · 82141-1F711 · 82141-1F720 · 82141-1F721 · 82141-1F730 · 82141-1F740 · 82141-1F750 · 82141-1F760 · 82141-1F770 · 82141-1F780 · 82141-1F790 · 82141-1F810 · 82145-13050 · 82145-13060 · 82145-13070 · 82145-13080 · 82145-13090 · 82145-13100 · 82145-13110 · 82145-13120 · 82145-13130 · 82145-13140 · 82145-13230 · 82145-13240 |
| 82142 | Instrument panel wiring harness No. 2 | 82142-13200 |
| 82143 | Instrument panel wiring harness No. 3 | 82143-13030 · 82143-13040 · 82143-13050 · 82143-13060 · 82143-13070 · 82143-13080 · 82143-13090 · 82143-13100 · 82143-13130 · 82143-13140 · 82143-13150 · 82143-13160 |
| 82151 | Right front door wiring harness | 82151-13080 · 82151-13160 |
| 82152 | Left front door wiring harness | 82152-13070 · 82152-13100 |
| 82153 | Rear door wiring harness No. 1 | 82153-13020 · 82153-13030 |
| 82154 | Rear door wiring harness No. 2 | 82153-13020 · 82153-13030 |

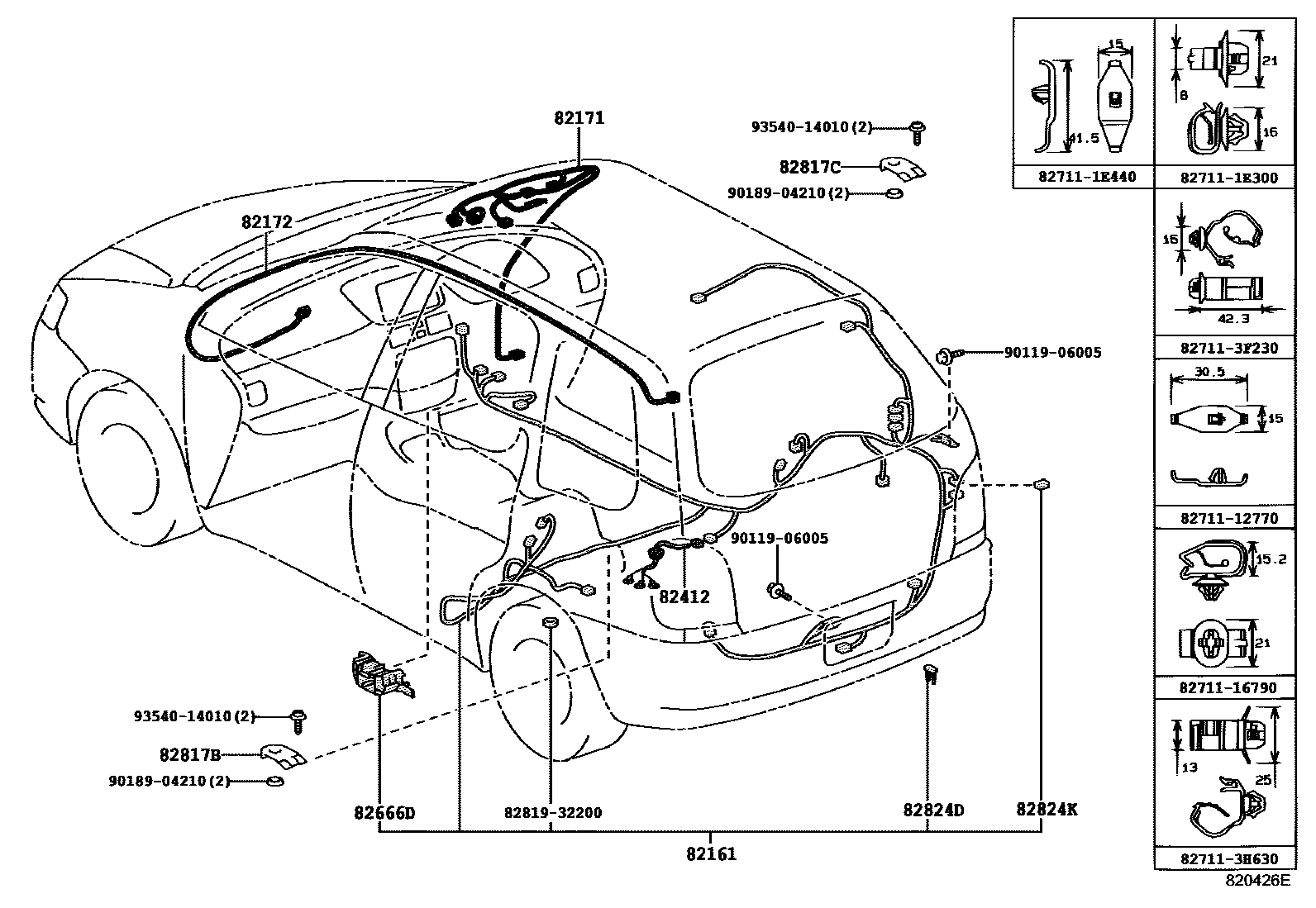

| 82161 | floor wiring harness | 82161-1F320 · 82161-1F321 · 82161-1F540 · 82161-1F541 · 82161-1F550 · 82161-1F560 · 82161-1F570 · 82161-1F580 · 82161-1F590 · 82161-1F600 · 82161-1F680 · 82161-1F690 · 82161-1F700 · 82161-1F710 |
| 82171 | Roof No. 1 wiring harness | 82171-13170 · 82171-13180 |
| 82172 | Roof No. 2 wiring harness | 82172-13040 |
| 82184 | Rear door No. 1 wiring harness | 82184-13220 |
| 82185 | Rear door wiring harness No. 2 | 82185-13460 |
| 82189 | Rear door wiring harness No. 4 | 82189-13010 |
| 82189A | Wiring harness under rear door | 82189-13020 |
| 82210C | fuse | 90982-08228 · 90982-08246 · 90982-08280 · 90982-08281 · 90982-08282 |
| 82345 | diode | 82345-12050 |
| 82412 | Fuel gauge wiring harness | 82412-13120 |
| 82620 | Fuse box assembly | 82620-13020 |
| 82666A | Connector holder No. 2 | 82666-13030 · 82666-13031 · 82666-13040 · 82666-13041 |
| 82666B | No. 3 connector holder | 82666-12110 · 82666-12150 |
| 82666C | No. 4 connector holder | 82666-12180 · 82666-12220 · 82666-13020 |
| 82666D | No. 5 connector holder | 82666-12140 |
| 82817 | No. 1 wire harness protection device | 82817-1A070 |
| 82817B | No. 3 wire harness protection device | 82817-13150 |
| 82817C | No. 4 wire harness protection device | 82817-13210 |
| 82823 | No. 1 terminal cover | 82823-12090 |
| 82823A | Terminal cover No. 2 | 82823-22060 |
| 82824 | Harness connector | 82824-24010 |
| 82824D | Harness connector | 82824-30180 |
| 82824E | Harness connector | 82824-12210 |
| 82824F | Harness connector | 82824-12200 |
| 82824G | Harness connector | 82824-12210 |
| 82824H | Harness connector | 82824-12220 |
| 82824J | Harness connector | 82824-44040 |
| 82824K | Harness connector | 82824-12220 |
| 82824M | Harness connector | 82824-12190 |
| 82991 | Fuse repair line | 82991-12070 |
