Toyota COROLLA 高位刹车灯 — Figure 8117

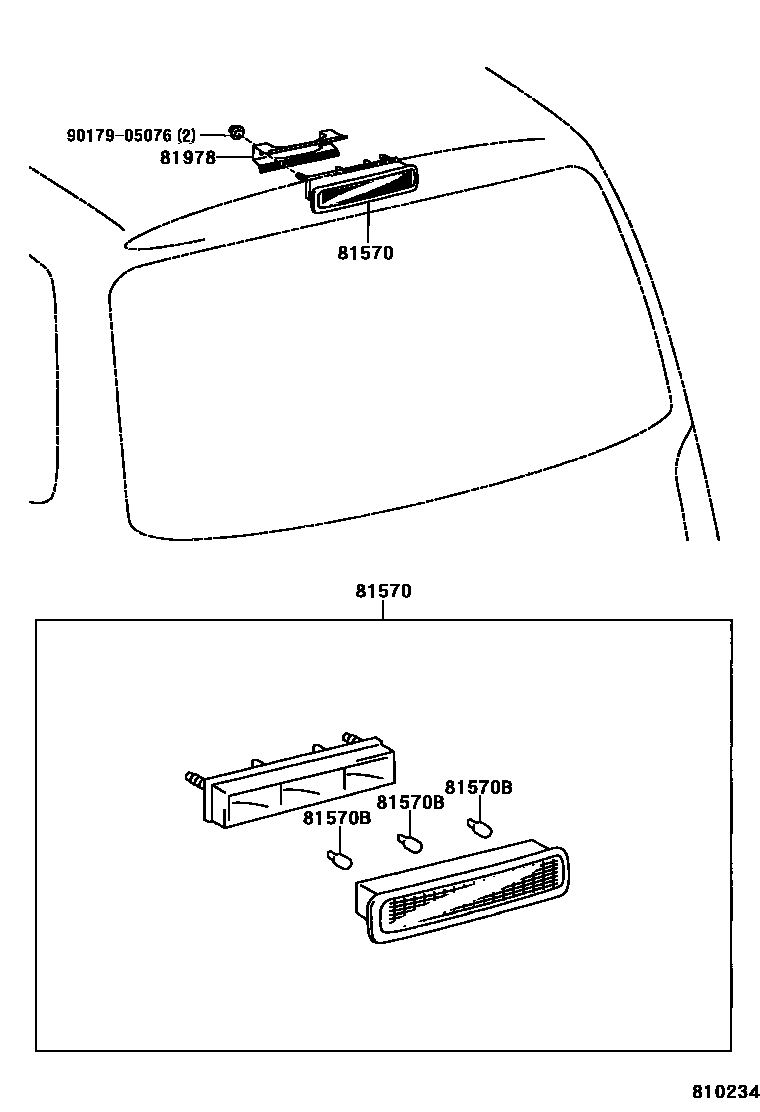

Toyota COROLLA EPC diagram 8117, 高位刹车灯, with 1 images and 3 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81570 | Central brake light assembly | 81570-13130 |
| 81570B | Bulb (for center brake light) | 99132-12050 |
| 81978 | Central brake light bracket | 81978-13010 · 81978-13011 |
